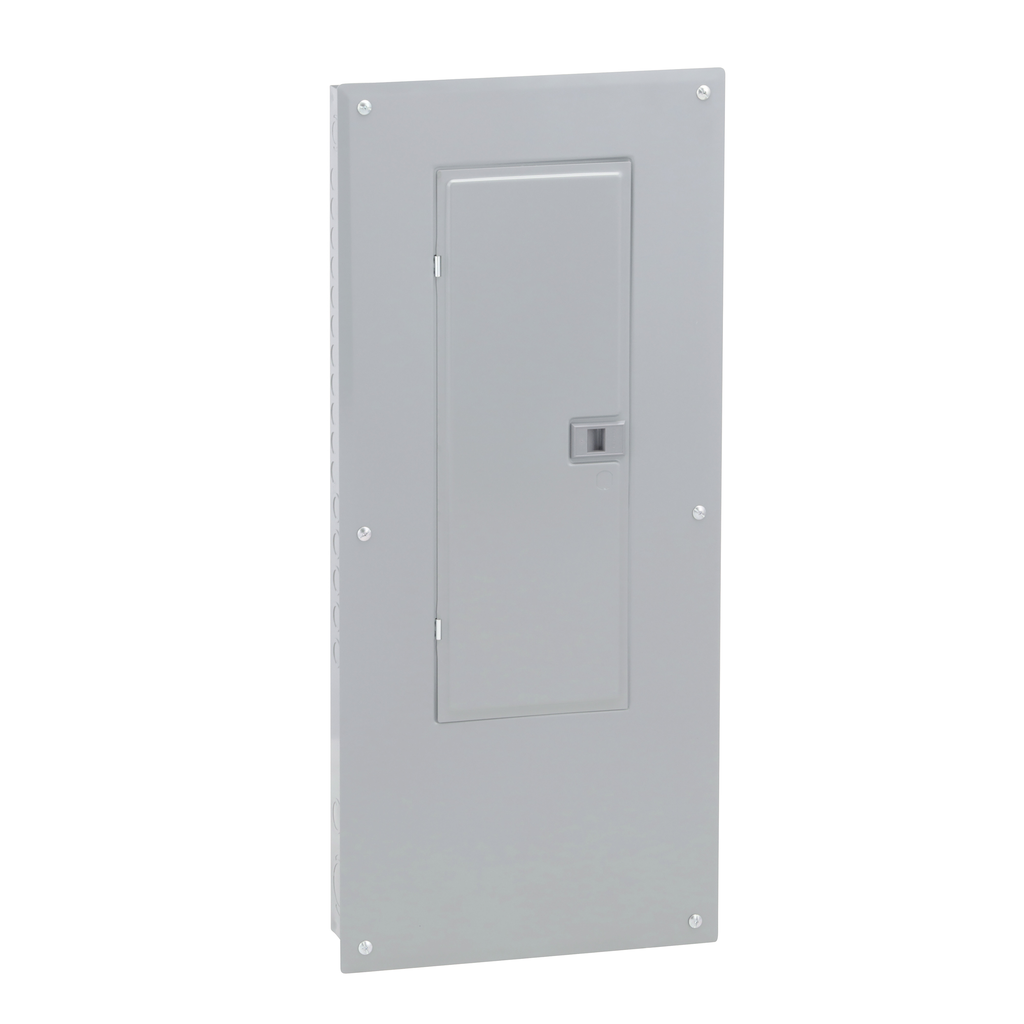

Square D HOM3060M200PCVP Load Center 200 Amp 30 Space 60 Circuit NEMA 1

Product Description

Square D HOM3060M200PCVP is a load center rated for 200 amps and operates on 120/240 VAC. This single-phase system provides 30 spaces and supports 60 circuits. It is suitable for residential and industrial applications. The load center features a combination of breakers including a two-pole breaker rated at 200A, a two-pole thirty-amp, and a one-pole twenty-amp circuit breaker.

• Designed for indoor use and NEMA 1 rated
• UL listed for safety and reliability
• Accepts wire sizes from AWG four to two hundred fifty kcmil

Product Highlights

The HOM3060M200PCVP load center helps protect electrical systems and equipment while ensuring safety in homes and businesses. Its durable construction and effective design allow for easy installation and maintenance.

Product Information

Standard Information

• Catalog Number: HOM3060M200PCVP
• Brand: Square D

Technical Specifications

• Rated Current: 200 Amp
• Voltage: 120/240 Volt
• Number of Spaces: 30
• Number of Circuits: 60
• Enclosure Rating: NEMA 1
• Cover Type: Combination flush/surface cover
• Breaking Capacity: 22 kA
• Country of Origin: USA
