Square D HOM3060M200PC Hom Indr 200A Mb

Product Description

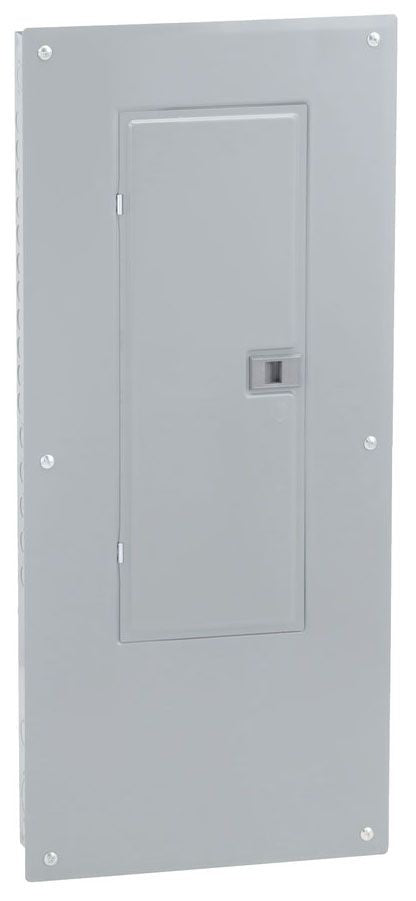

Square D HOM3060M200PC is a main breaker load center suitable for indoor applications. It features a 200 Amp current rating, making it ideal for residential or light commercial use.

• UL approved rated for 120/240 Volt AC
• Flush or surface cover options available
• 30 spaces for circuit configurations

Product Highlights

This Homeline load center is designed for effective power distribution and protection. It can accommodate a maximum of sixty circuits.

Product Information

Standard Information

• Brand: Square D Co.
• Manufacturer: Square D/Telemecanique

Technical Specifications

• UPC: 78590197775
• Main Breaker Type: QOM2 Main Frame Size
• Breaker Mounting: Plug-On
• Interrupting Rating: 22 Kiloamp
• Bus Material: Tin Plated Aluminum
• Main Wire Size: 4 AWG to 250 KCMIL (Aluminum/Copper)
• Enclosure Type: NEMA 1 Indoor
• Cover Type: Flush/Surface
• Enclosure Size Designation: 10
• Size: 14.25 Inch Width x 3.74 Inch Depth x 33.78 Inch Height
• Approval: UL
• Catalog Number: HOM3060M200PC
• Voltage Rating: 120/240 Volt AC
• Current Rating: 200 Amp
• Circuit Configuration: 1-Phase 3-Wire
• Maximum Number of Spaces: 30
• Maximum Number of Circuits: 60
