Square D HOM3060M200PC 120/240 VAC 200 Amp 1-Phase 30-Space 60-Circuit NEMA 1 Load Center with Cover

Product Description

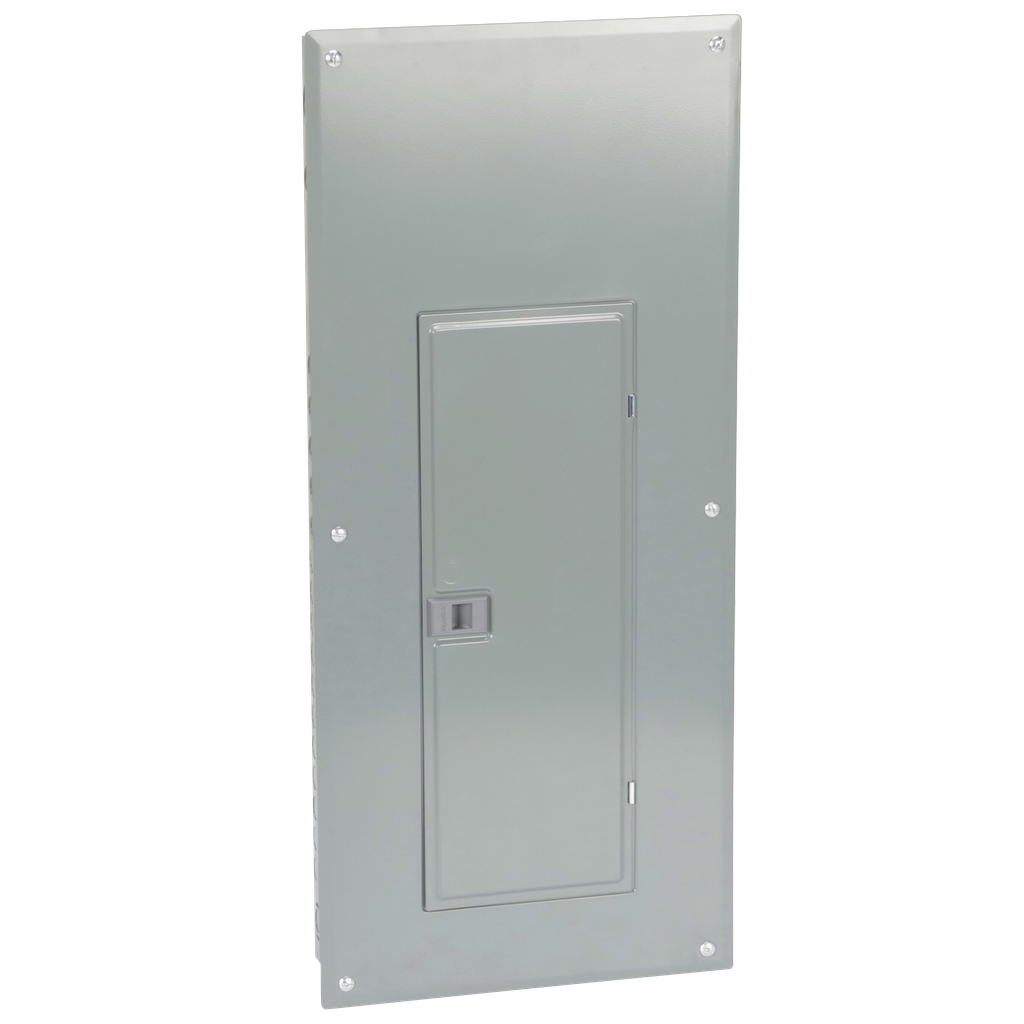

The Square D HOM3060M200PC is a load center designed for residential and commercial use. It has a one-phase 200 amp rating and operates at 120/240 Volts. This unit features thirty spaces and sixty circuits in a NEMA 1 indoor enclosure. It includes a combination flush/surface cover suitable for indoor applications.

• Single-phase, 200 amp capacity
• Thirty spaces and sixty circuits
• Rated for indoor use with NEMA 1 enclosure

Product Highlights

This load center is built with safety and efficiency in mind, allowing for the connection of Homeline circuit breakers, ground fault circuit breakers, and arc fault interrupters. The HOM3060M200PC supports box lugs that accept a wire size range from four AWG to two hundred fifty kcmil copper or aluminum.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Height: 33.77 inches
• Width: 14.25 inches
• Depth: 3.74 inches
• Voltage: 120/240 Volt
• Current: 200 Amp
• Amperage: 200 Amp
• Wire Size: AWG 4 to 250 kcmil
• Enclosure Rating: NEMA 1
• Certification: UL Listed
• Short Circuit Current Rating: 22 kA
• Country of Origin: USA
