Square D HOM3060M150PCVP Load Center 150 Amp Value Pack 30-Space 60-Circuit

Product Description

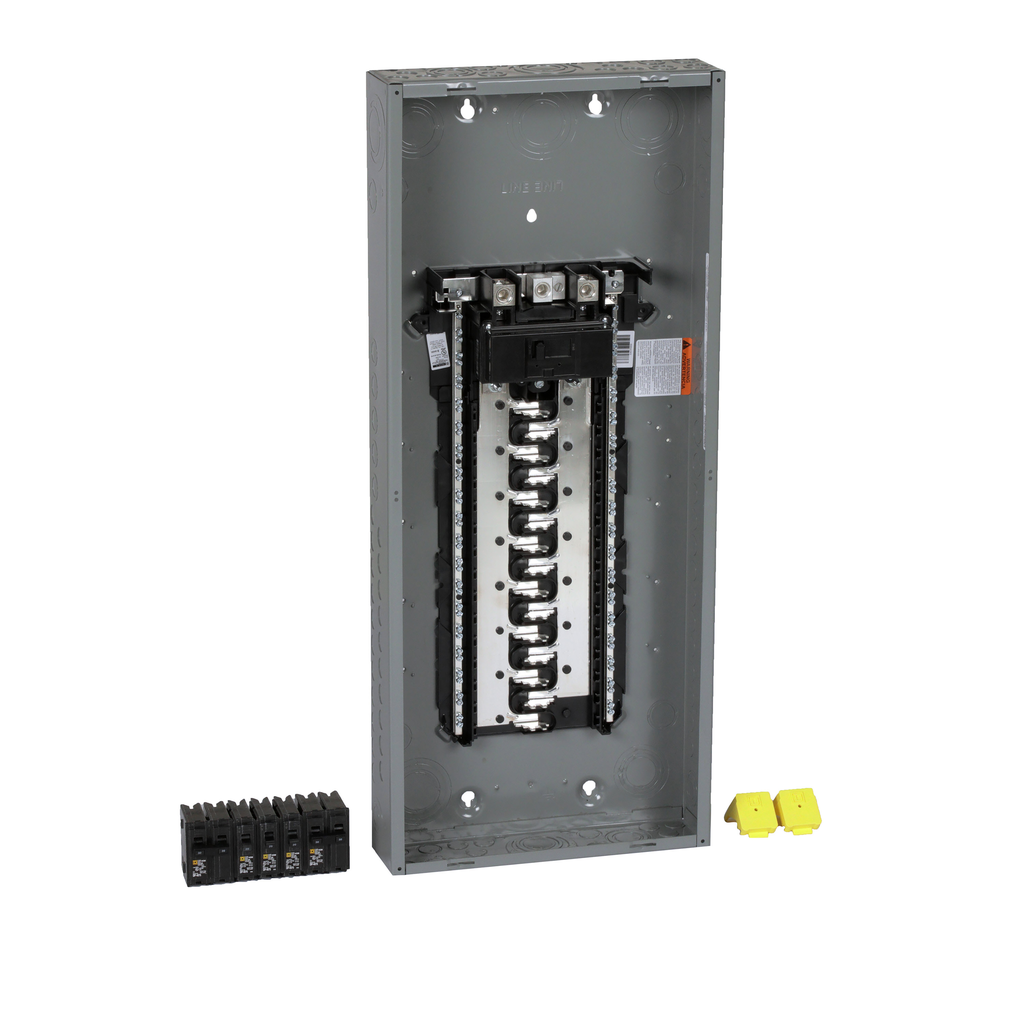

The Square D HOM3060M150PCVP is a main breaker load center designed for residential and industrial applications. It features a two pole plug on neutral main supply circuit breaker rated at 150 Amp 120/240 VAC. This load center includes accessories such as a two pole 30 Amp circuit breaker and a one pole 20 Amp circuit breaker. It has a robust construction to protect electrical systems and ensure safety.

• 30 spaces and 60 circuits for high capacity.
• UL Listed for quality assurance.
• Compatible with a wire range of 4 AWG to 250 kcmil.

Product Highlights

This load center provides essential protection and allows easy access to circuit breakers. The design supports indoor installation with a NEMA 1 rating.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOM3060M150PCVP
• Amperage: 150 Amp
• Voltage: 120/240 Volt
• Height: 33.77 inches
• Width: 14.25 inches
• Depth: 3.74 inches
• Breaking Capacity: 22 kAIC
• Wire Size: AWG 4 to 250 kcmil
• Enclosure: NEMA 1, baked enamel gray
• Operating Temperature: 23 degrees F to 104 degrees F
• Country of Origin: United States
• Special Features: Tin plated aluminum busbar
• Certifications: UL Listed File E-6294
