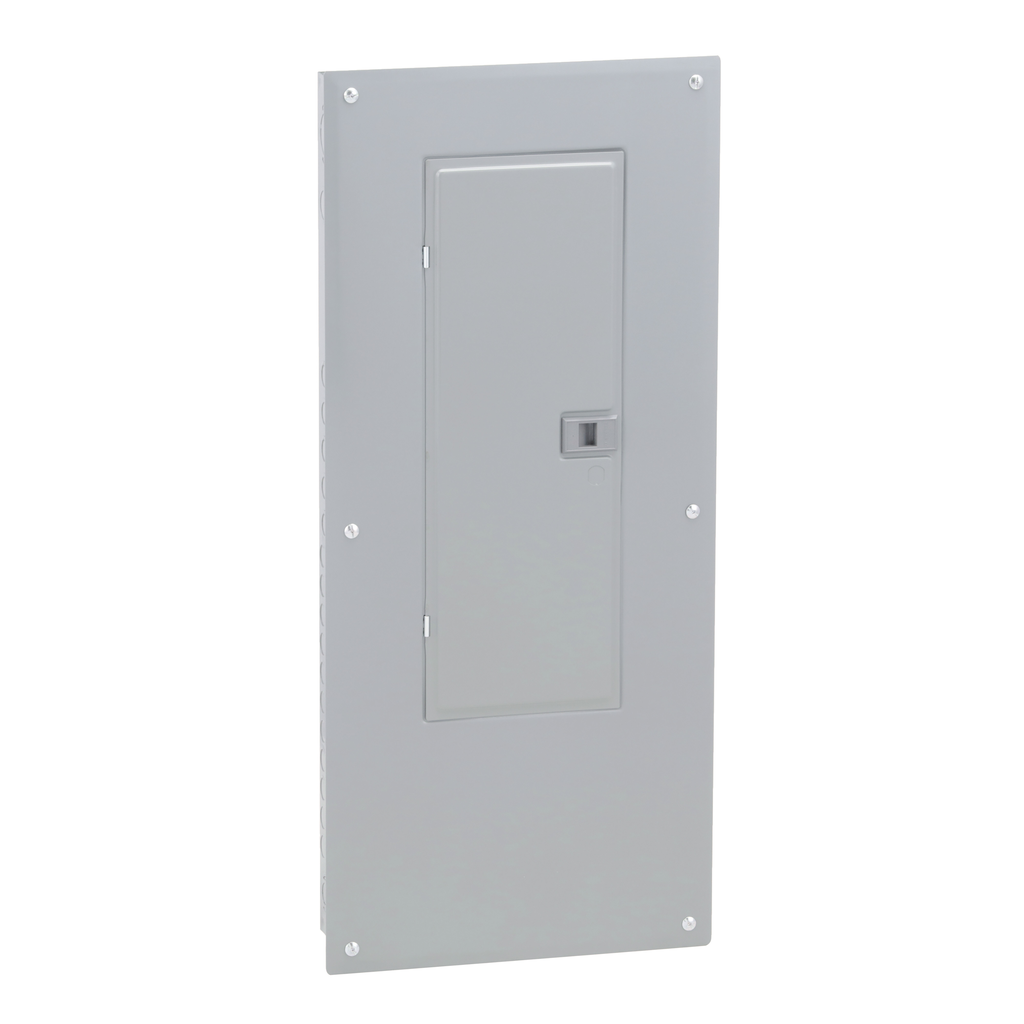

Square D HOM3060M150PC Load Center 150 Amp 30 Spaces NEMA 1

Product Description

The Square D HOM3060M150PC is a load center designed for residential and industrial electrical systems. With a rating of 150 amps and 120/240 VAC, this center offers 30 spaces and is suitable for indoor use. It includes a two-pole main breaker and has a 22 kA breaking capacity. The NEMA 1 enclosure is made for surface or flush mounting.

• Rated for indoor use with a NEMA 1 rating.
• Accommodates wire sizes from AWG four to 250 kcmil.
• UL Listed for safety and reliability.

Product Highlights

This load center supports a full range of accessories and features single-phase operation. It is ideal for protecting electrical systems in homes and businesses.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOM3060M150PC
• Voltage: 120/240 VAC
• Current: 150 Amps
• Number of Spaces: 30
• Enclosure Material: Welded sheet steel
• Cover Type: Combination flush/surface cover
• Ambient Temperature Range: 23°F to 104°F
• Material: Tin plated aluminum busbar
