Product Description

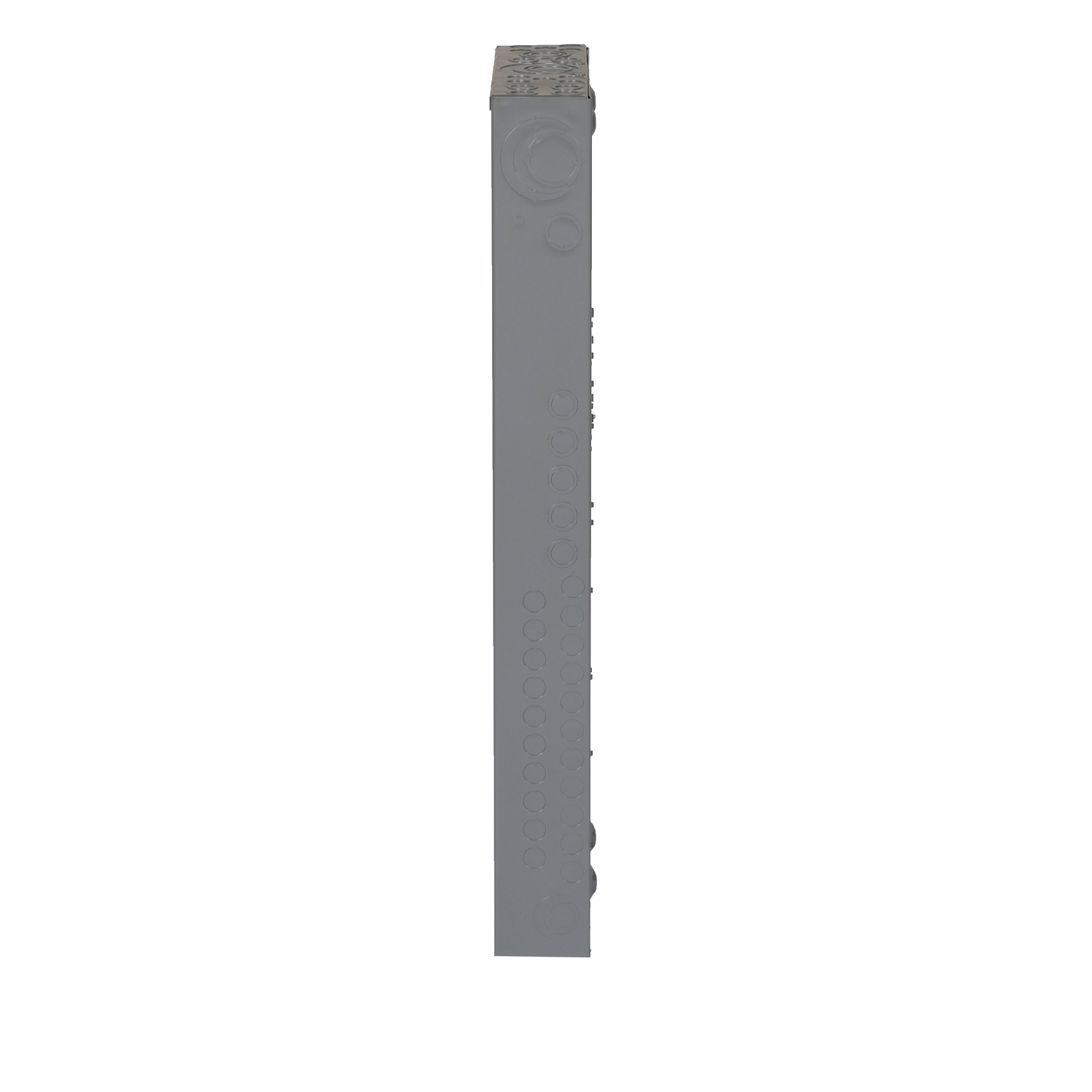

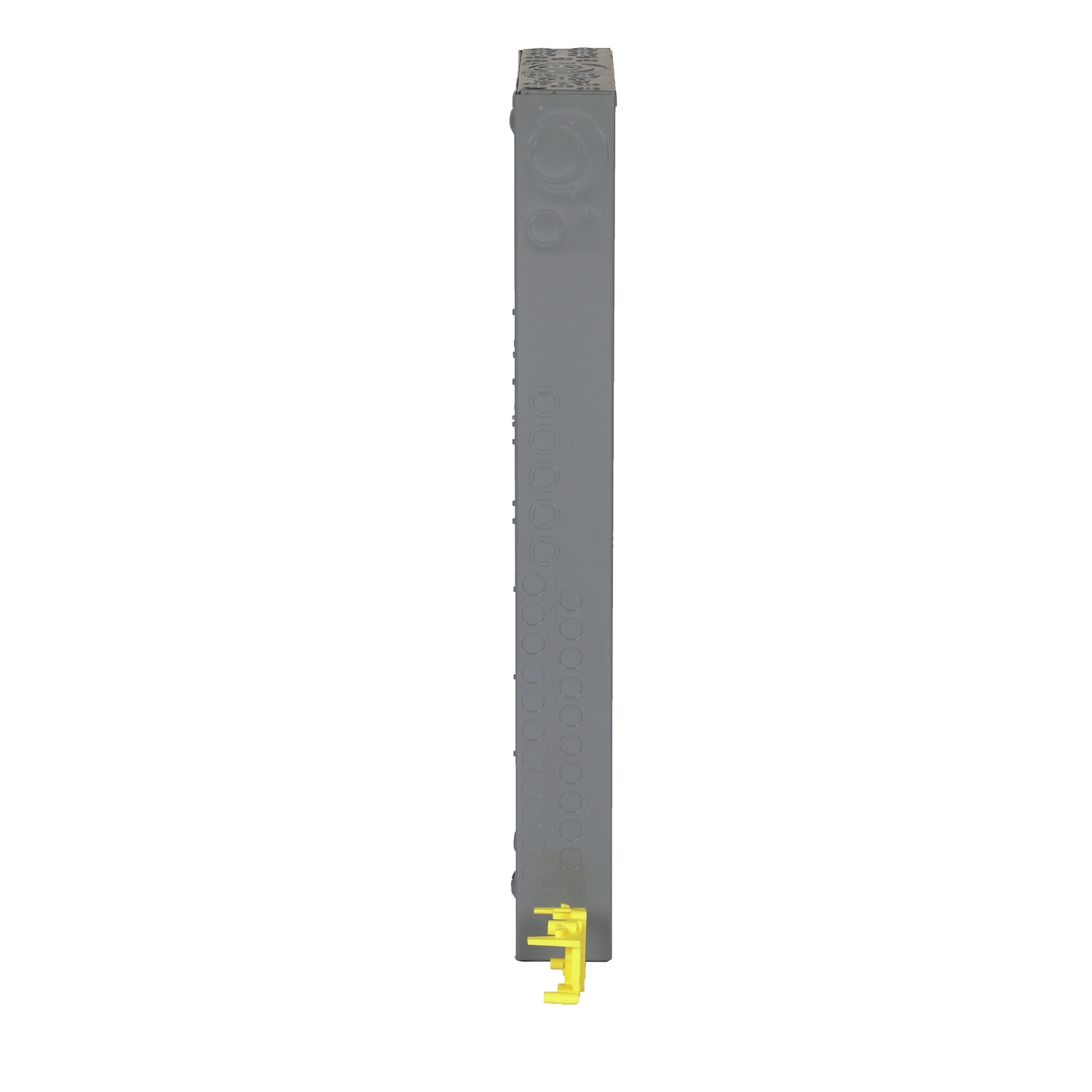

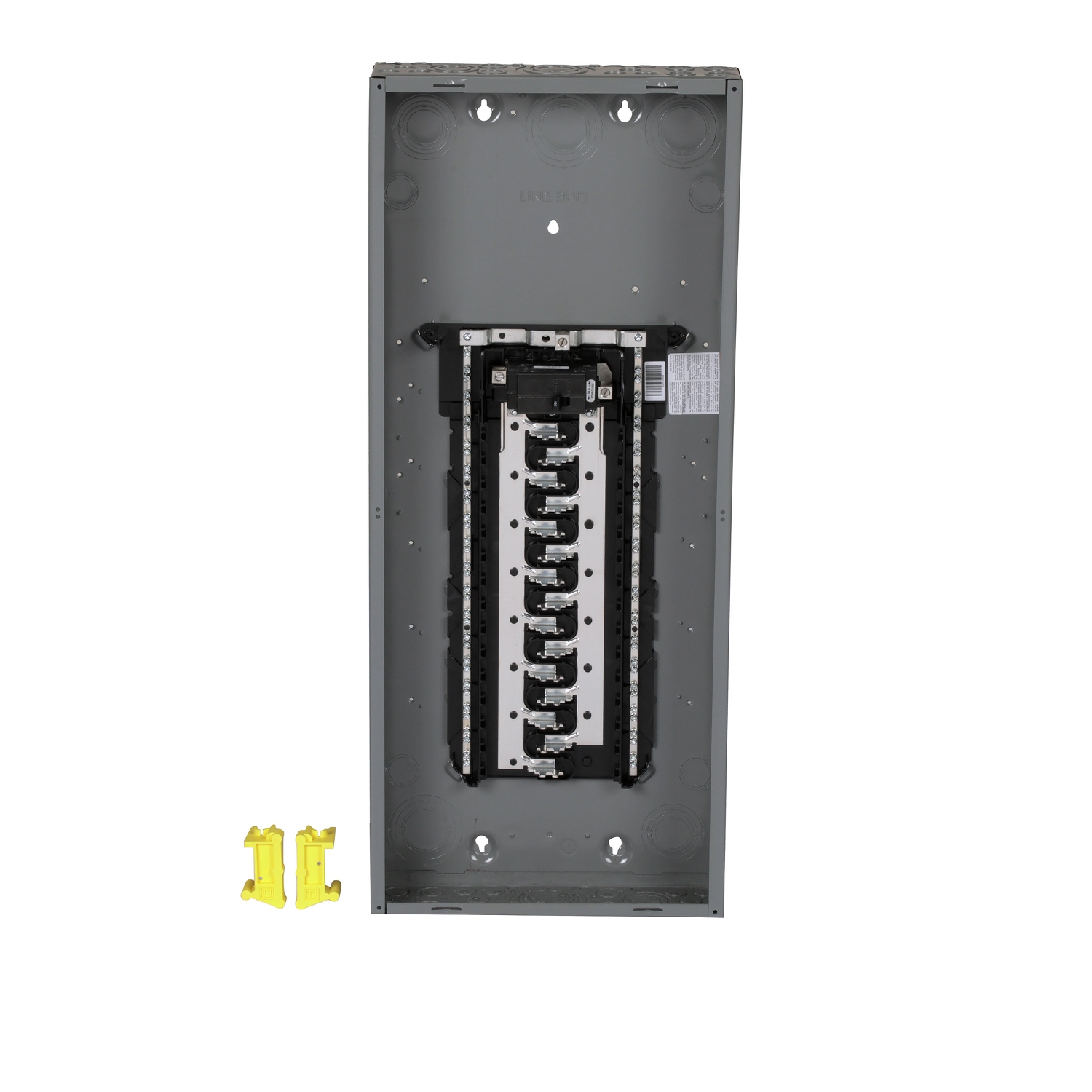

The Square D HOM3060M125PC Homeline load center features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Designed for residential and industrial use to protect electrical systems, equipment, and people. This single-phase system is rated for indoor use or is rain proof and has a 22 kA breaking capacity.
- Two pole plug on neutral main supply circuit breaker rated at 125A 120/240 VAC
- NEMA 1 indoor enclosure with a combination flush/surface indoor cover
- Electrical connections are box lugs and accept a wire range of 6 AWG to 2/0 AWG copper or aluminum wire
Product Highlights
The Square D Homeline load centers enable the use of a full complement of accessories. UL Listed.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: HOM3060M125PC
-
Country of Origin: United States
Technical Specifications
-
UPC: 785901977469
-
Type: Convertible
-
Depth: 3.74 Inches
-
Phase: Single-Phase
-
Width: 14.25 Inches
-
Height: 33.78 Inches
-
Cover Type: Combination Flush/Surface
-
NEMA Rating: NEMA 1
-
Voltage Rating: 120/240 VAC
-
Amperage Rating: 125 Amperes
-
Interrupt Rating: 22 Kiloamperes
-
Number Of Spaces: 30
-
Country of Origin: US
-
Wiring Configuration: 3-Wire
-
Number of Circuits: 60
-
Material: Tin Plated Aluminium: Busbar
-
Enclosure Material: Steel
-
Line Rated Current: 125 A
-
Operating Temperature: 23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
-
Short Circuit Current: 22 kA
-
Cable Size: AWG 6...AWG 2/0 aluminium/copper
-
Applications: DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
-
Certifications: UL Listed File E-6294
-
Conductor Size: 6-2/0 AWG
-
Surface Finish: Baked enamel Gray
-
Main Breaker Type: HOM, QOM1 Main Frame Size
-
Breaker Mounting: Plug-On
-
Bus Rating: TIN PLATED ALUMINIUM
-
Enclosure Size Designation: 10
-
Rated Current: 125A
-
Rated Voltage: 120/240V ac
-
AWG Range: AWG 6...AWG 2/0
-
Max. Single Pole Circuits: 30
-
Max. Tandem Circuits: 30
-
Finish: Baked Enamel Gray
-
Enclosure: 1
-
Current: 125 Amp
-
Voltage: 120/240 Volt
-
Bus Material: Tin Plated Aluminum
-
Main Wire Size: 6 to 2/0 AWG (Copper/Aluminum)
-
Maximum Amperage (A): 125 A
-
Ambient Air Temperature For Operation: -5 °C || 40 °C
-
Short Circuit Current Rating: 22 kA
-
Max. No. of Tandem Breakers: 30
-
Primary/Ambient Air Temp.: -5°C || 40°C
-
Enclosure NEMA Rating: NEMA 1 indoor
-
Circuit Breaker Type: Homeline
-
Load Center Type: PoN Convertible Mains (breaker)
-
Provided Equipment: circuit-breaker 1 ) 2P 125 A 120/240 V AC main supply ready assembled
-
Electrical Connection: lugs
-
Range Of Product: Homeline
-
Main Circuit Breaker or Main Lug: PoN Convertible Mains (breaker)
