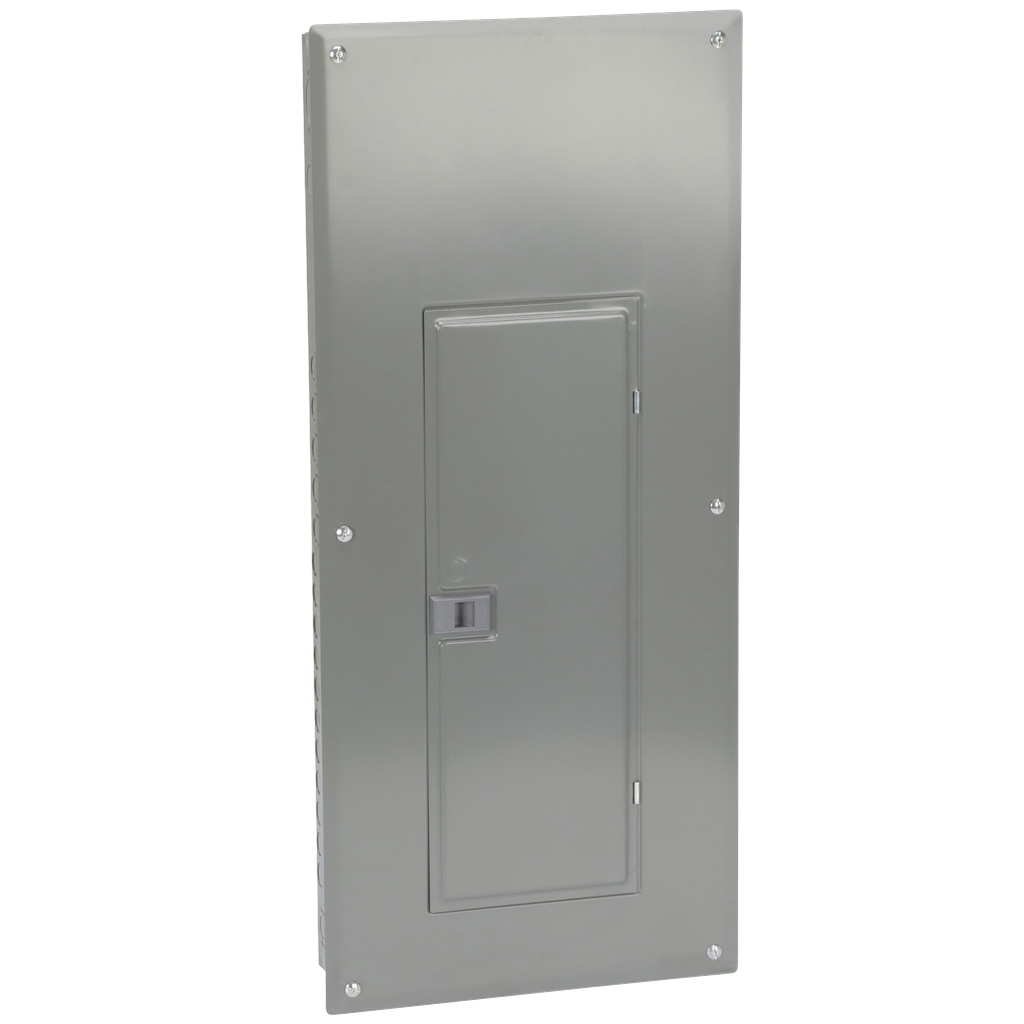

Square D HOM3060M100PC Load Center 100 Amp 1-Phase 30-Space 60-Circuit NEMA 1

Product Description

Square D HOM3060M100PC is a load center that provides essential features for residential and commercial applications. This load center supports a capacity of 100 Amps and operates at a voltage of 120/240 VAC. It is designed for one-phase systems and includes space for 30 circuits within a NEMA 1 enclosure.

• Two pole plug on neutral main supply circuit breaker rated at 100A
• 22 kA breaking capacity
• Accommodates wire sizes from 6 AWG to 2/0 AWG copper or aluminum

Product Highlights

This load center is UL Listed and suitable for indoor use, providing protection for electrical systems, equipment, and people.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOM3060M100PC
• Height: 33.77 inches
• Width: 14.25 inches
• Depth: 3.74 inches
• Current: 100 Amp
• Voltage: 120/240 Volt
• Number of Circuits: 60
• Number of Spaces: 30
• Material: Tin Plated Aluminium, Busbar
• Cover Type: Combination flush/surface cover
• Country of Origin: United States
