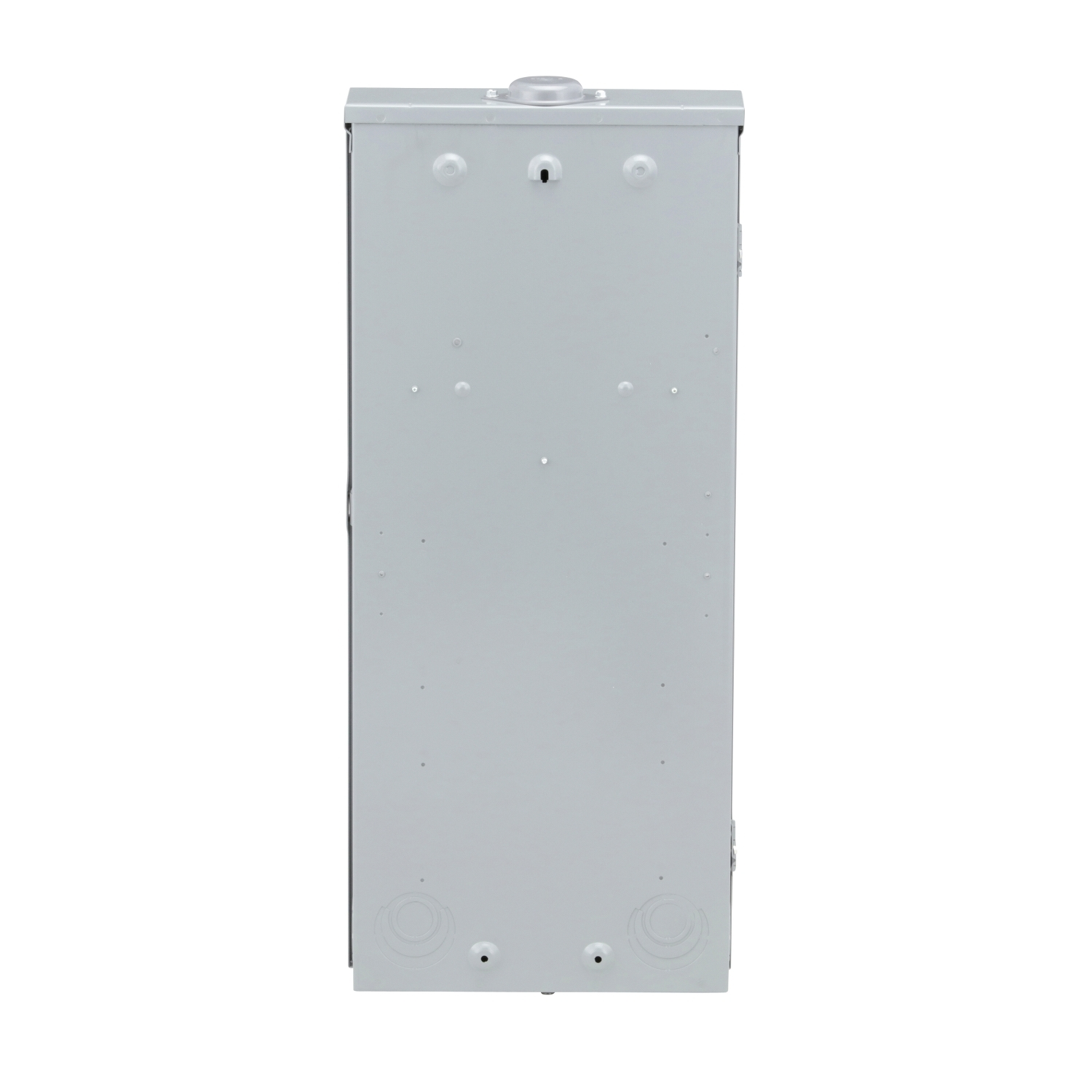

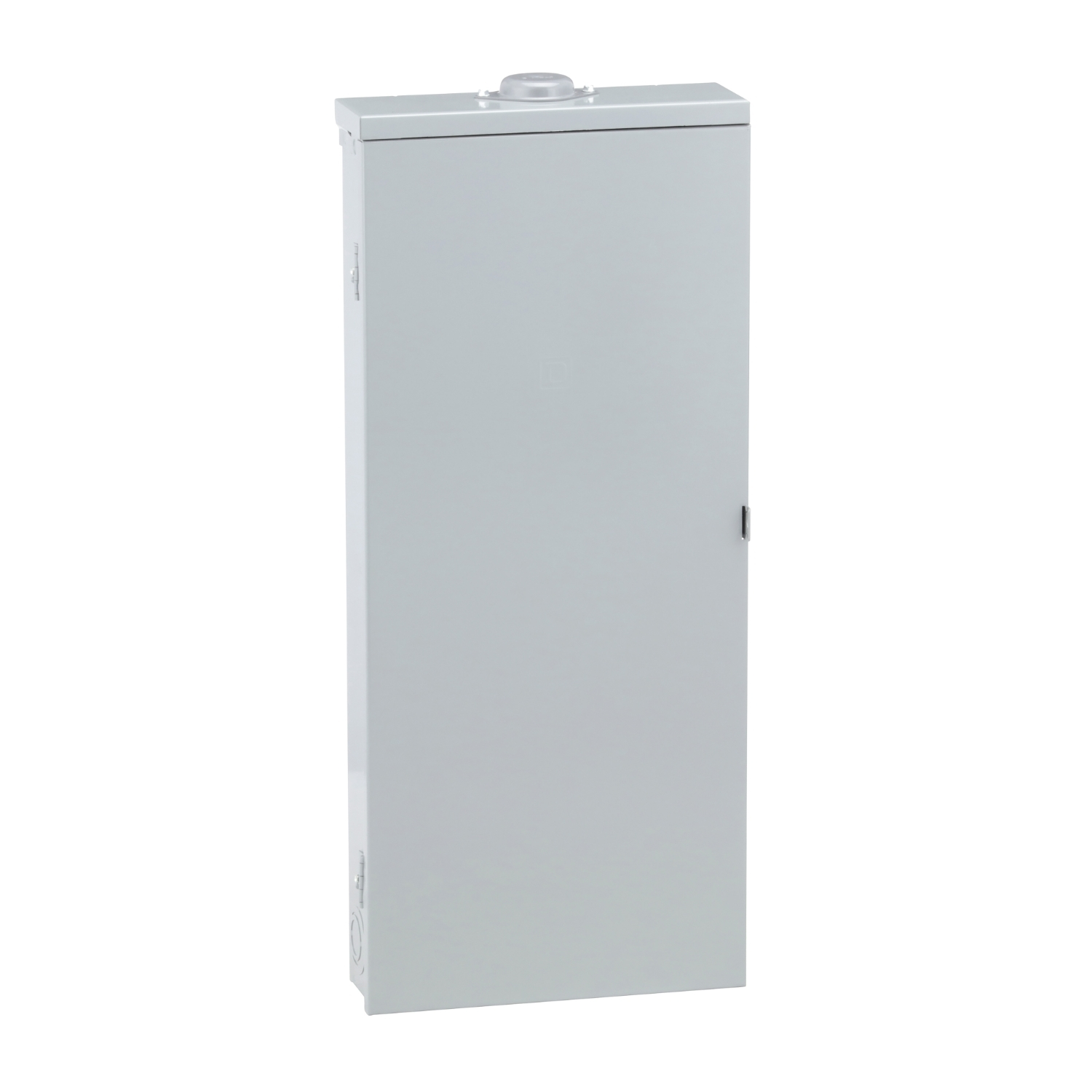

Square D HOM3060L225PRB Single-Phase Homeline Load Center, Main Lug, 225A, 30 Spaces, 60 Circuits, Aluminum Bus, NEMA 3R

Product Description

The Square D HOM3060L225PRB is a Homeline load center featuring Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Designed for residential and industrial use, this single-phase system is rated for indoor or outdoor use. It has convertible mains rated at 225A 120/240 VAC and provides a 10 kA breaking capacity with 30 spaces in a NEMA 3R enclosure.

• Features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters
• Enable the use of a full complement of accessories
• Designed for residential and industrial use to protect electrical systems, equipment and people

Product Highlights

This Square D load center protects electrical systems, equipment, and people in residential and industrial applications. UL Listed.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: HOM3060L225PRB
• Country of Origin: United States

Technical Specifications

• Type: Convertible Main Lug
• Depth: 4.53 Inches
• Phase: 1 phase
• Width: 14.76 Inches
• Height: 33.78 Inches
• Mounting: Surface
• NEMA Rating: NEMA 3R
• Voltage Rating: 120/240 VAC
• Amperage Rating: 225 Amperes
• Interrupt Rating: 10 Kiloamperes
• Number Of Spaces: 30
• Wiring Configuration: 3-Wire
• Number of Circuits: 60
• Bus Material: Tin Plated Aluminum
• Feed Location: Top/Bottom
• Main Wire Size: 4 AWG to 250 KCMIL (Copper), 4 AWG to 300 KCMIL (Aluminum)
• Enclosure Type: NEMA 3R, Outdoor
• Cover Type: Surface
• Enclosure Size Designation: 7R
• Approval: UL
• Enclosure Material: Welded Sheet Steel
• Cover Finish: Gray Baked Enamel
• Current Rating: 225 Ampere
• Circuit Configuration: 1-Phase 3-Wire
• Maximum Number of Circuits: 60
• Maximum Number of Spaces: 30
• Breaker Mounting: Plug-On
• Neutral Type: Plug-On
• Cable Size: AWG 4...250 kcmil copper;AWG 4...300 kcmil aluminium
• Applications: DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
• Certifications: UL Listed File E-6294
• Conductor Size: 4 AWG-300 kcmil (AL)/4 AWG-250 kcmil (CU)
• Surface Finish: Baked enamel Gray
• Line Rated Current: 225 A
• Operating Temperature: 23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
• Short Circuit Current: 10 kA
• Finish: Gray
• Amperage: 225 Amp
• Material: Tin Plated Aluminium: Busbar
• Short Circuit Current Ratng: 10 kA
• Brand: Square D
• Sub Brand: HOMELINE
• Bus Rating: TIN PLATED ALUMINIUM
• Voltage: 120/240 Volt
• Standards: UL listed file E-6294
• Wire Size: AWG 4...250 kcmil copper || AWG 4...300 kcmil aluminium
• Ground Bar Kit: grounding bar (ordered separately)
• Enclosure NEMA Rating: NEMA 3R outdoor
• Primary/Ambient Air Temp.: -5°C || 40°C
• Max. No. of Tandem Breakers: 30
• Main Circuit Breaker or Main Lug: PoN Convertible Mains (lugs)
• Range Of Product: Homeline
• Product Or Component Type: Load Center
• Electrical Connection: lugs
• Nema Degree Of Protection: NEMA 3R weatherproof enclosure
• [Ue] Rated Operational Voltage: 120/240 V AC
• Bus Rated Current: 225.0 A
• Number Of Tandem Circuit Breakers: 30
• Awg Gauge: AWG 4...250 kcmil copper || AWG 4...300 kcmil aluminium
• Device Composition: grounding bar (ordered separately)
• Box Number: 7R
• Product Certifications: UL listed file E-6294
• Ambient Air Temperature For Operation: -5 °C || 40 °C
• Enclosure: 3R
• NEMA Size: 3R
