Square D HOM3060L225PQGC Single-Phase Homeline Load Center 225A 30 Spaces

Product Description

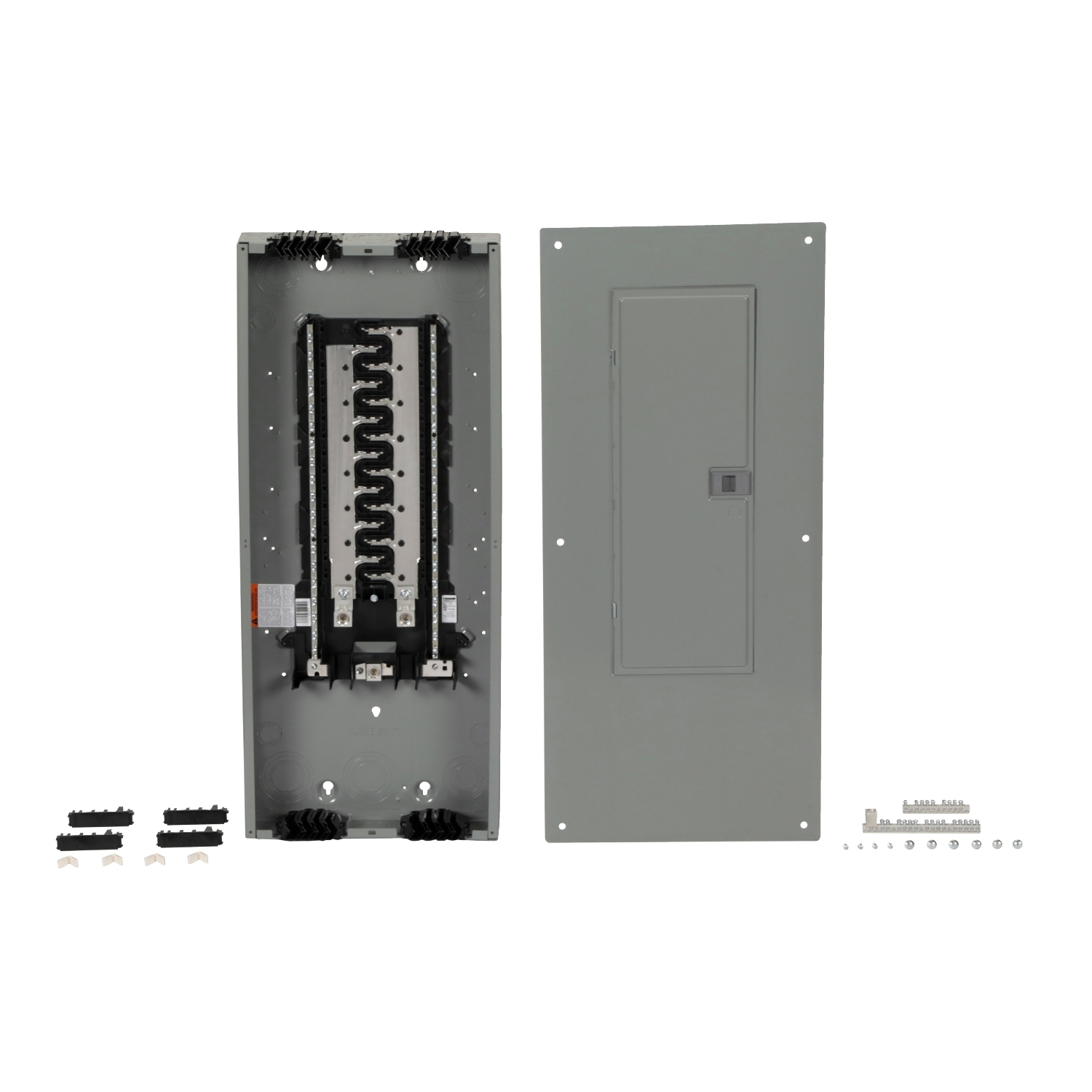

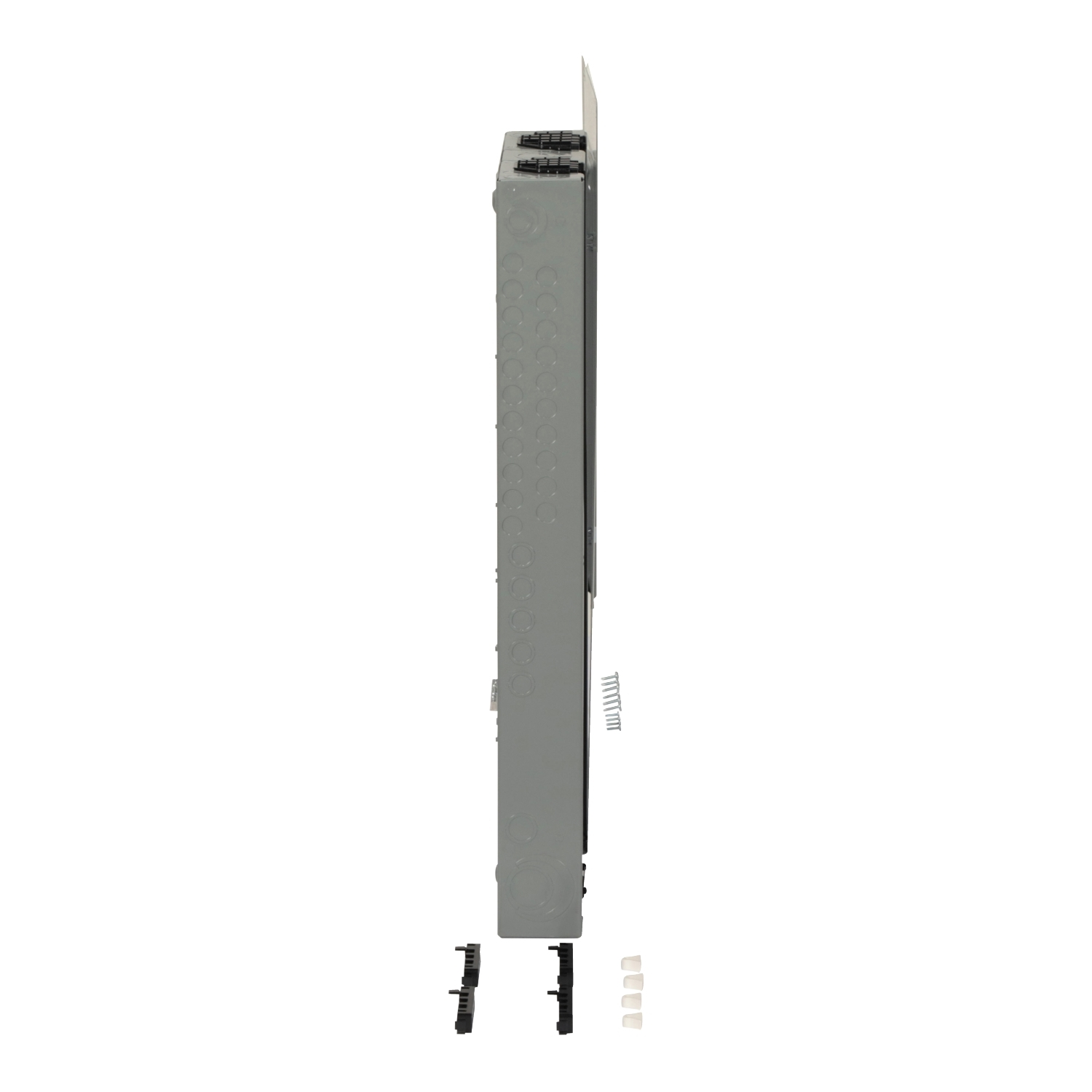

The Square D HOM3060L225PQGC is a single-phase Homeline load center with a ground bar and main lug. Rated at 225A, 120/240 VAC, it provides 30 spaces for 60 circuits within a NEMA 1 enclosure. Designed for residential and industrial use, it protects electrical systems, equipment, and people. The load center features a 10 kA breaking capacity and box lugs that accept 4 AWG to 250 kcmil copper or aluminum wire.

• Features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters
• Convertible mains rated at 225A 120/240 VAC single phase
• NEMA 1 indoor enclosure with combination flush/surface indoor cover

Product Highlights

This Homeline load center is UL Listed and comes with a Qwik grip assembly kit for easy installation.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: HOM3060L225PQGC
• Country of Origin: United States

Technical Specifications

• Type: Convertible
• Phase: Single-Phase
• Width: 14.25 Inches
• Height: 33.78 Inches
• Length: 3.75 Inches
• Mounting: Surface
• NEMA Rating: NEMA 1
• Voltage Rating: 120/240 VAC
• Amperage Rating: 225 Amperes
• Interrupt Rating: 10 Kiloamperes
• Number Of Spaces: 30
• Wiring Configuration: 3-Wire
• Wire Size: AWG 4...250 kcmil aluminium/copper

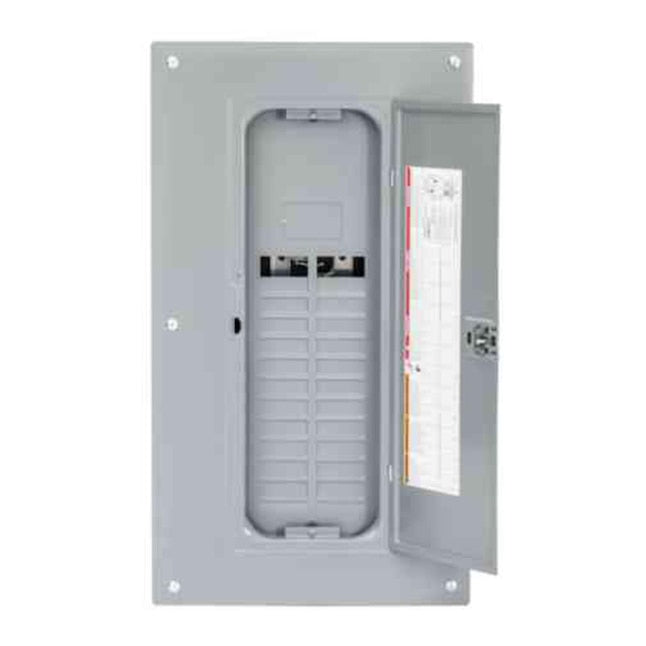

• Cover Type: Combination flush/surface cover
• Certifications: UL
• Conductor Size: 4 AWG-250 kcmil
• Surface Finish: Baked enamel Gray
• Number of Phases: 1 Phase
• Number of Circuits: 60
• Operating Temperature: -5 degrees C || 40 degrees C
• Short Circuit Current: 10 kA
• Enclosure Material: Steel
• Line Rated Current: 225 A
• Main Breaker Type: QOM2 Main Circuit Breaker Frame
• Breaker Mounting: Plug-On
• Enclosure Size Designation: 10Q
• Approval: UL
• RoHS Compliant: Yes
• Includes: Ground Bar, Qwik-Grip Assembly Kit
• Maximum Number of Circuits: 60
• Maximum Number of Spaces: 30
• Circuit Breaker Type: Homeline
• Voltage: 120/240 Volt
• Frequency Rating: 50/60 Hz
• Housing Material: Galvanized Steel
• Mounting Type: Plug-On
• Sub-Brand: Square D
• Bus Rated Current: 225.0 A
• Number Of Tandem Circuit Breakers: 30
• Ambient Air Temperature For Operation: -5 °C || 40 °C
• Electrical Connection: lugs
• Nema Degree Of Protection: NEMA 1 indoor enclosure
• Load Center Type: PoN Convertible Mains (lugs)
• [Ue] Rated Operational Voltage: 120/240 V AC
• Awg Gauge: AWG 4...250 kcmil aluminium/copper
• Device Composition: grounding bar included (not installed)
• Box Number: 10Q
• Range Of Product: Homeline
• Product Or Component Type: Load Center
• Main Wire Size: 4 AWG to 250 KCMIL (Copper/Aluminum)
• Enclosure Type: NEMA 1, Indoor
• Catalog Number: HOM3060L225PQGC
• Manufacturer: Schneider Electric
• Made in USA: Yes
• Amps: 225 A
• Item: Load center,Homeline,225A,120/240 V,
• Enclosure NEMA Rating: NEMA 1 indoor
• Primary/Ambient Air Temp.: -5°C || 40°C
• Max. No. of Tandem Breakers: 30
• Short Circuit Current Rating: 10 kA
• Main Circuit Breaker or Main Lug: PoN Convertible Mains (lugs)
• Country of Origin (subject to change): United States
• Maximum Amperage (A): 225 A
• Circuit Breaker Application: Standard
• Voltage (volts): 120/240
