Square D HOM3060L225PGC Load Center 225 Amp 120/240 VAC 30-Space 60-Circuit NEMA 1

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: HOM3060L225PGC
Availability: In Stock

Ships same day if ordered by 12 pm
$189.66
$189.66
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

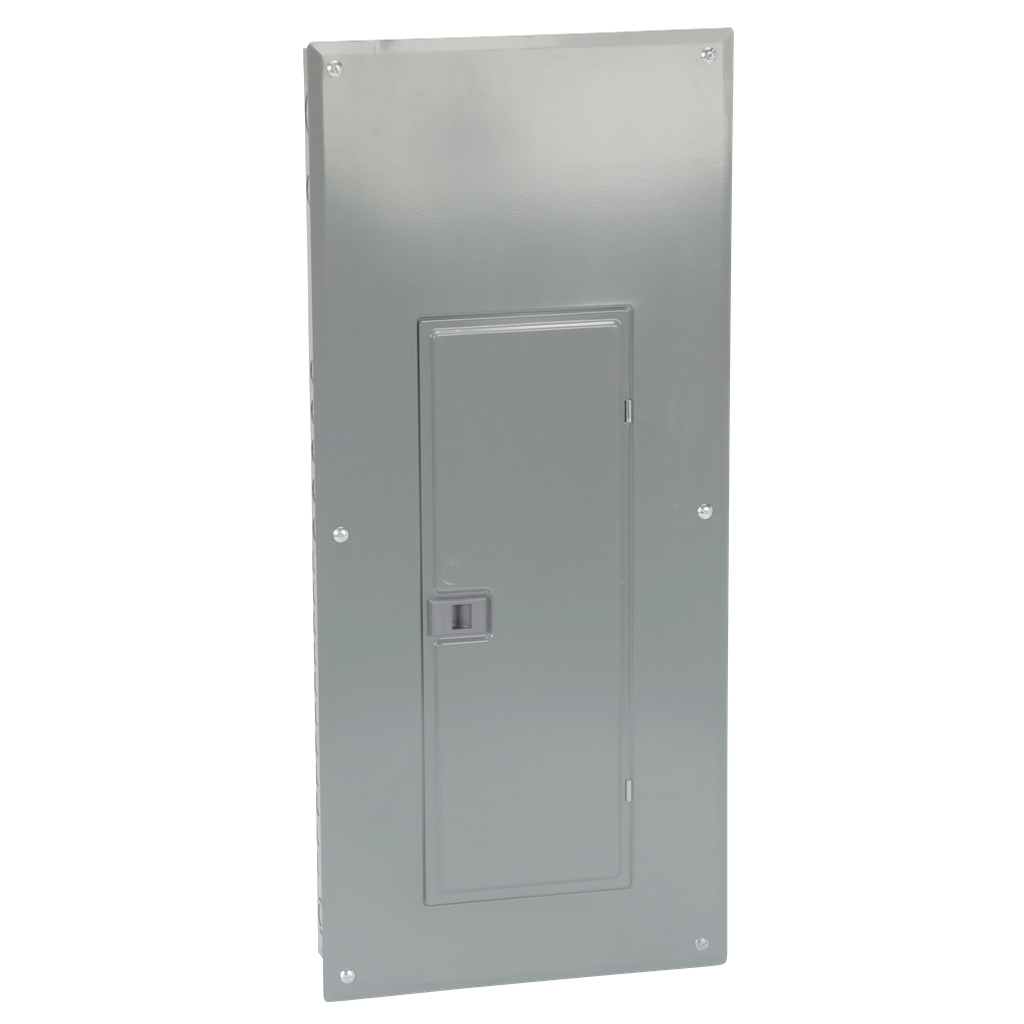

The Square D HOM3060L225PGC is a load center designed for residential and industrial applications. It features a capacity of 225 amps and operates at 120/240 volts on a single phase. This load center supports up to 30 spaces and has a total of 60 circuits. It includes a combination flush/surface cover and is housed within a NEMA 1 indoor enclosure.

  • 30 spaces and 60 circuits for versatile configuration
  • Ground bar included for easy grounding
  • Compatible with multiple wire sizes from 4 AWG to 250 kcmil for copper and 300 kcmil for aluminum

Product Highlights

The load center is UL Listed and designed to protect electrical systems while ensuring safety for equipment and users.

Product Information

Standard Information

  • Brand: Square D
  • Manufacturer: Schneider Electric
Technical Specifications
Rated Current
225 Amp
Voltage Rating
120/240 Volt
Number of Phases
1 Phase
Number of Spaces
30
Number of Circuits
60
Enclosure Rating
NEMA 1 indoor
Max Short Circuit Current Rating
10 kA
Ground Bar Included
Yes
Wire Size Compatibility
AWG 4 to 250 kcmil copper; AWG 4 to 300 kcmil aluminum
