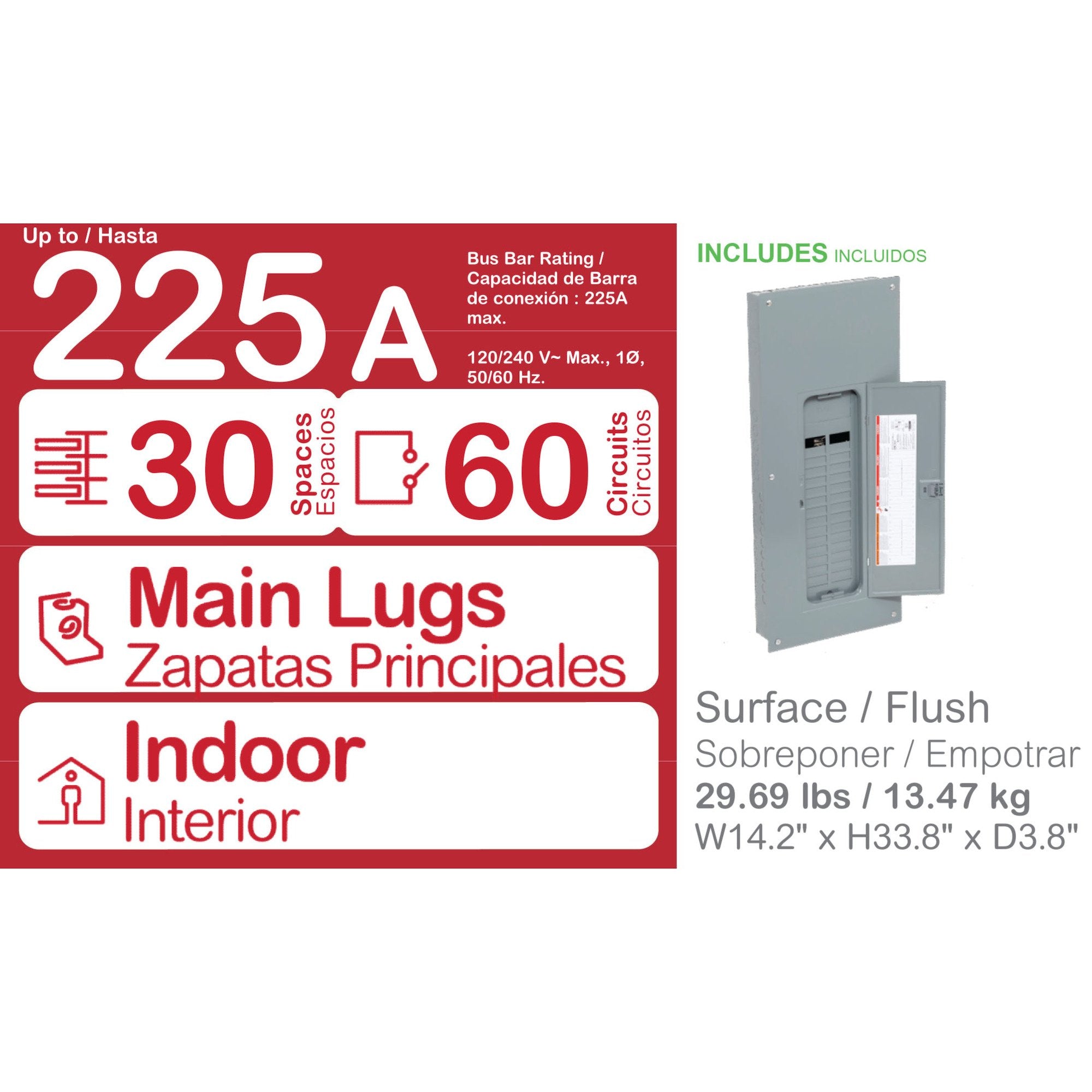

Square D HOM3060L225PC 120/240 VAC 225 Amp 1-Phase 30-Space 60-Circuit NEMA 1 Load Center with Cover

Product Description

The Square D HOM3060L225PC is a load center designed for indoor use, featuring a 225 amp rating and supporting up to 30 circuits. It is suitable for residential and industrial applications, ensuring protection for electrical systems and equipment.

• 30 spaces for circuit breakers
• NEMA 1 indoor enclosure
• Rated for 225 amps at 120/240 volts

Product Highlights

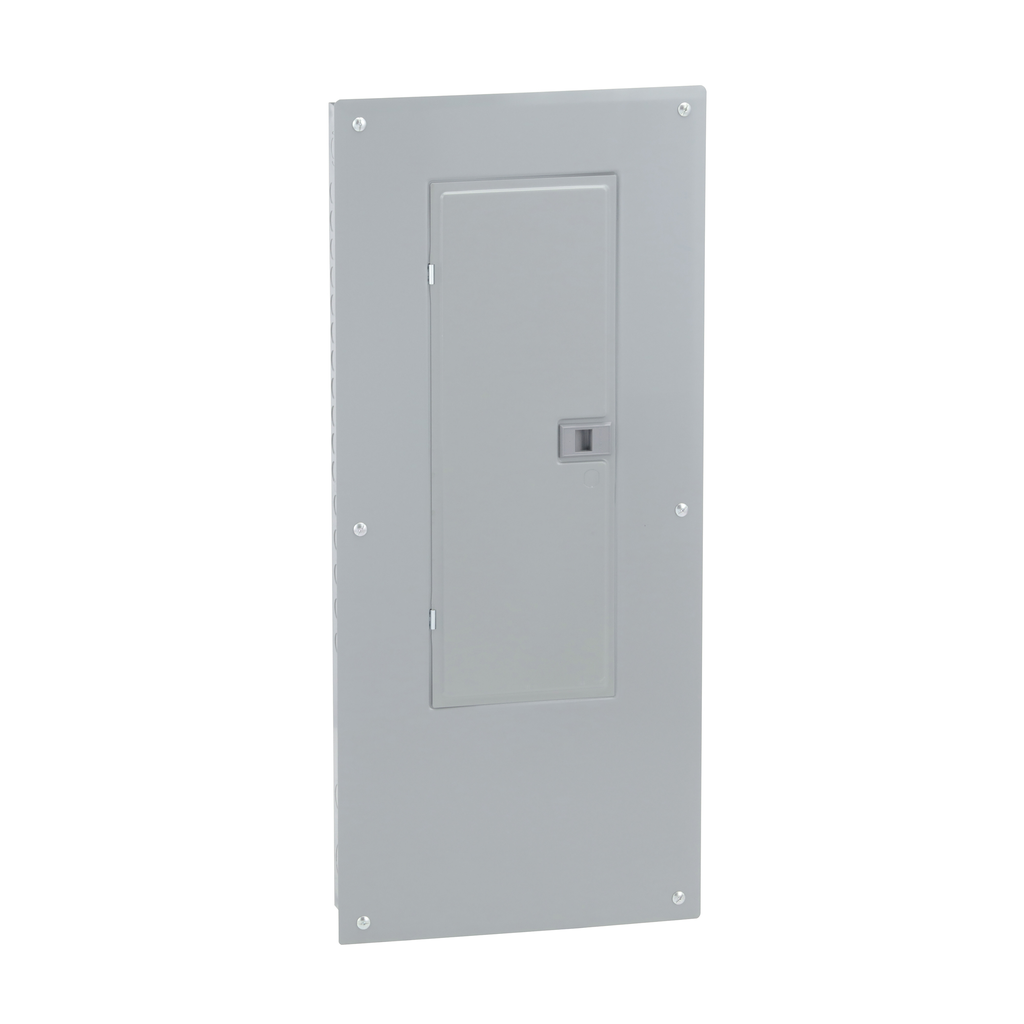

This load center offers features including a combination flush/surface cover and convertible mains. It provides a breaking capacity of 10 kA and is built for systems that require robust electrical service.

Product Information

Standard Information

• Brand: Square D
• MPN: HOM3060L225PC

Technical Specifications

• Type: Load Center
• Voltage: 120/240 VAC
• Amperage: 225 Amp
• Number of Spaces: 30
• Current Rating: 10 kA

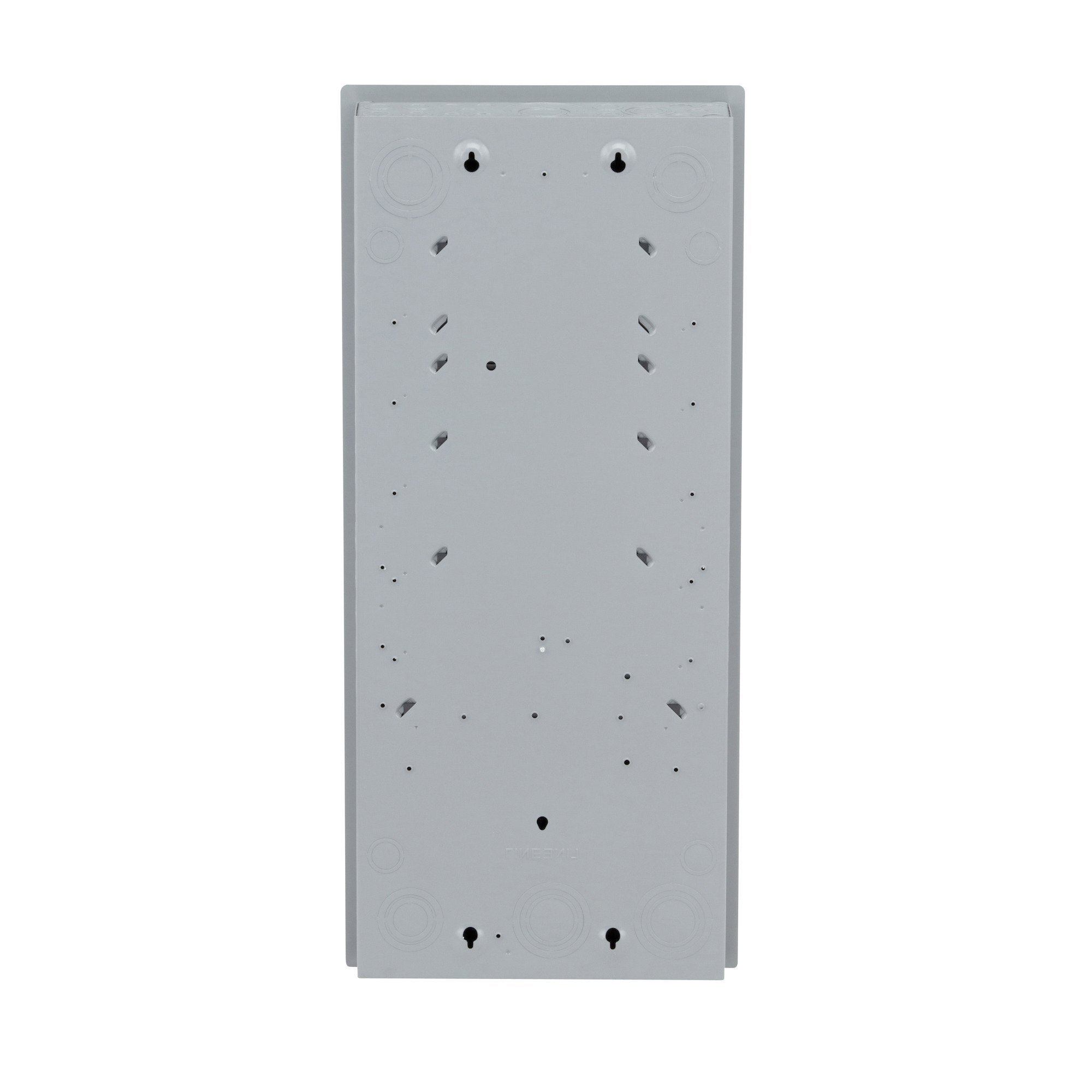

• Enclosure Material: Steel
• Dimensions: Height 33.77 inches, Width 14.25 inches, Depth 3.74 inches
• Wire Size Compatibility: AWG 4 to 250 kcmil copper, AWG 4 to 300 kcmil aluminum
