Square D HOM3060L125PQGC Load Center 125A

Product Description

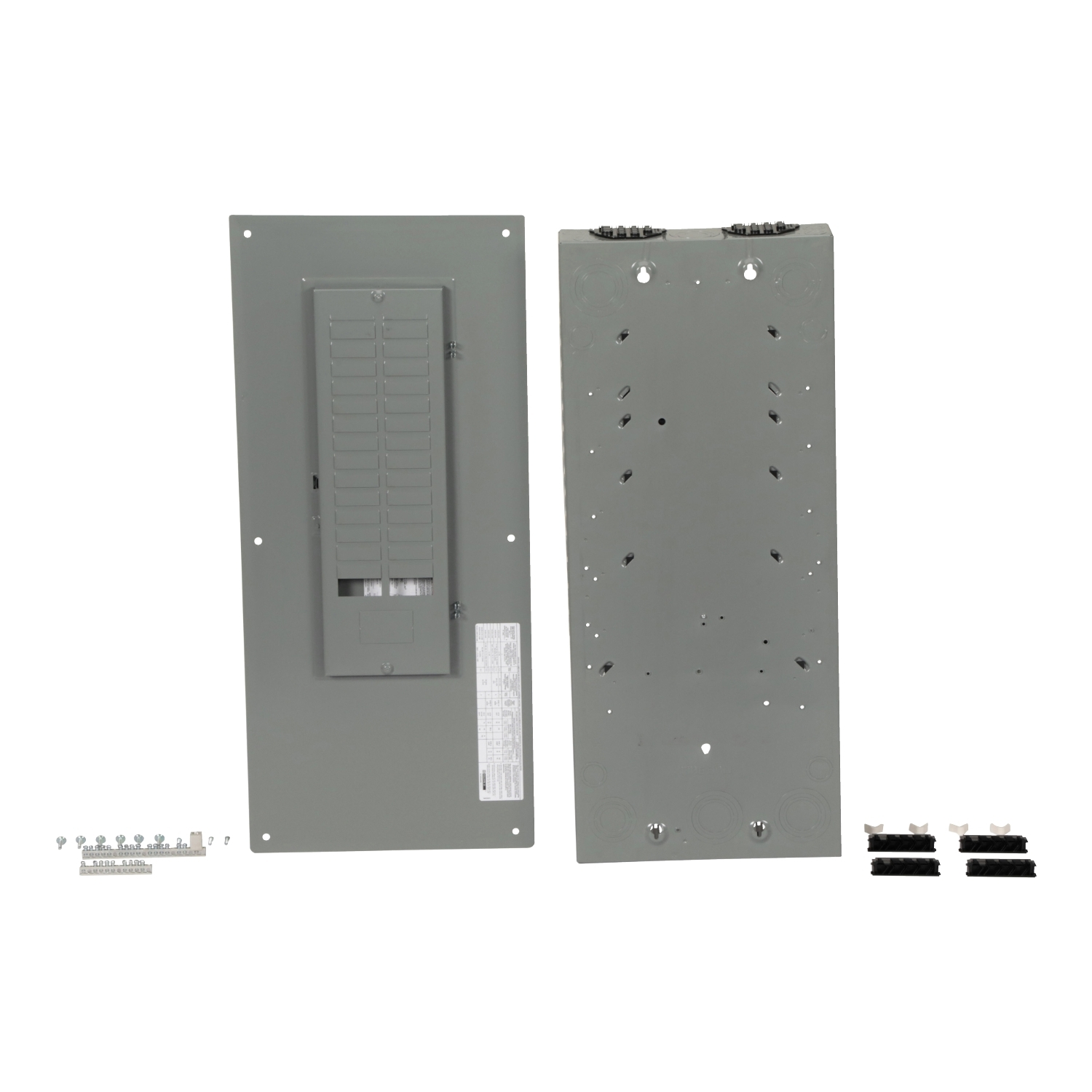

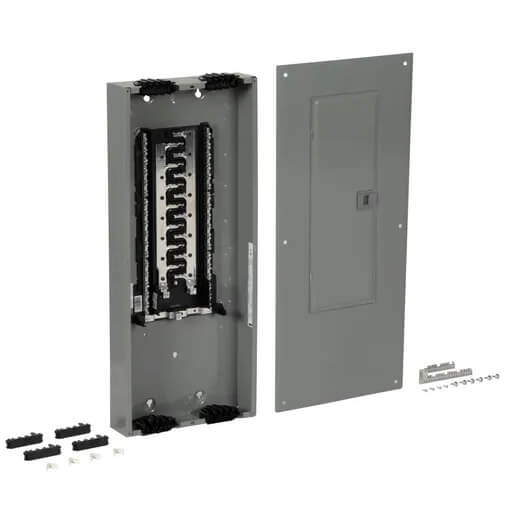

The Square D HOM3060L125PQGC Homeline load center features Homeline circuit breakers, ground fault circuit breakers, and arc fault interrupters. Rated at 125A 120/240 VAC single phase, it provides a 10 kA breaking capacity and 30 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover.

• Convertible mains rated at 125A 120/240 VAC single phase
• Box lugs accept a wire range of 6 AWG to 2/0 AWG copper or aluminum wire
• Includes a Qwik grip assembly kit and a grounding bar

Product Highlights

This Square D Homeline load center is UL Listed and designed for residential and industrial use to protect electrical systems, equipment, and people.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: HOM3060L125PQGC
• Country of Origin: United States

Technical Specifications

• Brand: Square D
• Depth: 3.74 Inch
• Width: 14.25 Inch
• Height: 33.78 Inch
• Current: 125 Amp
• Voltage: 120/240 Volt
• Amperage: 125 Amp
• Enclosure: 1
• NEMA Size: 1
• Wire Size: AWG 6...AWG 2/0 aluminium/copper
• Cover Type: Combination flush/surface cover
• Certifications: UL
• Conductor Size: 6-2/0 AWG
• Surface Finish: Baked enamel Gray
• Number of Phases: 1
• Number of Spaces: 30
• CA Prop65 Warning: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Country of Origin: USA
• Enclosure Material: Welded Galvannealed Steel
• Line Rated Current: 125 A
• Number of Circuits: 60
• Short Circuit Current: 10 kA
• Manufacturer: Schneider Electric
• Made in USA: Yes
• Phase: 1
• Type: Main Lug
• Voltage Rating: 120/240 Volt AC
• Current Rating: 125 Amp
• Circuit Configuration: 1-Phase 3-Wire
• Maximum Number of Circuits: 60
• Maximum Number of Spaces: 30
• Main Breaker Type: QOM2 Main Circuit Breaker Frame
• Breaker Mounting: Plug-On
• Interrupting Rating: 10 Kiloamp
• Main Wire Size: 6 to 2/0 AWG (Aluminum/Copper)
• Enclosure Type: NEMA 1, Indoor
• Enclosure Size Designation: 10Q
• Approval: UL
• RoHS Compliant: Yes
• Range Of Product: Homeline
• Product Or Component Type: Load Center
• Electrical Connection: lugs
• Nema Degree Of Protection: NEMA 1 indoor enclosure
• Load Center Type: Main Lugs
• [Ue] Rated Operational Voltage: 120/240 V AC
• Bus Rated Current: 125.0 A
• Short-Circuit Current: 10 kA
• Number Of Tandem Circuit Breakers: 30
• Awg Gauge: AWG 6...AWG 2/0 aluminium/copper
• Device Composition: grounding bar included (not installed)
• Box Number: 10Q
• Ambient Air Temperature For Operation: -5 °C || 40 °C
• Product Type: Load Center
• Rated Current: 125A
• Maximum Number of Single Pole Circuits: 60
• Enclosure Rating: NEMA 1 (Indoor)
• Provided Equipment: (1) Grounding bar, (1) Qwik grip assembly kit
• Max Short Circuit Current Rating: 10 kA
• Maximum Number of Tandem Breakers: 30
• Wiring Configuration: 3 Wire
• Busbar Material: Tin plated aluminum busbar
