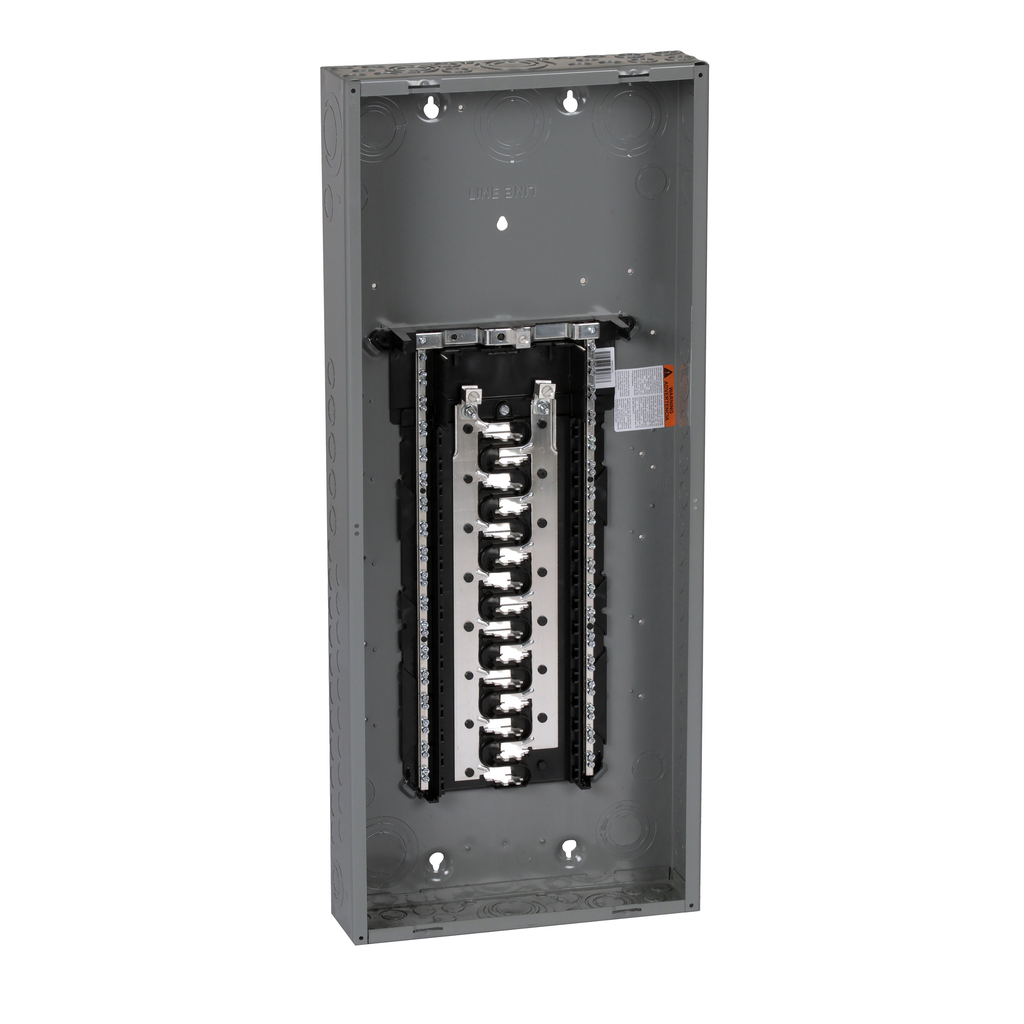

Square D HOM3060L125PC Load Center 120/240 VAC 125 Amp 1-Phase 30-Space 60-Circuit NEMA 1 Load Center with Cover

Product Description

The Square D HOM3060L125PC is a load center featuring a rated current of one hundred twenty-five Amperes at one hundred twenty/two hundred forty volts single phase. It provides thirty spaces and sixty circuits housed in a NEMA one indoor enclosure.

• Features a depth of three point seventy-four inches
• Height of thirty-three point seventy-seven inches and width of fourteen point twenty-five inches
• Includes convertible mains rated at 125A

Product Highlights

The HOM3060L125PC is designed for residential and light commercial applications. It is suitable for indoor usage and enables the installation of a variety of circuit breakers.

Product Information

Standard Information

• Brand: Square D
• Country of Origin: United States

Technical Specifications

• Catalog Number: HOM3060L125PC
• Amperage: 125 Amp
• Voltage: 120/240 Volt
• Number of Circuits: 60
• Depth: 3.74 inches
• Width: 14.25 inches
• Height: 33.77 inches
• Enclosure Rating: NEMA 1
• Material: Welded sheet steel
• Surface Finish: Baked enamel Gray
• Interrupt Rating: 10 kAIC
