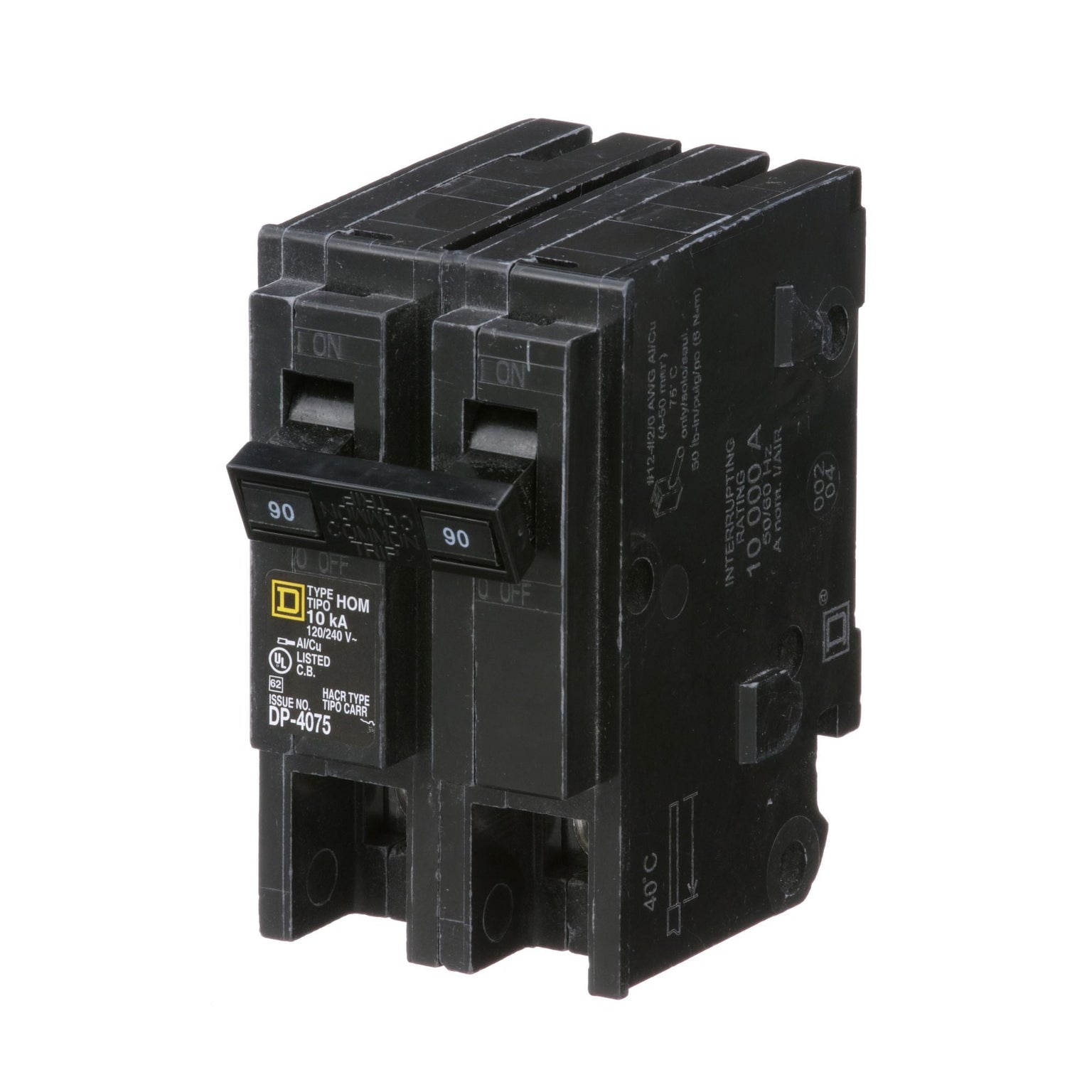

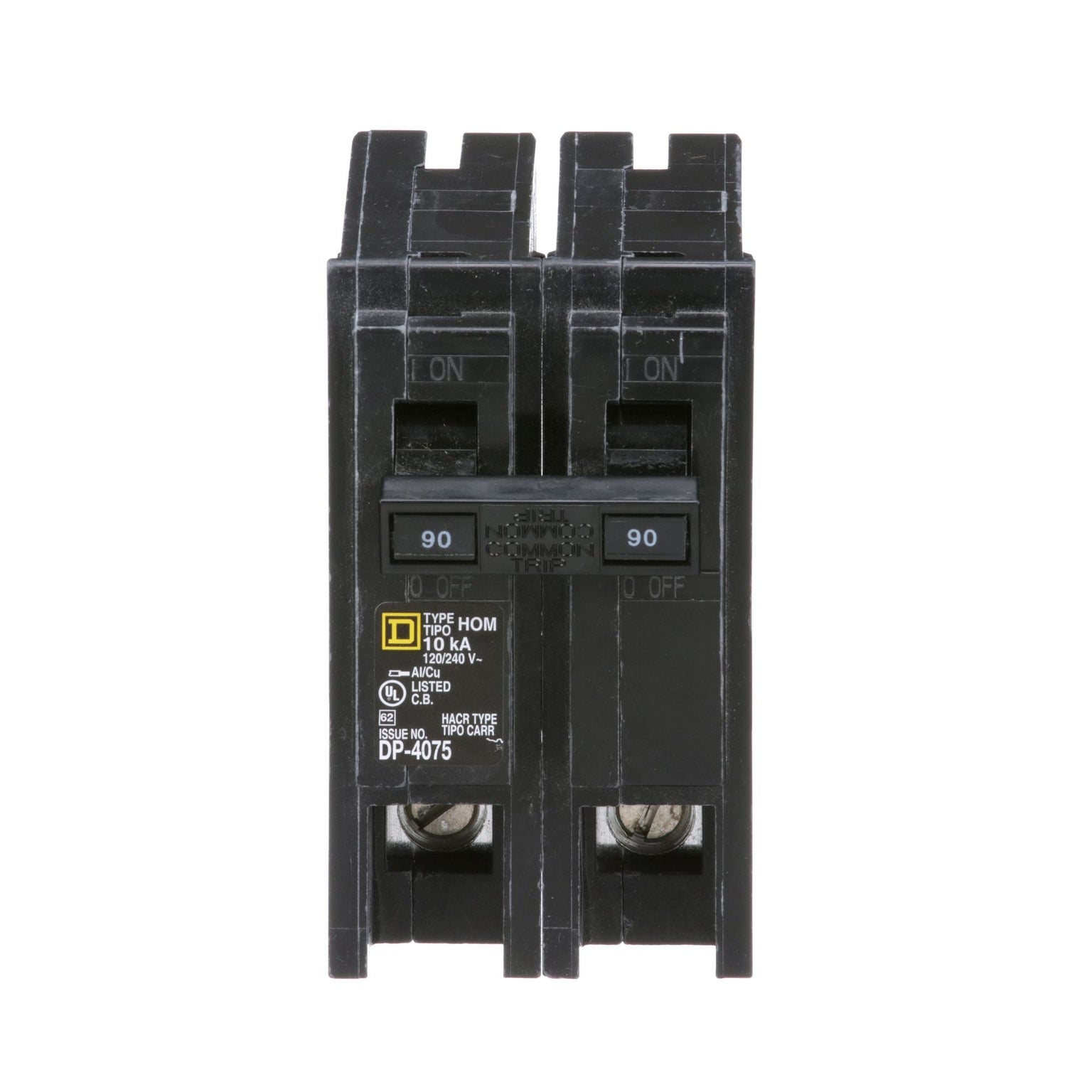

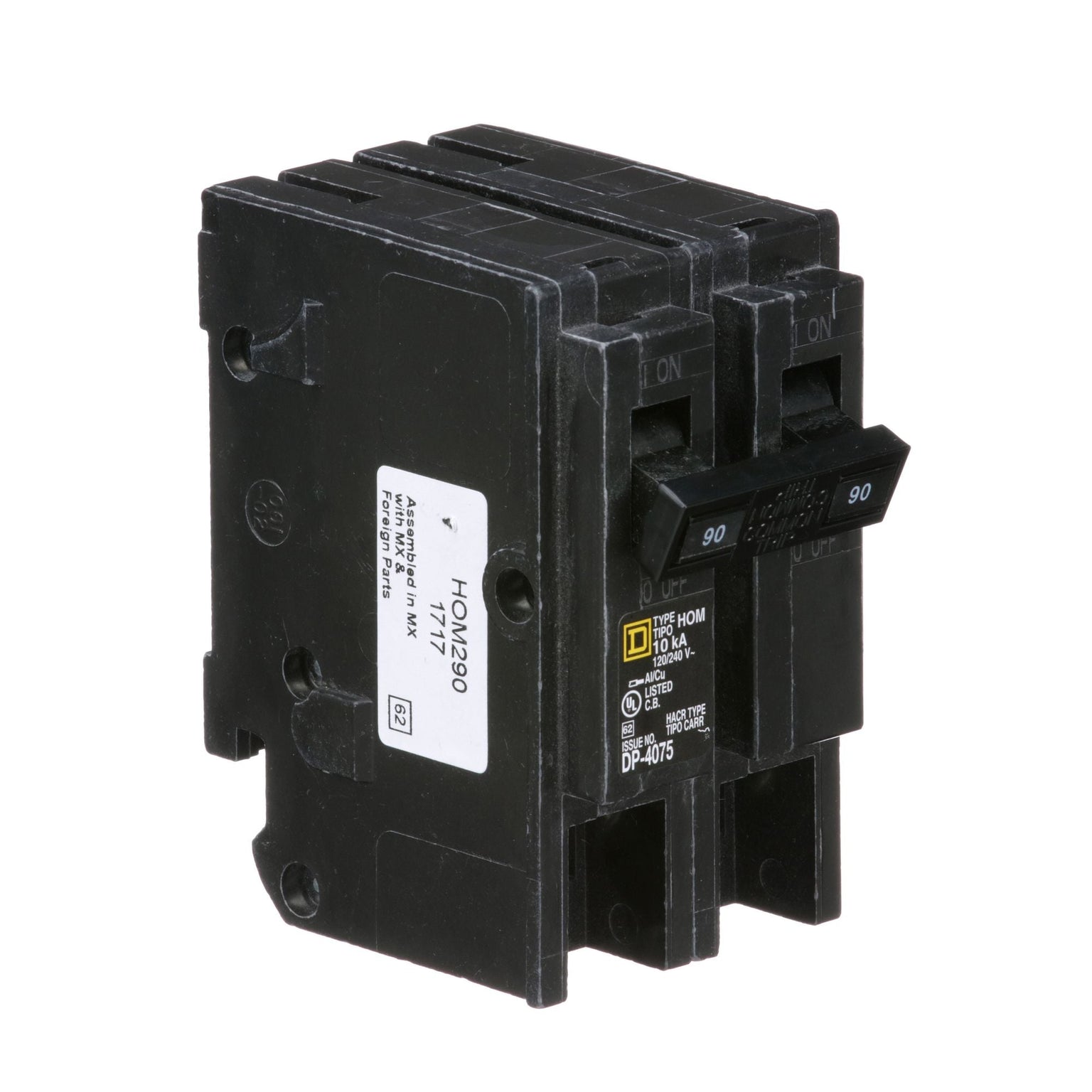

Square D HOM290CP Homeline mini circuit breaker 90 amp

Product Description

The Square D HOM290CP Homeline miniature circuit breaker is engineered for fast installation and superior circuit protection. Designed to plug into Homeline load centers, it provides standard circuit protection and is HACR rated. This 2-pole circuit breaker with plug-in mounting is rated 90A at 120/240 VAC with 10 kA breaking capacity.

• Provides overload and short-circuit protection
• Compatible with Homeline load centers and CSED devices
• UL Listed

Product Highlights

The Square D Homeline circuit breakers offer reliable circuit protection for residential electrical systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer Part Number: HOM290CP
• Country of Origin: Malaysia

Technical Specifications

• Brand: Square D
• MPN: HOM290CP
• Range: Homeline
• Depth: 2.98 Inch
• Width: 2 in
• Height: 3.13 Inch
• Current: 90 Amp
• Voltage: 201-250 V
• Wire Size: AWG 4...AWG 2/0 aluminium/copper)1
• Mounting Type: Plug-In
• Certifications: UL
• Number of Poles: 2
• Number of Spaces: 2
• Line Rated Current: 90 A
• Circuit Breaker Type: Standard
• Short Circuit Current: 10 kA
• Features: Mercury Free
• Application: HACR rated Applications
• Max. Wire Size: 2/0 AWG (Cu/Al)
• Min. Wire Size: 4 AWG (Cu/Al)
• Terminal Connection: Box Lugs
• Current Rating: 90 Amps
• Mounting Style: Plug-In Mount
• Maximum Amperage (A): 90 A
• Interruption Type: Standard Trip
• Pack Size: 1
• Part Number: HOM290CP
• Manufacturer: Schneider Electric
• Family: Homeline
• Amp: 90
• Volt: 240
• Phase: 1
• Category: Molded Case Circuit Breakers
• Connection: Plug-In
• Type: HOM
• Functions: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic
• AIC Ratings: 10kA@240V
• Model: HOM290
• Number of Throws: 2.98
• Number of Positions: 2
• Operation Method: On/Off
• Current Type: AC
• Item Height: 3 in
• Number in Pack: 1
• Item Width: 2 in
• Protection Properties: Short Circuit Protection
• UL Listed: Yes
• Sub Brand: HomeLine
• Indoor or Outdoor: Indoor
• Volts: 120/240 V
• Packaging Type: Bulk
• AMPS: 90 amps
• Hazardous Material: No
• Alternative UPC: 785901062837
