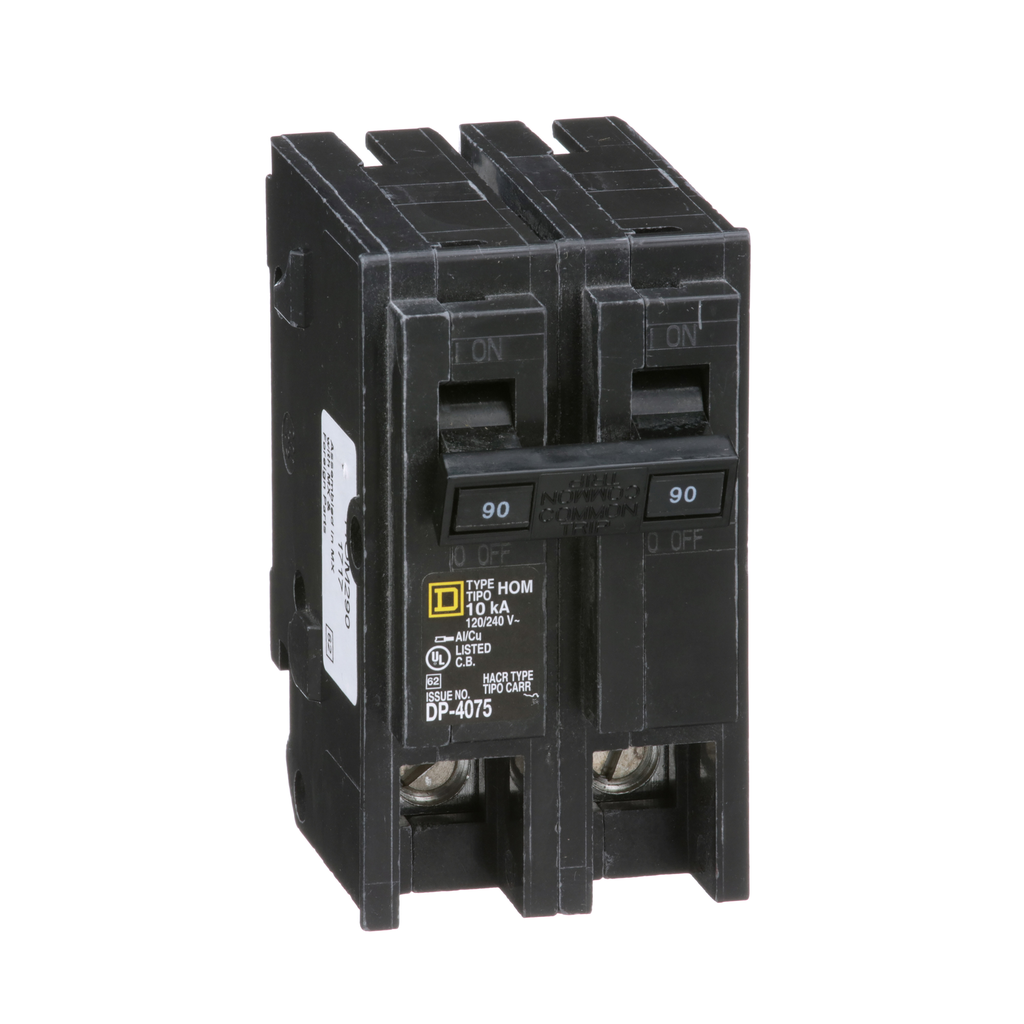

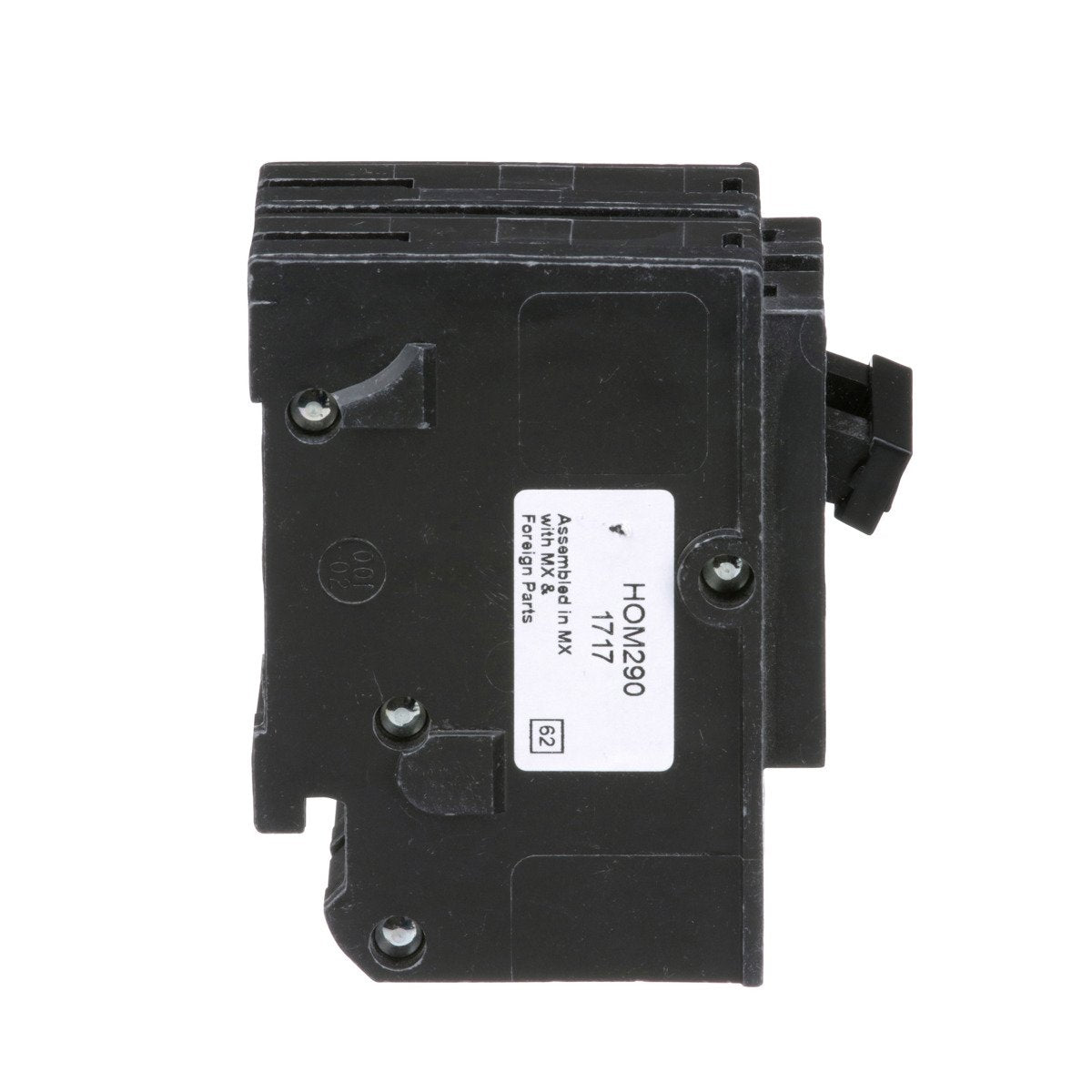

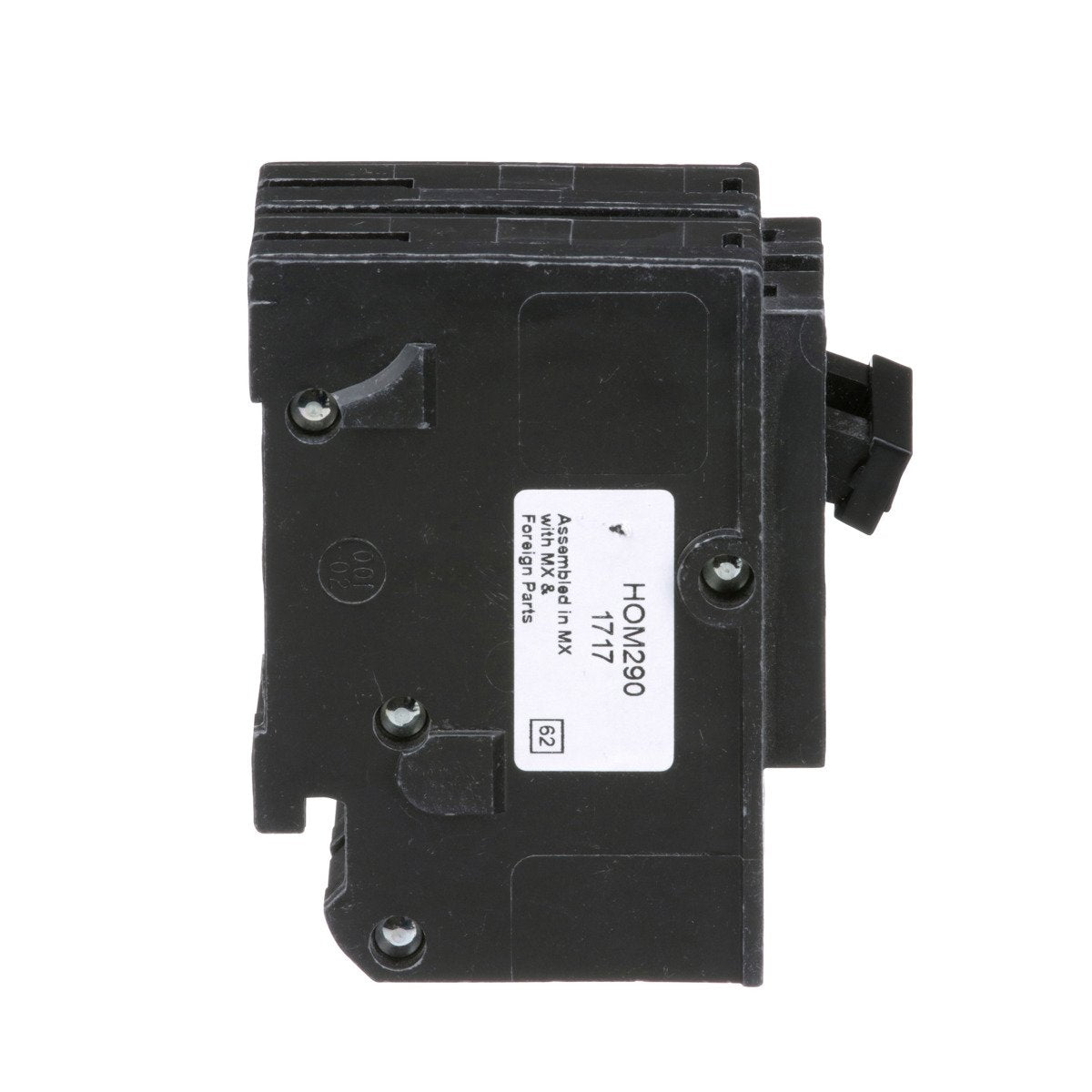

Square D HOM290 Miniature Circuit Breaker 90 Amp 120/240V

Product Description

Square D HOM290 offers reliable circuit protection in residential electrical systems. This 90 Amp miniature circuit breaker is designed for installation in Homeline load centers. It provides standard overload and short circuit protection. The unit is rated for 120/240 Volt usage and supports two poles.

• 90 Amp rating at 120/240 Volt
• UL Listed for safety compliance
• Plug-in mounting style for easy installation

Product Highlights

The HOM290 breaker features a 10 kA interrupting capacity, suitable for residential applications. Its design allows for secure connections with box lugs that accept copper or aluminum wires from four AWG to two-aught AWG. The compact dimensions of three point thirteen inches in height, two inches in width, and two point ninety-eight inches in depth enhance its usability within load centers.

Product Information

Standard Information

• Brand: Square D
• MPN: HOM290

Technical Specifications

• Type: Miniature Circuit Breaker
• Current Rating: 90 Amp
• Voltage Rating: 120/240 Volt
• Number of Poles: 2 Pole
• Mounting Type: Plug-in
• Interrupt Rating: 10 kAIC
• Wire Size: AWG 4 to AWG 2/0
• Height: 3.13 inches
• Width: 2.0 inches
• Depth: 2.98 inches
• Country of Origin: Mexico
