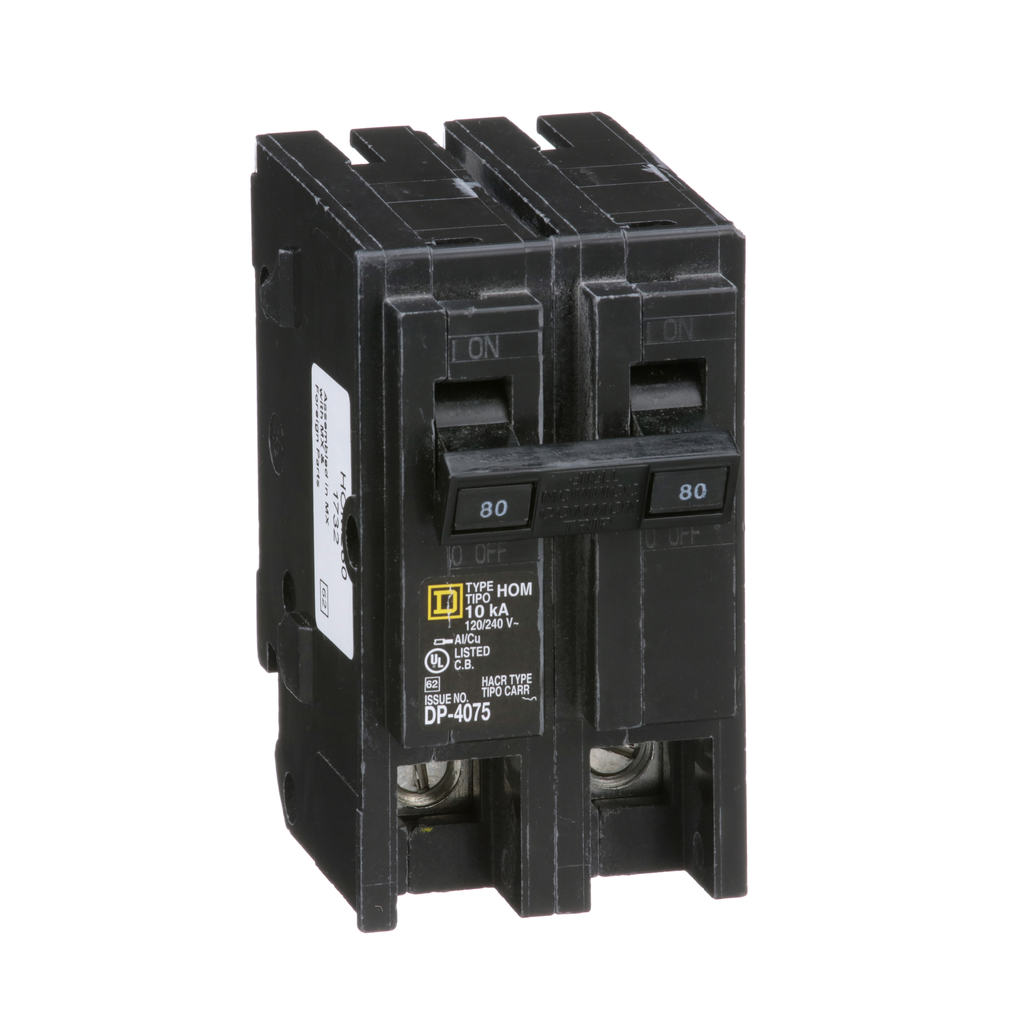

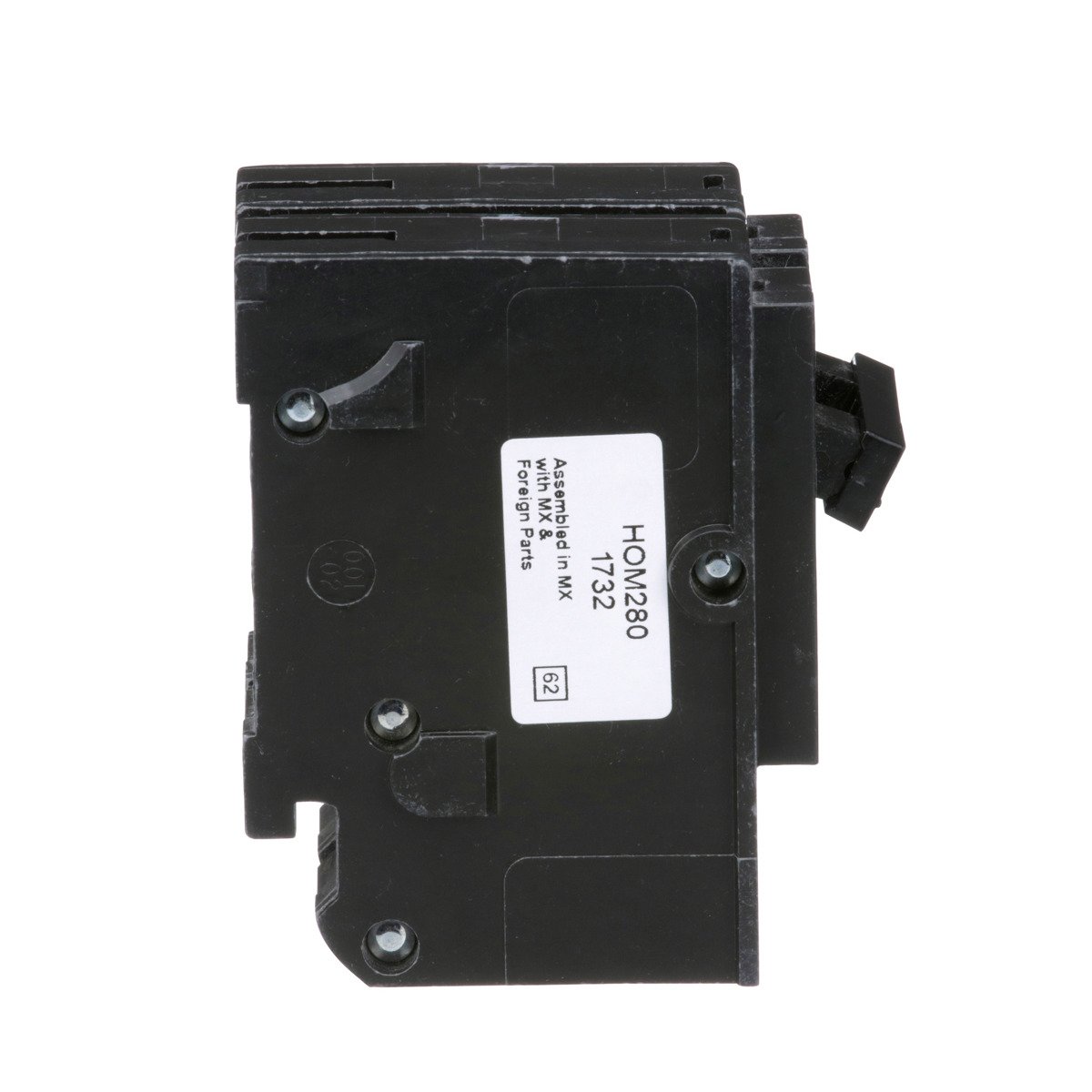

Square D HOM280 Miniature Circuit Breaker 80 Amp 120/240 Volt

Product Description

The Square D HOM280 is an 80 amp miniature circuit breaker designed for 120/240 volts systems. This product is part of the Homeline series by Schneider Electric, known for efficient overload and short-circuit protection. It fits into Homeline load centers and is HACR rated. The circuit breaker is rated for a breaking capacity of 10 kA, providing robust protection for your electrical system.

• 80 amp, 2 pole circuit breaker
• Fits into Homeline load centers
• UL listed for safety

Product Highlights

This circuit breaker is engineered for fast installation and dependable circuit protection. It features a plug-in mounting style and utilizes a clamp terminal connection suitable for one wire. It is compatible with a wire range from AWG four to two hundred. The dimensions are three point thirteen inches in height, two inches in width, and two point ninety-eight inches in depth.

Product Information

Standard Information

• Catalog Number: HOM280
• Manufacturer: Schneider Electric

Technical Specifications

• Current Rating: 80 Amp
• Voltage Rating: 120/240 Volt
• Number of Poles: 2 Pole
• Mounting Type: Plug-in
• Wire Size: AWG 4 to 2/0
• Breaking Capacity: 10 kA
• Certifications: UL Listed
• Country of Origin: Mexico
