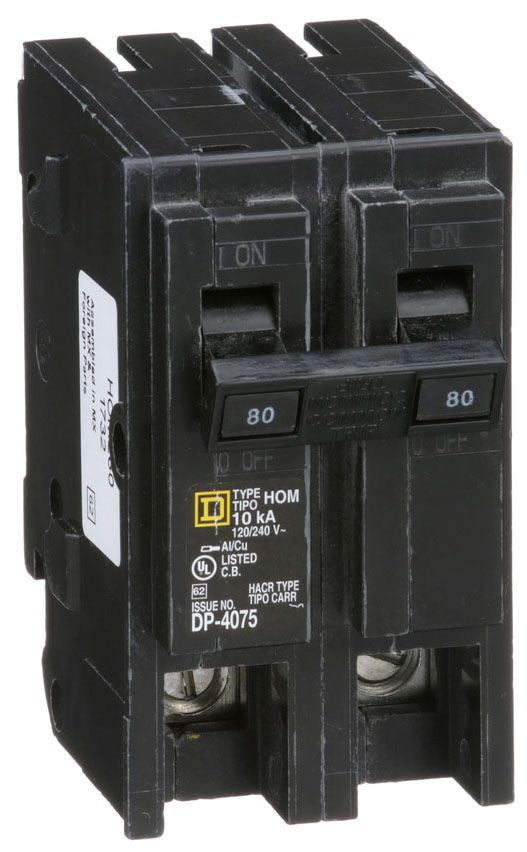

Square D HOM280 Circuit Breaker 80A 2P 10kA 120/240Vac

Product Description

The SQUARE D HOM280 is a miniature circuit breaker designed for Homeline load centers, providing essential overload and short circuit protection. This 80 Amp, 120/240 Volt, 2-pole thermal magnetic breaker features a 10 Kiloampere interrupting rating. It accommodates 4 to 2/0 AWG (Aluminum/Copper) wire sizes and utilizes plug-on mounting with screw clamp terminals. It is UL and CSA approved.

• Miniature circuit breaker with common trip and thermal magnetic operation.
• Designed for Homeline load centers, supporting 4 to 2/0 AWG (Aluminum/Copper) wire.
• Features plug-on mounting, screw clamp terminals, and a 10 Kiloampere interrupting rating.

Product Highlights

This SQUARE D HOM280 circuit breaker provides essential overload and short circuit protection for electrical systems.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: SQDHOM280

Technical Specifications

• Brand: Schneider Electric
• Model: HOM280
• Part Number: HOM280
• Manufacturer: Square D / Schneider Electric
• Current Rating: 80 Amps
• Circuit Breaker Type: Standard, Thermal Magnetic
• Mounting Type: Panel Mount, Plug On
• Number of Poles: 2
• Smart Home Compatibility: Not Smart Home Compatible
• Voltage: 120/240 Volts
• Interrupting Rating: 10 Kiloampere
• Wire Size: 4 to 2/0 AWG (Aluminum/Copper)
• Terminal Type: Screw Clamp
• Frequency: 50/60 Hz
• Phase: 1 ph
• Temperature Rating: 104 deg F
• Application: For providing overload and short circuit protection
• Certifications: UL, CSA, RoHS Compliant, HACR Rated
