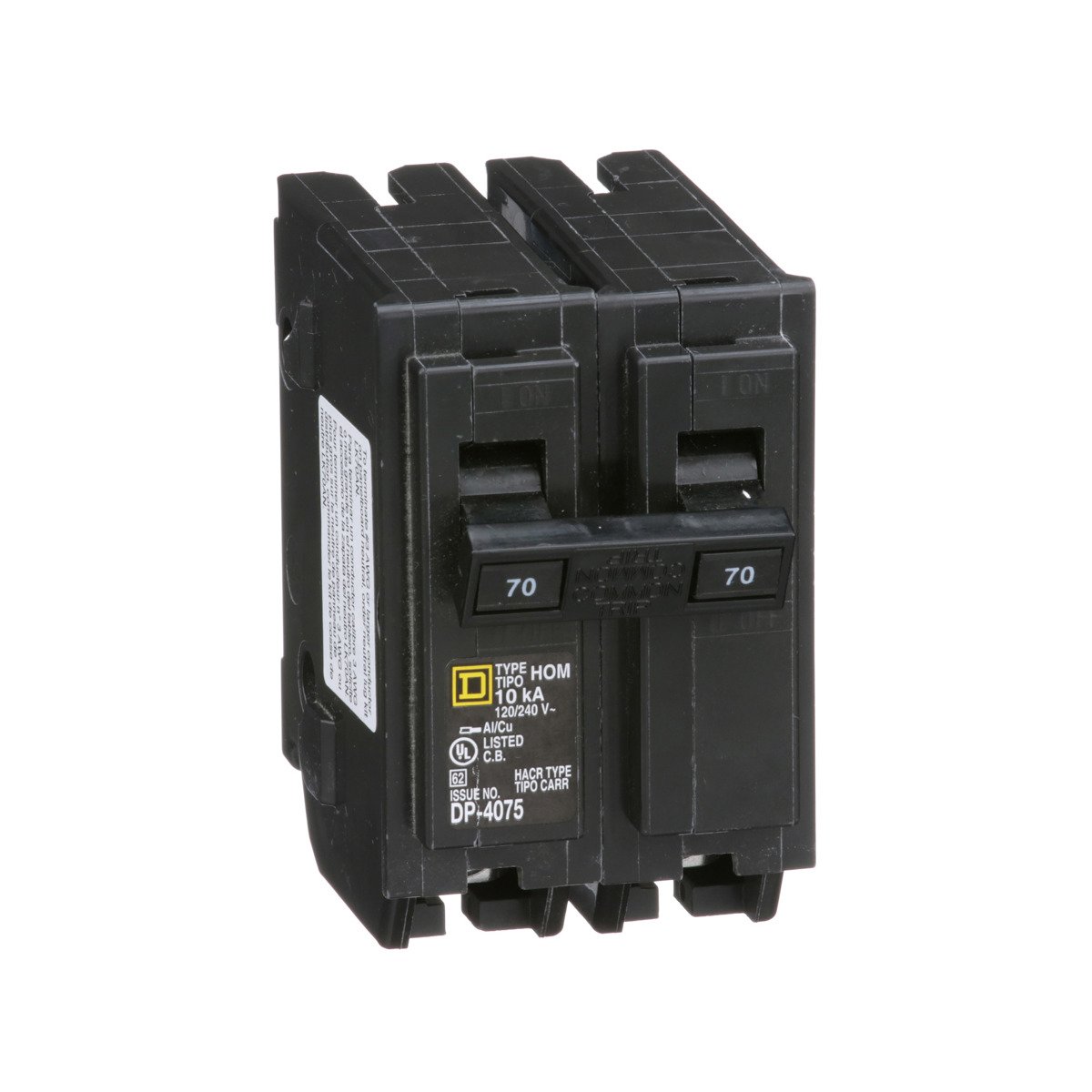

Square D HOM270 120/240 Volt 70 Amp Miniature Circuit Breaker

Product Description

The Square D HOM270 is a 70 Amp miniature circuit breaker designed for use in 120/240 Volt systems. Manufactured by Schneider Electric, this breaker is engineered for quick installation and efficient circuit protection.

• Standard circuit protection and HACR rated.
• Plug-in mounting compatible with Homeline load centers.
• 10 kA breaking capacity with a clamp terminal connection.

Product Highlights

This breaker offers reliable overload and short-circuit protection for residential applications. It is UL Listed and features a compact design allowing easy integration in existing electrical systems.

Product Information

Standard Information

• Catalog Number: HOM270
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 120/240 Volt
• Current Rating: 70 Amp
• Number of Poles: 2 Pole
• Wire Size: AWG 8 to AWG 2 (Copper/Aluminum)
• Interrupting Rating: 10 kAIC
• Mounting Type: Plug-in
• Height: 3.13 inches
• Width: 2 inches
• Depth: 2.98 inches
• Country of Origin: Mexico
• Warranty Length: Lifetime
