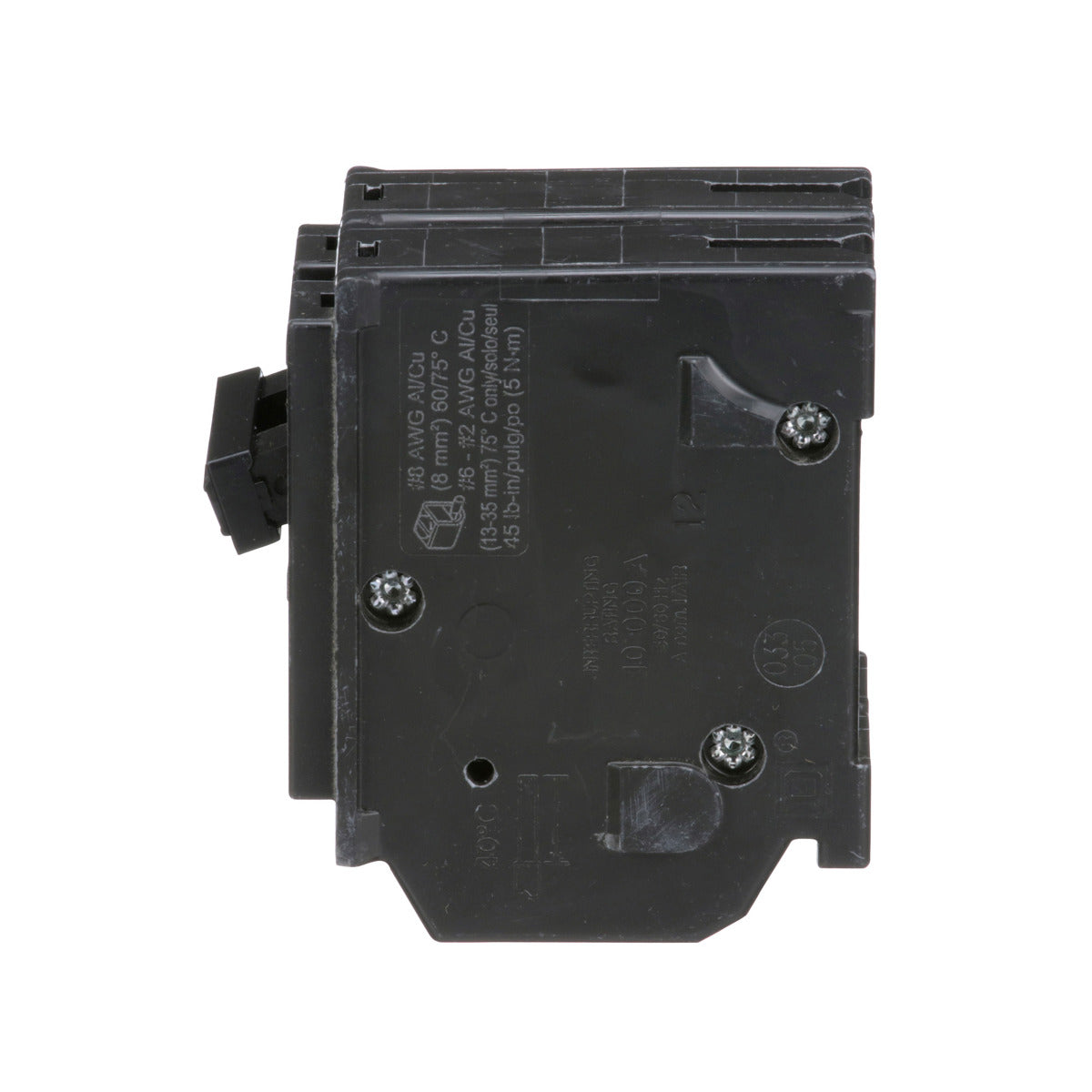

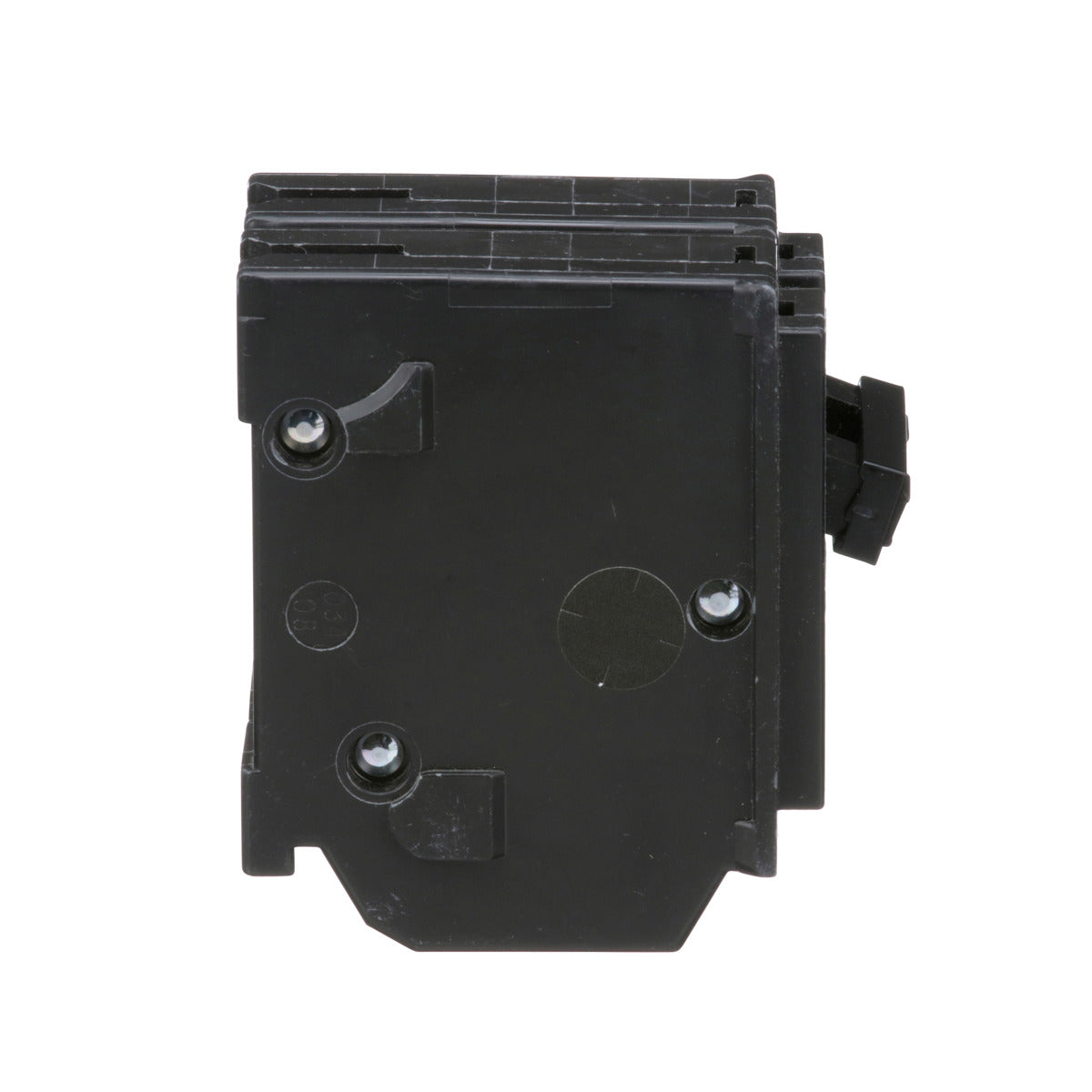

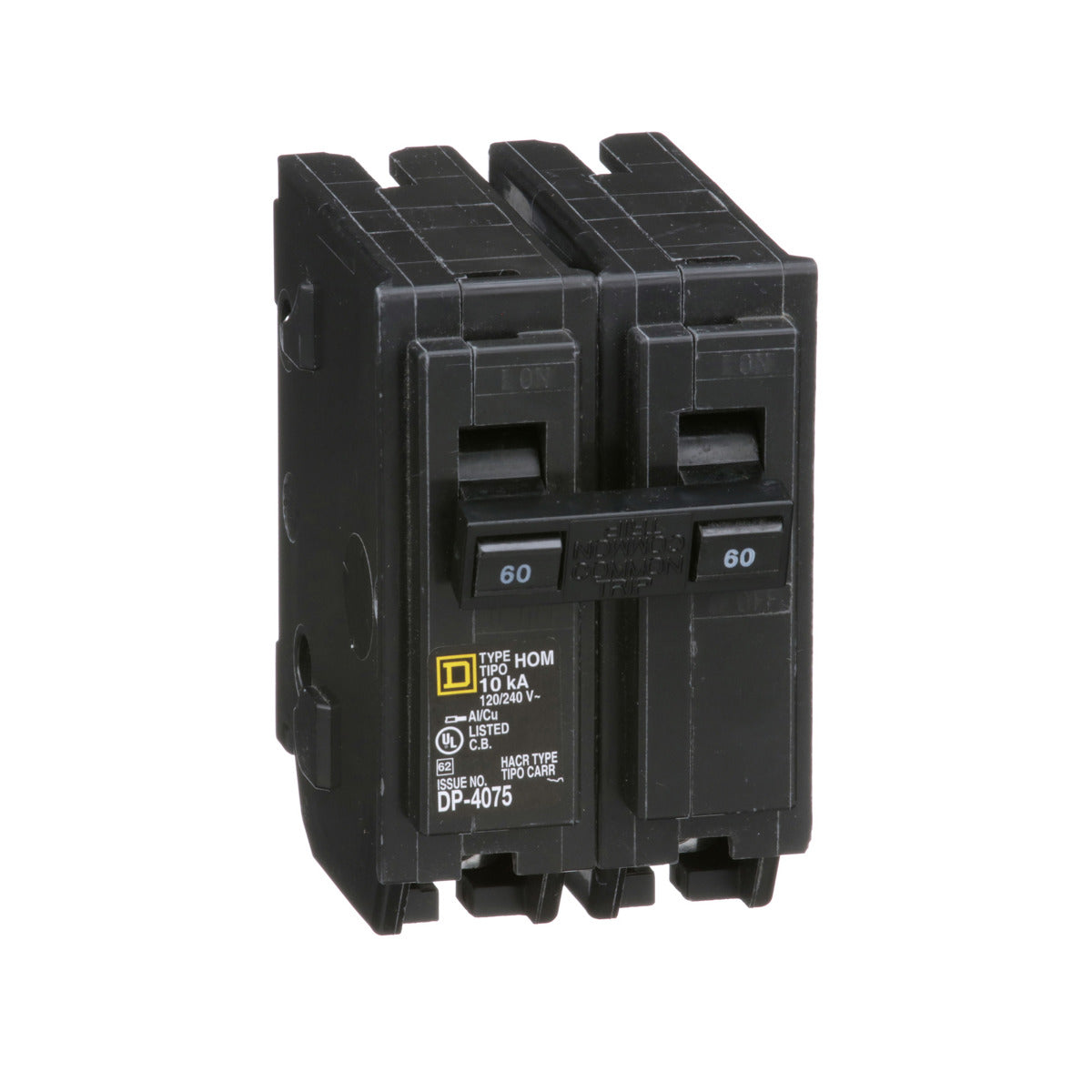

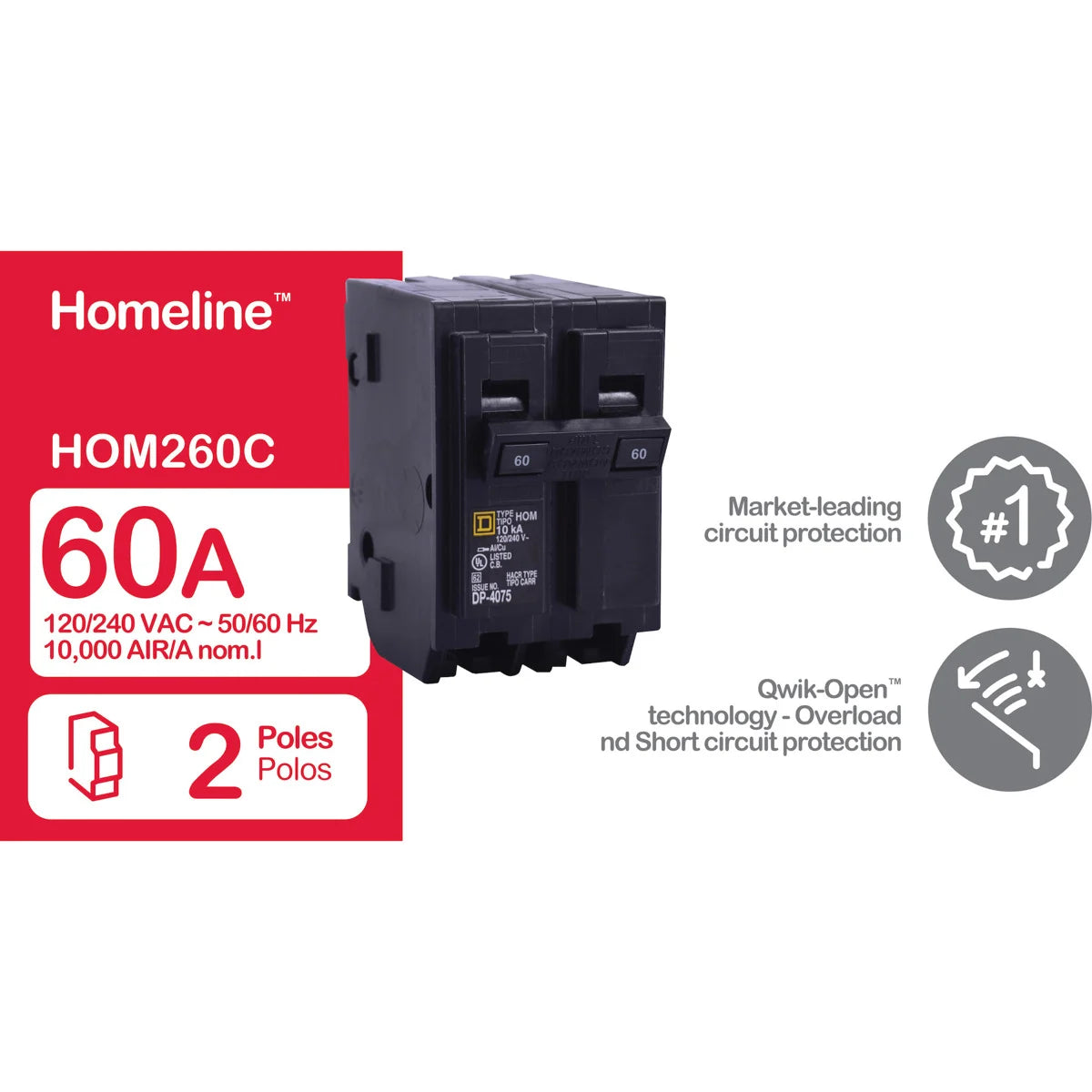

Square D HOM260 Miniature Circuit Breaker 60 Amp 120/240 Volt

Product Description

The Square D HOM260 Miniature Circuit Breaker is designed for use in residential applications. This circuit breaker is rated for 60 amps and operates at 120/240 volts. It plugs directly into Homeline load centers and provides reliable overload and short-circuit protection. The HOM260 is HACR rated, making it suitable for various applications, including air conditioning and refrigeration.

• Standard circuit protection for residential use
• 10 kA breaking capacity
• UL Listed and ANSI certified

Product Highlights

This circuit breaker offers a lifetime warranty and is built following industry standards for safety and performance. It features clamp terminal connections that accept one wire and accommodates wire sizes ranging from 8 AWG to 2 AWG for copper or aluminum conductors.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: HOM260
• Voltage Rating: 120/240 Volt
• Current Rating: 60 Amp
• Number of Poles: 2 Pole
• Interrupt Rating: 10 kA
• Mounting Type: Plug-in
• Wire Size Range: 8 to 2 AWG
• Height: 3.13 inches
• Width: 2.0 inches
• Depth: 2.98 inches
• Country of Origin: Mexico
