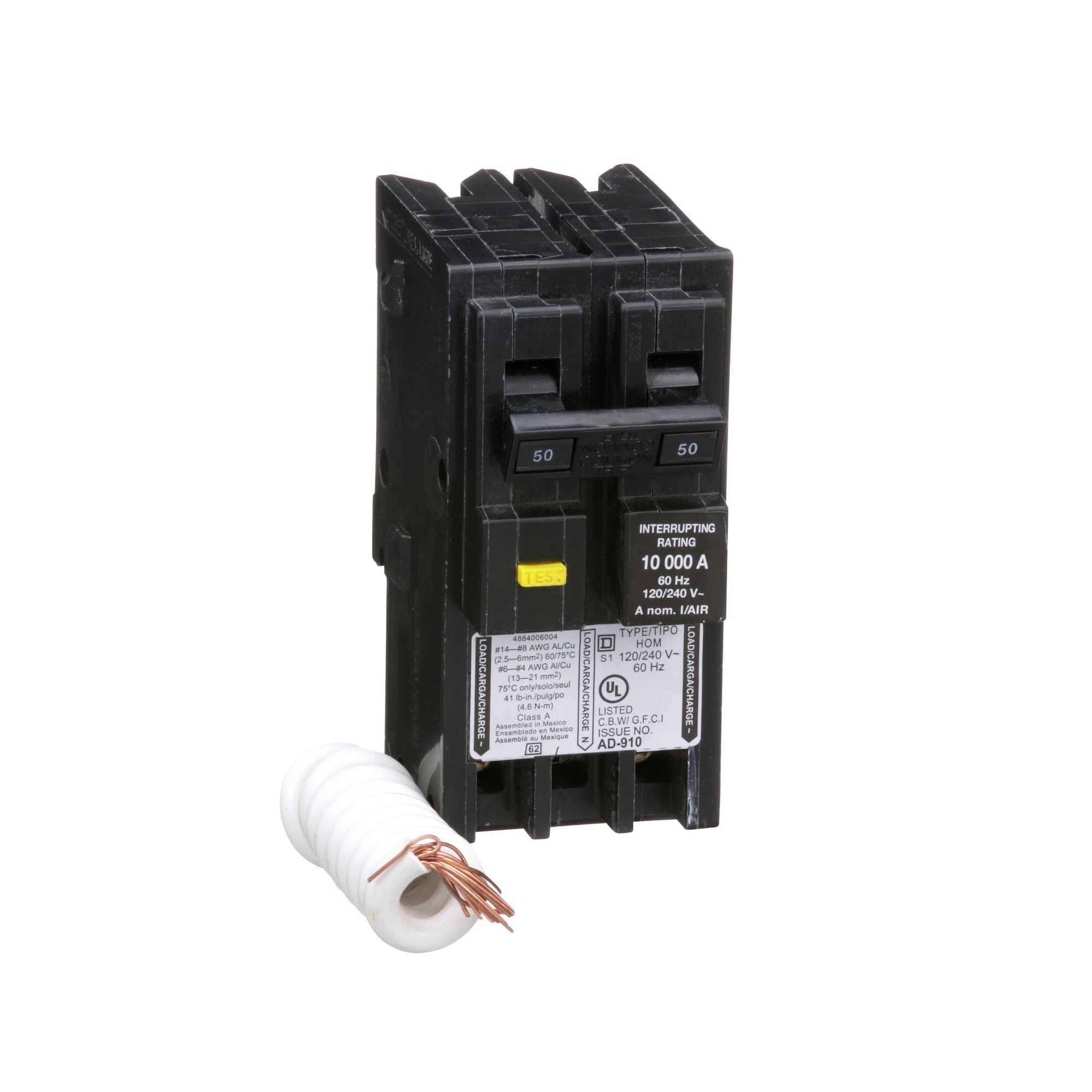

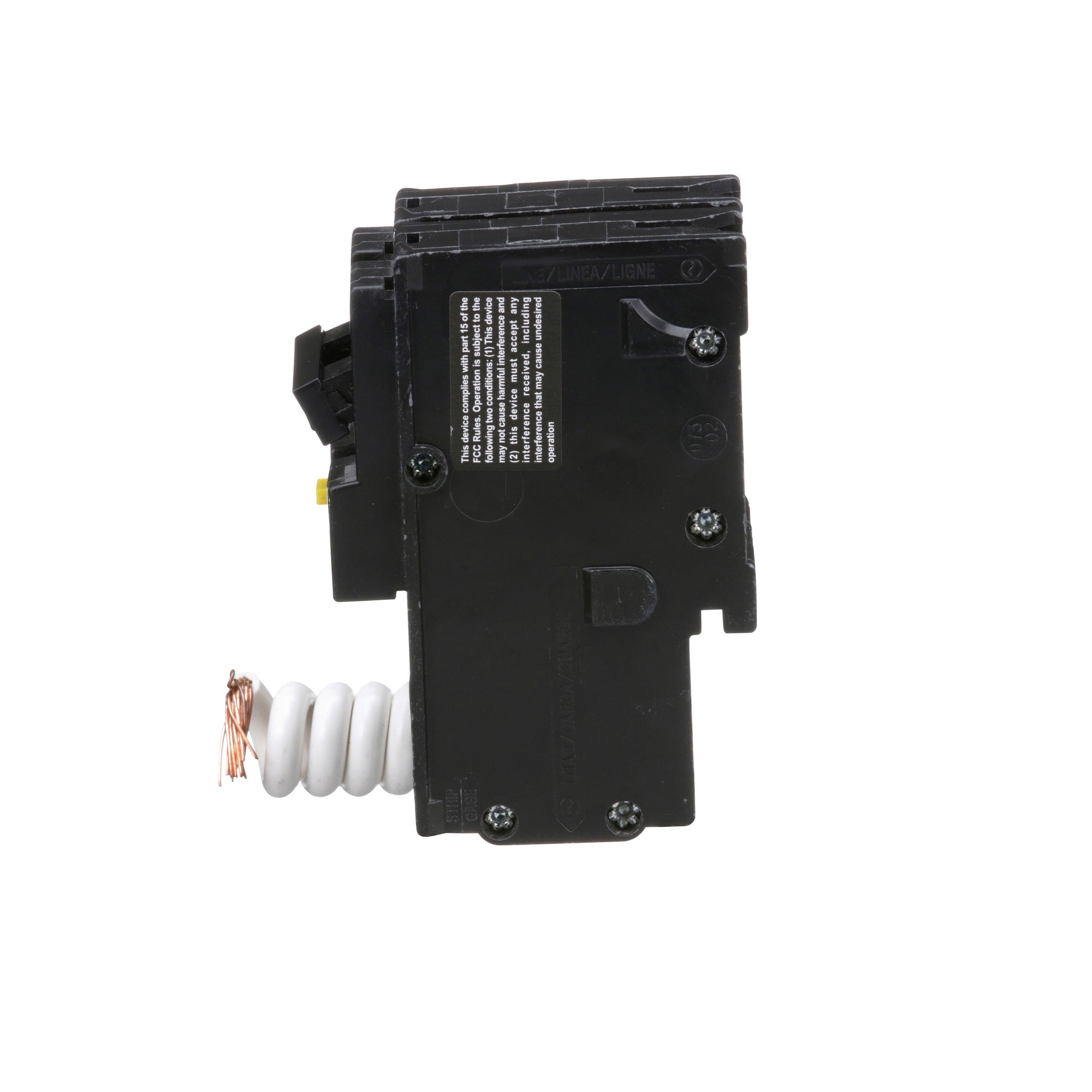

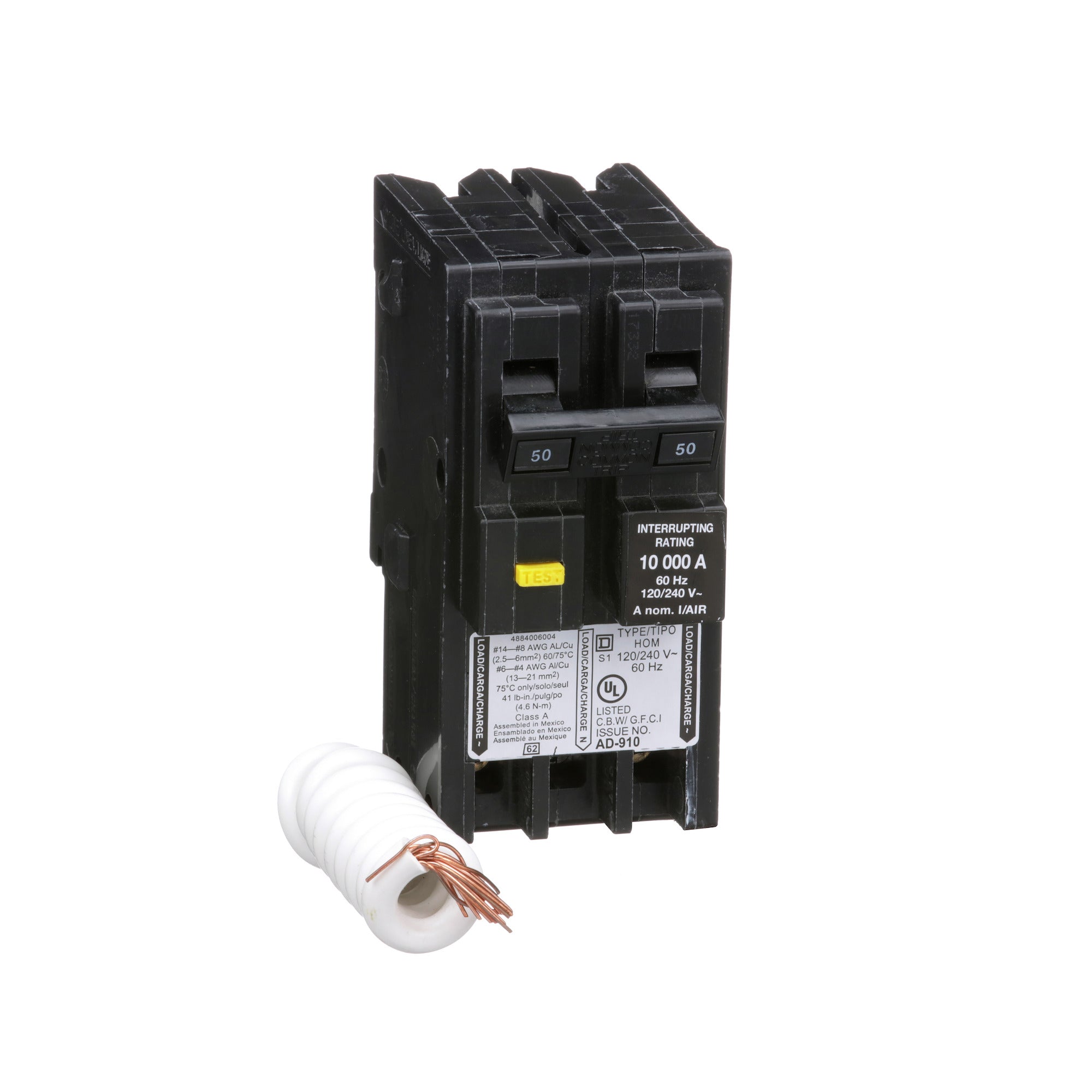

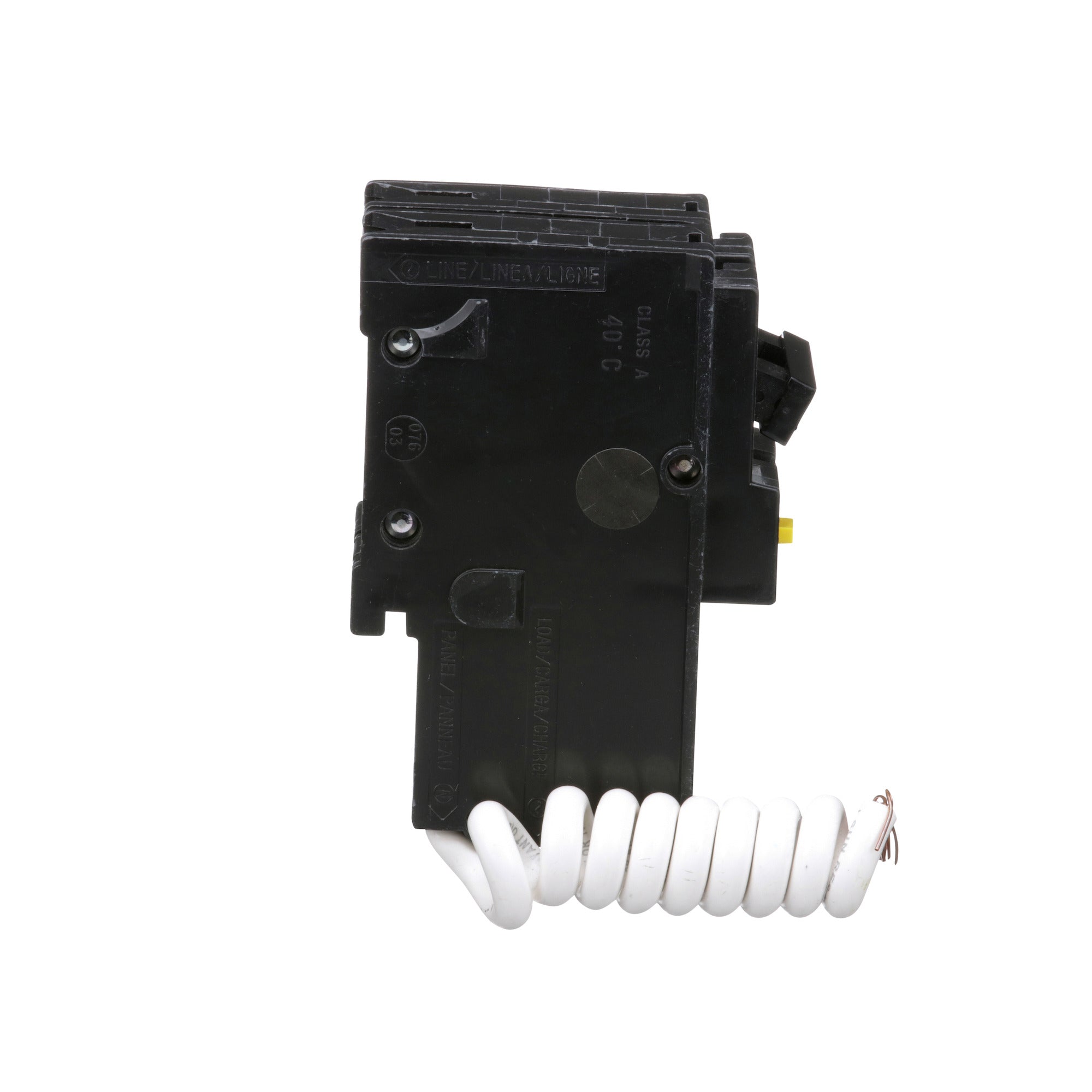

Square D HOM250GFI Miniature Circuit Breaker 50 Amp 120/240 Volt

Product Description

The Square D HOM250GFI is a miniature circuit breaker designed for use at 120/240 volts and rated for 50 amps. This breaker is part of the Homeline series and plugs directly into Homeline load centers for reliable circuit protection.

• Rated for 50 amps at 120/240 volts.
• 10 kA breaking capacity.
• Overload and short circuit protection with Class A Ground Fault protection.

Product Highlights

This breaker is engineered for easy installation and operation. It ensures safety through its overload protection and is HACR rated for compatibility with heating, air conditioning, and refrigeration equipment.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: HOM250GFI
• Type: Miniature Circuit Breaker
• Current Rating: 50 Amp
• Voltage Rating: 120/240 Volt
• Number of Poles: 2
• Breaking Capacity: 10 kA
• Wire Size: AWG 14...AWG 6 copper or AWG 12...AWG 4 aluminum
• Height: 3.13 inches
• Width: 1.0 inch
• Depth: 2.98 inches
• Certifications: UL Listed
• Warranty: Lifetime
