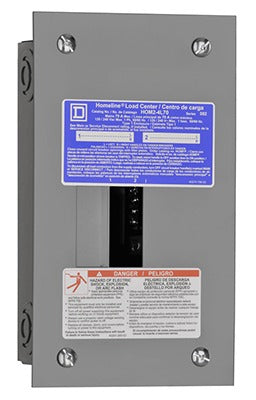

Square D HOM24L70FCP 70A Main Lug Load Center 120/240V

Product Description

The SQUARE D BY SCHNEIDER ELECTRIC HOM24L70FCP is a 70-amp main lug load center designed for single-phase electrical distribution in residential and light commercial applications. Rated at 120/240 volts, it provides 2 spaces accommodating up to 4 single-pole Homeline circuit breaker positions. The panel ships with a flush-mount trim and cover included, and features a solid neutral bar. It is listed for use as a service entrance device. A licensed electrician installs and terminates this panel per NEC requirements. For grounded installations requiring an additional ground bar, use accessory ground bar PK3GTA-1.

This load center suits sub-panel or service entrance applications where a compact, low-space-count distribution point is needed. Its 70-amp lug rating makes it appropriate for branch circuit distribution fed from a larger upstream panel or meter base. The flush-mount design integrates cleanly into wall cavities in residential new construction or renovation work where a recessed panel aesthetic is required.

Key Features

• 70-amp main lug rating for service entrance or sub-panel use
• 2 spaces supporting up to 4 single-pole Homeline circuit breaker positions
• 120/240-volt single-phase configuration
• Solid neutral bar included
• Flush-mount design with cover included
• Compatible with accessory ground bar PK3GTA-1 for grounded installations

Compatibility

Accepts Homeline series circuit breakers. Designed as an OEM-style load center for single-phase residential or light commercial service entrance and sub-panel installations. Accessory ground bar PK3GTA-1 is required for ground bar functionality and is sold separately.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the upstream feed completely before making any lug terminations or installing breakers. Verify that the supply conductors are appropriately sized for the 70-amp lug rating before termination. The cover must be installed and secured before the panel is energized.
