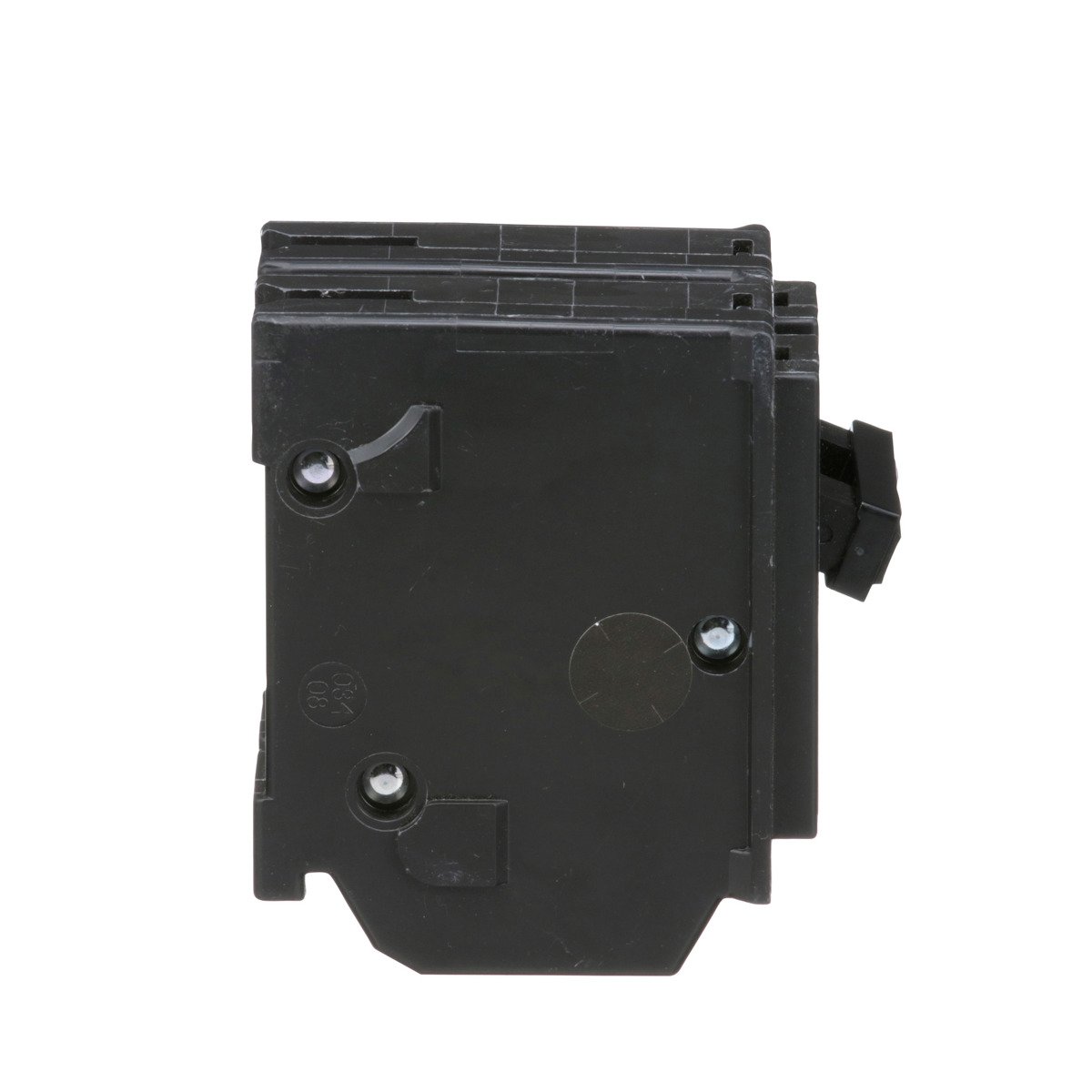

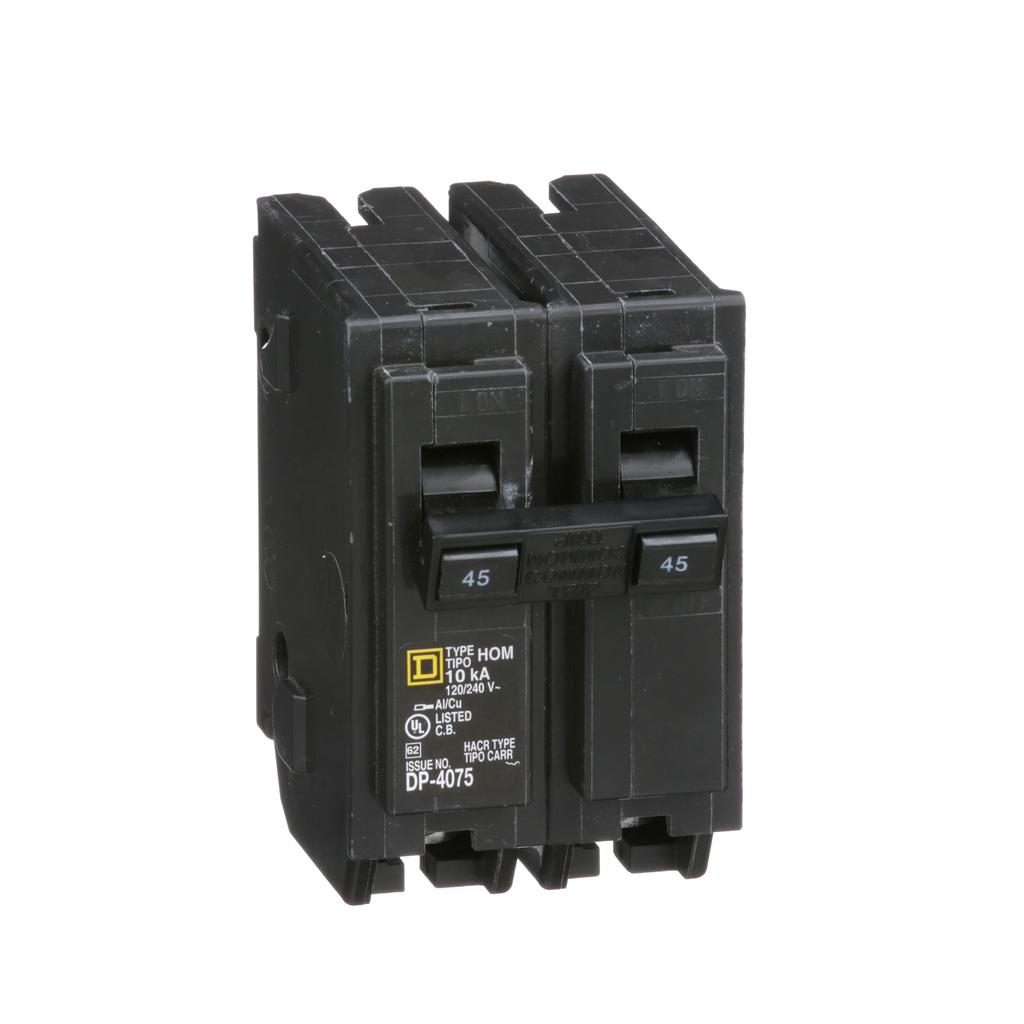

Square D HOM245 Miniature Circuit Breaker 120/240 Volt 45 Amp

Product Description

The Square D HOM245 is a 120/240 Volt 45 Amp miniature circuit breaker designed by Schneider Electric. This unit is engineered for effective overload and short-circuit protection. It plugs directly into Homeline load centers, making it suitable for residential electrical systems.

• Rated for 45 Amps at 120/240 Volts.
• Features two poles for circuit protection.
• Includes UL listing for safety compliance.

Product Highlights

This circuit breaker offers a 10 kA interrupt rating and includes box lugs for wire connection, compatible with copper and aluminum wire from 8 AWG to 2 AWG.

Product Information

Standard Information

• MPN: HOM245
• Brand: Square D

Technical Specifications

• Voltage Rating: 120/240 Volt
• Current Rating: 45 Amp
• Number of Poles: 2
• Interrupt Rating: 10 kAIC
• Mounting Type: Plug-in
• Wire Size Compatibility: 8 AWG to 2 AWG
• Height: 3.13 inches
• Width: 2.0 inches
• Depth: 2.98 inches
• Certifications: UL Listed
• Warranty Length: Lifetime
