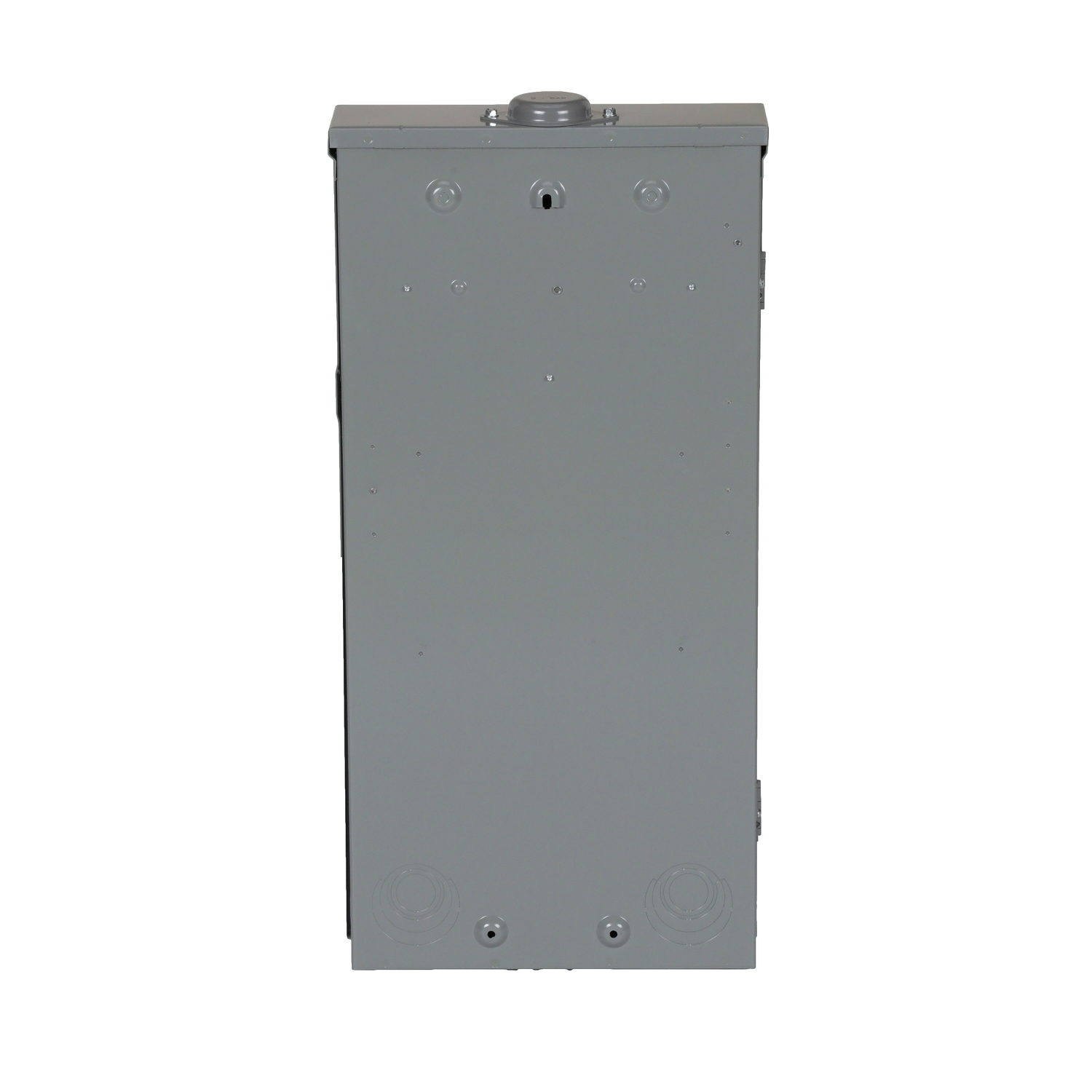

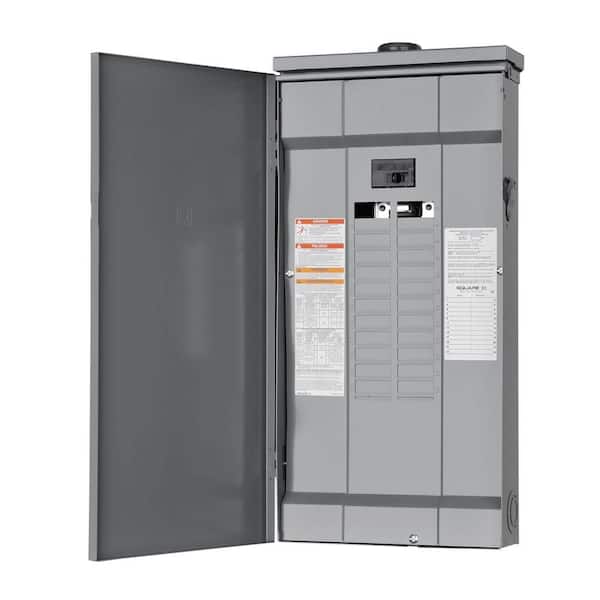

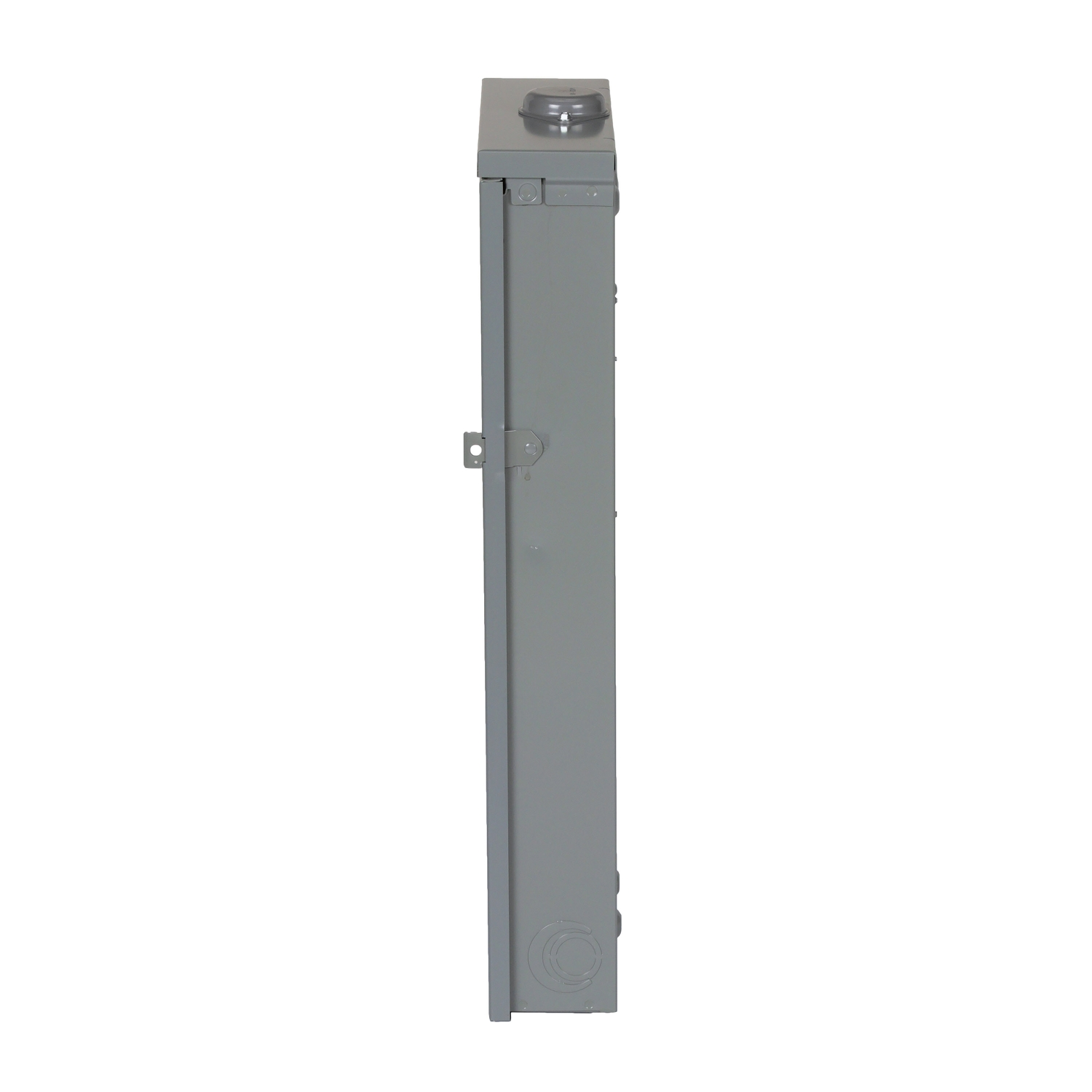

Square D HOM2448M125PRB Load Center 125 Amp 24-Space 48-Circuit

Product Description

The Square D HOM2448M125PRB Homeline load center features Homeline circuit breakers, ground fault circuit breakers, and arc fault interrupters. This single-phase system is rated for indoor or outdoor use and designed to protect electrical systems in residential and industrial applications. It has a 125A, 120/240 VAC two-pole plug-on neutral main supply circuit breaker and a 22 kA breaking capacity.

• Enables the use of a full complement of accessories.
• Designed for residential and industrial use to protect electrical systems, equipment, and people.
• UL Listed File E-6294.

Product Highlights

This Homeline load center offers 24 spaces and 48 circuits in a NEMA 3R enclosure. Electrical connections are box lugs that accept 6 AWG to 1 AWG copper or 6 AWG to 2/0 AWG aluminum wire.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: HOM2448M125PRB
• Country of Origin: United States

Technical Specifications

• Type: Load Center
• Brand: Square D
• Depth: 115 mm
• Width: 375 mm
• Finish: Gray
• Height: 758 mm
• Current: 125 Amp
• Voltage: 120/240 Volt
• Amperage: 125 Amp
• Material: Tin Plated Aluminium: Busbar
• Enclosure: 3R
• NEMA Size: 3R
• Sub Brand: HOMELINE
• Wire Size: AWG 6...AWG 2/0 aluminium;AWG 6...AWG 1 copper
• Bus Rating: TIN PLATED ALUMINIUM
• Cable Size: AWG 6...AWG 2/0 aluminium;AWG 6...AWG 1 copper
• Cover Type: Surface cover
• Applications: DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
• Conductor Size: 6-2/0 AWG (AL)/6-1 AWG (CU)
• Surface Finish: Baked enamel Gray
• Interrupt Rating: 22 kAIC
• Number of Phases: 1 Phase
• Number of Spaces: 24
• Enclosure Material: Steel
• Line Rated Current: 125 A
• Number of Circuits: 48
• Operating Temperature: -5 degrees C || 40 degrees C
• Short Circuit Current: 22 kA
• Phase: 1
• Special Features: Tin plated aluminium: busbar
• Item Type: Load Center
• Approval: UL
• Maximum Amperage (A): 125 A
• Rated Operational Voltage: 120/240 V AC
• Bus Rated Current: 125.0 A
• Number Of Tandem Circuit Breakers: 24
• AWG Gauge: AWG 6...AWG 2/0 aluminium || AWG 6...AWG 1 copper
• Device Composition: grounding bar (ordered separately)
• Range Of Product: Homeline
• Main Breaker Type: HOM, QOM1 Main Frame Size
• Breaker Mounting: Plug-On
• Main Wire Size: 6 to 1 AWG (Copper), 6 to 2/0 AWG (Aluminum)
• Enclosure Type: NEMA 3R, Outdoor/Rainproof
• Wiring Configuration: 3-wire
• Enclosure NEMA Rating: NEMA 3R outdoor
• Short Circuit Current Rating: 22 kA
• Main Circuit Breaker or Main Lug: PoN Convertible Mains (breaker)
