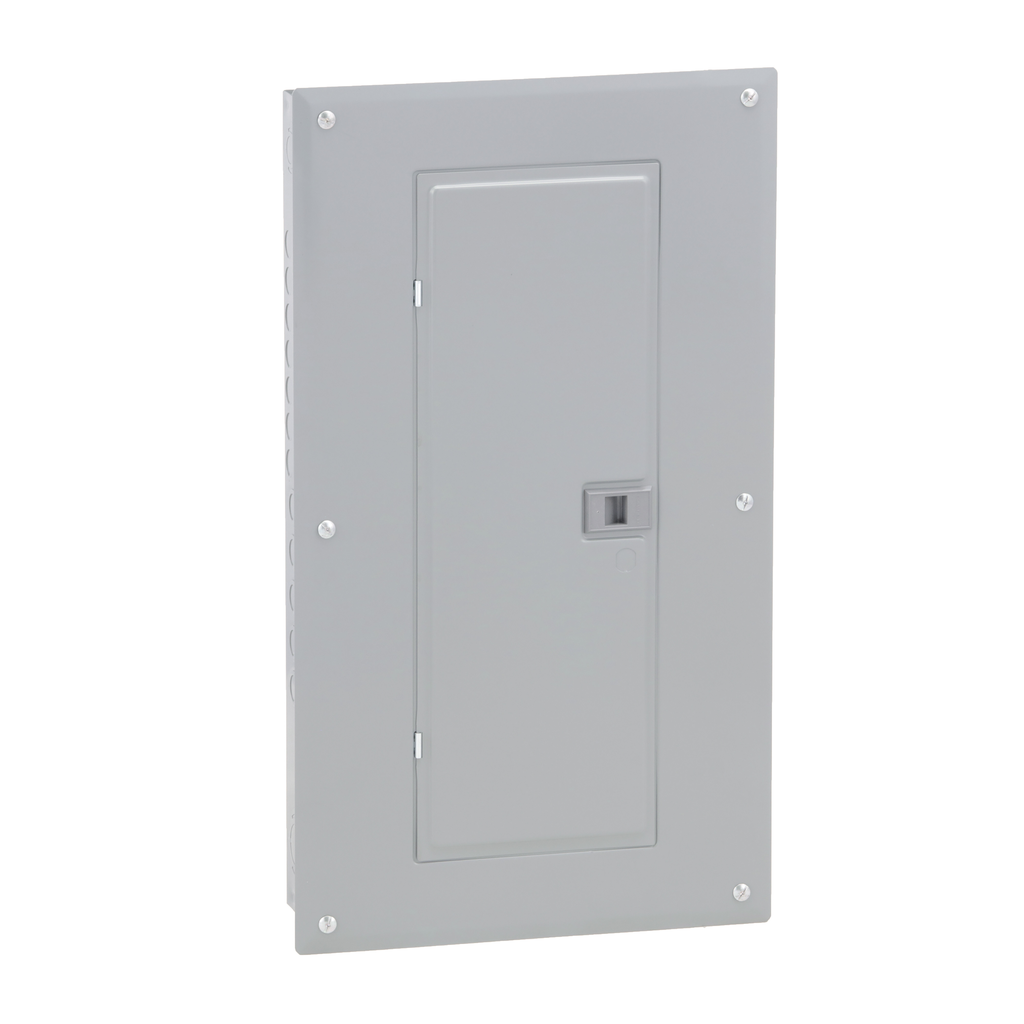

Square D HOM2448M100PC Load Center with Cover 100 Amp 1 Phase 24 Space 48 Circuit

Product Description

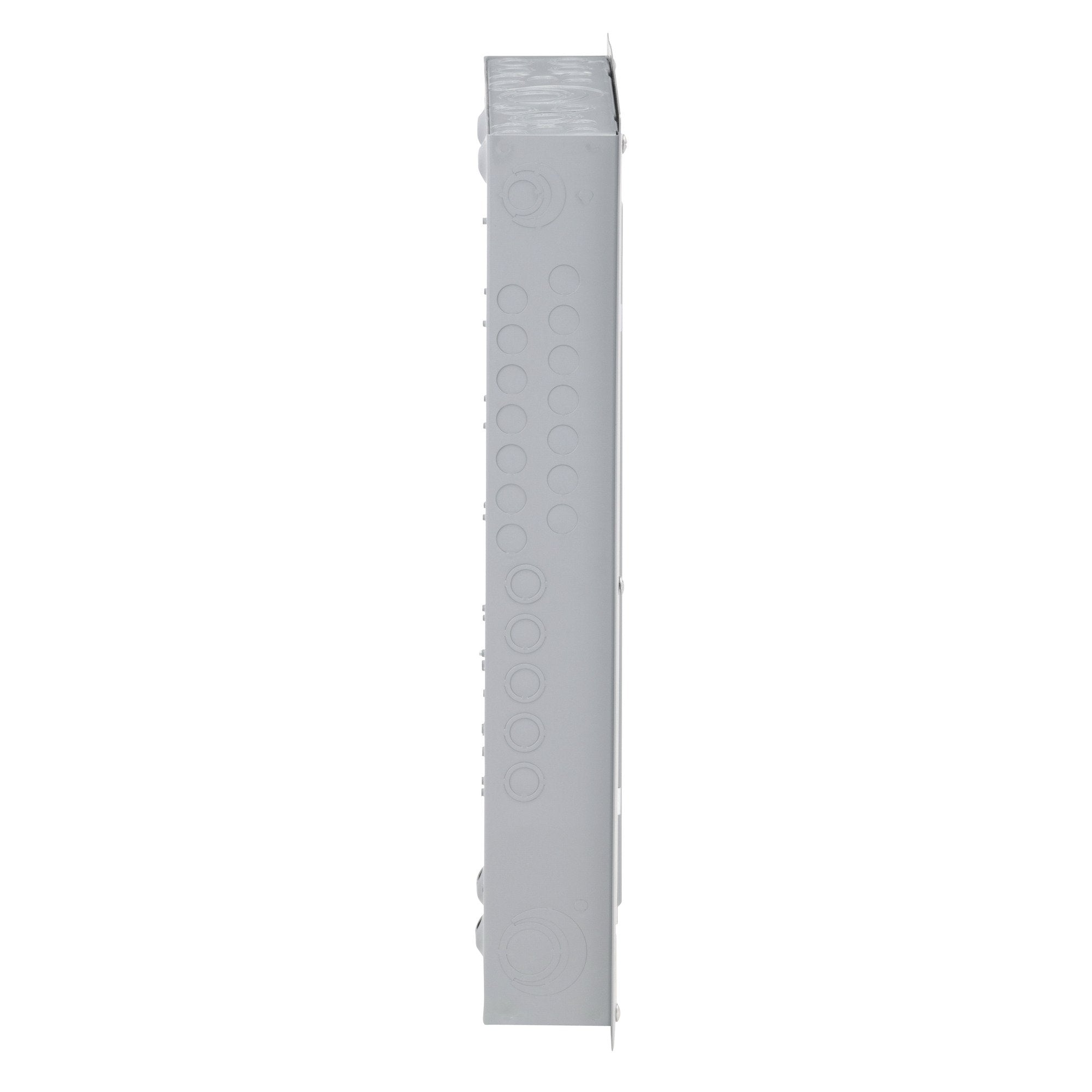

The Square D HOM2448M100PC is a load center designed for residential and industrial applications. It supports a maximum of forty-eight circuits, making it suitable for various electrical system needs. This load center features a two-pole breaker rated at 100 Amps for 120/240 VAC. With its NEMA 1 indoor enclosure, the HOM2448M100PC is ideal for use where rain protection is necessary. The enclosure measures twenty-six point zero two inches tall, fourteen point twenty-five inches wide, and three point seventy-four inches deep.

• For single-phase electrical systems
• UL Listed with a breaking capacity of twenty-two kA
• Accepts wire sizes from AWG six to AWG two/zero

Product Highlights

The HOM2448M100PC operates efficiently under indoor conditions and meets the electrical protection requirements for homes and businesses. It includes a combination flush/surface cover and accommodates box lugs for easy electrical connections.

Product Information

Standard Information

• Catalog Number: HOM2448M100PC
• Brand: Square D

Technical Specifications

• Voltage: 120/240 Volt
• Current: 100 Amp
• Number of Circuits: 48
• Enclosure: NEMA 1
• Dimensions: 26.02 inches (H) x 14.25 inches (W) x 3.74 inches (D)
• Wire Size: Accepts AWG 6 to AWG 2/0 aluminum or copper
• Breaking Capacity: 22 kAIC
• Phase: 1
