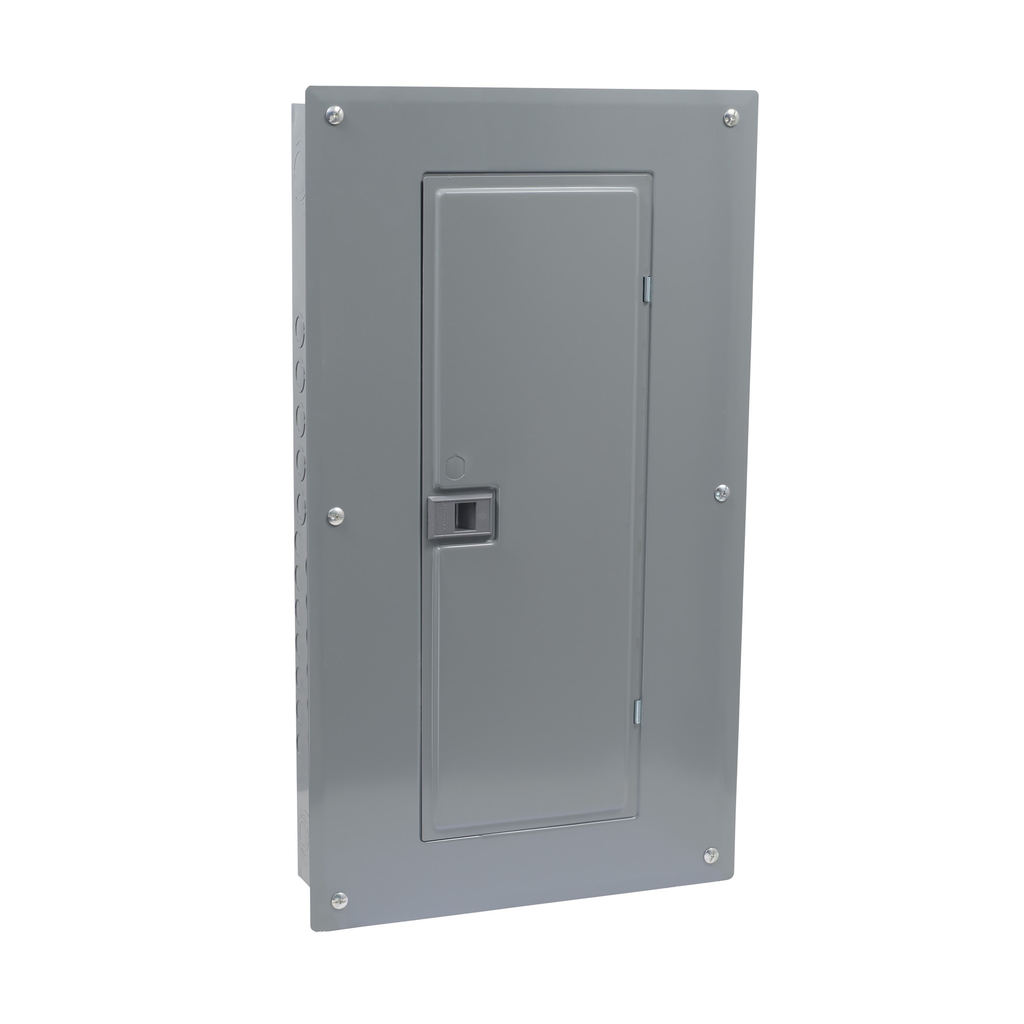

Square D HOM2448L125PQGC Load Center Ho 125A (24 Spaces) Replacement MPN

Product Description

The Square D HOM2448L125PQGC load center is designed for residential and industrial electrical installations. It has a current rating of 125 Amps and operates at 120/240 Volts. This load center supports up to 24 circuit spaces and 48 circuits in total. The combination of flush and surface cover allows for easy access and installation. It includes Qwik Grip assembly for secure wire connections.

• Rated at 125 Amps, 120/240 Volts
• 24 spaces available for circuits
• UL Listed for safety compliance

Product Highlights

Ideal for both residential and industrial use, this load center offers reliable protection for electrical systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOM2448L125PQGC
• Current: 125 Amp
• Voltage: 120/240 Volt
• Number of Spaces: 24
• Number of Circuits: 48
• Enclosure: NEMA 1
• Wire Size: 6 AWG to 2/0 AWG aluminum; 6 AWG to 1 AWG copper
• Dimensions: 26.02 inches (Height) x 14.25 inches (Width) x 3.74 inches (Depth)
