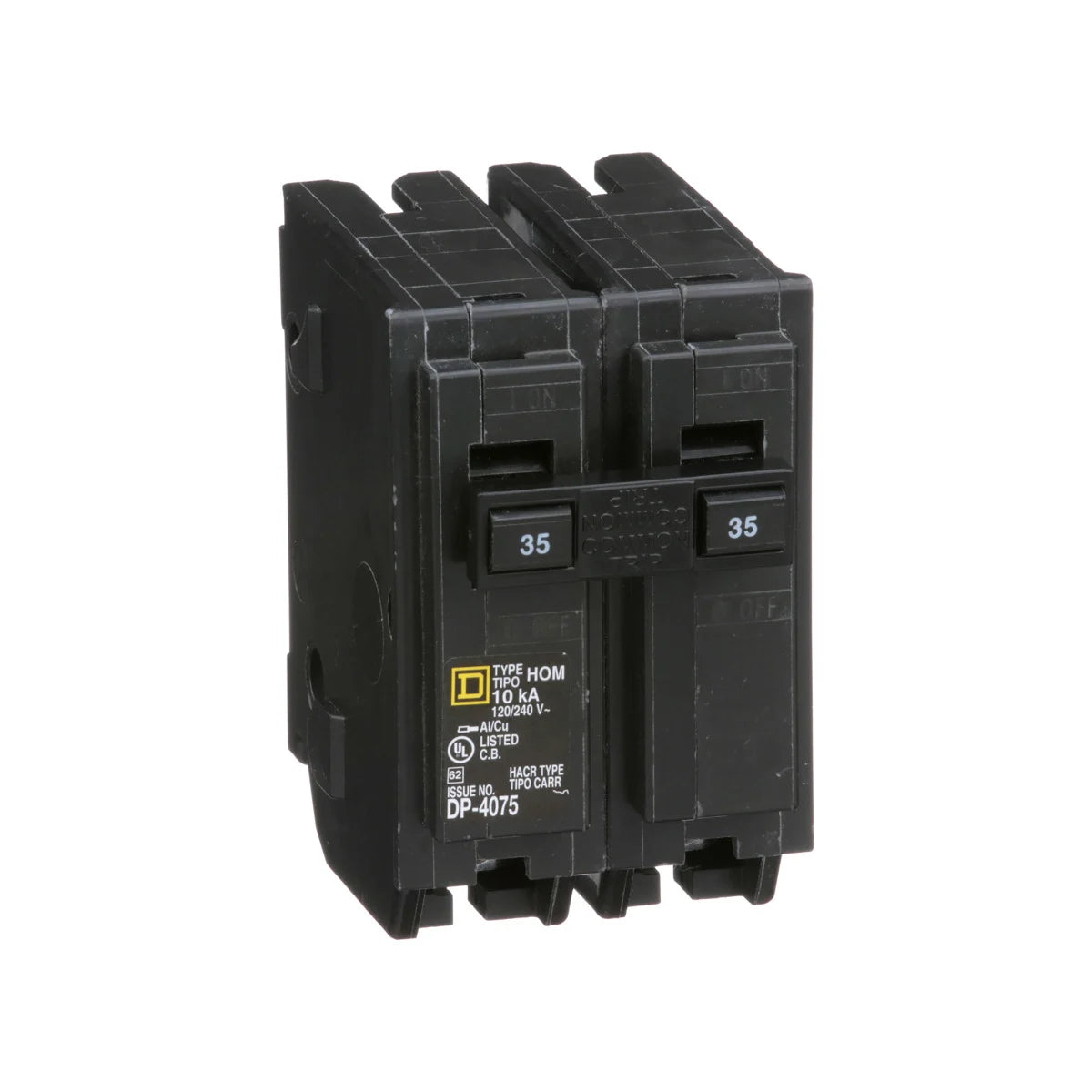

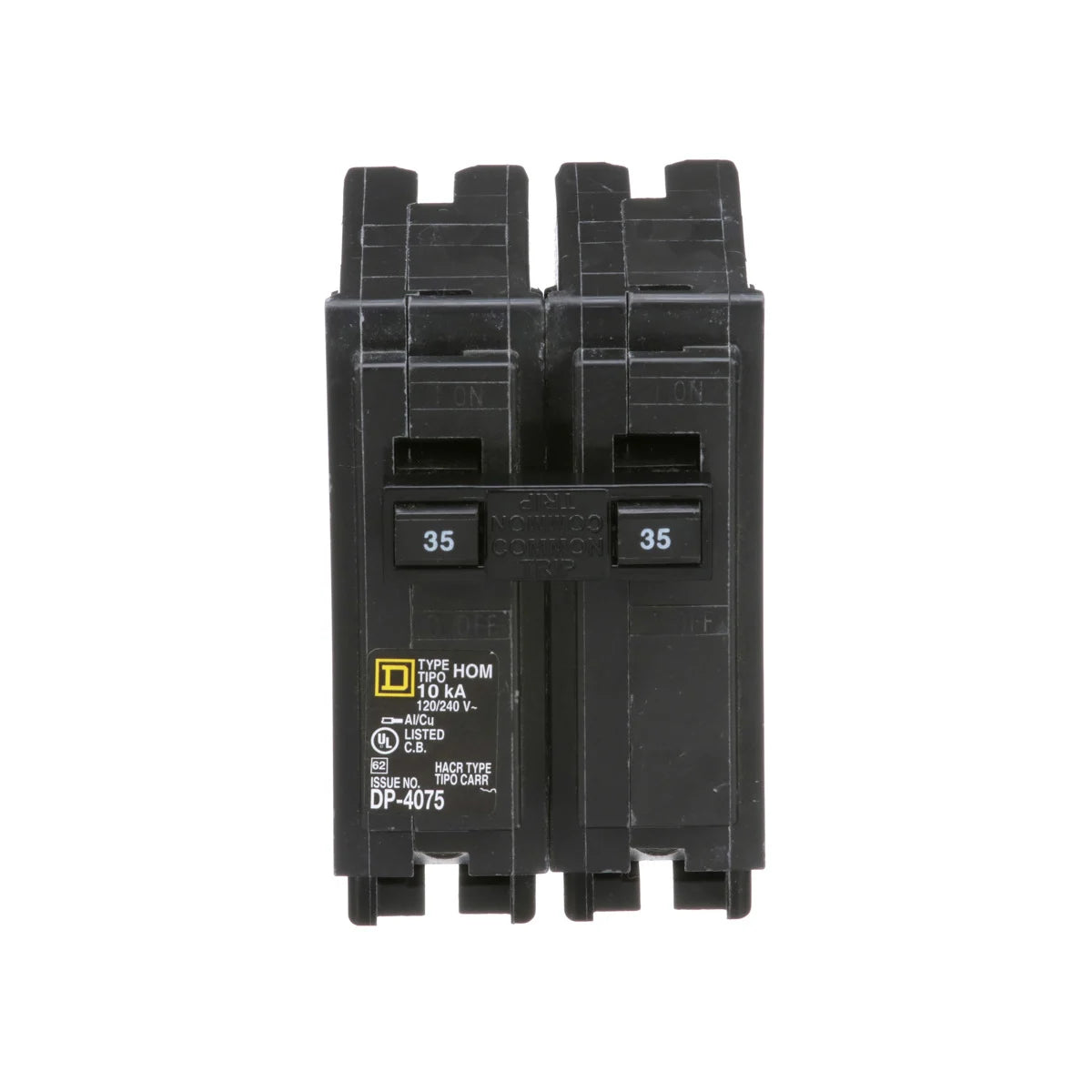

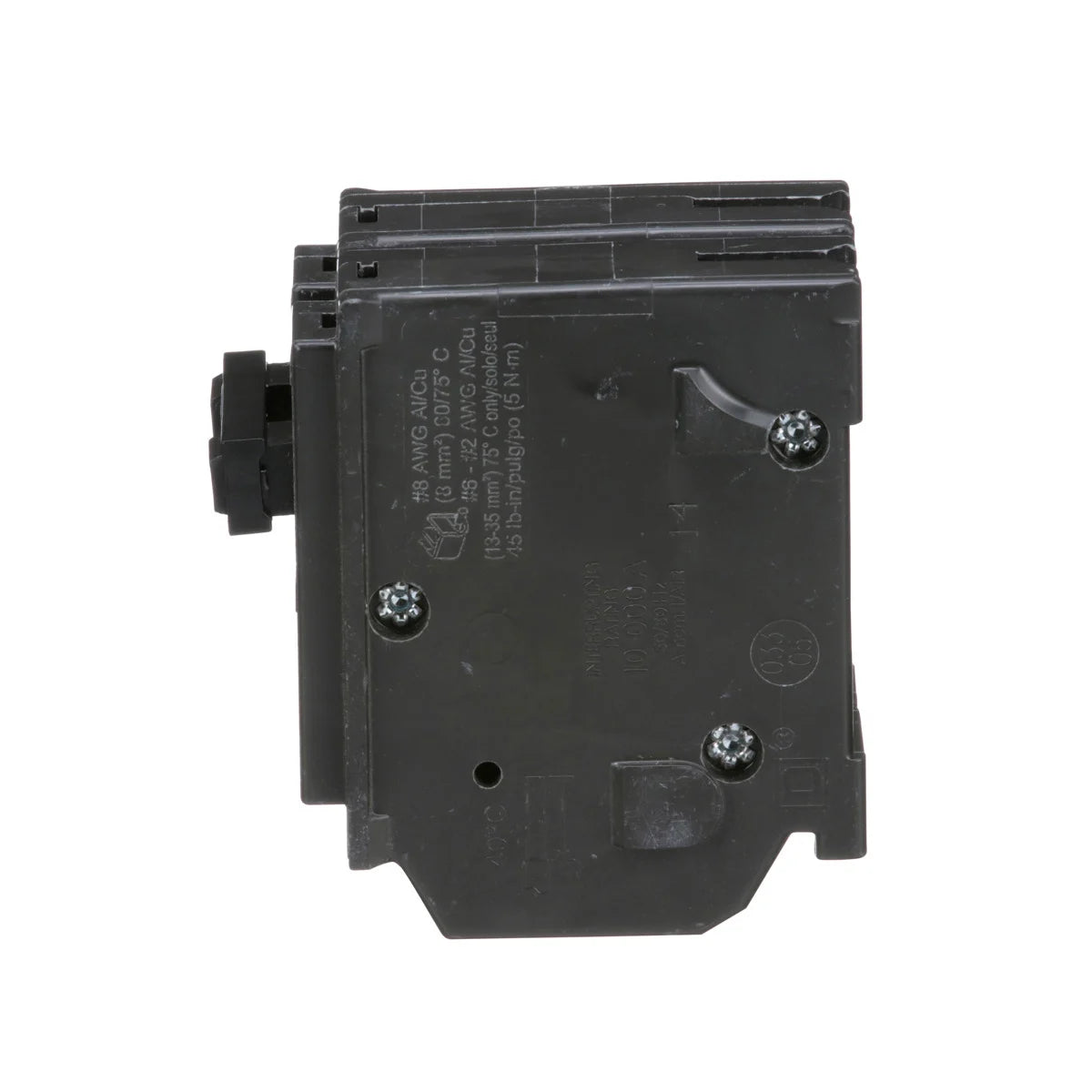

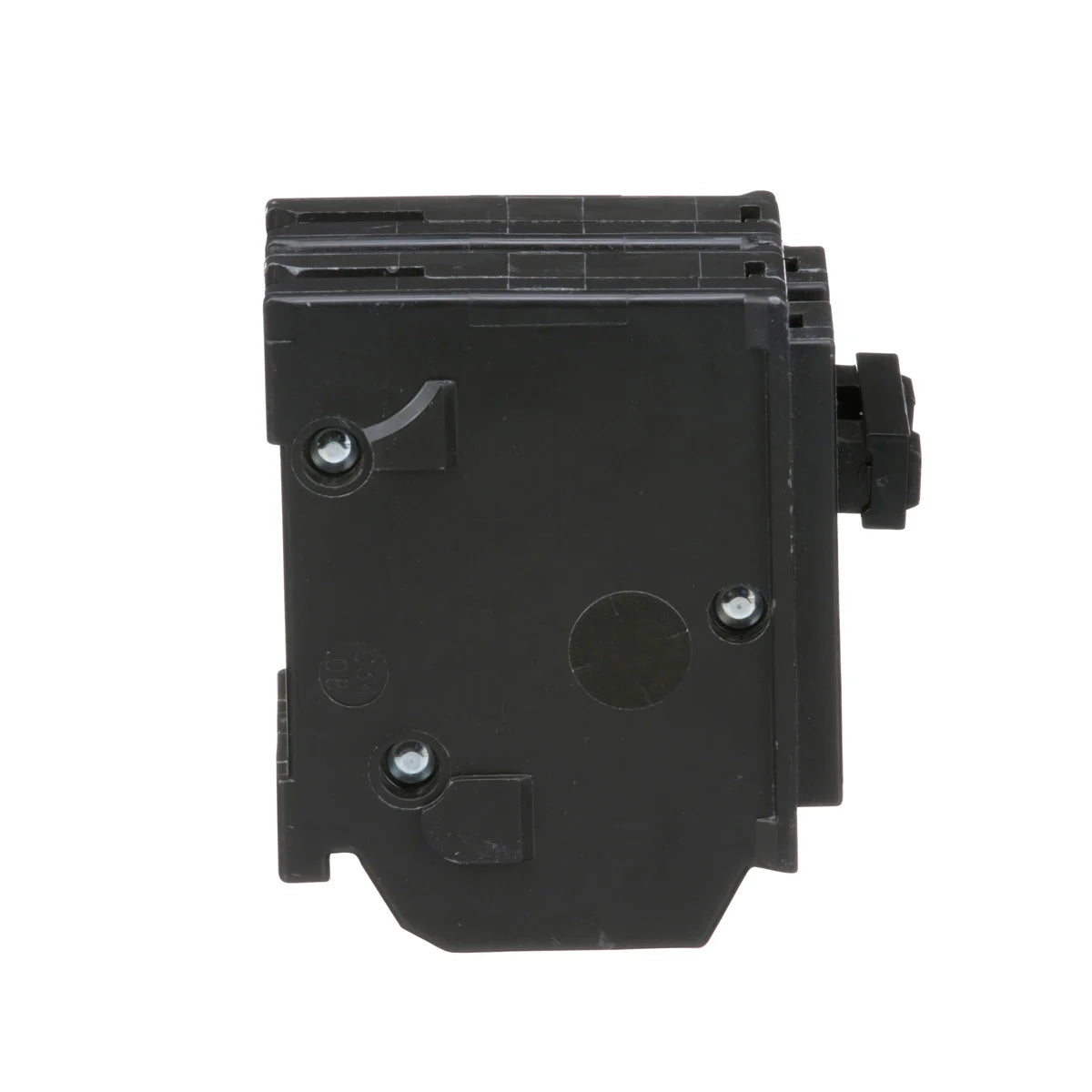

Square D HOM235 Miniature Circuit Breaker 35 Amp 120/240 Volt

Product Description

The Square D HOM235 is a miniature circuit breaker manufactured by Schneider Electric. This product is designed for fast installation and efficient circuit protection. It fits into Homeline load centers and provides essential protection against overloading and short circuits. The circuit breaker is rated for 35 Amps at 120/240 Volts and features a two-pole design.

• Compact size for easy installation
• UL Listed for safety
• Lifetime warranty for peace of mind

Product Highlights

This circuit breaker is HACR rated, making it suitable for heating, air conditioning, and refrigeration applications. It has a breaking capacity of ten kA, ensuring strong protection against electrical faults.

Product Information

Standard Information

• Brand: Square D
• MPN: HOM235

Technical Specifications

• Voltage Rating: 120/240 Volt
• Current Rating: 35 Amp
• Number of Poles: 2
• Mounting Type: Plug-in
• Break Capacity: 10 kA
• Wire Range: AWG 8 to AWG 2
• Physical Dimensions: Height 3.13 inches, Width 2.0 inches, Depth 2.98 inches
• Certificates: UL
• Country of Origin: Mexico
