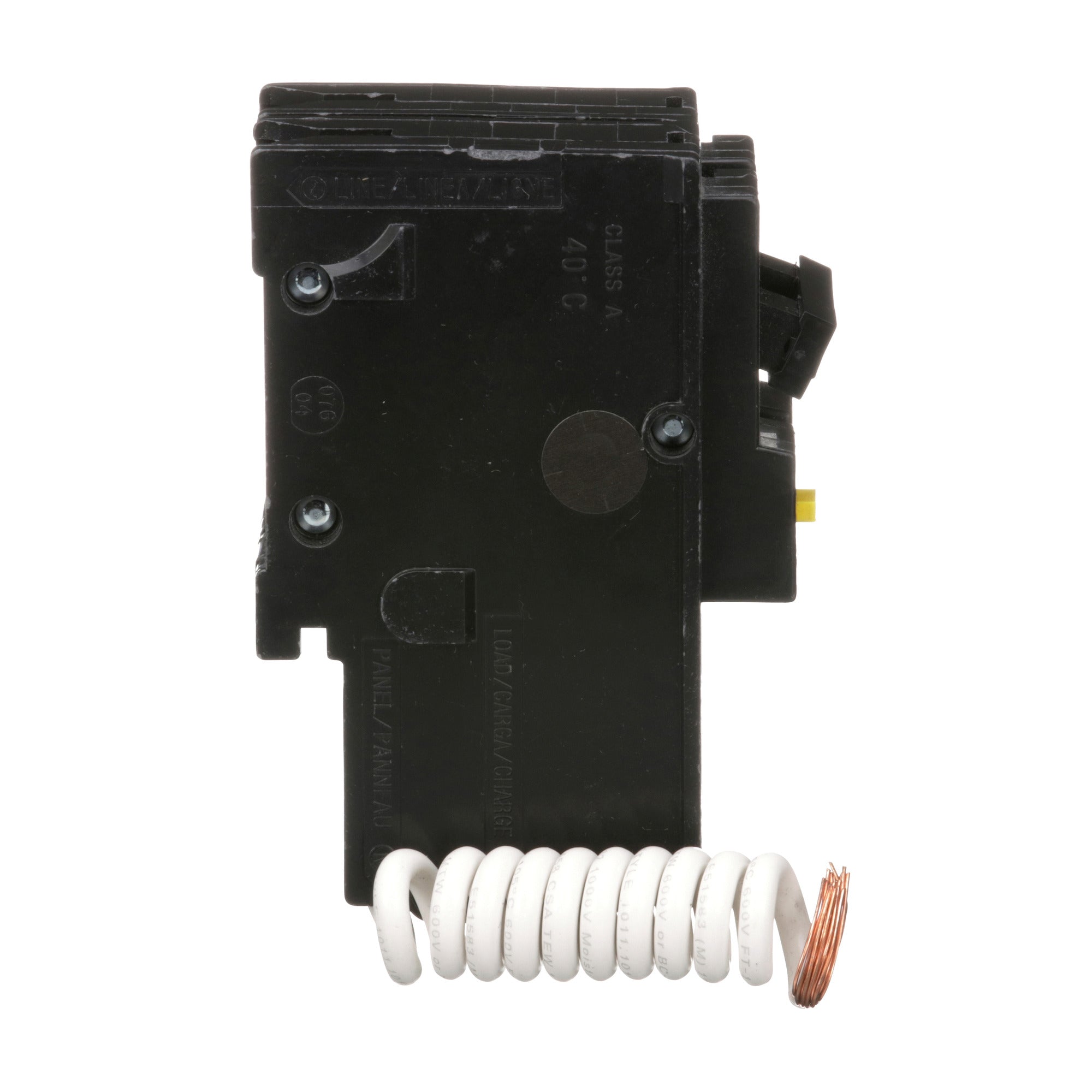

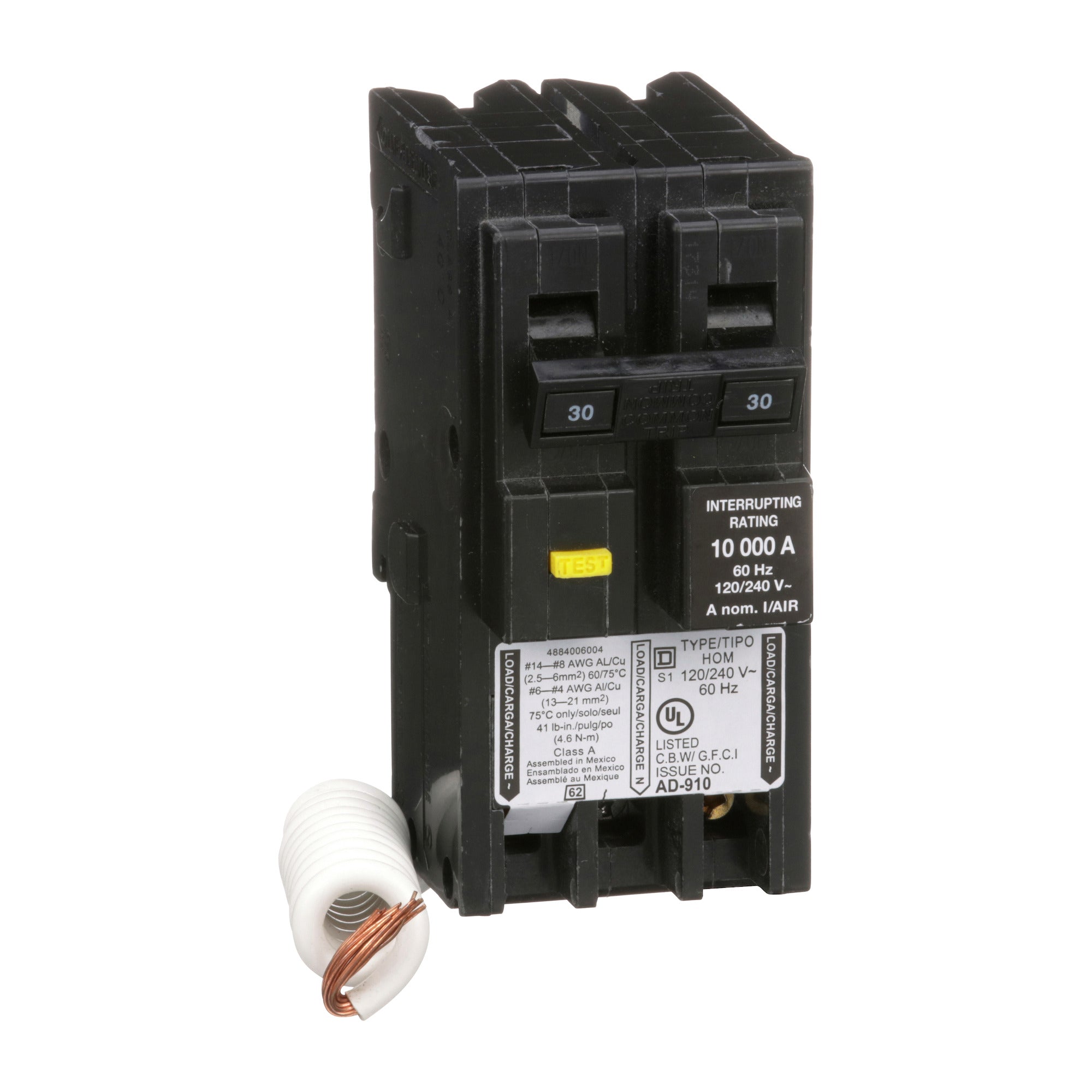

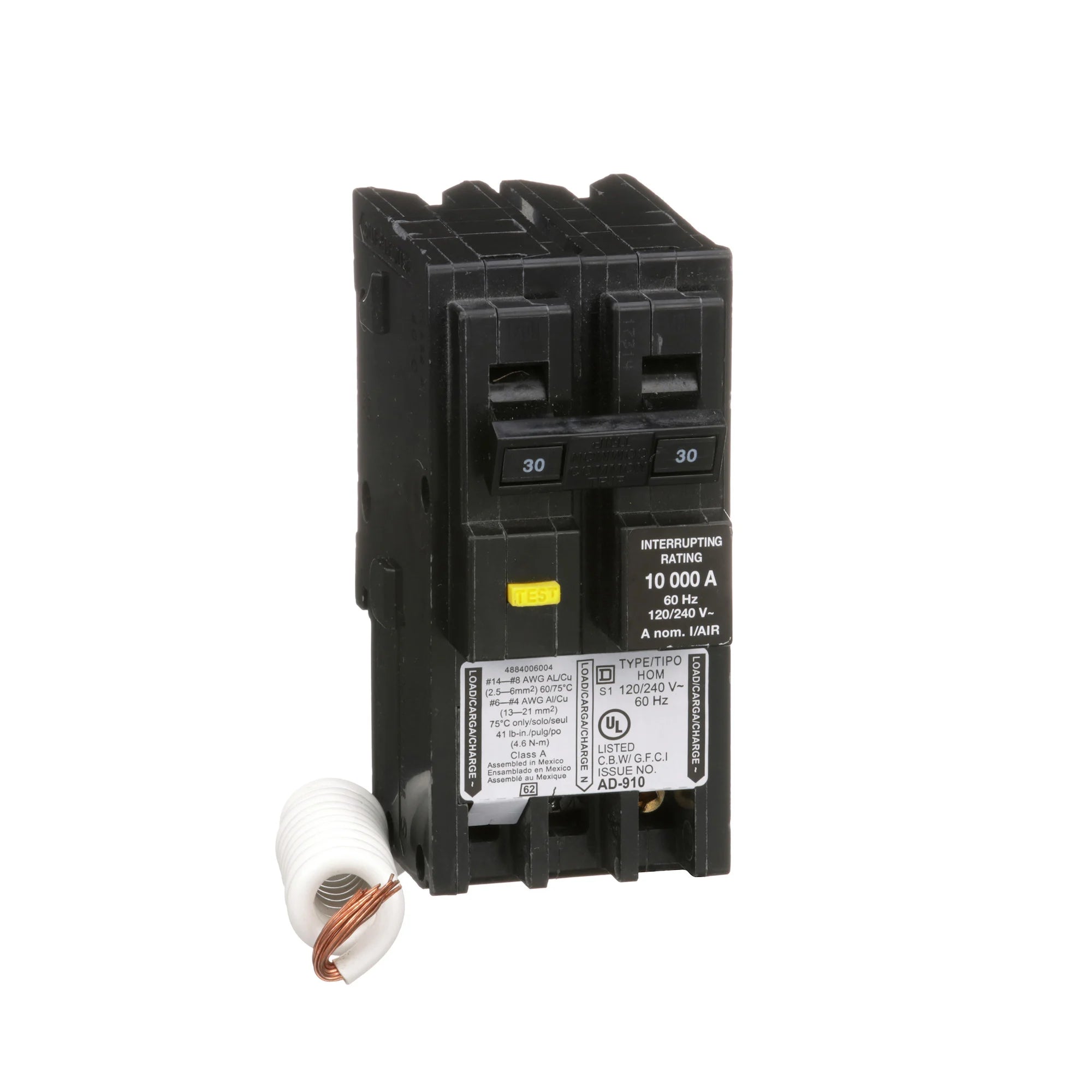

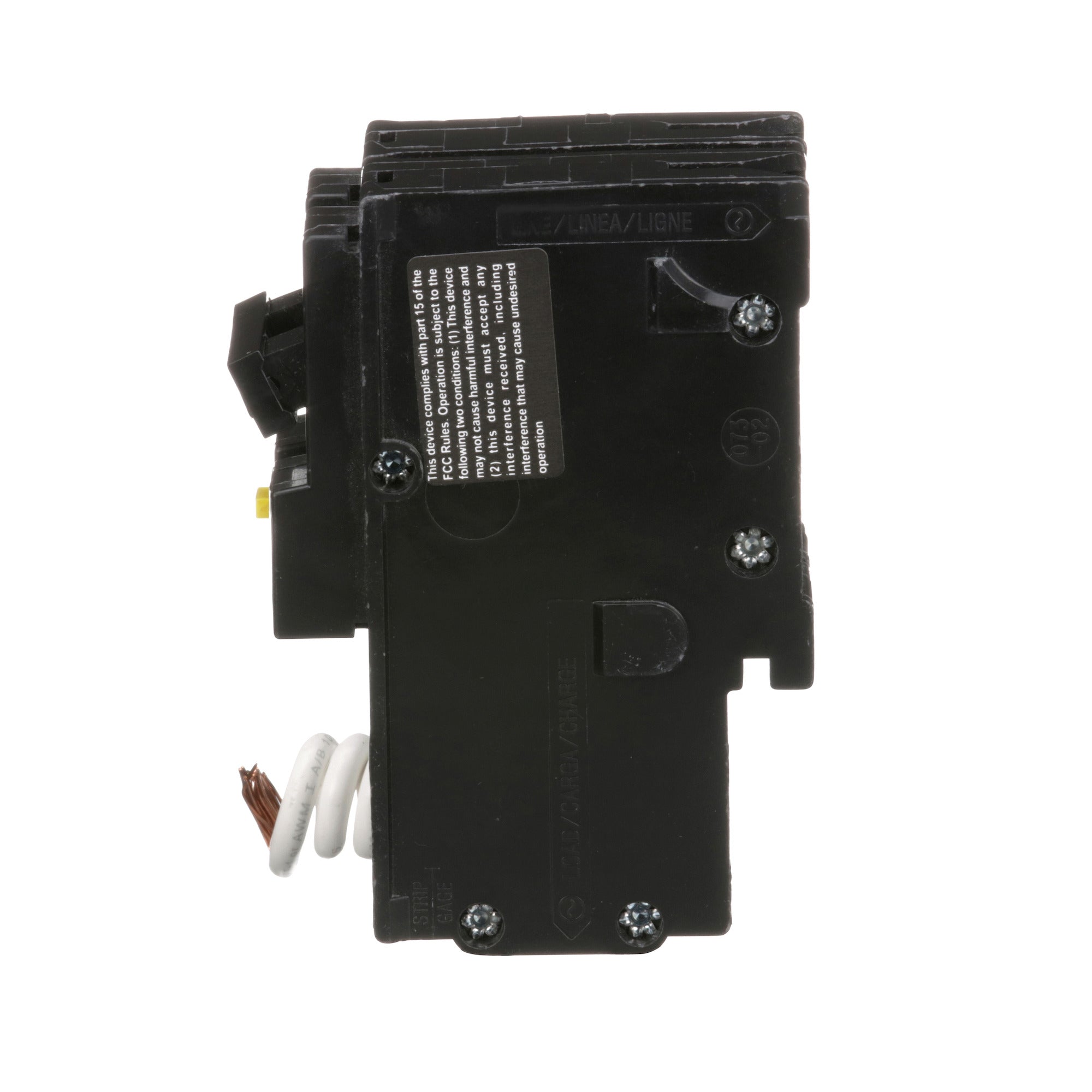

Square D HOM230GFI Miniature Circuit Breaker 30 Amp 120/240V

Product Description

The Square D HOM230GFI is a 30 Amp, 120/240 Volt miniature circuit breaker designed for reliable circuit protection. This circuit breaker is suitable for both residential and commercial applications. It features a two-pole design with plug-in mounting, providing simple installation in Homeline load centers.

• Rated for 30 Amp and 120/240 Volt
• UL Listed for safety and performance
• Includes ground fault protection rated Class A

Product Highlights

This circuit breaker protects against overload and short-circuit conditions, ensuring the safety of electrical systems. Its compact design allows for easy installation while maintaining high performance.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: HOM230GFI
• Current Rating: 30 Amp
• Voltage Rating: 120/240 Volt
• Number of Poles: 2
• Mounting Type: Plug-in
• Breaking Capacity: 10 kA
• Wire Size: Accepts 14 AWG to 8 AWG copper or aluminum
• Height: 3.13 inches
• Width: 1.0 inches
• Depth: 2.98 inches
