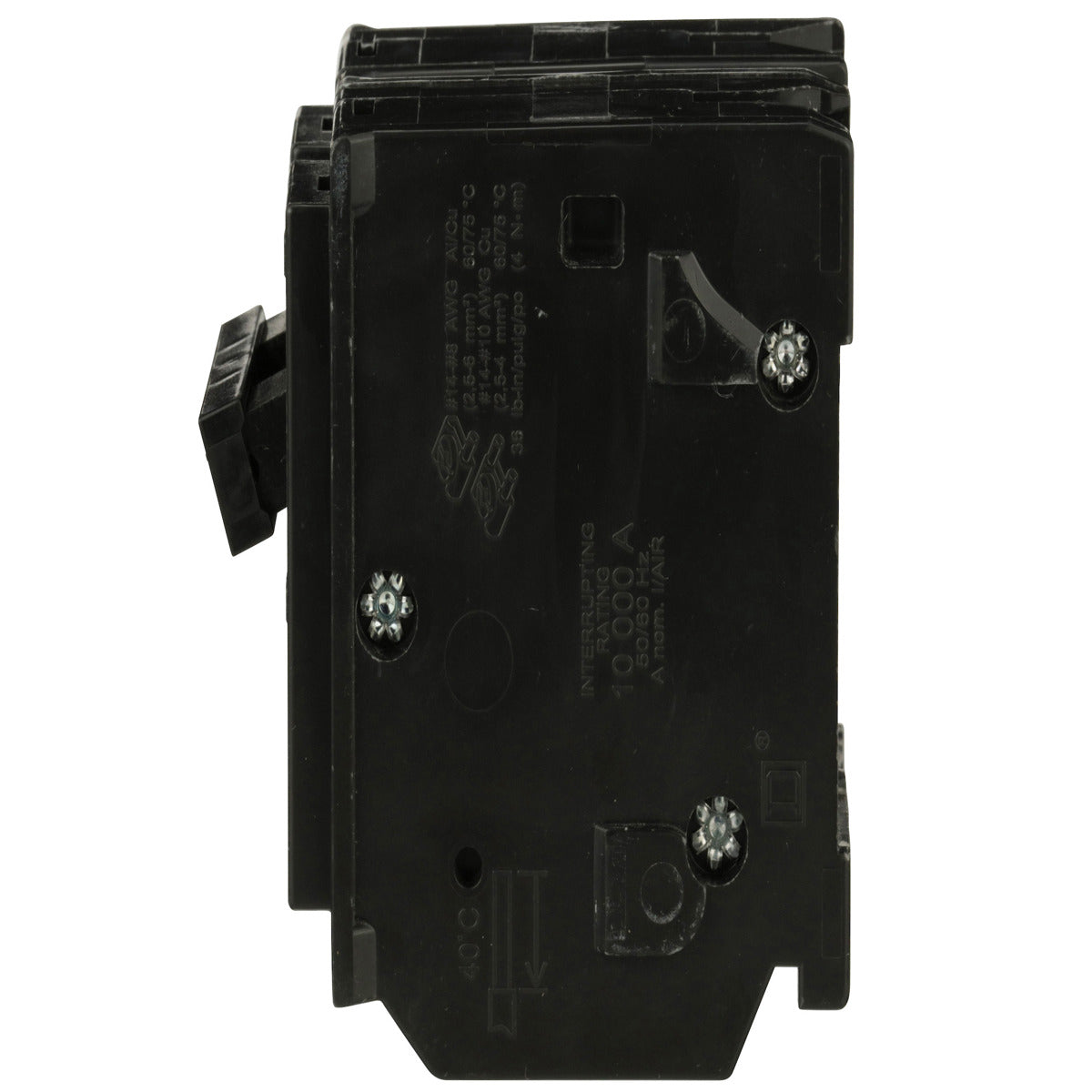

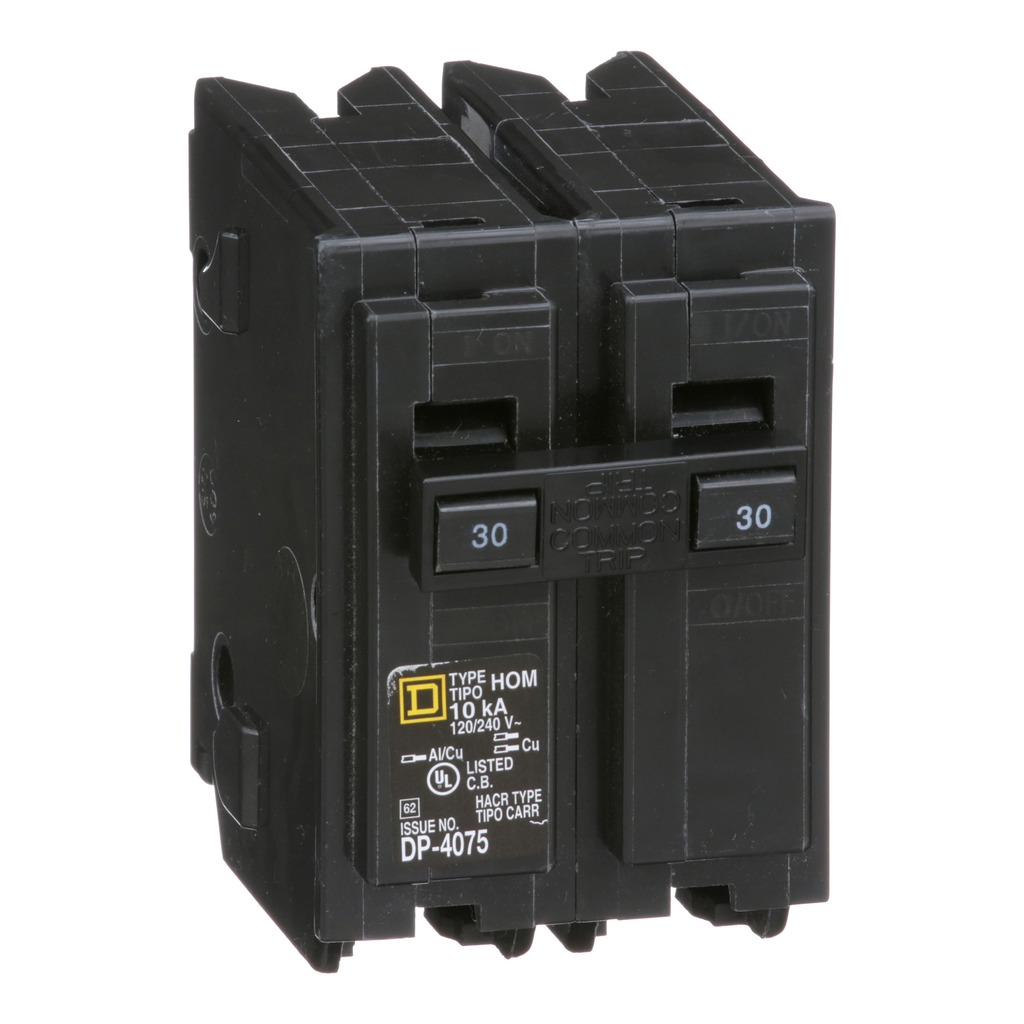

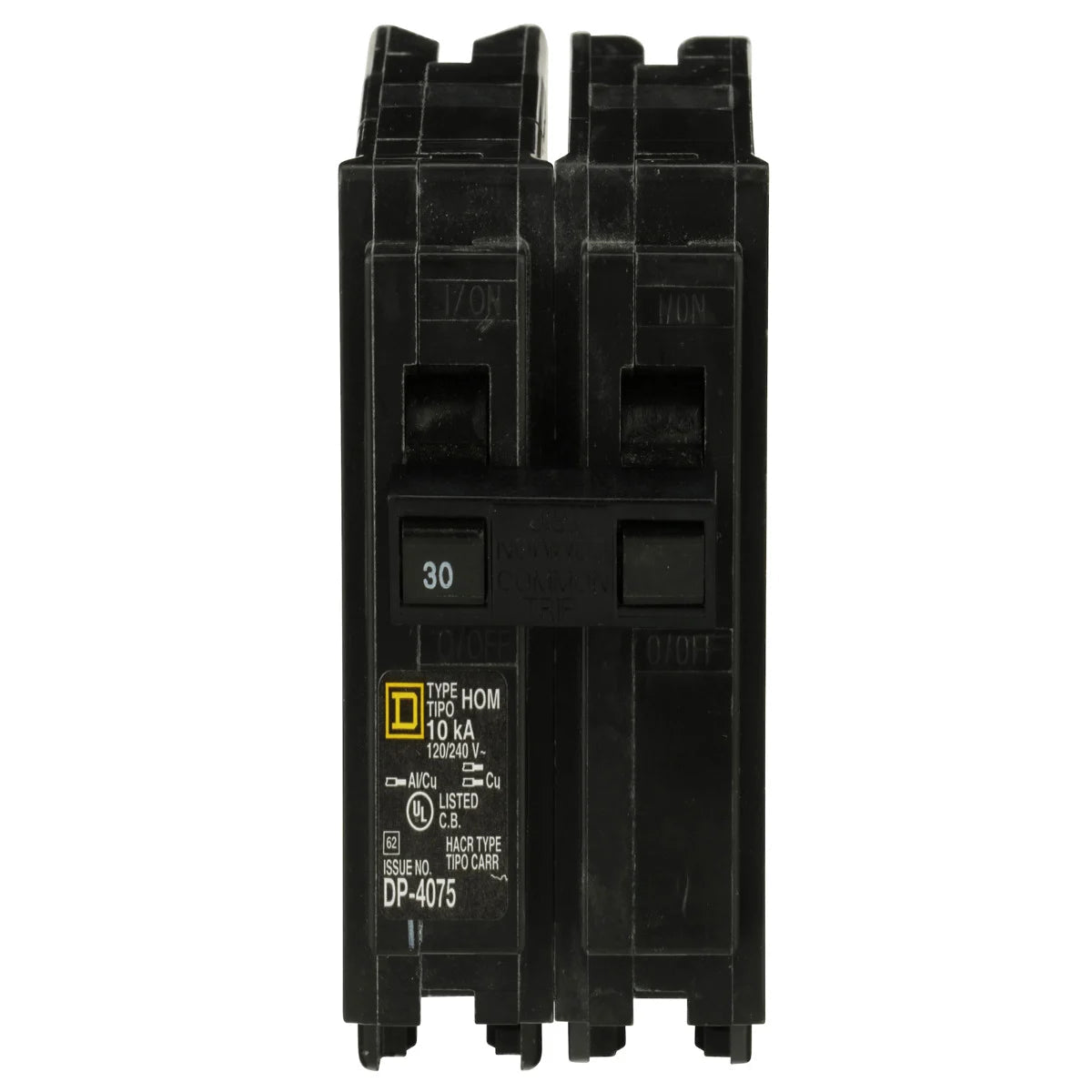

Square D HOM2305219 Miniature Circuit Breaker 30 Amp 120/240 Volt

Product Description

The Square D HOM2305219 is a 2-pole miniature circuit breaker rated at 30 Amps and compatible with 120/240 Volt systems. This breaker is designed to plug into Homeline load centers, ensuring circuit protection in residential and commercial applications. It features a breaking capacity of 10 kA and is HACR rated, making it suitable for air conditioning and refrigeration applications. The electrical connection utilizes a high-amperage box lug, accommodating wire sizes from 8 AWG to 2 AWG for copper or aluminum wires.

• 2-pole circuit breaker
• Rated current: 30 Amps
• UL Listed for safety

Product Highlights

This circuit breaker is built for reliability and ease of installation, ensuring optimal performance in electrical systems.

Product Information

Standard Information

• Catalog Number: HOM2305219
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 120/240 Volt
• Current Rating: 30 Amp
• Number of Poles: 2
• Interrupt Rating: 10 kAIC
• Mounting Type: Plug-In
• Country of Origin: Mexico
• Operating Temperature: 40 Degrees C
• Conductor Size: 8-2 AWG
