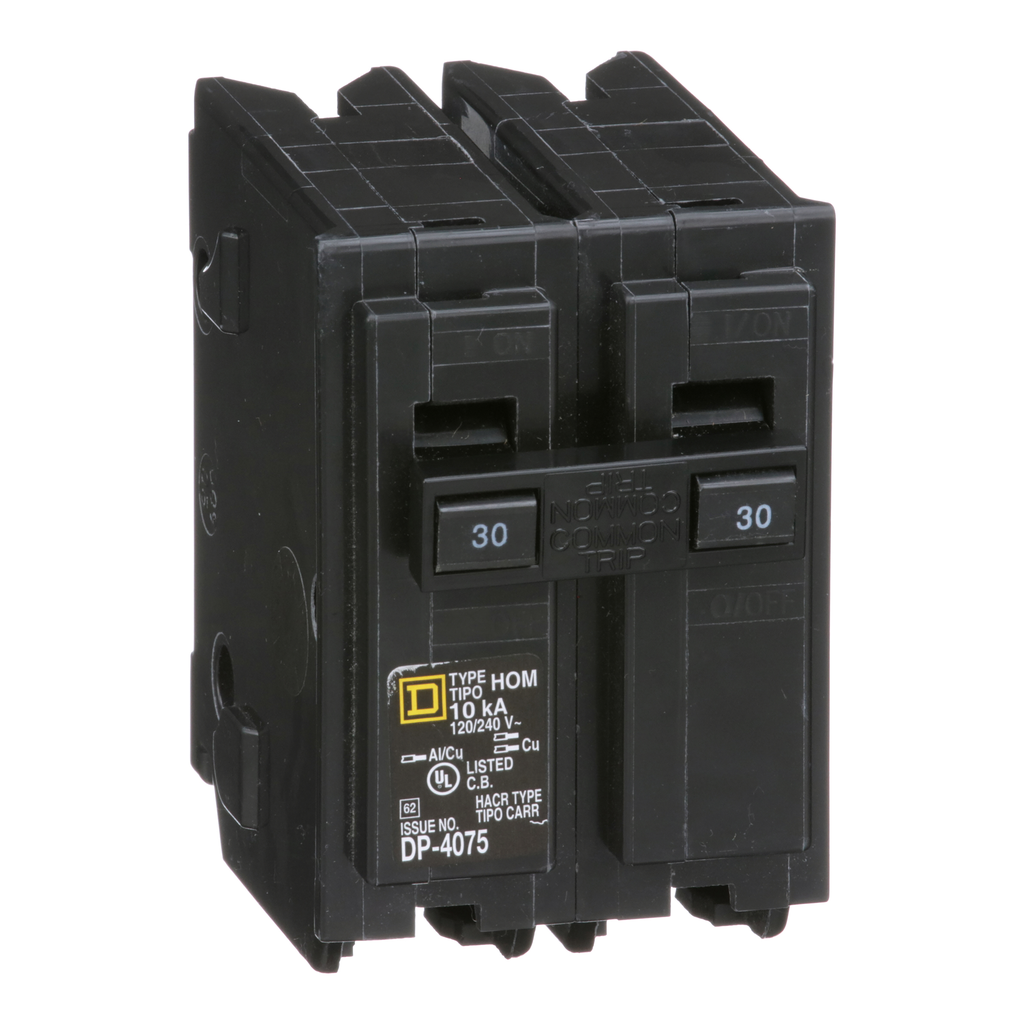

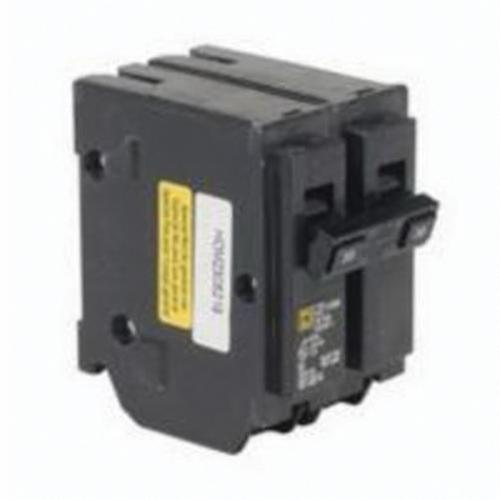

Square D HOM230 Miniature Circuit Breaker 30 Amp 120/240 Volt

Product Description

The Square D HOM230 is a miniature circuit breaker designed for overload and short-circuit protection. It operates at 30 Amps with a voltage of 120/240 VAC. This unit is compatible with Homeline load centers, ensuring a reliable electrical connection. The breaker features a plug-in design, simplifying installation process for professionals. Its breaking capacity is rated at 10 kiloamperes, effectively safeguarding electrical systems.

• HACR rated for HVAC applications
• Accepts wire sizes from 14 AWG to 8 AWG
• Measures 3.13 inches in height, 2.98 inches in depth, and 2 inches in width

Product Highlights

Reliable circuit protection for residential and commercial use.

Product Information

Standard Information

• Brand: Square D
• MPN: HOM230
• Warranty: Lifetime

Technical Specifications

• Voltage: 120/240 VAC
• Current Rating: 30 Amps
• Number of Poles: 2
• Interrupt Rating: 10 kA
• Terminal Type: Screw clamp for wires
• Wire Size: 14 to 8 AWG copper or aluminum
• Country of Origin: Mexico
• Mounting Type: Plug-in
