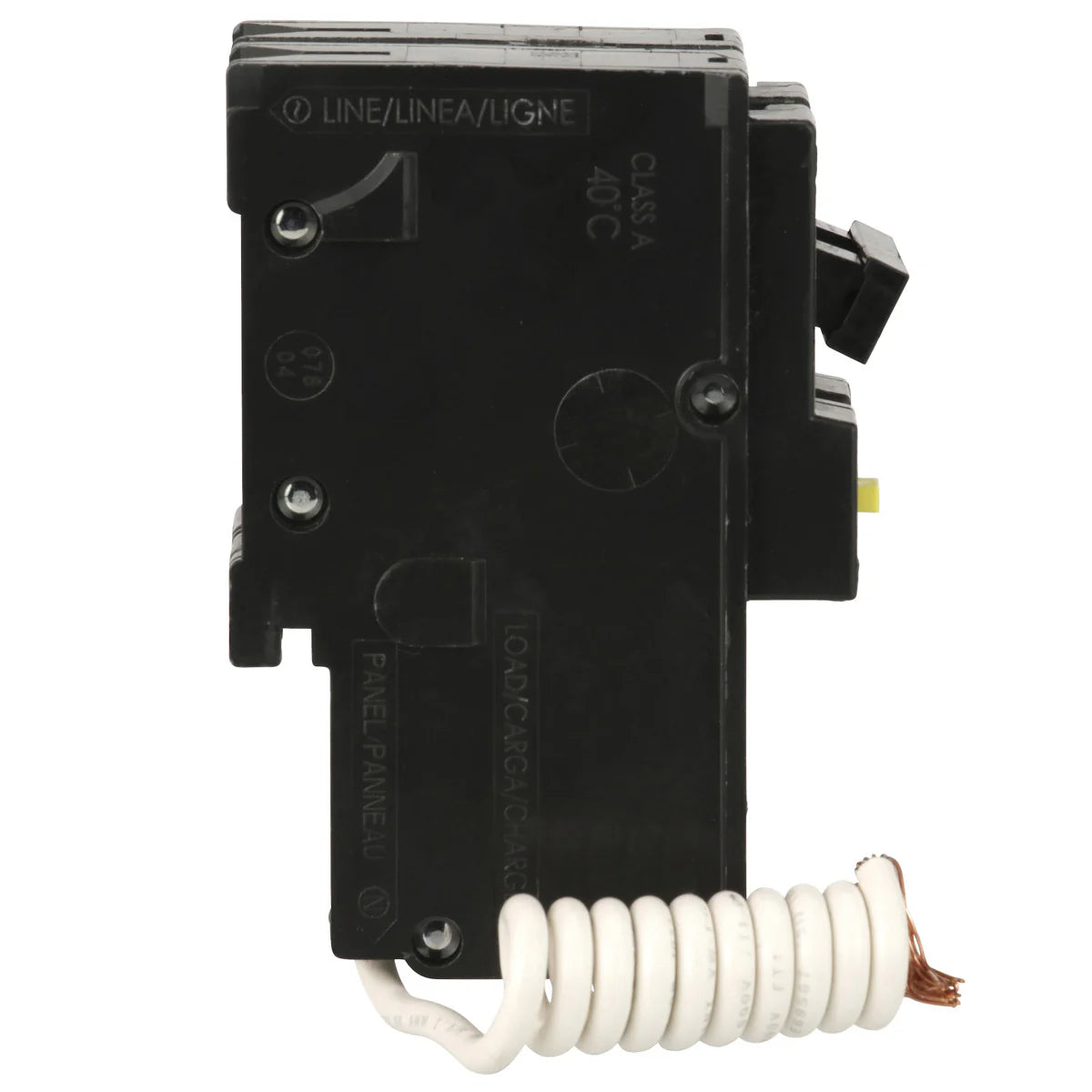

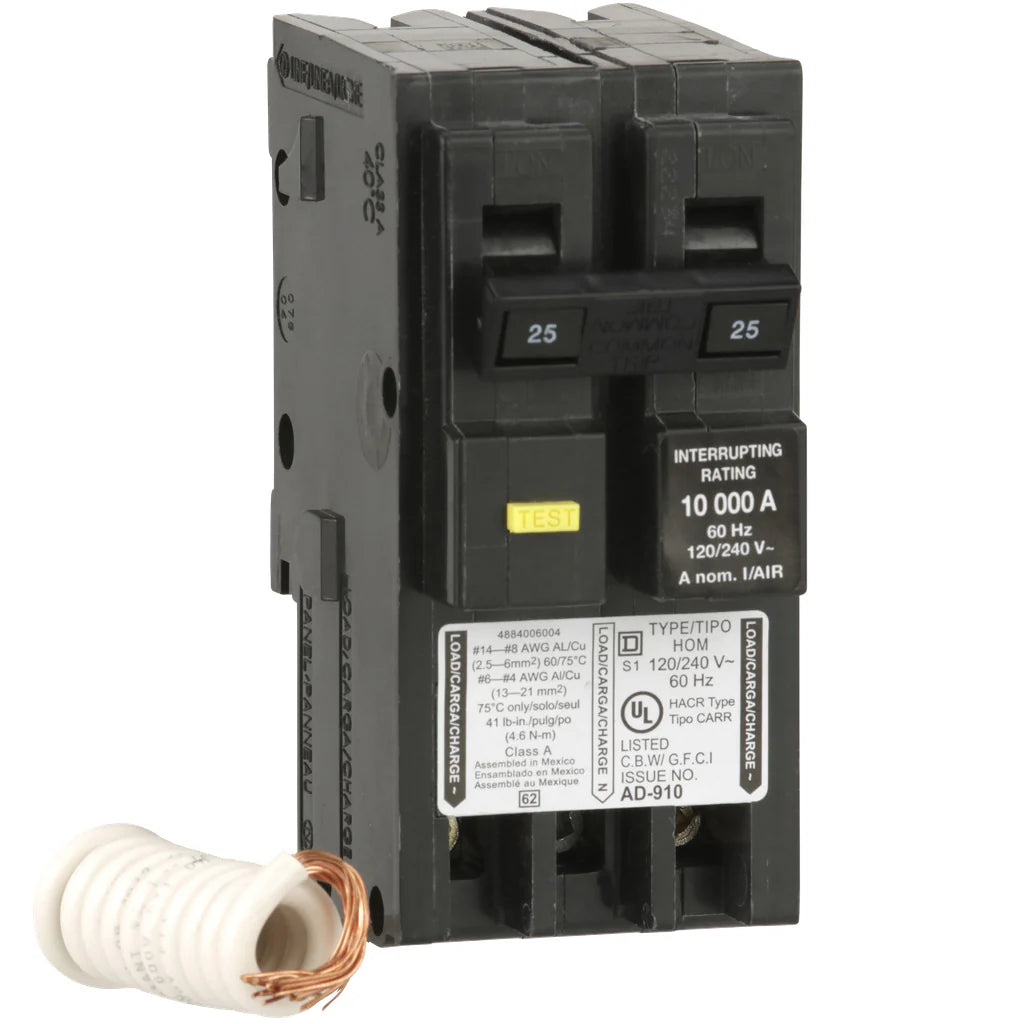

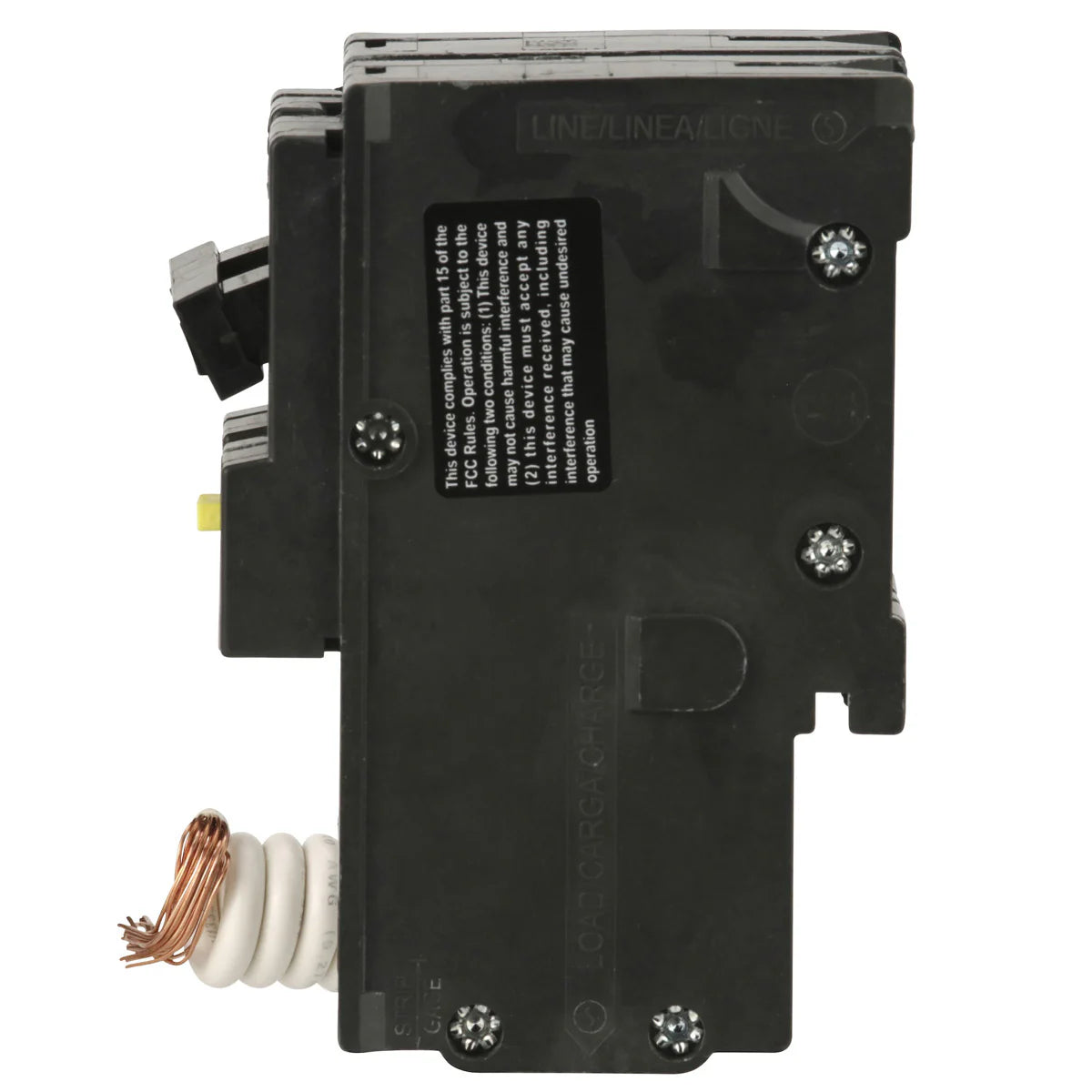

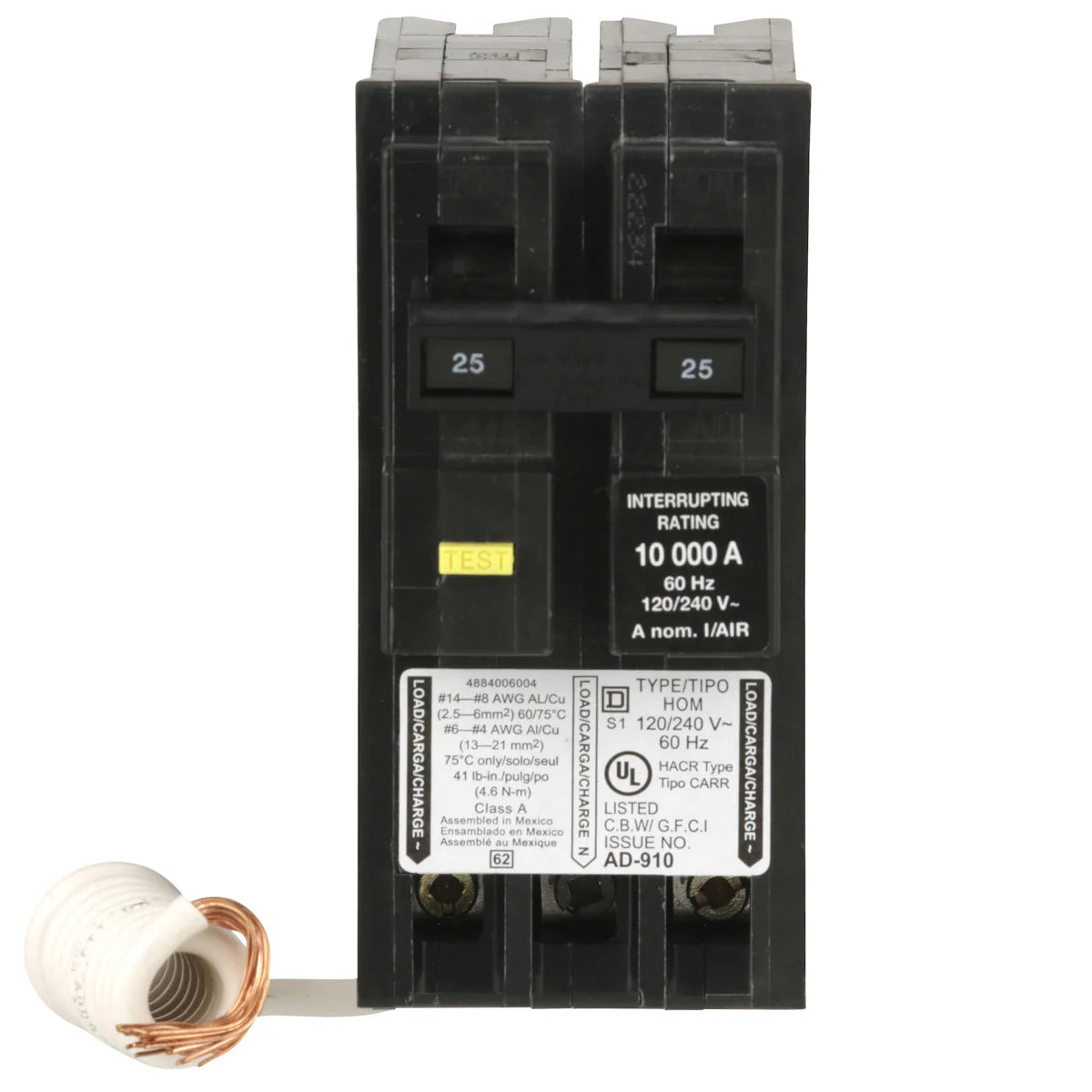

Square D HOM225GFI Miniature Circuit Breaker 25 Amp 120/240 Volt Ground Fault

Product Description

The Square D HOM225GFI is a 25 Amp, 2-Pole Miniature Circuit Breaker designed for use in Homeline load centers. This unit offers reliable circuit protection against overloads and short circuits. The circuit breaker is compatible with 120/240 Volt electrical systems and has a 10 kA breaking capacity.

• Features Class A ground fault protection.
• Accepts up to two wires of either copper or aluminum.
• UL Listed for safety and performance.

Product Highlights

This breaker is built for fast installation and efficiency in residential electrical systems. Its compact design allows for a smooth fit in load centers.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: HOM225GFI
• Current Rating: 25 Amp
• Voltage Rating: 120/240 Volt
• Height: 3.13 inches
• Width: 1.0 inch
• Depth: 2.98 inches
• Number of Poles: 2
• Interrupt Rating: 10 kAIC
• Circuit Breaker Type: Ground Fault Protecting Class A 6 mA
• Wire Size Compatibility: AWG 12 to AWG 4 aluminum; AWG 14 to AWG 6 copper
• Warranty: Lifetime
• Country of Origin: Mexico
