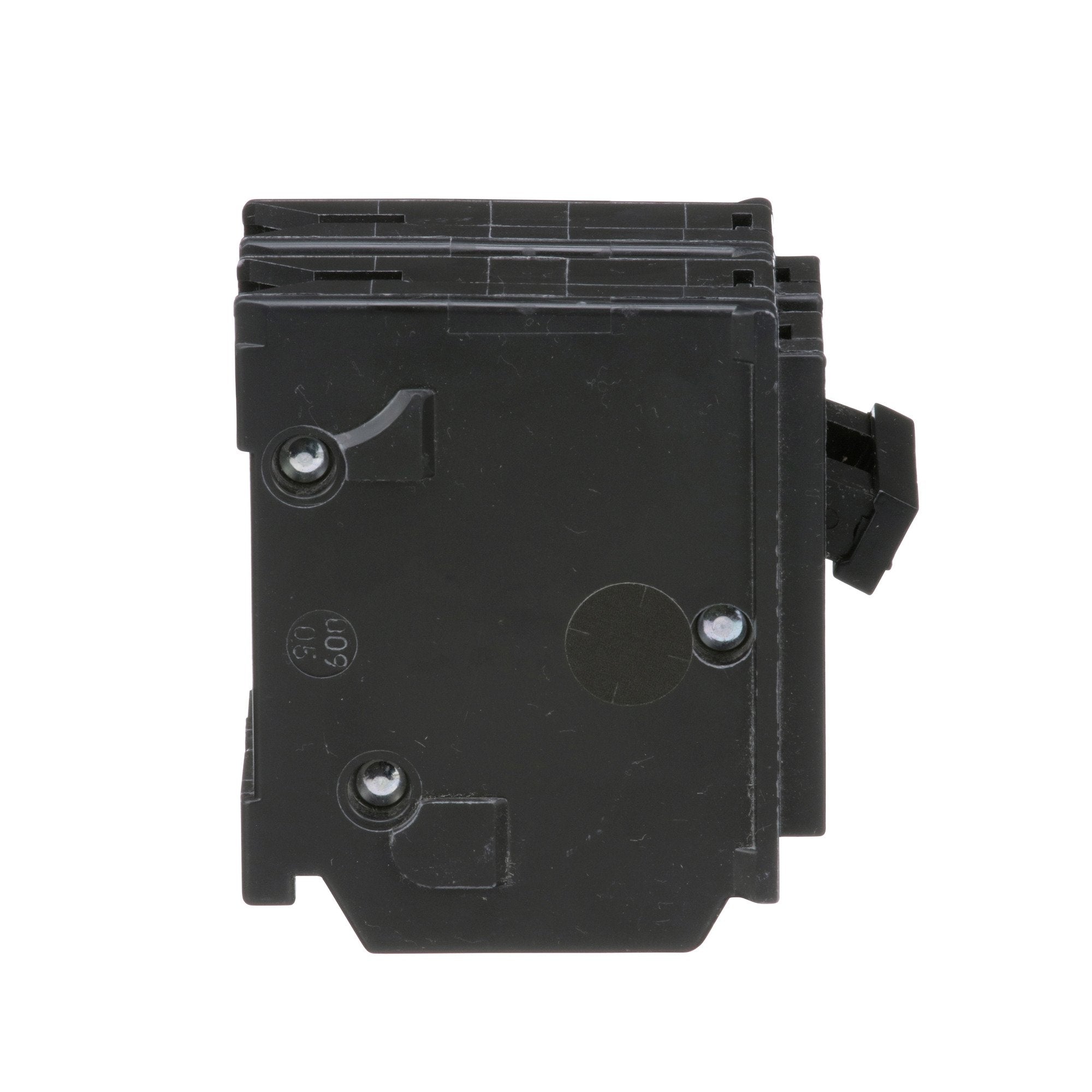

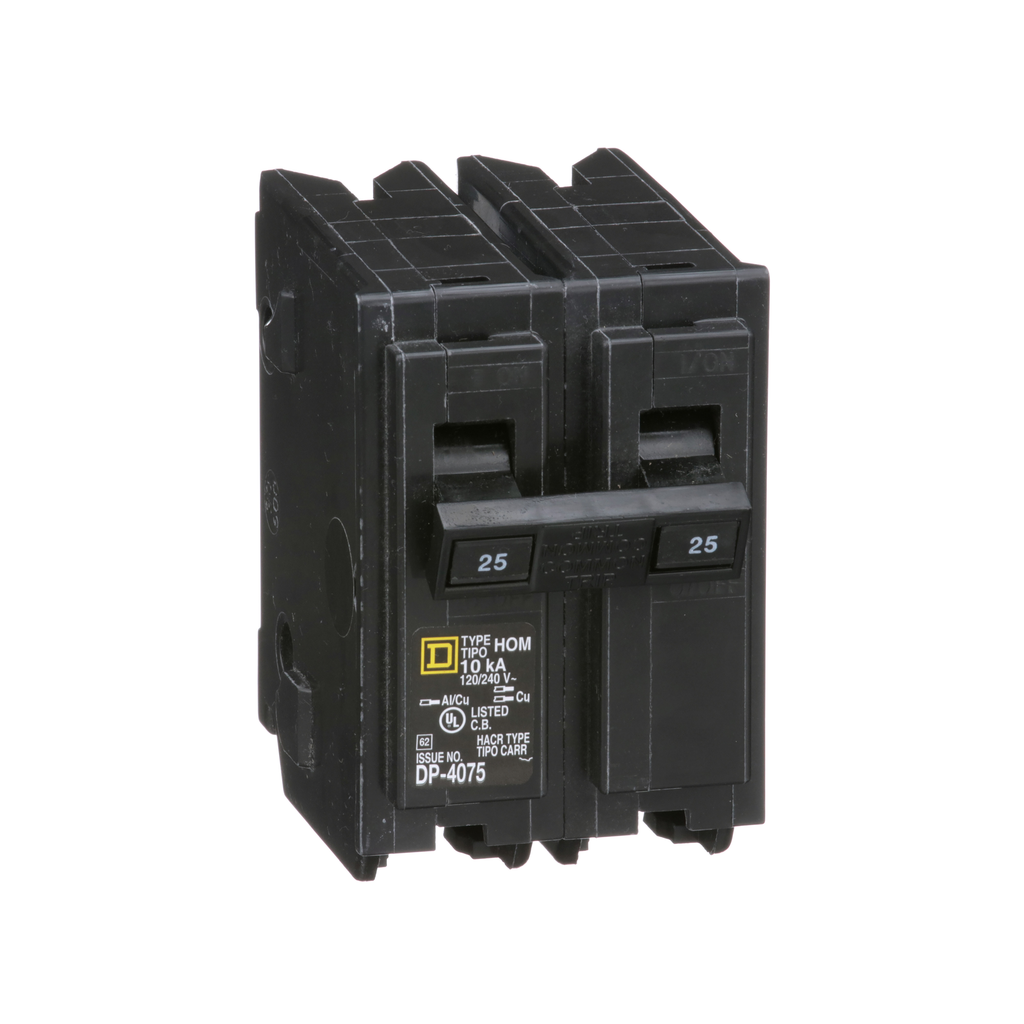

Square D HOM225 Miniature Circuit Breaker 25 Amp 2 Pole 120/240 Volt

Product Description

The Square D HOM225 Miniature Circuit Breaker is a reliable solution for overload and short-circuit protection. Rated at 25 amps and designed for 120/240 volts, this two-pole breaker is compatible with Homeline load centers.

• Provides overload and short circuit protection
• Rated for 120/240 volts
• UL Listed for safety

Product Highlights

This circuit breaker features a plug-in mounting type, ensuring a quick installation. It has a breaking capacity of 10 kA and a clamp terminal connection for easy wiring.

Product Information

Standard Information

• Catalog Number: HOM225
• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Height: 3.13 inches
• Width: 2.0 inches
• Depth: 2.98 inches
• Current Rating: 25 amps
• Voltage Rating: 120/240 volts
• Number of Poles: 2
• Wire Size: AWG 14 to AWG 8 for copper and aluminum
• Country of Origin: Mexico
• Certifications: UL Listed
• Warranty Description: Lifetime warranty
