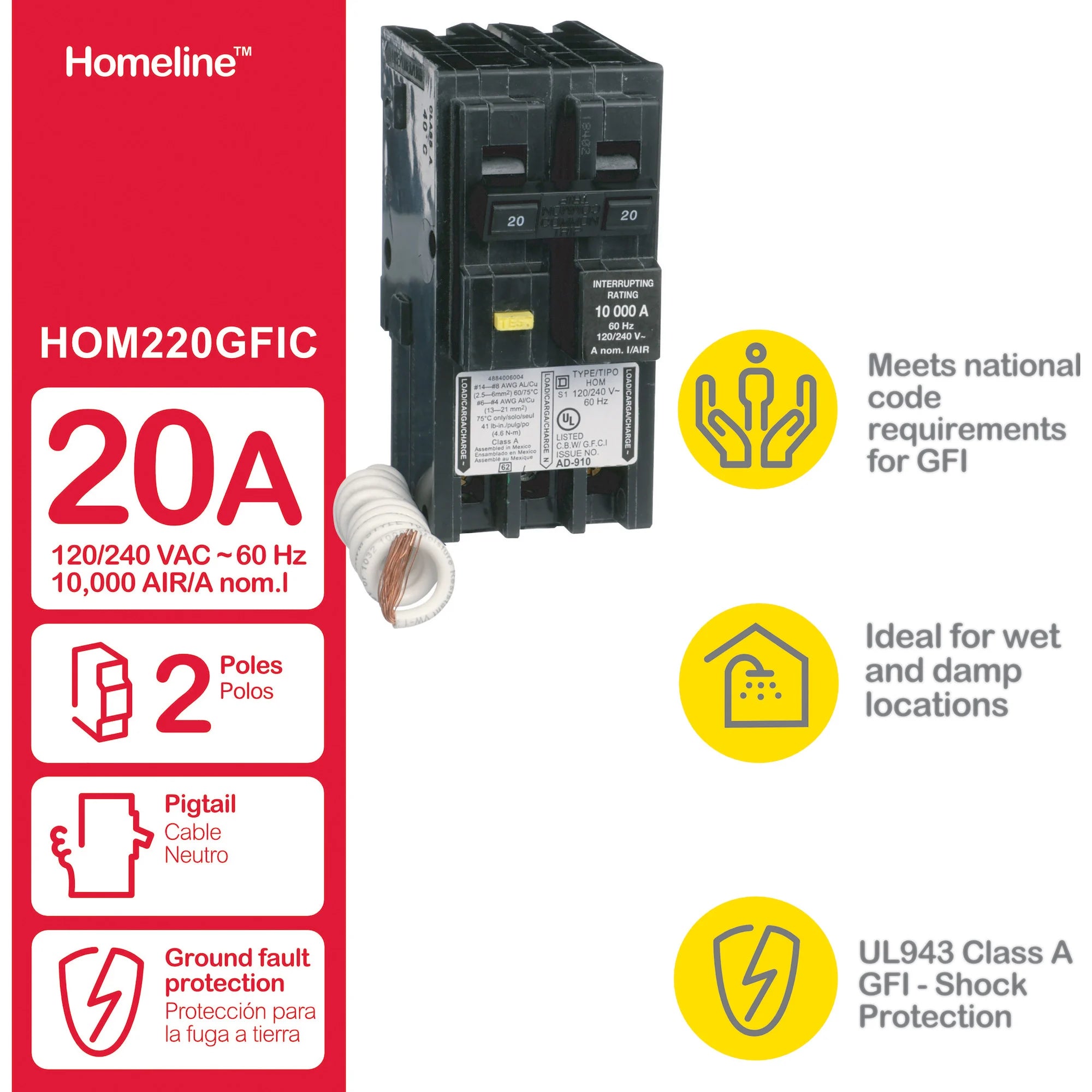

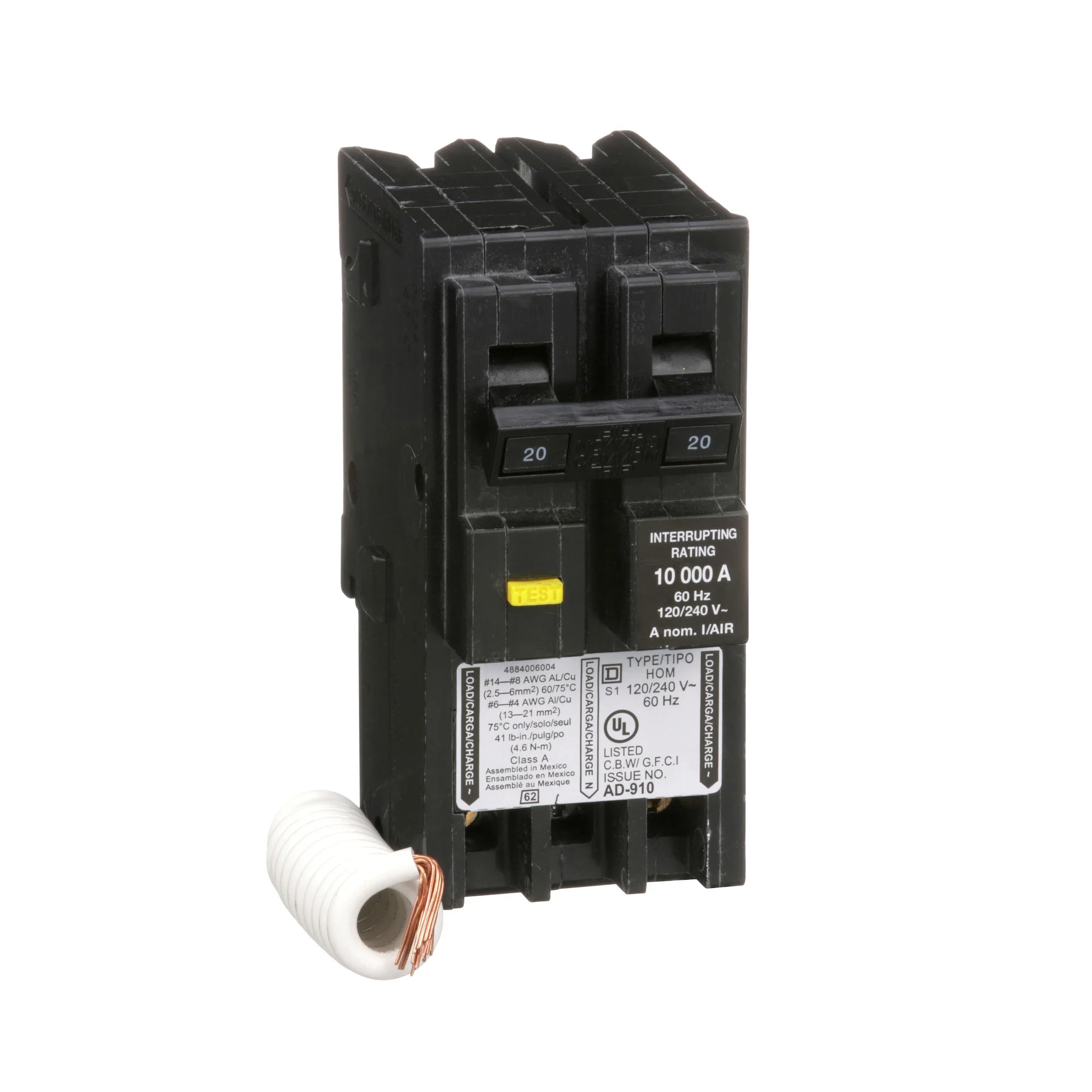

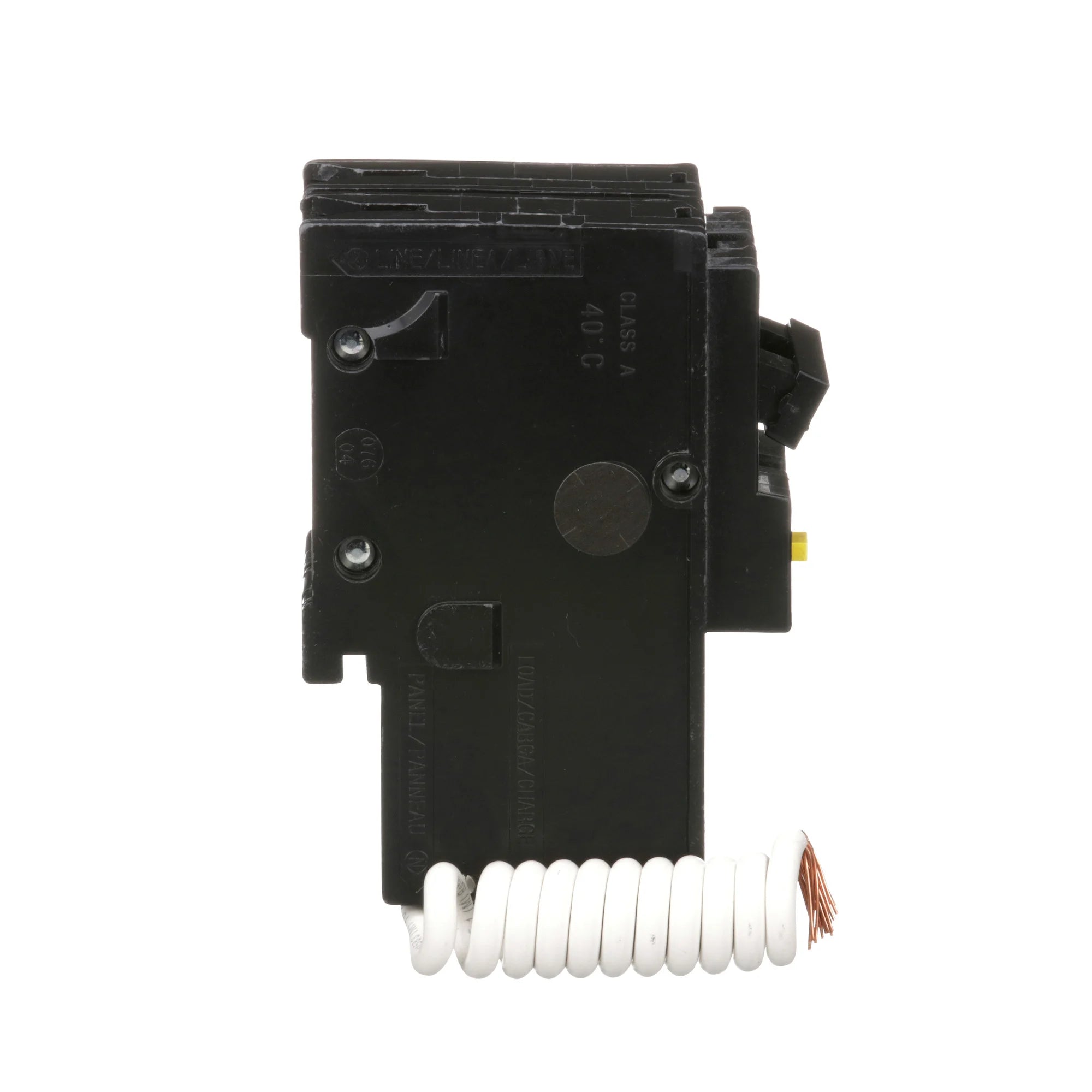

Square D HOM220GFI Miniature Circuit Breaker 20 Amp 2 Pole 120/240V

Product Description

The Square D HOM220GFI is a miniature circuit breaker by Schneider Electric suitable for overload and short circuit protection. This product is compatible with Homeline load centers and is rated for 120/240 volts.

• Provides overload and short circuit protection.
• Designed for installation in Homeline load centers.
• Rated for maximum current of 20 amps.

Product Highlights

This breaker features ground fault protection with a trip sensitivity of six milliamperes. It is suitable for both residential and commercial applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOM220GFI
• Voltage Rating: 120/240 Volts
• Amperage Rating: 20 Amps
• Interrupting Rating: 10 kA
• Number of Poles: 2
• Wire Size: 14 to 6 AWG (Copper), 12 to 4 AWG (Aluminum)
• Mounting Type: Plug-in
• Height: 3.13 inches
• Width: 1.0 inch
• Depth: 2.98 inches
• Country of Origin: Mexico
• Certifications: UL Listed, HACR Rated
• Warranty: Lifetime
