Square D HOM220GFI Homeline 20A 2-Pole Plug-In

Product Description

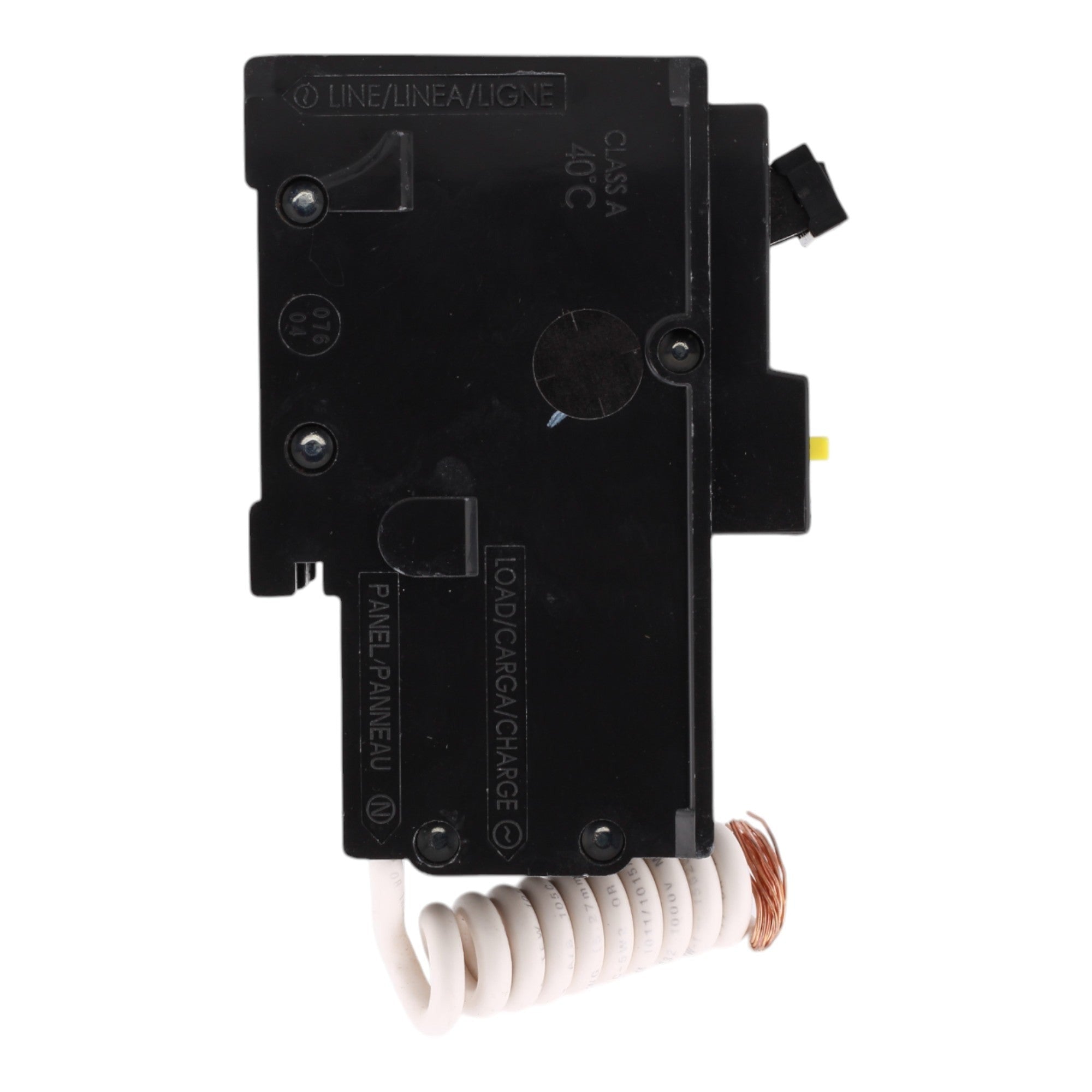

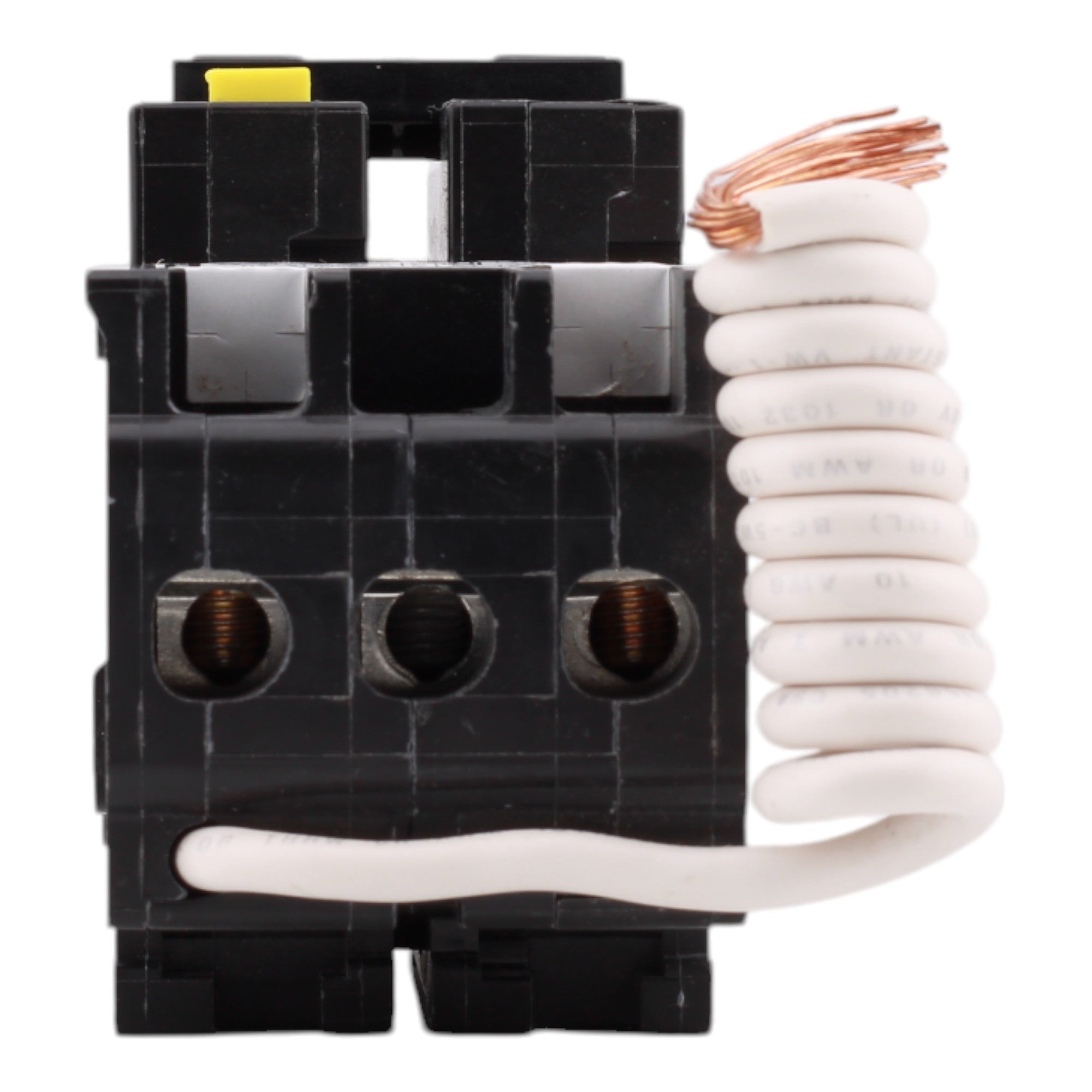

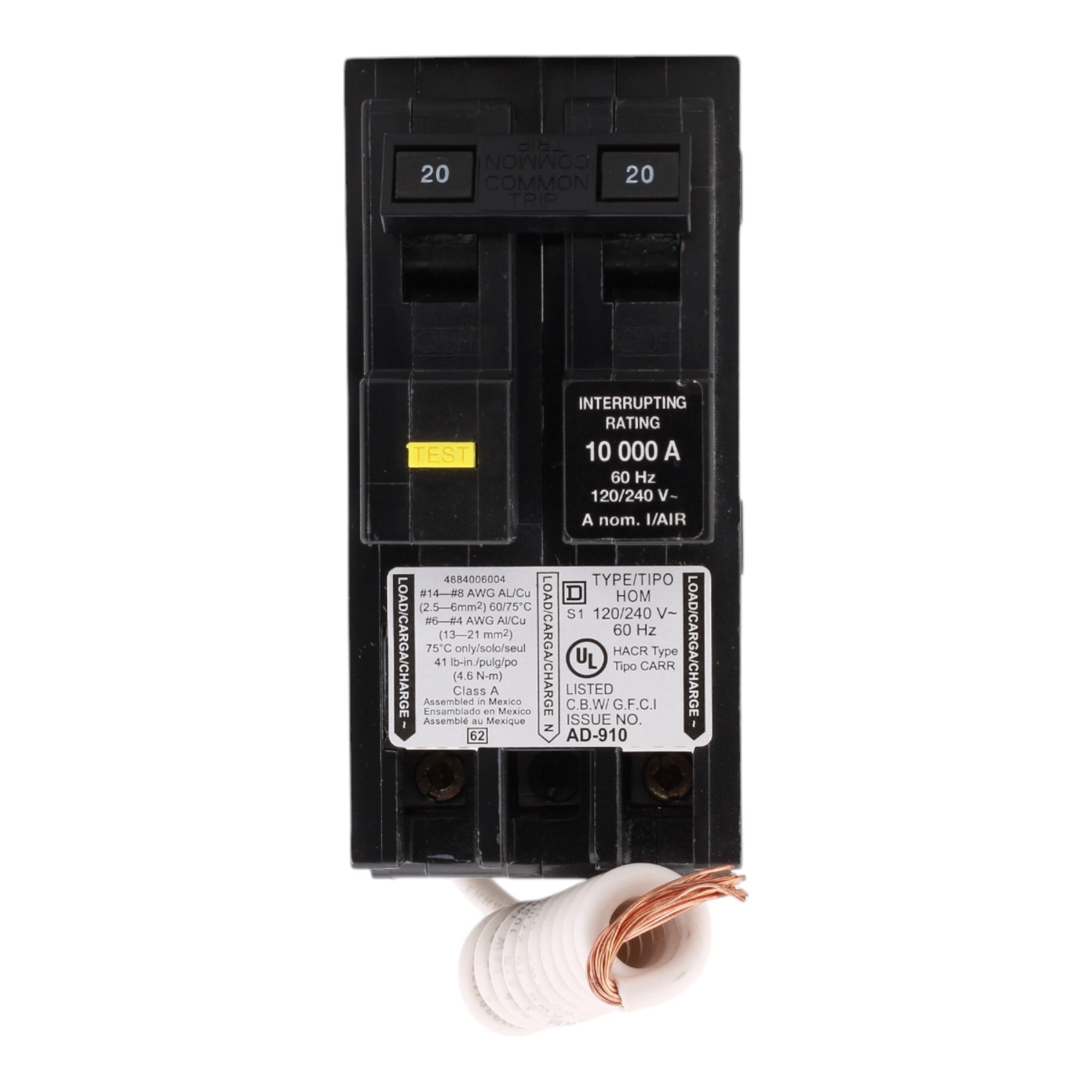

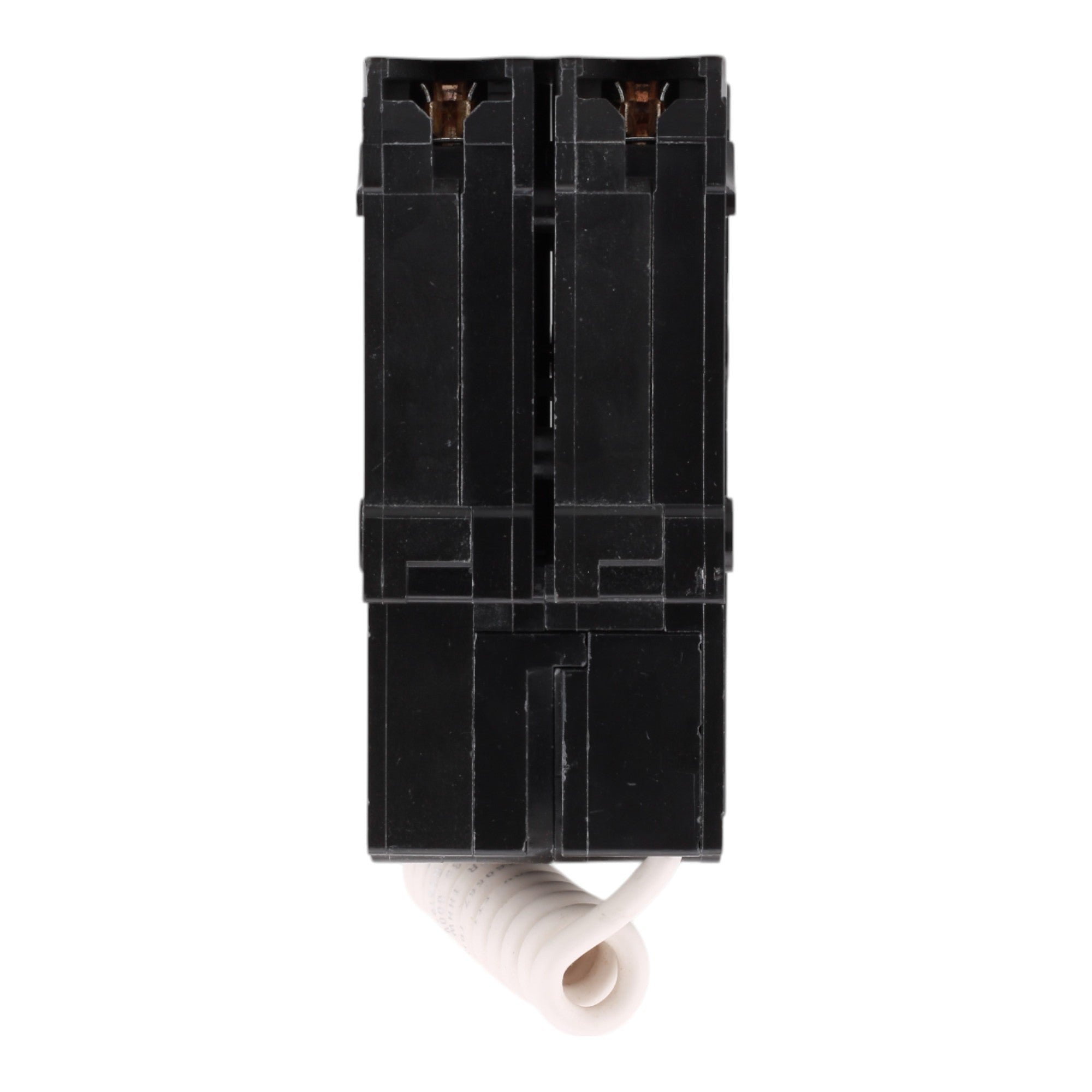

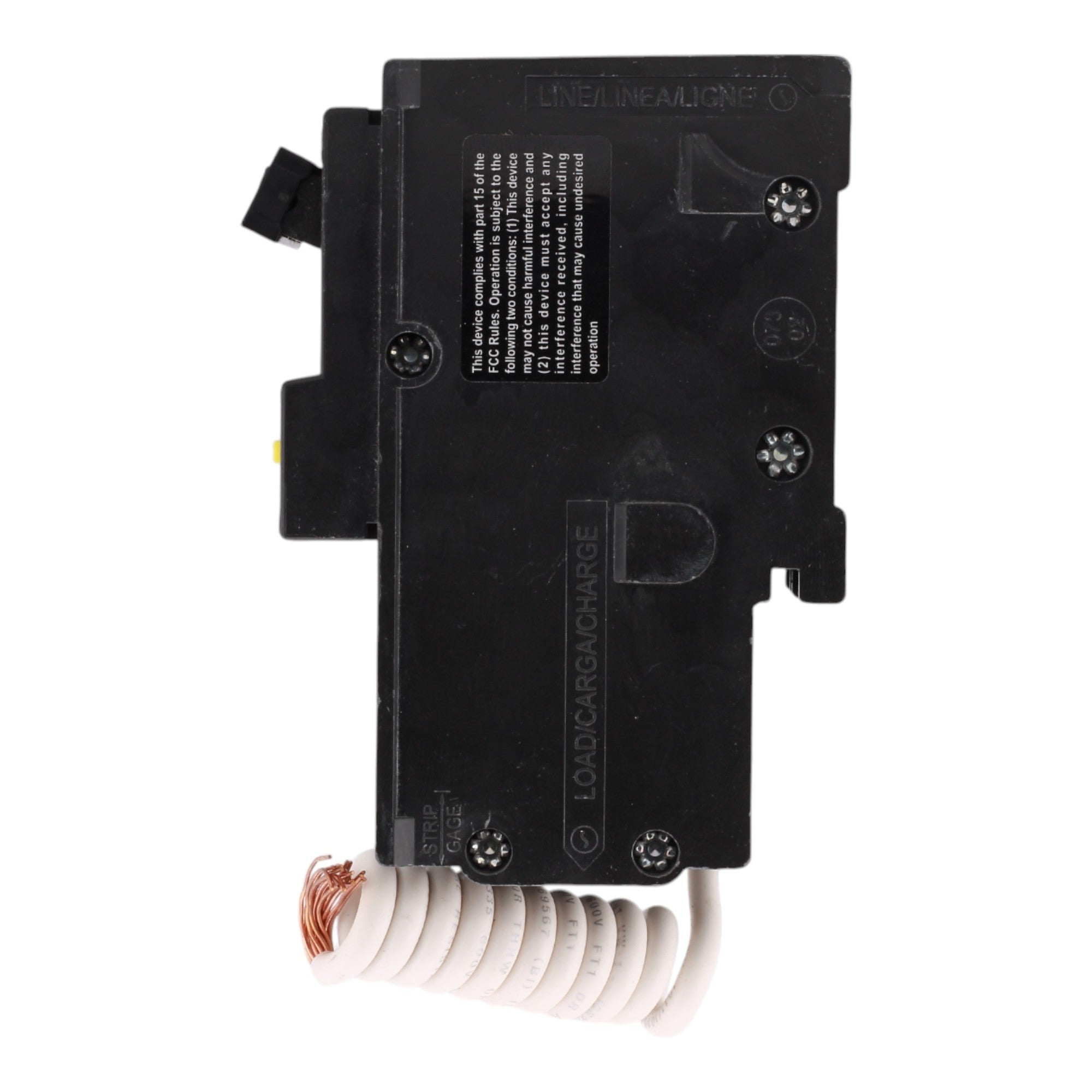

Square D HOM220GFI is a Homeline plug-in two-pole GFCI circuit breaker rated for 240 volts and 20 A. It provides Class A ground-fault protection with thermal-magnetic common-trip operation and a 10 kA interrupting capacity. The breaker uses a clamp/screw terminal that accepts two conductors and supports a wide wire range for copper or aluminum. It is UL listed and designed for installation in Homeline load centers for branch-circuit protection.

• Class A ground-fault protection (6 mA trip sensitivity) with thermal-magnetic common-trip and 10 kA interrupting capacity
• Plug-in Homeline mounting; clamp/screw terminal accepts two wires, 14 AWG to 8 AWG copper or aluminum
• Rated 240 Volts, 20 Amperes; UL listed and HACR rated; typical applications include HVAC, heating, and refrigeration

Product Highlights

2-pole 20 A GFCI Homeline breaker with 6 mA trip sensitivity, 10 kA interrupting capacity, and plug-in mounting for Homeline load centers

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: HOM220GFI
• Country of Origin: United States
