Product Description

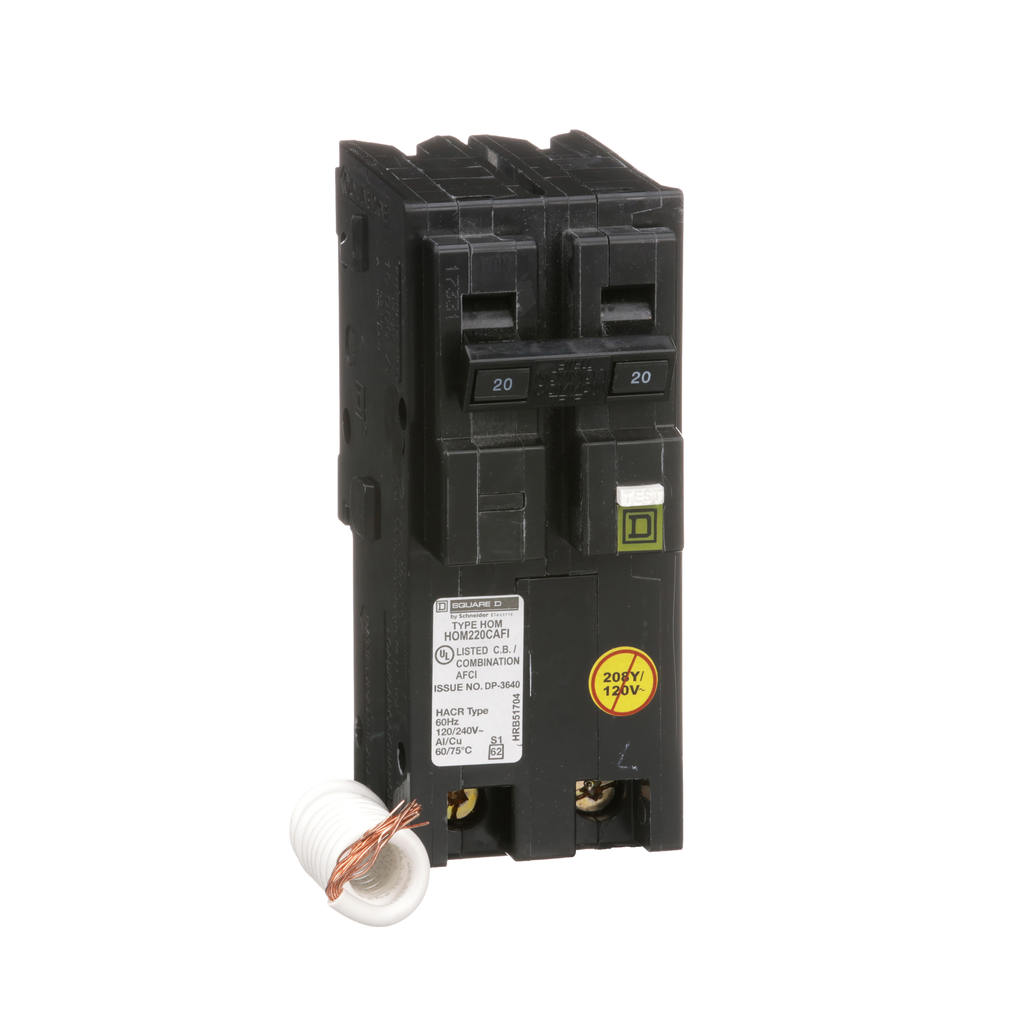

The Square D HOM220CAFI is a 20 Amp two-pole miniature circuit breaker designed for safe and reliable circuit protection. It is compatible with Homeline load centers and provides overload and short-circuit protection. This breaker is rated for 120/240 VAC and has a breaking capacity of 10 kA.
- Plug-in mounting for easy installation
- HACR rating suitable for heating, air conditioning, and refrigeration
- Accepts wire sizes from 14 AWG to 8 AWG copper or aluminum
Product Highlights
This circuit breaker comes with a clamp terminal that can hold two wires, enhancing its connectivity options.
Product Information
Standard Information
-
Brand: Square D
-
Manufacturer: Schneider Electric
Technical Specifications
-
Current Rating: 20 Amp
-
Voltage Rating: 120/240 Volt
-
Number of Poles: 2 Pole
-
Circuit Breaker Type: Combination ARC-fault
-
Interrupt Rating: 10 kAIC
-
Mounting Type: Plug-in
-

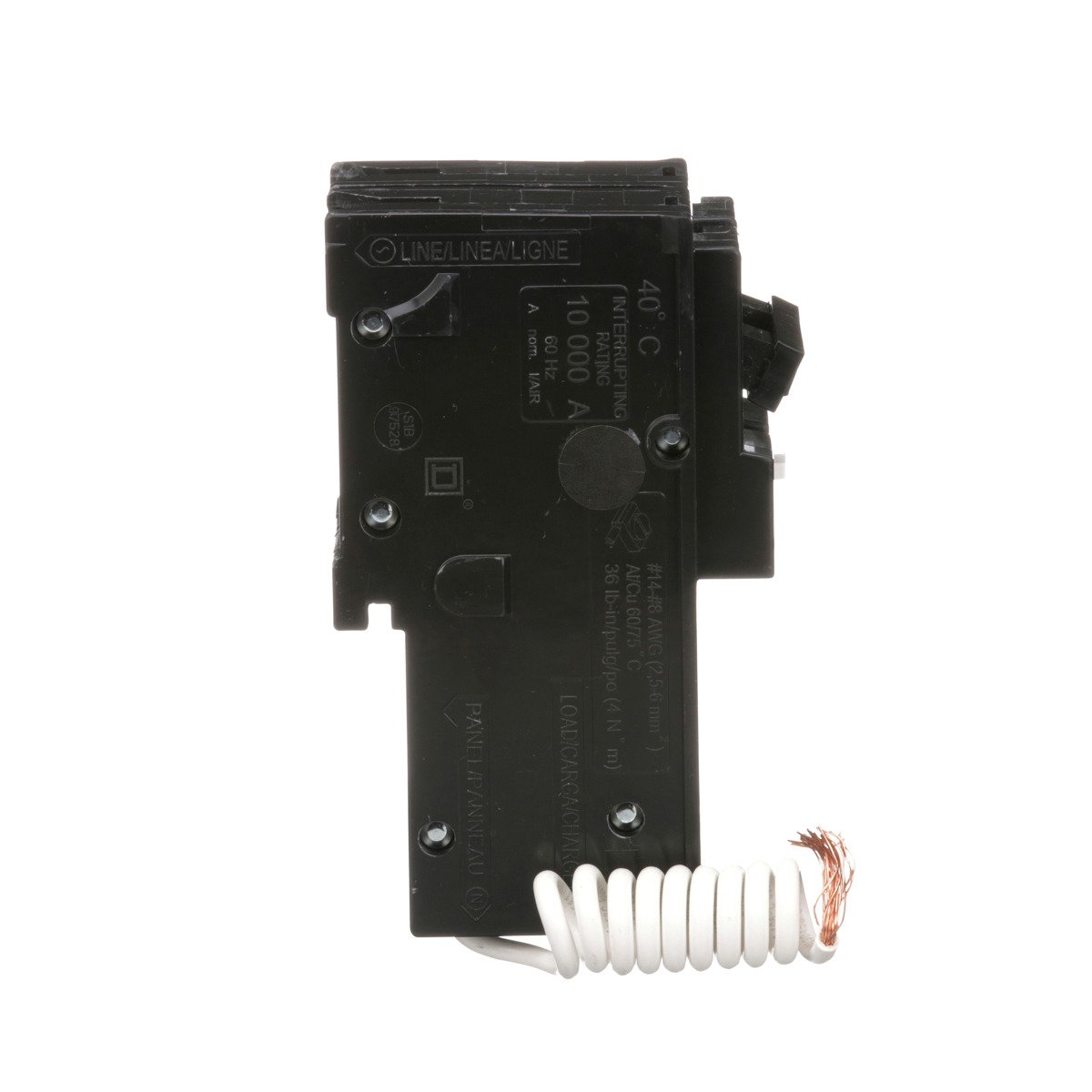

Electrical Connection: Pigtail neutral, clamp terminal for 2 cables
-
Dimensions: Height: 3.13 inches, Width: 2.0 inches, Depth: 2.98 inches
