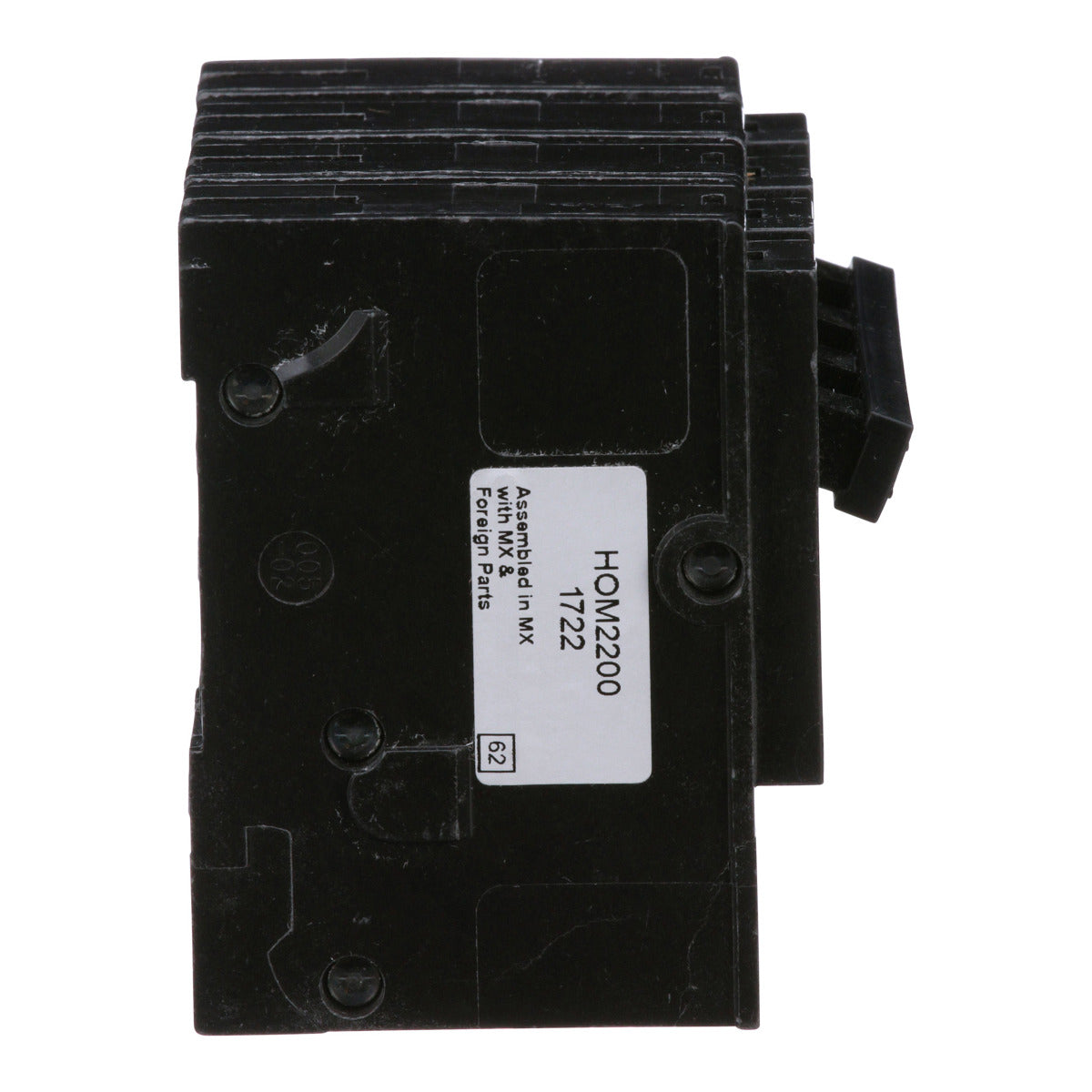

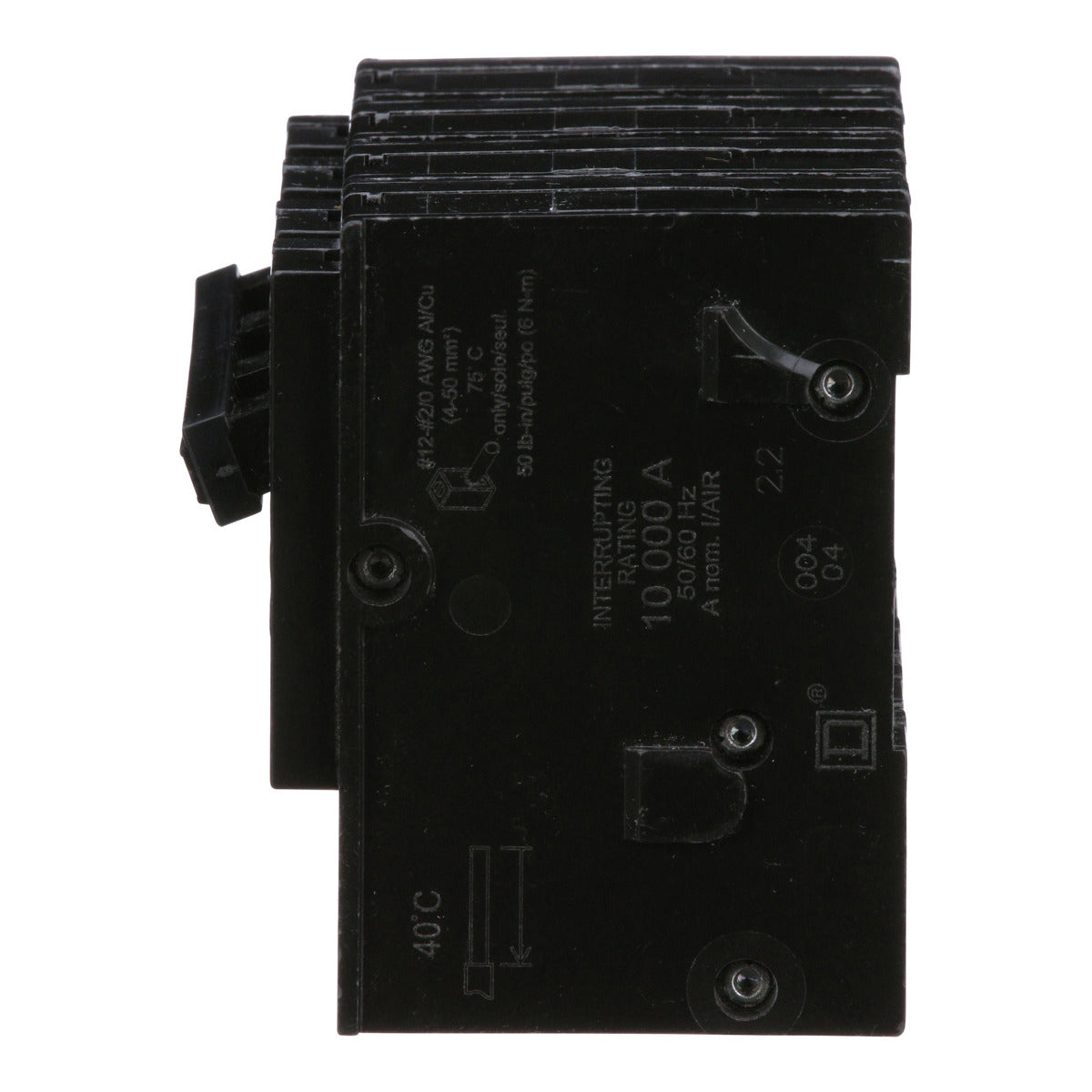

Square D HOM2200 2-Pole 200 Amp 120/240 Volt Plug-On Thermal Magnetic Miniature Circuit Breaker

Product Description

The Square D HOM2200 is a Homeline miniature circuit breaker engineered for fast installation and superior circuit protection. Designed to plug into Homeline load centers, it provides standard circuit protection and is HACR rated. This 2-pole circuit breaker has plug-in mounting and is rated 200A at 120/240 VAC with a 10 kAIC breaking capacity.

• Engineered for fast installation and superior circuit protection
• Designed to plug into Homeline load centers
• Provides overload and short circuit protection

Product Highlights

This Square D Homeline miniature circuit breaker provides reliable circuit protection for residential electrical systems.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: HOM2200
• Country of Origin: Mexico

Technical Specifications

• Type: MINIATURE CIRCUIT BREAKER
• Brand: Square D
• Range: Homeline
• Current: 200 Amp
• Voltage: 120/240 Volt
• Amperage: 200 A
• Sub Brand: HOMELINE
• Wire Size: 4 AWG to 300 kcmil (Aluminum/Copper)
• Product UPC: 78590106588
• 12-Digit UPC: 785901065883
• Applications: PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION
• Mounting Type: Plug-in
• Certifications: UL
• Conductor Size: 4 AWG-300 kcmil
• Number of Poles: 2
• Interrupt Rating: 10 kAIC
• Number of Spaces: 2
• Country of Origin: Mexico
• Line Rated Current: 200 A
• Circuit Breaker Type: Standard
• Short Circuit Current: 10 kA
• Manufacturer: Schneider Electric
• Made in USA: No
• Mounting: Plug-On
• Breaking Capacity: 10 kA
• HACR Rated: Yes
• UL Listed: Yes
• Terminal Type: Box Lugs
• Used On: Homeline Loadcenter
• Current Rating: 200A
• Voltage Rating: 120/240 VAC at 50/60 Hz (UL/CSA)
• Electrical Connection: Box lugs
• Ratings: HACR rated
• Ambient air temperature for operation: 104 °F (40 °C)
• Series: HOM
• Part Number: HOM2200
• Phase: 1
• AIC Rating: 10kA @ 120/240VAC
• For Use With: Square D Homeline Load Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 4 AWG - 300 kcmil (Al/Cu)
• Max Wire: 300 kcmil
• Min Wire: 4 AWG
• Available Options: Padlock Attachment
• Standards: HACR Rated, UL 489, CSA C22.2 No. 5
• Approval: CSA, UL
• Temp Rating: 40C
• Construction Features: HACR Rated, Main Breaker, Requires 4 Spaces
• Part Number #: HOM2200
• Enclosure Type: NEMA 1/2
• UNSPSC: 39121603
