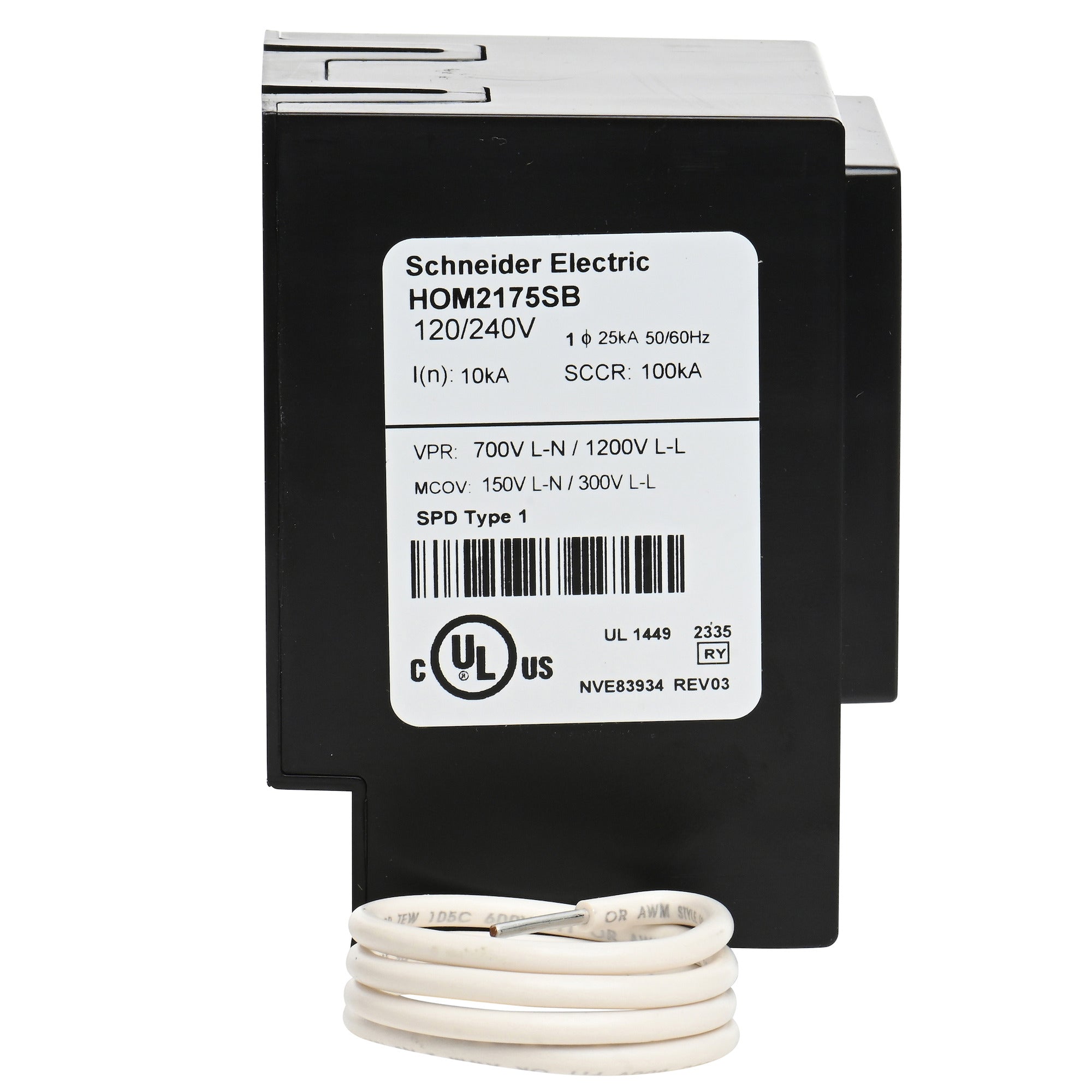

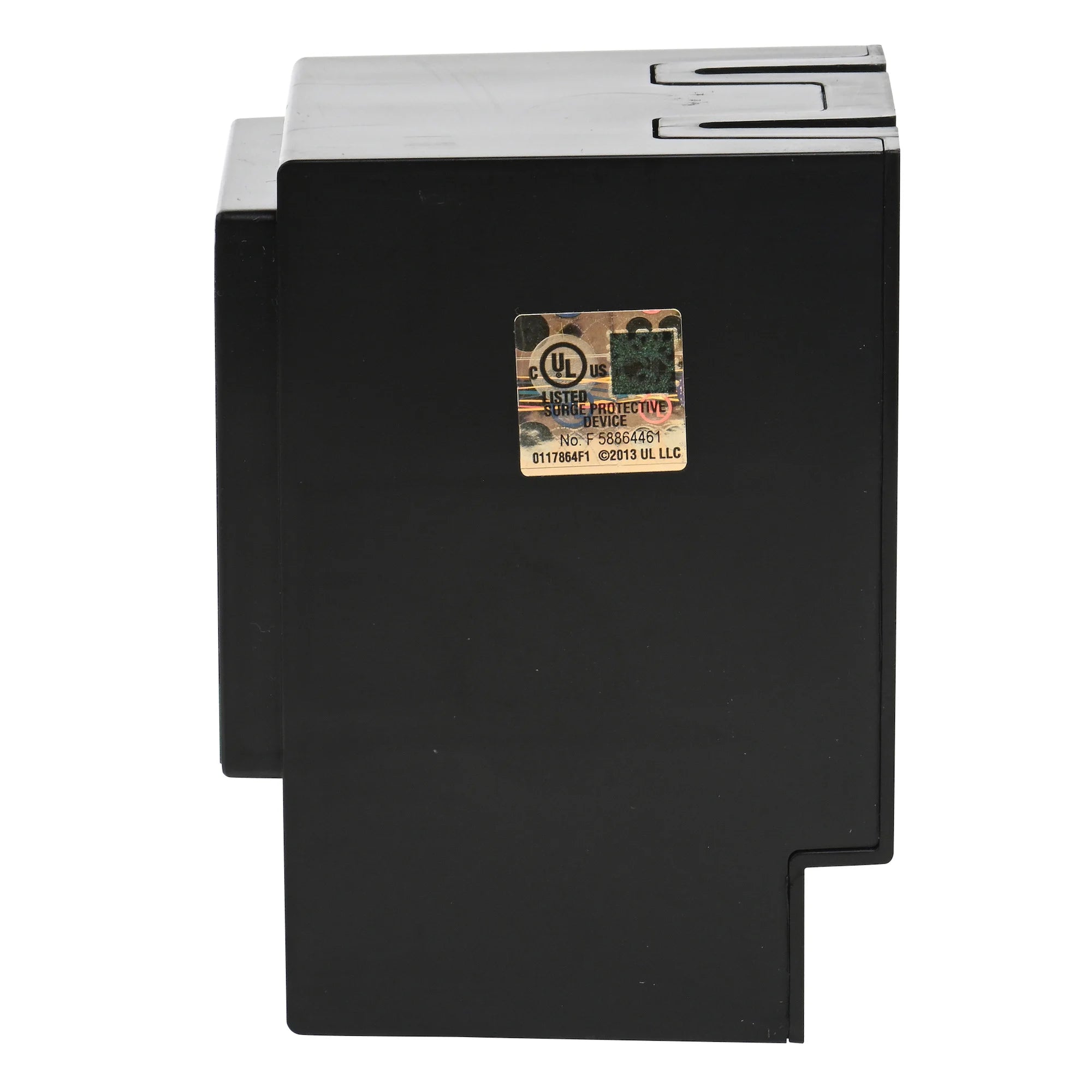

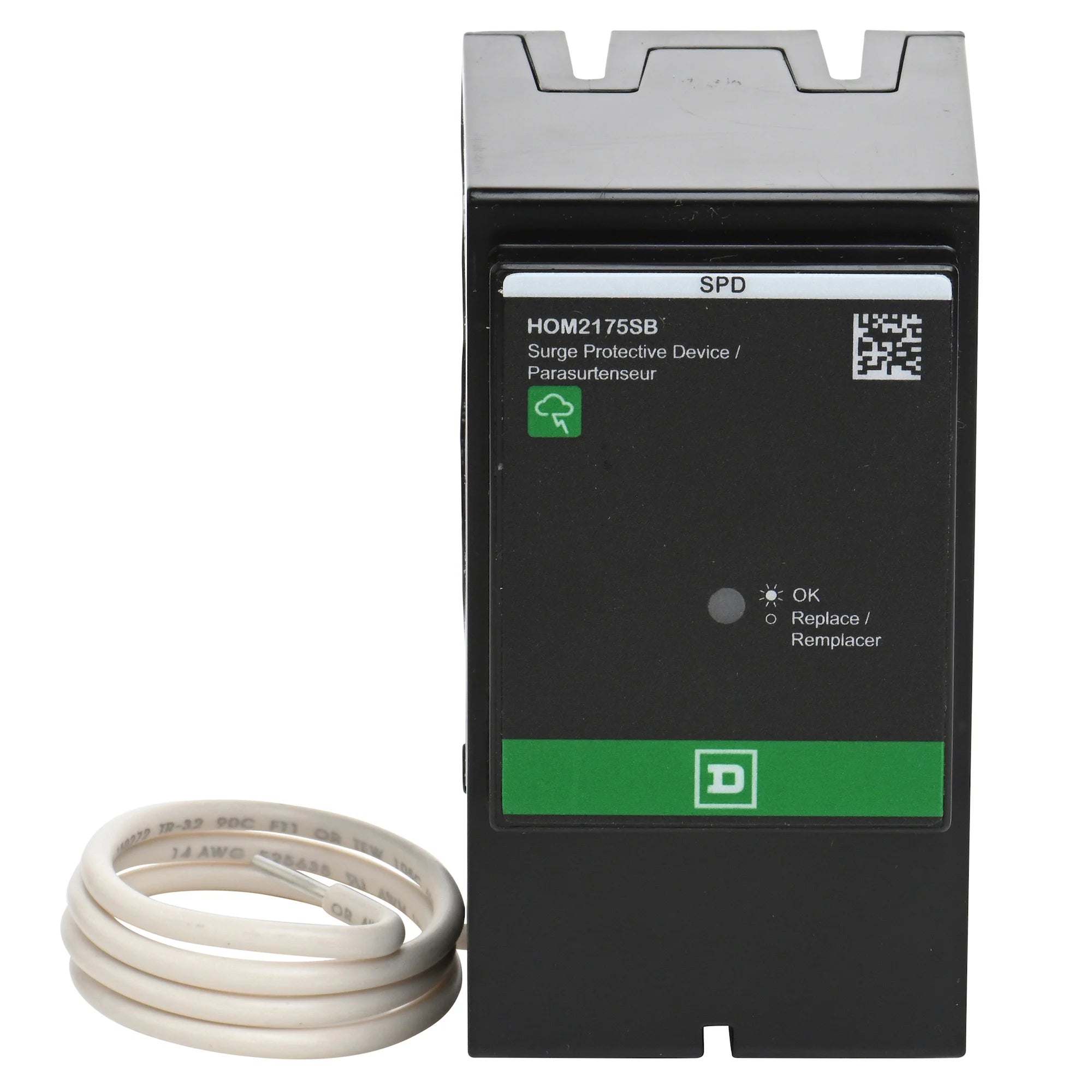

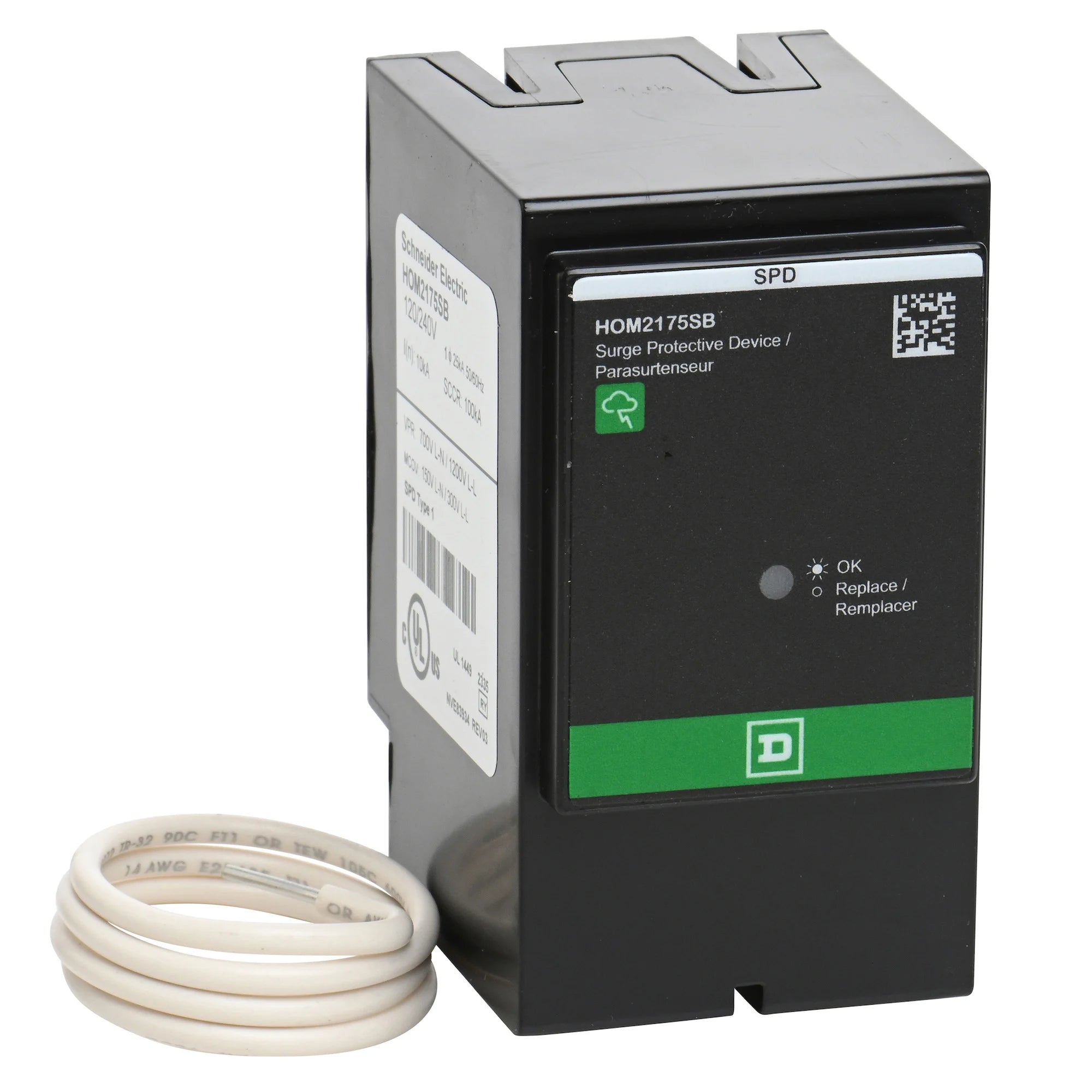

Square D HOM2175SB Load Center Secondary Surge Arrester 150 Volt

Product Description

The Square D HOM2175SB is a secondary surge arrester designed for use with Homeline load centers. It provides essential protection for electrical service and major household appliances from power surges. The unit is designed for indoor use and can handle 3 wire 120/240 VAC single phase systems. The surge protector has a NEMA 1 indoor rating and is rated at 5 kA with a short circuit current rating (SCCR) of 22.5 kA. The design requires two pole positions and includes an LED indicator to show operational status. The HOM2175SB is UL Listed and suitable for both residential and industrial applications.

• Provides whole home surge protection for major appliances.
• Easy installation with a plug-on design.
• Includes a 5 year warranty on connected equipment.

Product Highlights

The Square D surge arrester ensures reliable protection against external and internal surges with a surge current capacity of 50 kA.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: HOM2175SB
• Depth: 2.6 inches
• Width: 2 inches
• Height: 3.7 inches
• Voltage: 120/240 Volt
• Current Rating: 5 kA
• Interrupt Rating: 22 kAIC
• Warranty Length: 18 months
