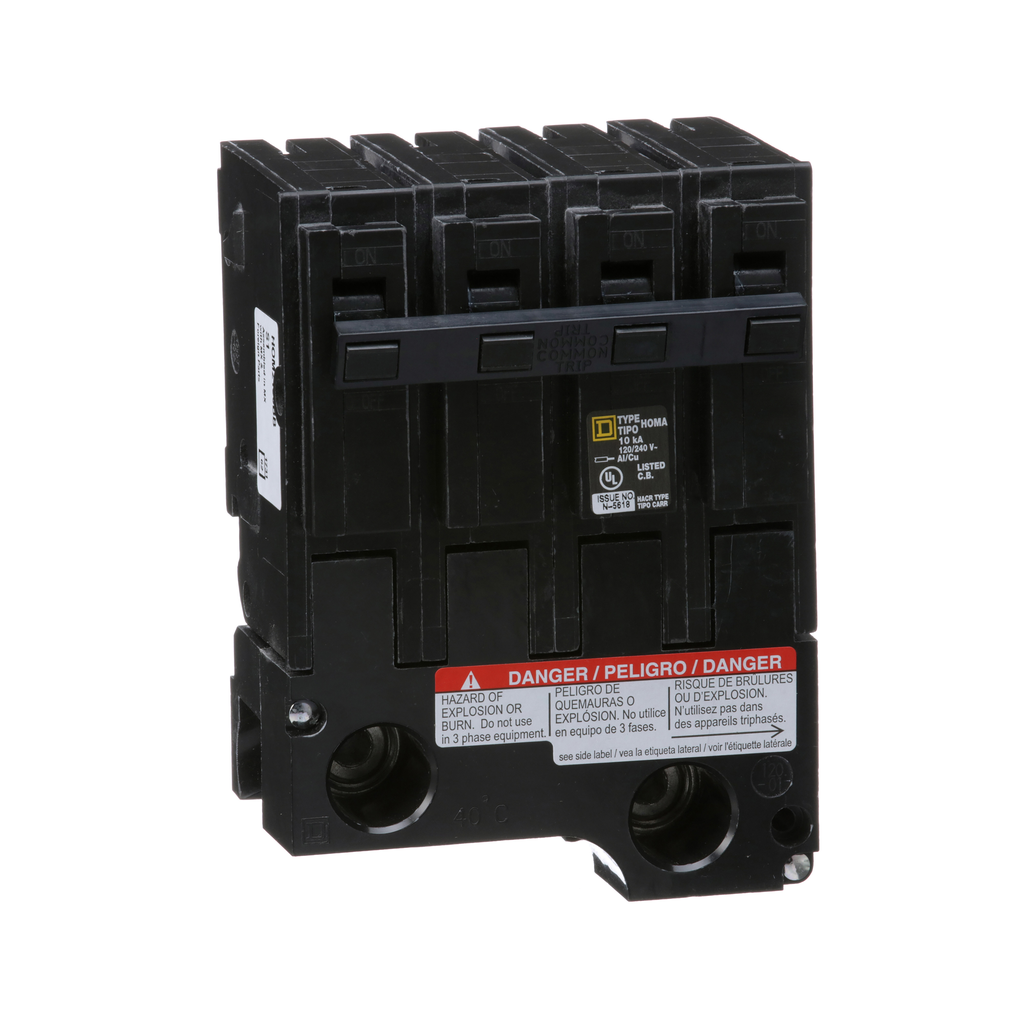

Square D HOM2175BB Miniature Circuit Breaker 175 Amp 120/240 Volt

Product Description

The Square D HOM2175BB is a miniature circuit breaker designed for fast installation and reliable circuit protection. With a current rating of 175 Amps and voltage of 120/240 Volts, this 2-pole breaker easily plugs into Homeline load centers. It provides essential overload and short circuit protection, making it suitable for residential electrical systems.

• Rated for 175 Amps at 120/240 Volts
• 10 kA interrupt capacity
• UL listed for safety compliance

Product Highlights

This circuit breaker features box lugs suitable for wire sizes ranging from 4 AWG to 300 kcmil, accommodating both copper and aluminum wire. With dimensions of five point thirty-nine inches in height, three point ninety-eight inches in width, and three point thirteen inches in depth, it is compact for installation in standard panels. Its HACR rating ensures compatibility with heating, air conditioning, and refrigeration appliances.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOM2175BB
• Mounting Type: Plug-in
• Number of Poles: 2
• Warranty: Lifetime
• Current Rating: 175 Amp
• Voltage Rating: 120/240 Volt
• Interrupt Rating: 10 kAIC
• Country of Origin: United States
