Square D HOM215CAFI Miniature Circuit Breaker 15A 2 Pole 120/240V

Product Description

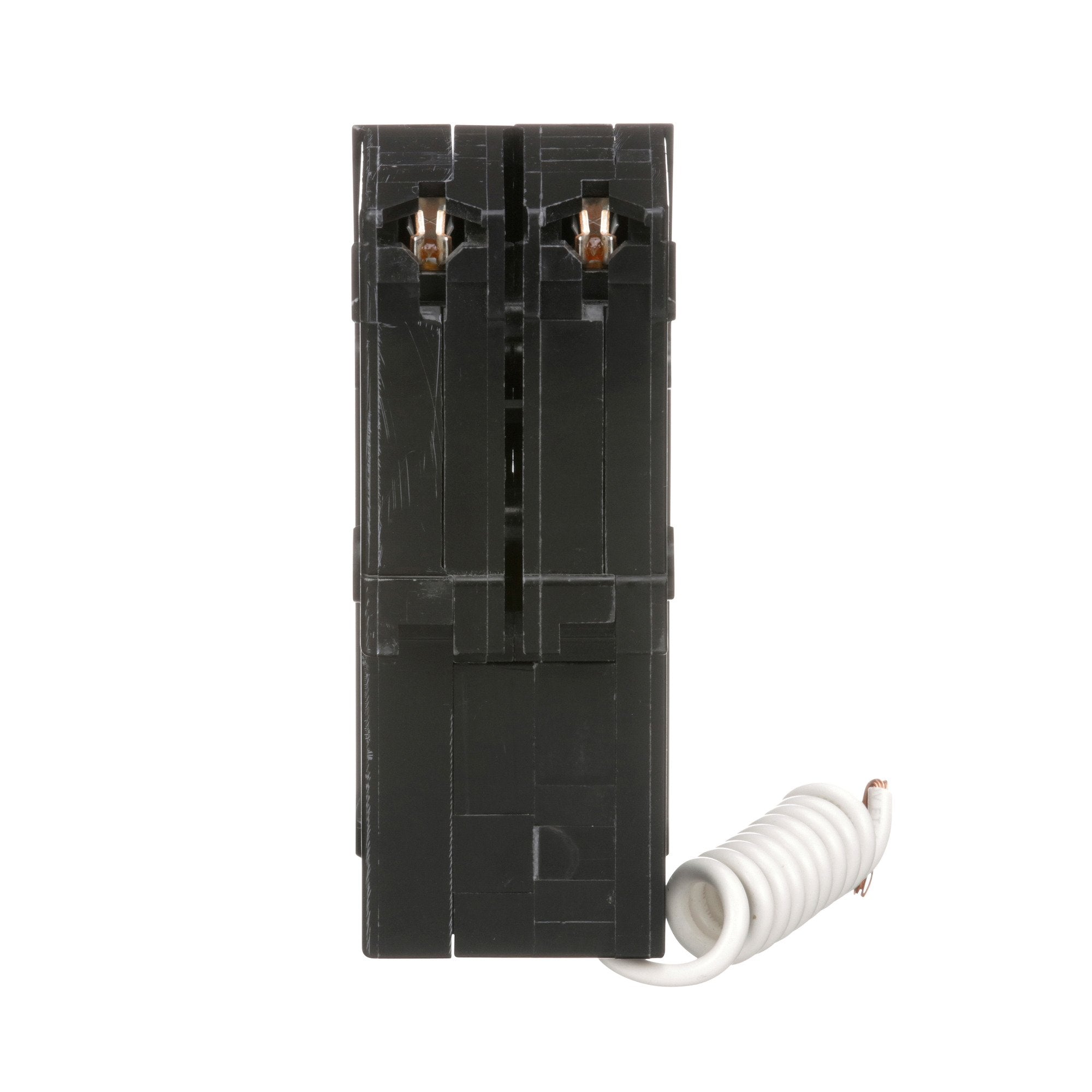

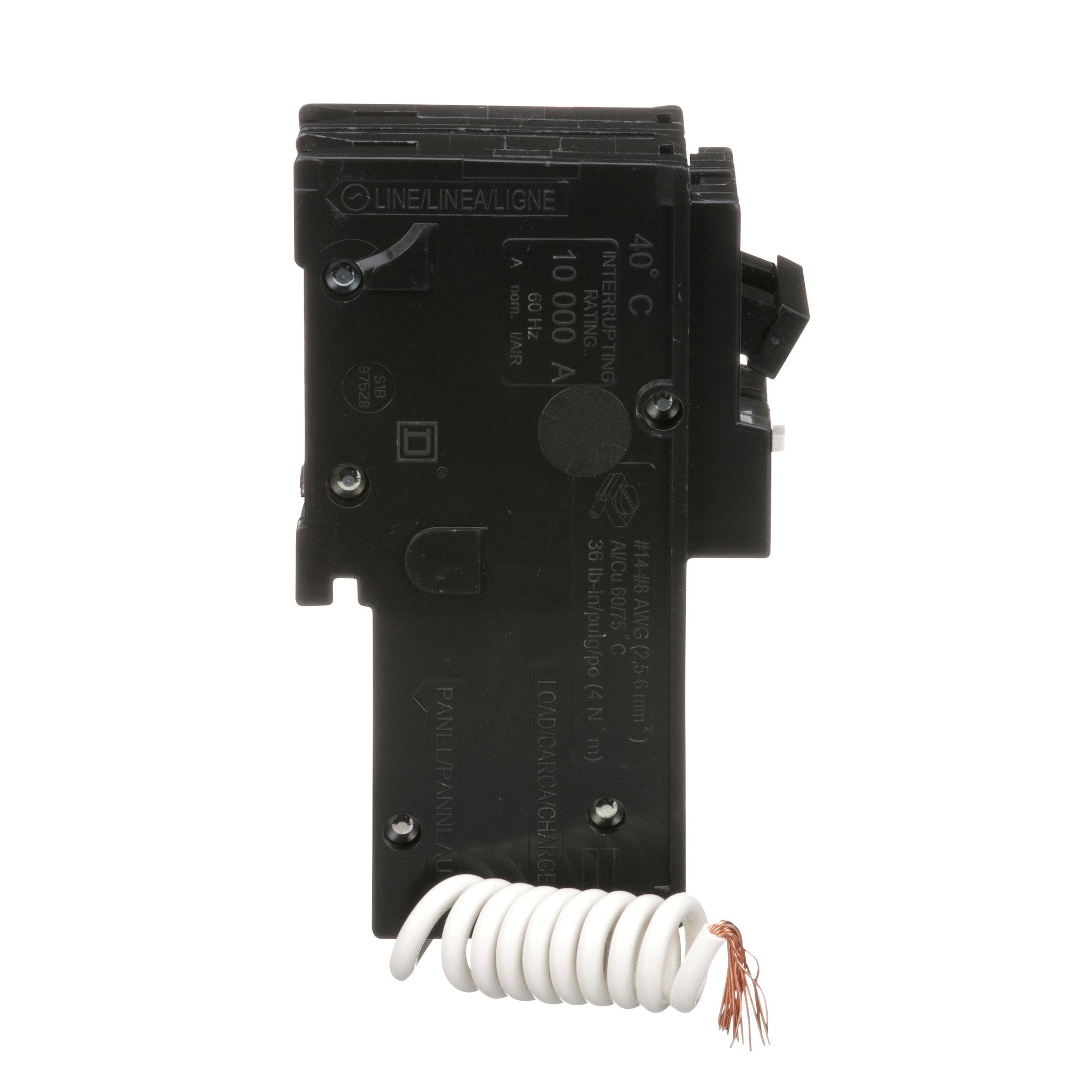

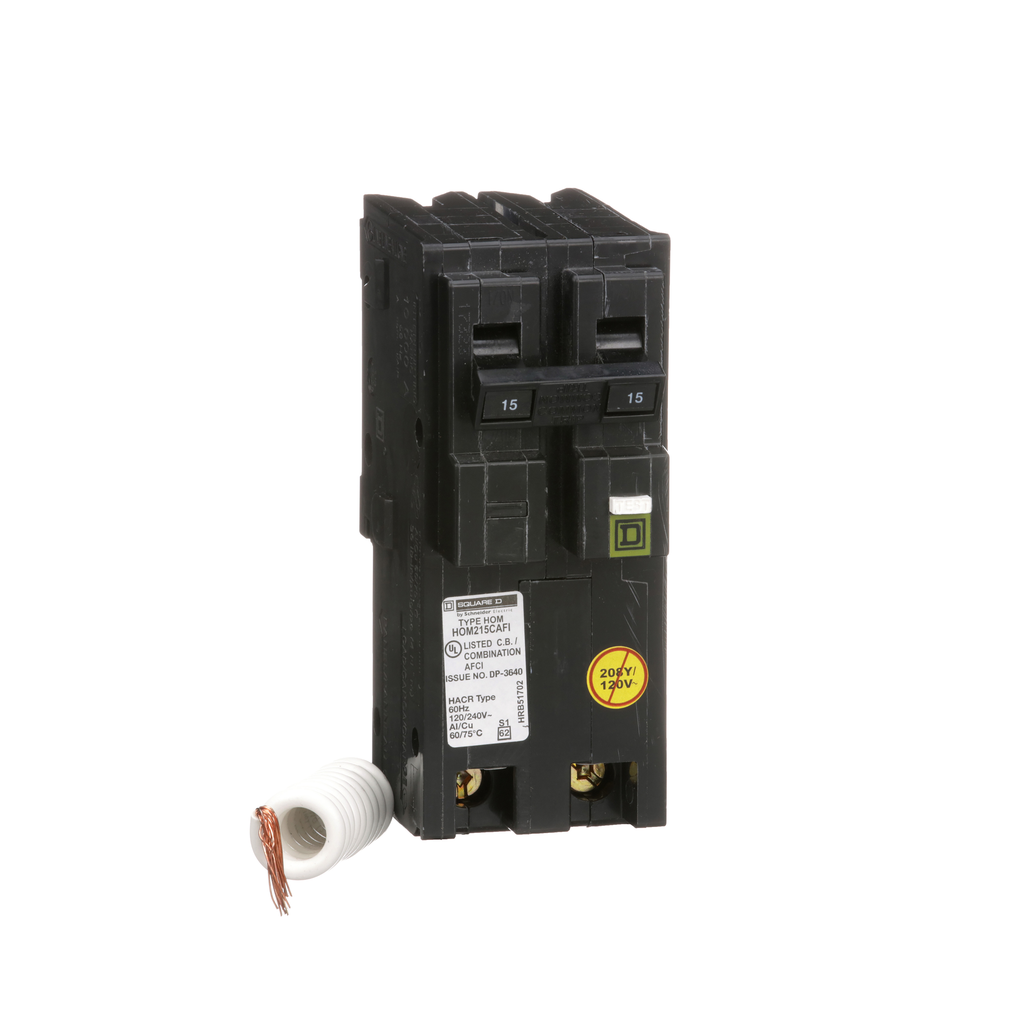

Square D Homeline HOM215CAFI is a miniature circuit breaker designed for effective overload and short-circuit protection. This two-pole circuit breaker is suitable for use in Homeline load centers. Rated at 15 Amps and compatible with both one hundred twenty and two hundred forty volts, it ensures reliable performance in electrical systems. The unit features a pigtail neutral and uses clamp terminals to accept two wires. It can handle wire sizes ranging from fourteen AWG to eight AWG for copper or aluminum types. With a breaking capacity of ten kA, this circuit breaker is HACR rated and UL listed, ensuring it meets industry standards for safety and reliability.

• 15A at 120/240 VAC
• UL Listed and HACR Rated
• Wire Range: 14 AWG to 8 AWG copper or aluminum

Product Highlights

This circuit breaker provides essential protection for residential electrical systems and is ideal for applications requiring overload and short-circuit protection.

Product Information

Standard Information

• Catalog Number: HOM215CAFI
• Brand: Square D

Technical Specifications

• Current Rating: 15 Amp
• Voltage Rating: 120/240 Volt
• Amperage: 15 Amp
• Height: 3.13 inches
• Width: 2.0 inches
• Depth: 2.98 inches
• Break Capacity: 10 kAIC
• Type: Miniature circuit-breaker
