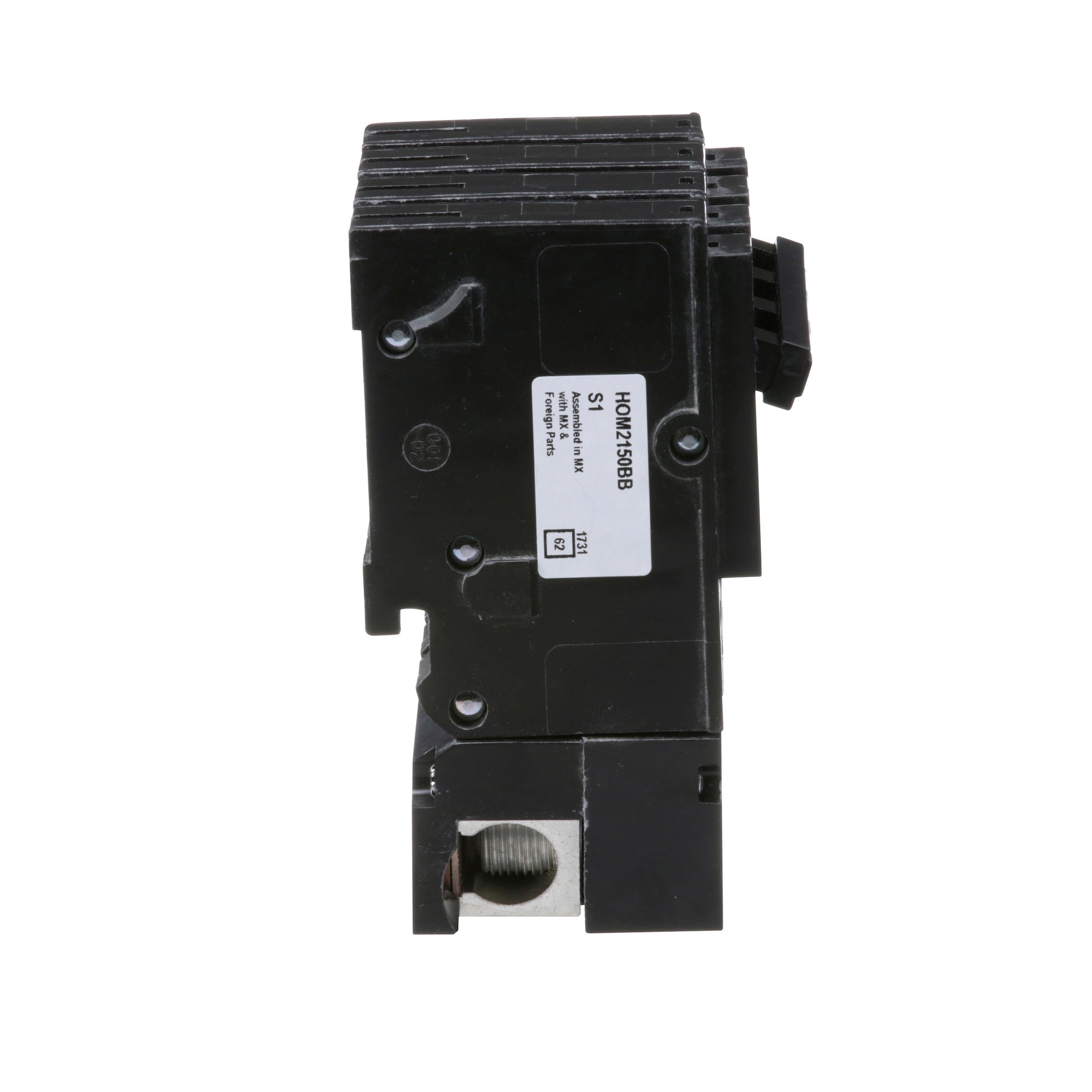

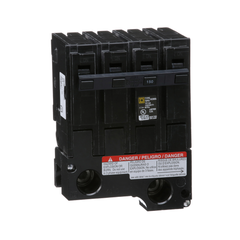

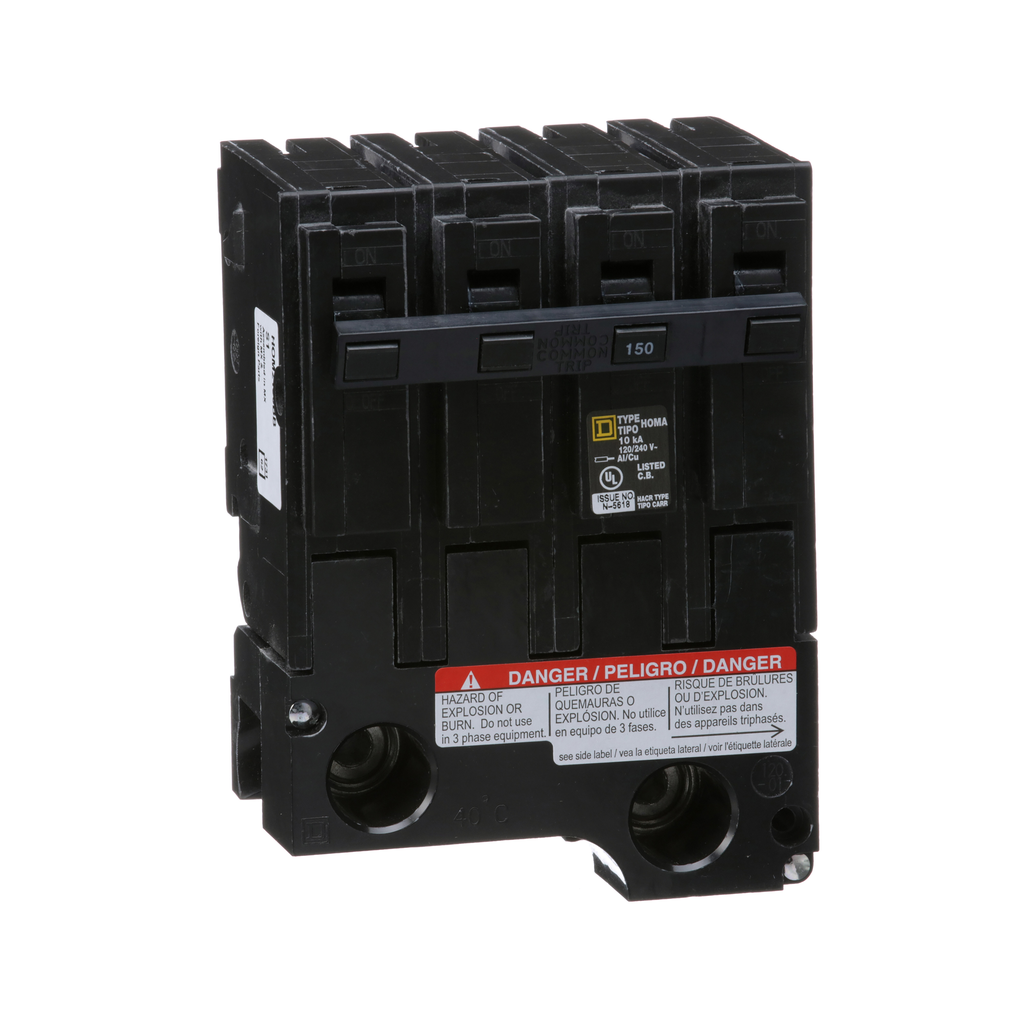

Square D HOM2150BB 120/240 Volt 150 Amp Miniature Circuit Breaker

Product Description

The Square D HOM2150BB is a miniature circuit breaker designed for efficient installation and reliable circuit protection. This device connects easily to Homeline load centers, delivering essential circuit protection. The breaker features two poles and operates at 150 A within a voltage range of 120/240 VAC. Key specifications include a breaking capacity of 10 kA, and it accommodates wire sizes from 4 AWG to 300 kcmil in copper or aluminum. With UL Listing, it assures adherence to safety standards.

• Max current rating of 150 Amps
• HACR rated for heating, air conditioning, and refrigeration loads
• Plug-in mounting for easy installation

Product Highlights

This circuit breaker provides overload and short circuit protection, ensuring the safety of electrical systems.

Product Information

Standard Information

• Catalog Number: HOM2150BB
• Brand: Square D

Technical Specifications

• Manufacturer: Schneider Electric
• Current Rating: 150 Amp
• Voltage Rating: 120/240 Volt
• Number of Poles: 2
• Height: 5.39 inches
• Width: 3.98 inches
• Depth: 3.13 inches
• Breaking Capacity: 10 kAIC
• Wire Size Range: AWG 4 to 300 kcmil
• Certifications: UL Listed
