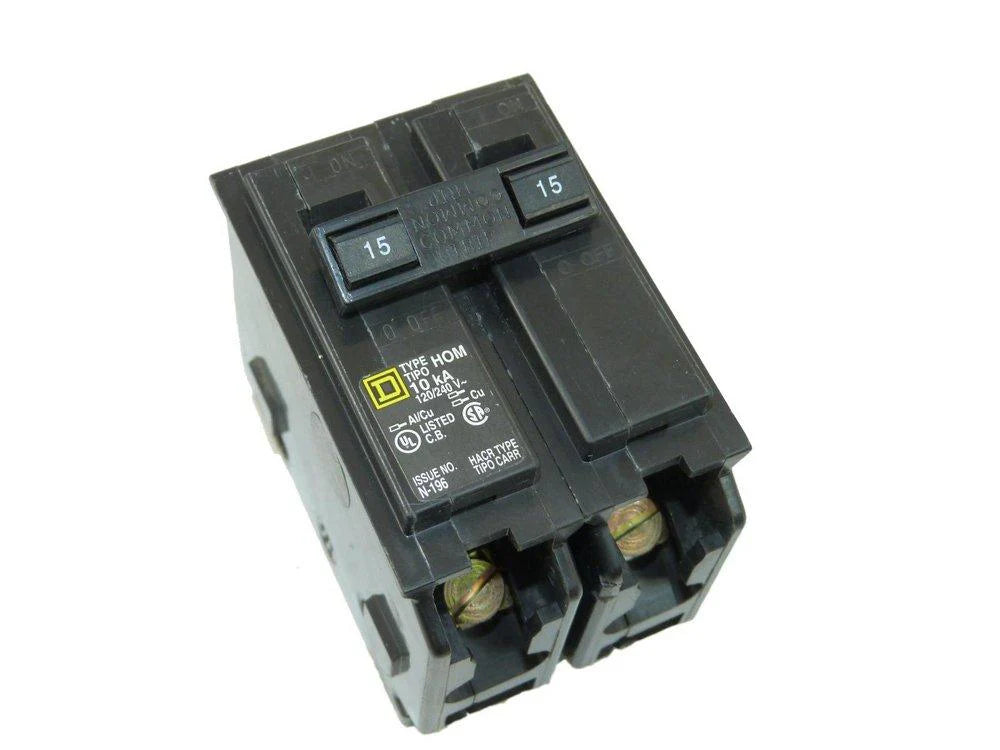

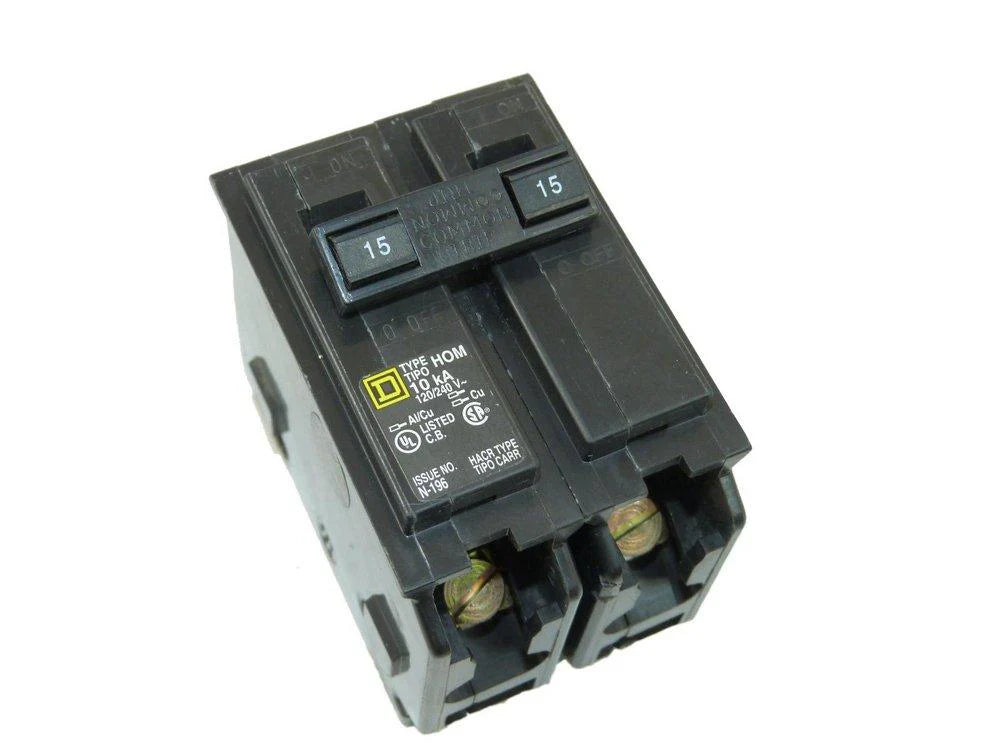

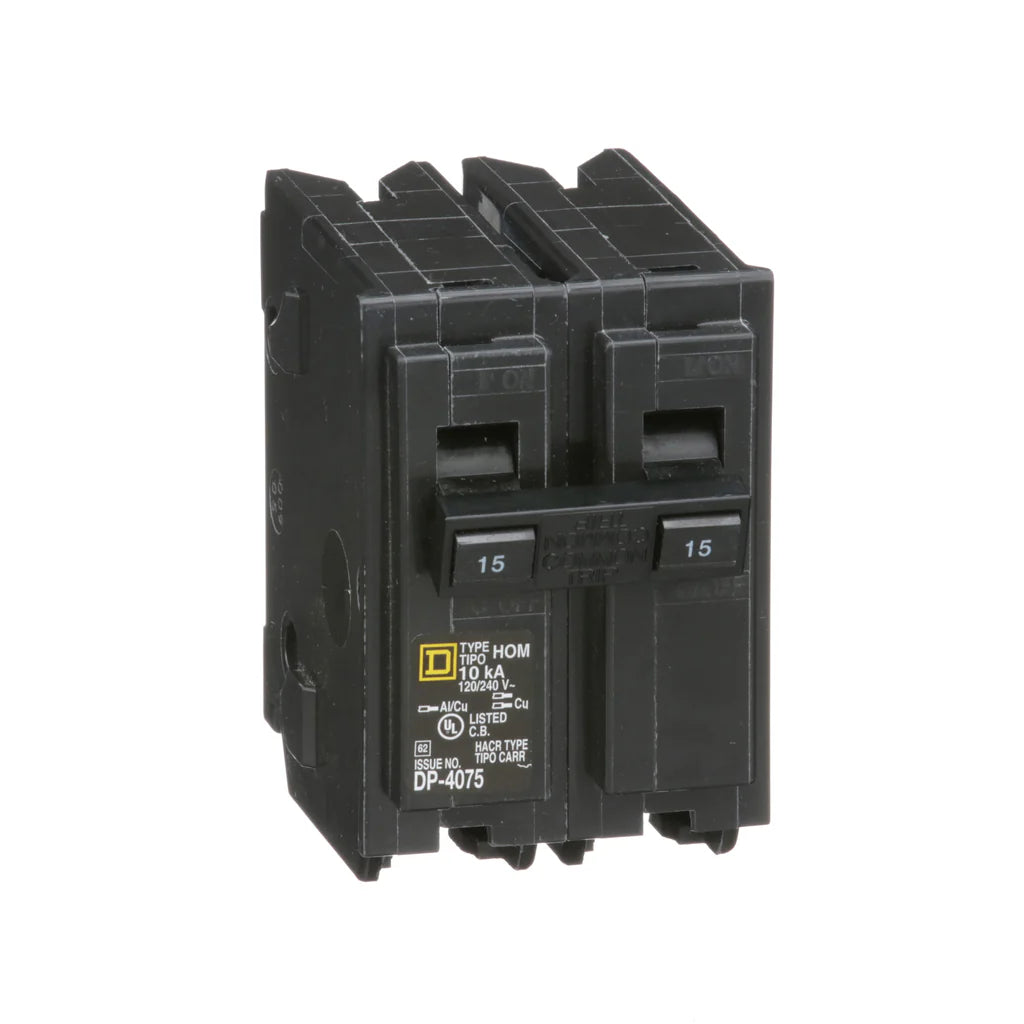

Square D HOM215 Miniature Circuit Breaker 15 Amp 120/240 Volt

Product Description

The Square D Homeline HOM215 is a miniature circuit breaker designed for use in power distribution systems. It offers a reliable solution for overload and short-circuit protection in residential applications. This 2-pole breaker is rated for 15 amperes at 120/240 volts, making it suitable for various electrical circuits.

• Plug-in mounting for easy installation
• HACR rated for compatibility with heating, air conditioning, and refrigeration loads
• Accepts wire sizes from AWG 14 to AWG 8 for copper and aluminum

Product Highlights

This breaker is UL Listed and features a breaking capacity of 10 kA, ensuring robust performance under fault conditions. The electrical connection is made through a clamp terminal that accommodates up to two wires, enhancing its versatility.

Product Information

Standard Information

• Catalog Number: HOM215
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage Rating: 120/240 Volt
• Current Rating: 15 Amp
• Number of Poles: 2
• Mounting Type: Plug-in
• Interrupt Rating: 10 kA
• Wire Size Acceptance: AWG 14 to AWG 8, Copper/Aluminum
• Dimensions: Height 3.13 inches, Width 2 inches, Depth 2.98 inches
