Product Description

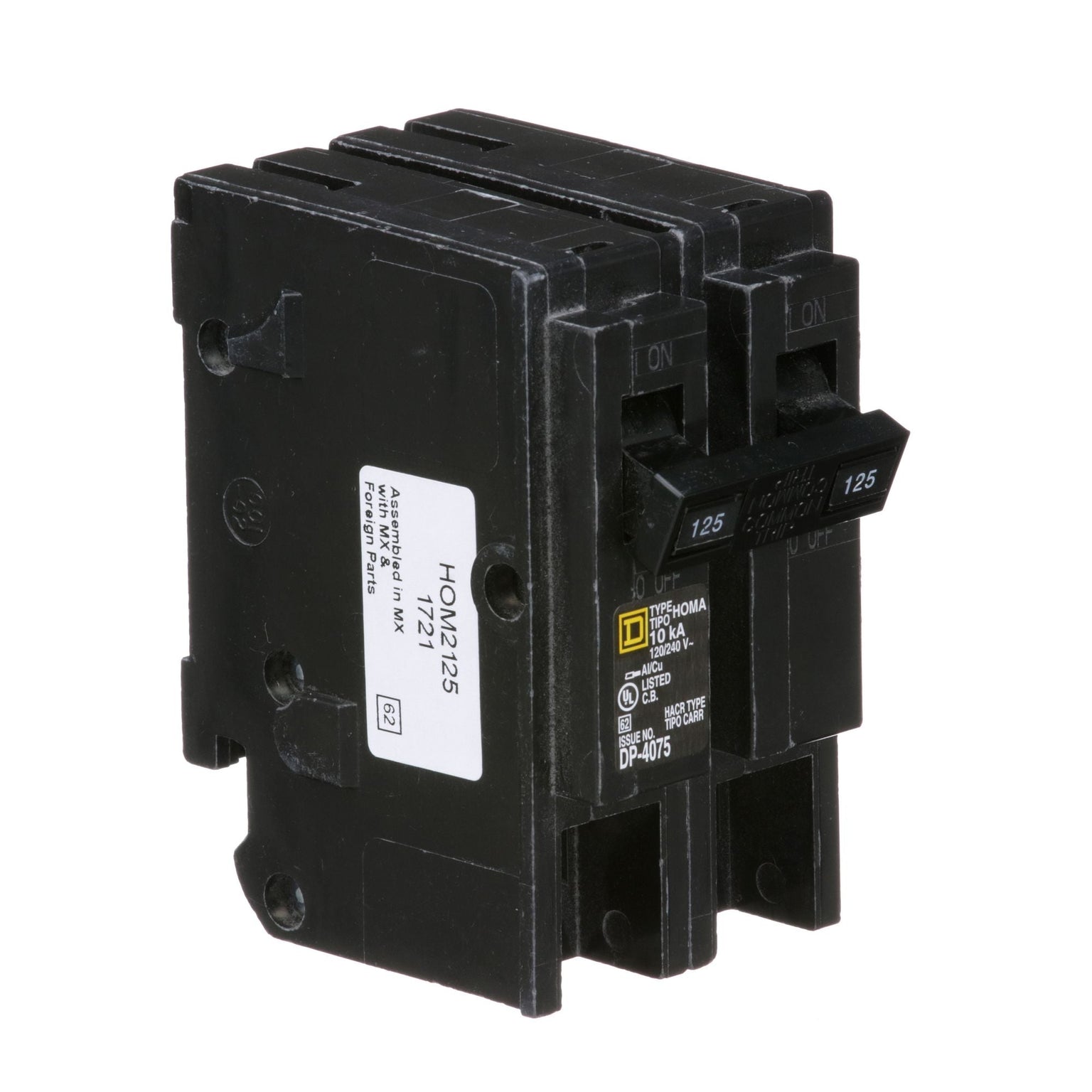

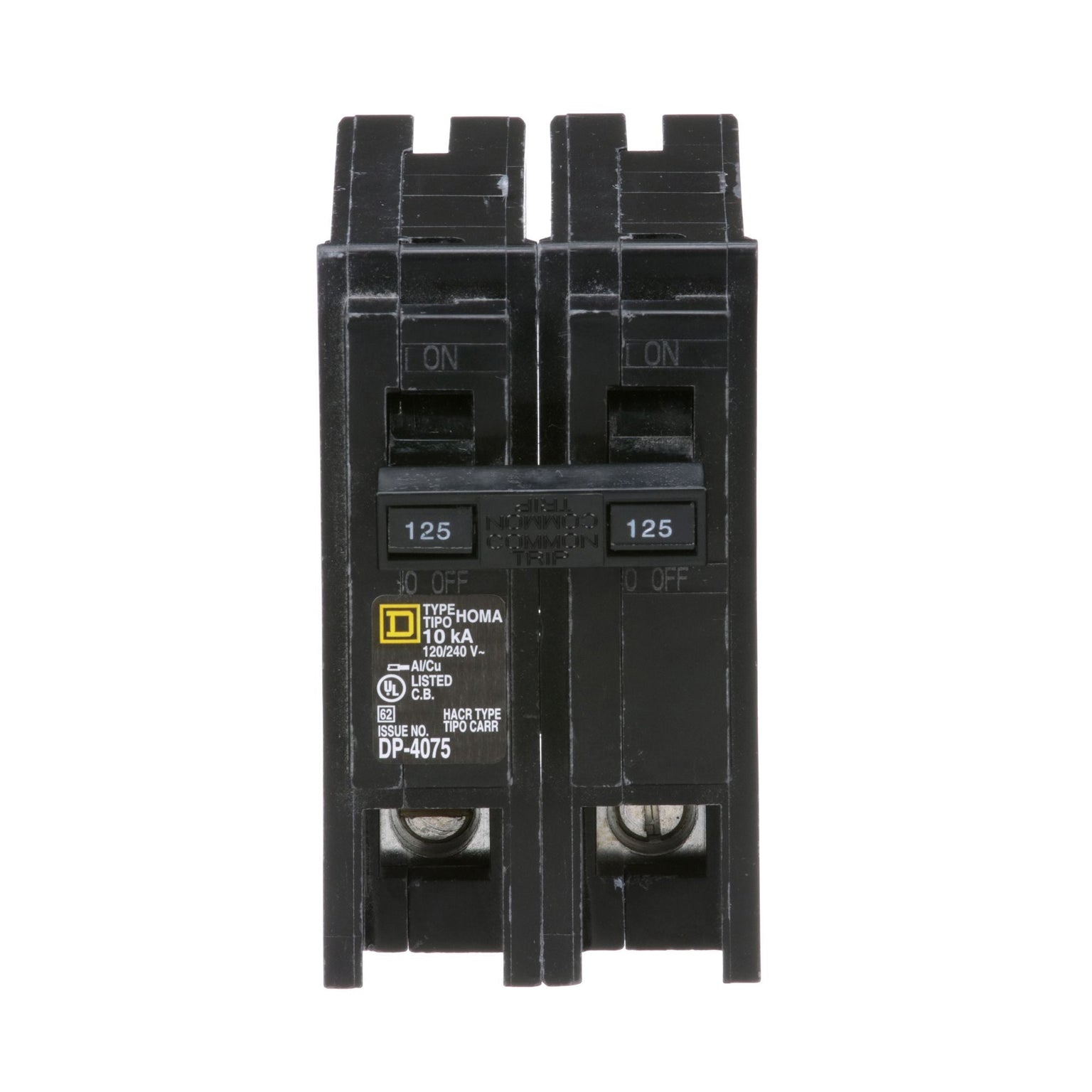

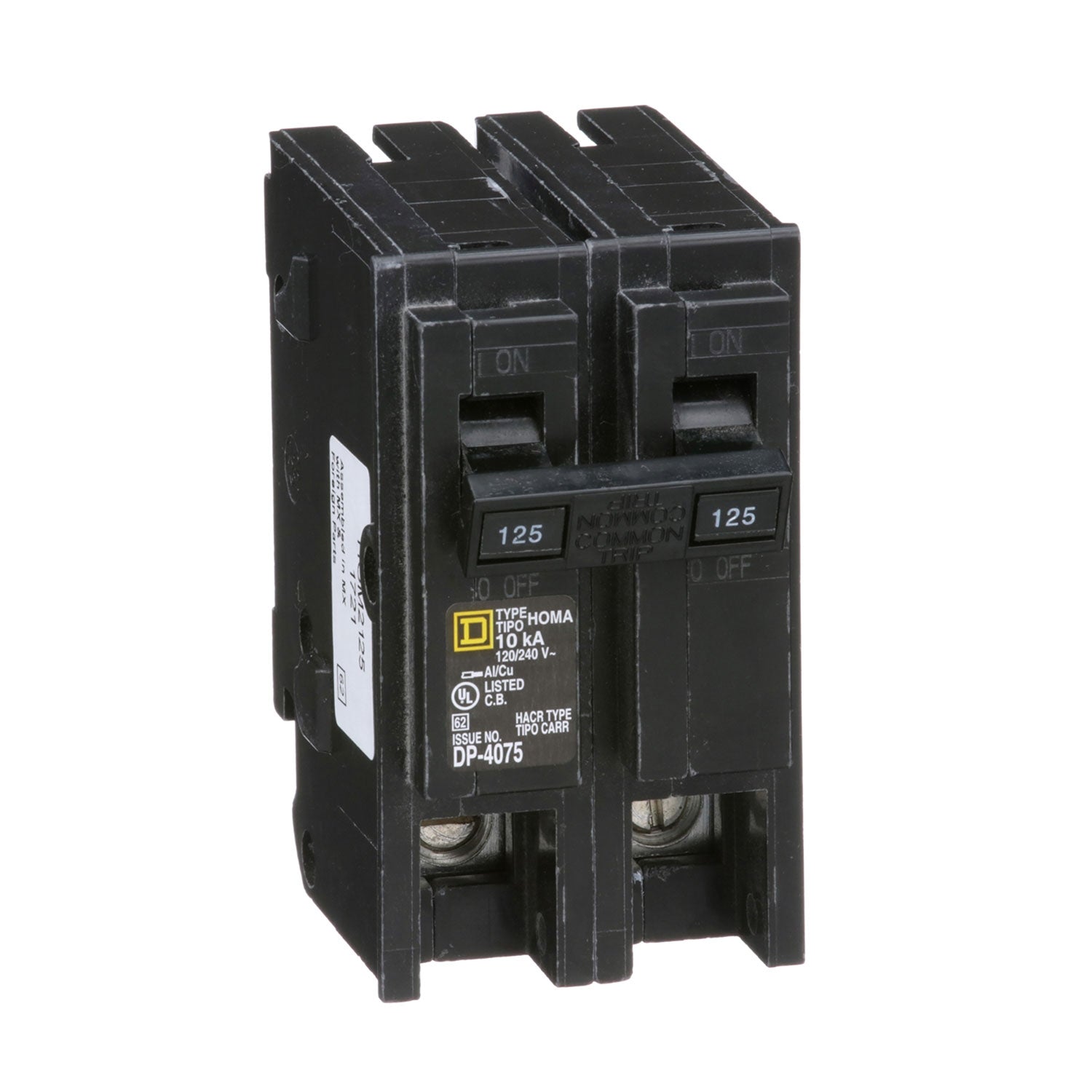

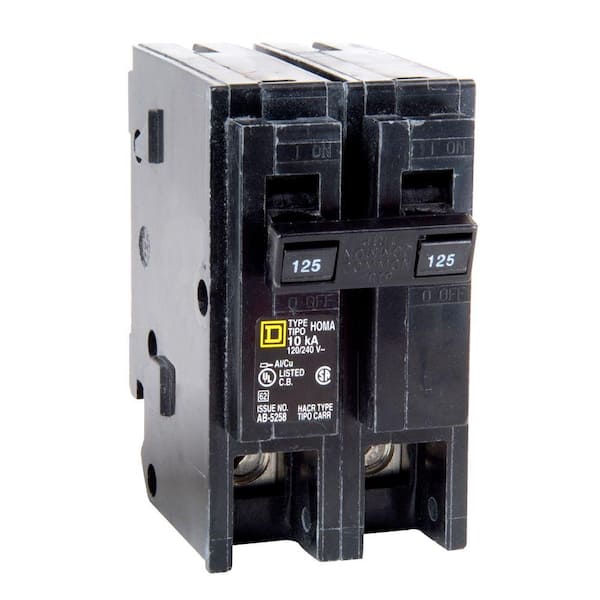

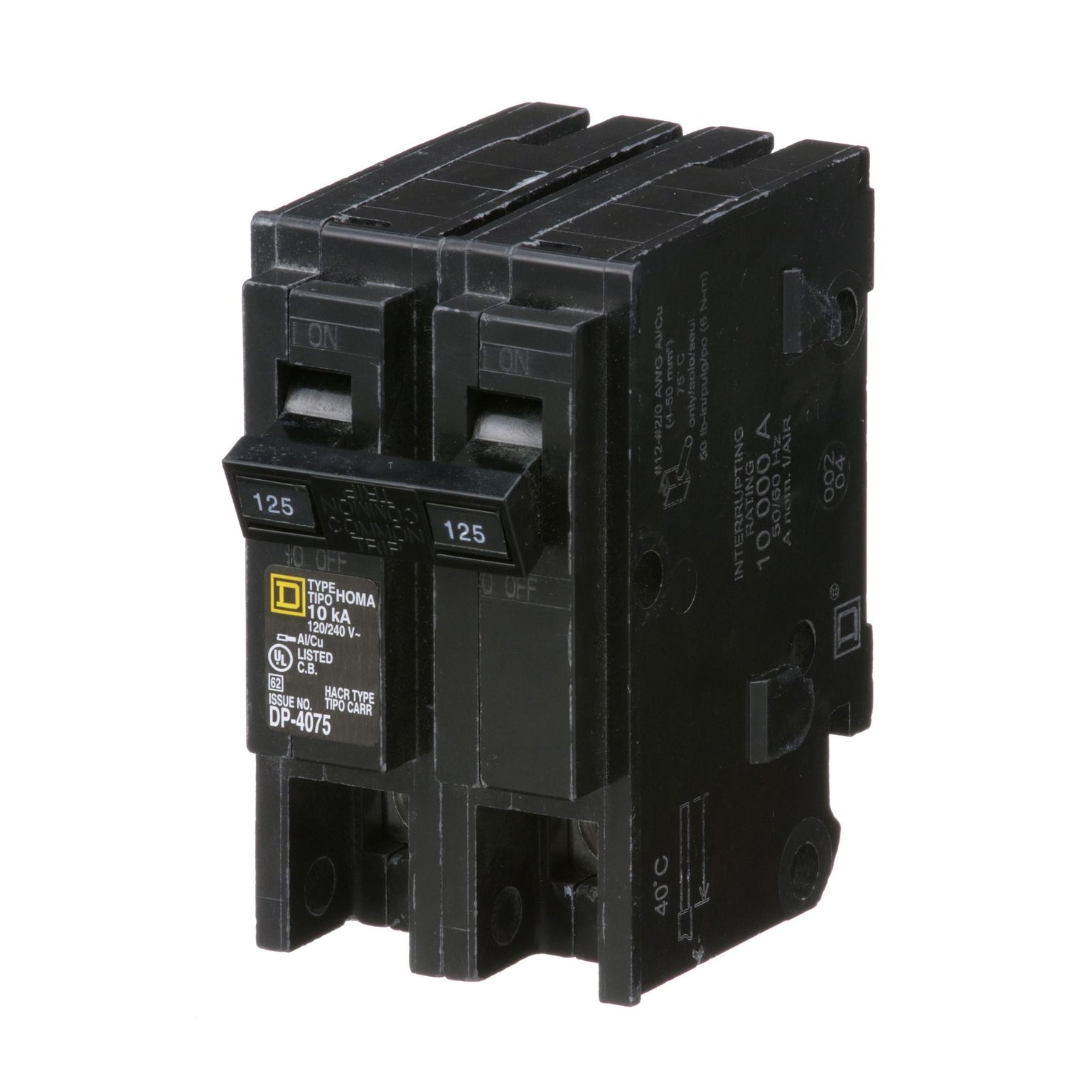

The Square D HOM2125CP Homeline miniature circuit breaker is engineered for fast installation and superior circuit protection. Designed to plug into Homeline load centers, it provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 125A at 120/240 VAC with 10 kA breaking capacity.
- Engineered and designed for fast installation
- Superior circuit protection
- Plug into Homeline load centers to provide circuit protection
Product Highlights
This Square D Homeline circuit breaker offers reliable circuit protection, safeguarding against overloads and short circuits. UL Listed and ANSI certified.
Product Information
Standard Information
-
Brand: Square D
-
Manufacturer Part Number: HOM2125CP
-
Country of Origin: Mexico
Technical Specifications
-
Brand: Square D
-
MPN: HOM2125CP
-
Range: Homeline
-
Depth: 2.98 in
-
Width: 2 in
-
Height: 3.13 in
-
Current: 125 Amp
-
Voltage: 120/240 VAC
-
Wire Size: 4 to 2/0 AWG
-
Product UPC: 04756906286
-
12-Digit UPC: 047569062865
-
Mounting Type: Plug-In
-
Certifications: UL
-
Number of Poles: 2 Pole
-
Number of Spaces: 2
-
CA Prop65 Warning: WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Country of Origin: Mexico
-
Line Rated Current: 125 A
-
Circuit Breaker Type: Standard
-
Short Circuit Current: 10 kA
-
Amps [Specifications]: 125 A
-
Item [Specifications]: Miniature Circuit-Breaker
-
Features [Specifications]: Mercury Free
-
Standards [Specifications]: UL Listed
-
Application [Specifications]: HACR rated Applications
-
Max. Wire Size [Specifications]: 2/0 AWG (Cu/Al)
-
Min. Wire Size [Specifications]: 4 AWG (Cu/Al)
-
AC Voltage Rating [Specifications]: 120/240V AC
-
Terminal Connection [Specifications]: Box Lugs
-
Circuit Breaker Mounting Style [Specifications]: Plug-In
-
Country of Origin (subject to change) [Specifications]: Mexico
-
Amps: 125 A
-
Item: Miniature Circuit-Breaker
-
Current Rating: 125 Amps
-
Product Dimensions: 3.13"D x 2"W x 3.13"H
-
Smart Home Compatibility: Not Smart Home Compatible
-
Power Capacity: 125-amp
-
Type: Standard trip
-
Make: Square D
-
Interruption Type: Standard Trip
-
Mounting Style: Plug-in
-
Break Time: Instantaneous
-
Poles: 2
-
Nominal Voltage Rating (AC): 240 V
-
Size: 1
-
Pack Size: 1
-
PackQty: 1
-
ModelNumber: HOM2125CP
-
Nominal Current Rating: 125 A
-
Power Distribution Features: No Additional Features
-
Hz: 50/60
-
Voltage (volts): 120/240
-
SAME BREAKER AS: HOM2125
-
Electrical Product Type: Breaker
-
Amperage Rating: 125
-
SOURCE CODE: HWB
-
Breaker Type: Double Pole
-
Voltage (V): 120/240
-
Maximum Amperage (amps): 125
-
Connection Type: Box Lug
-
Interrupt Rating: 10 kA
-
Temperature Rating: 40 deg C
-
Terminal Type: Box Lug
-
Manufacturer: Schneider Electric
-
Family: Homeline
-
Pole: 2
-
Amp: 125
-
Volt: 240
-
Phase: 1
-
Category: Molded Case Circuit Breakers
-
Connection: Plug-In
-
Functions: LI - Long-Time and Instantaneous
-
Protection: Thermal Magnetic
-
AIC Ratings: 10kA@240V
-
Dimensions (HxWxD): 3.13 x 2 x 2.98
