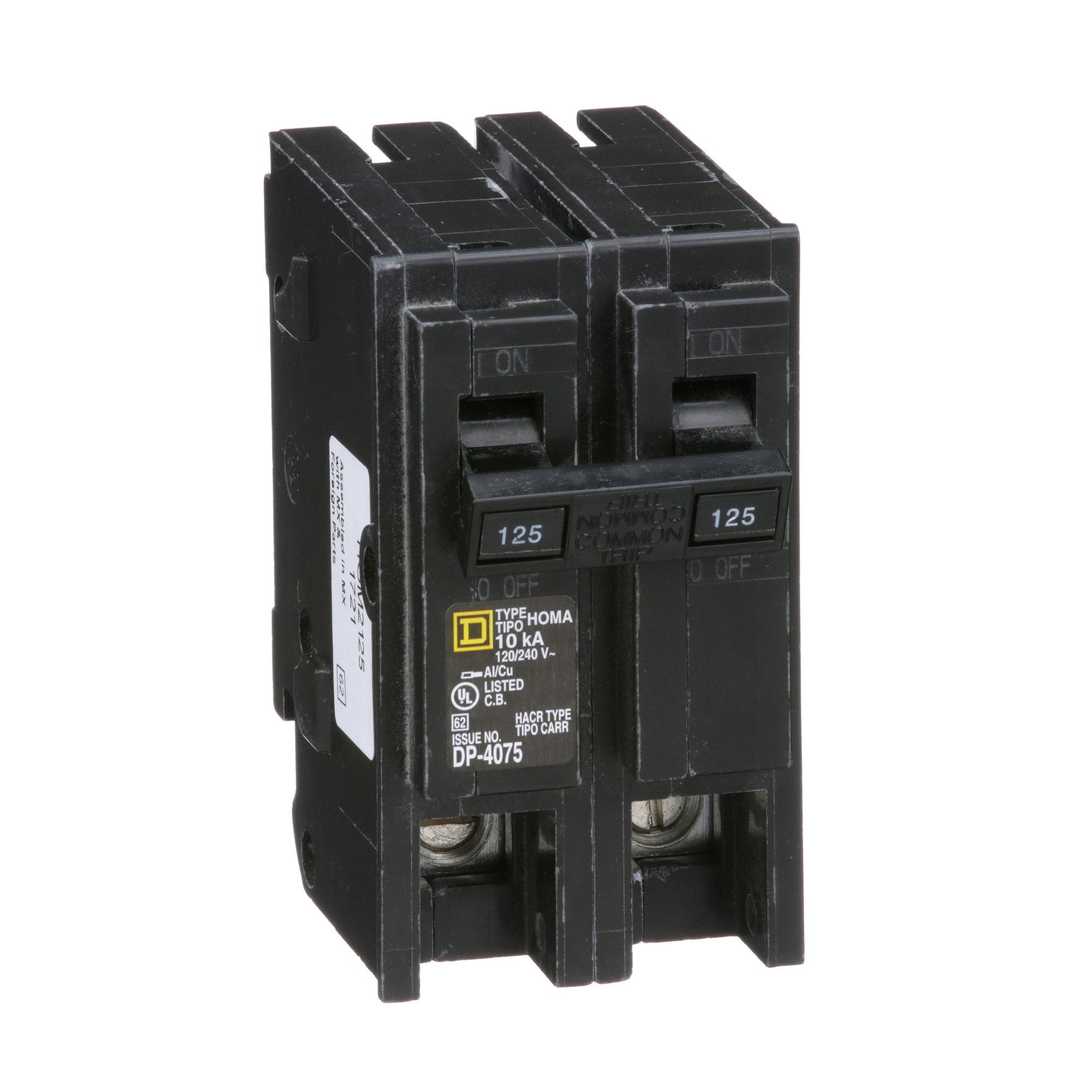

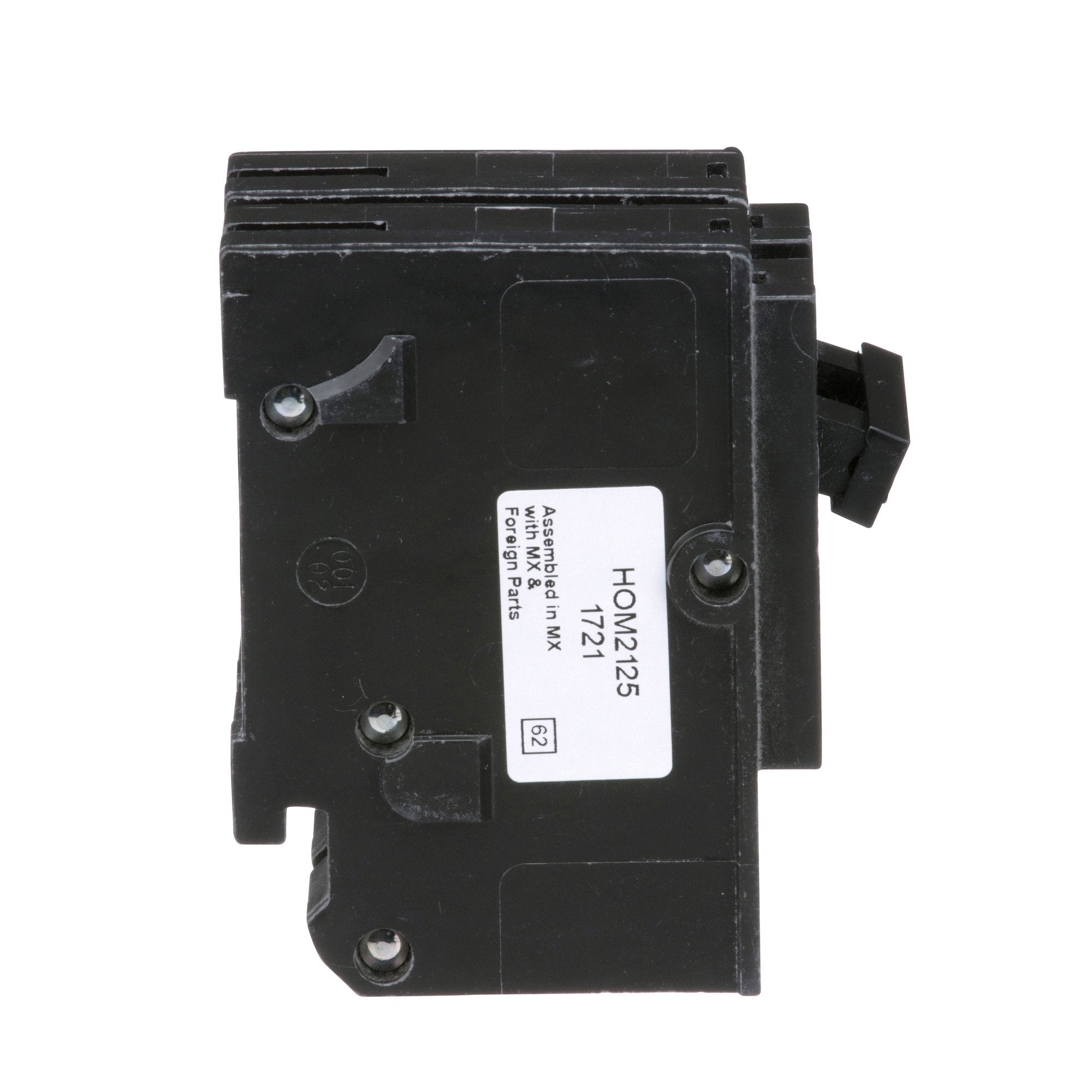

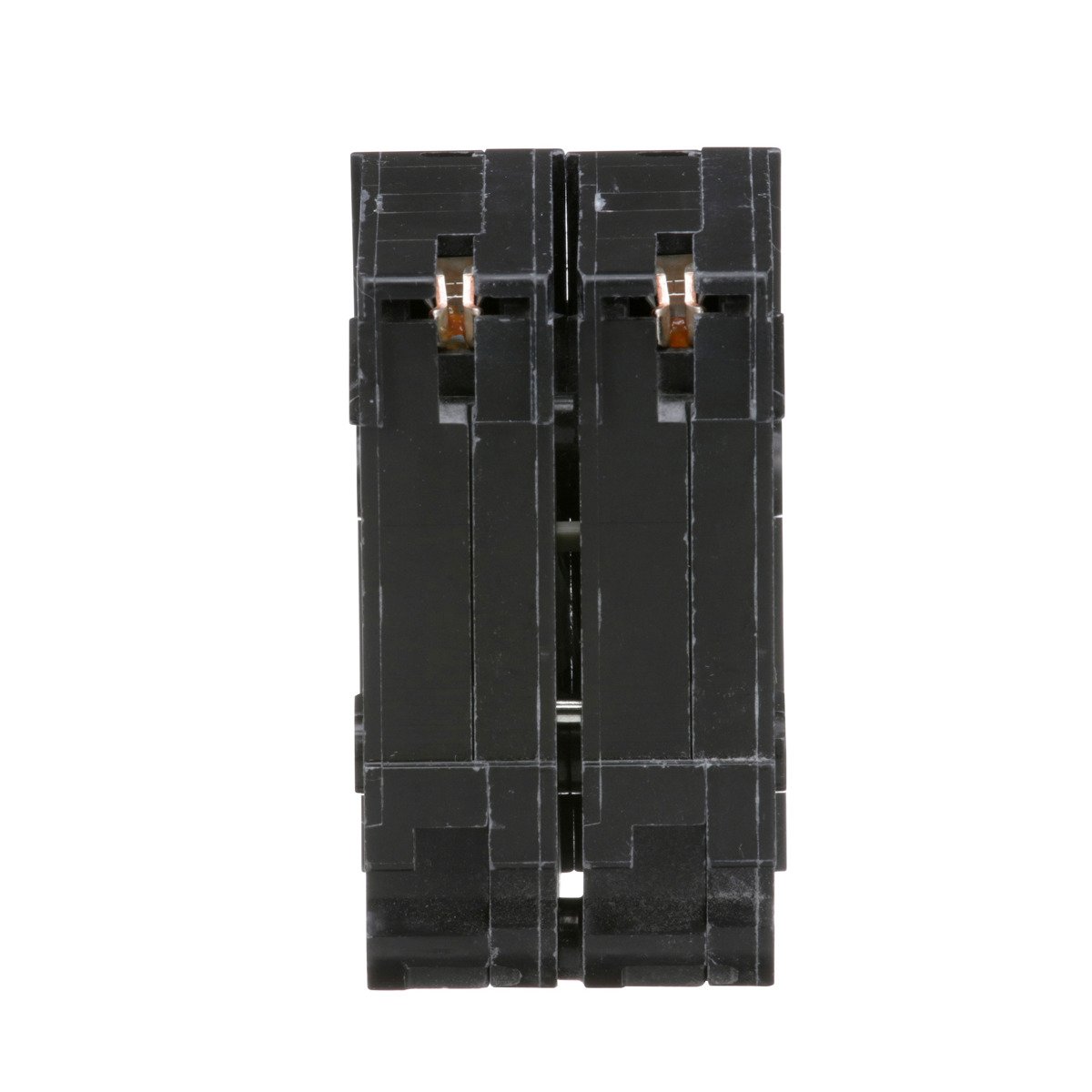

Square D HOM2125 Miniature Circuit Breaker 120/240 Volt 125 Amp

Product Description

The Square D HOM2125 is a miniature circuit breaker by Schneider Electric designed for overload and short-circuit protection in electrical systems. This 2-pole circuit breaker plugs directly into Homeline load centers, providing effective circuit protection and is suitable for both residential and commercial applications. It operates at 125 Amp with a voltage rating of 120/240 VAC and features a 10 kA breaking capacity.

• Compatible with Homeline Load Centers
• UL Listed for safety and reliability
• Accepts wire sizes from 4 AWG to 2/0 AWG copper or aluminum

Product Highlights

This circuit breaker is HACR rated and designed specifically for quick installation and efficient operation. It is UL certified and comes with a lifetime warranty, making it a reliable choice for your electrical protection needs.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: HOM2125
• Current Rating: 125 Amp
• Voltage Rating: 120/240 Volt
• Mounting Type: Plug-in
• Number of Poles: 2
• Breaking Capacity: 10 kA
• Dimensions: 3.13 inches (height) x 2.0 inches (width) x 2.98 inches (depth)
• Country of Origin: Mexico
• Certifications: UL Listed
• Wire Size: AWG 4 to 2/0 aluminum/copper
• Warranty Length: Lifetime
