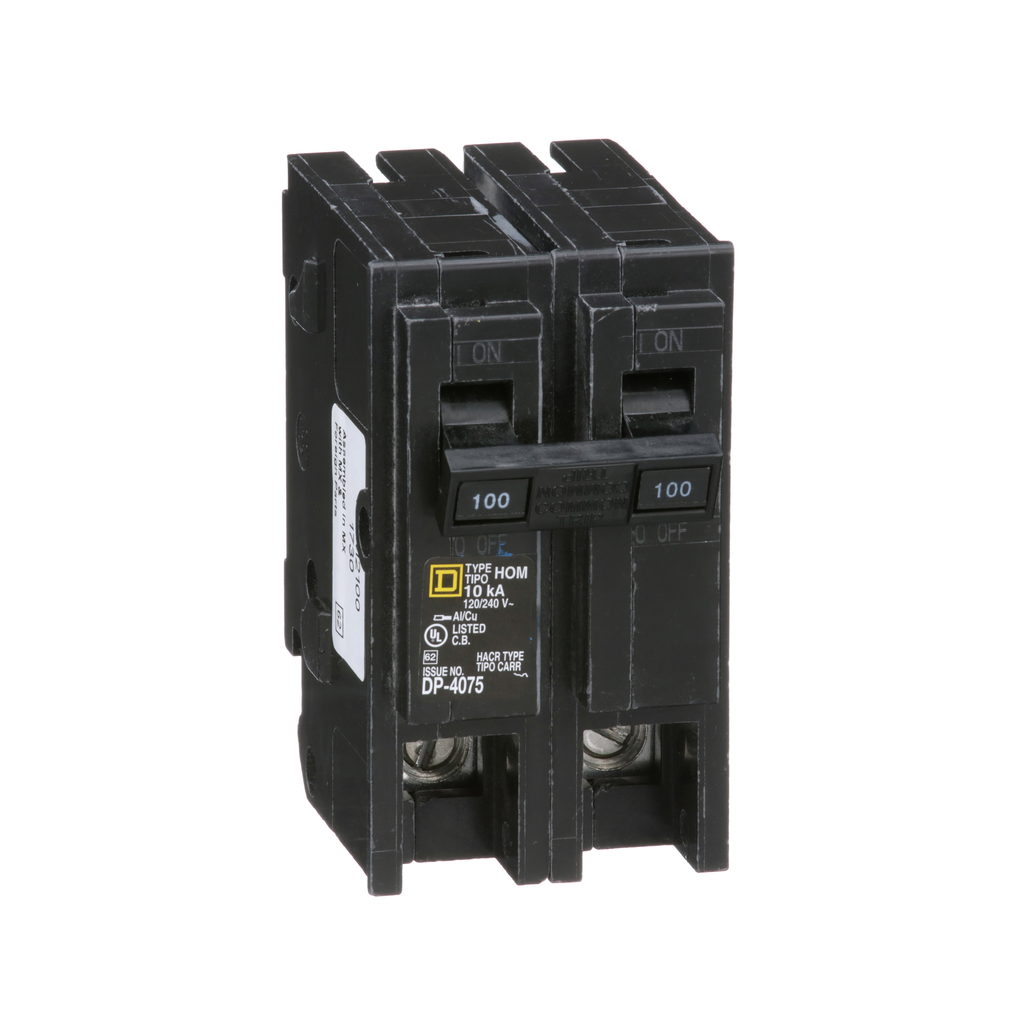

Square D HOM2100 Miniature Circuit Breaker 100A 120/240V

Product Description

The Square D HOM2100 is a two-pole miniature circuit breaker designed for use in Homeline load centers. This circuit breaker provides overload and short-circuit protection. It is rated for 100 amps at a voltage of 120/240 volts, with a breaking capacity of 10 kA. The HOM2100 is UL Listed and HACR rated, ensuring safety and reliability in various electrical applications.

• 2-Pole configuration
• Plug-in mounting type for easy installation
• Suitable for 4 AWG to 2/0 AWG copper or aluminum wire

Product Highlights

The HOM2100 circuit breaker is engineered for fast installation and superior protection, making it ideal for residential applications.

Product Information

Standard Information

• Catalog Number: HOM2100
• Brand: Square D

Technical Specifications

• Current Rating: 100 A
• Voltage Rating: 120/240 V
• Number of Poles: 2
• Interrupt Rating: 10 kA
• Height: 3.13 inches
• Width: 2.0 inches
• Depth: 2.98 inches
• Wire Size: 4 AWG to 2/0 AWG
• Approvals: UL, HACR rated
• Country of Origin: Mexico
• Lifetime Warranty
