Square D HOM2040M200PC Load Center 200 Amp 120/240 VAC 20-Space 40-Circuit NEMA 1

Product Description

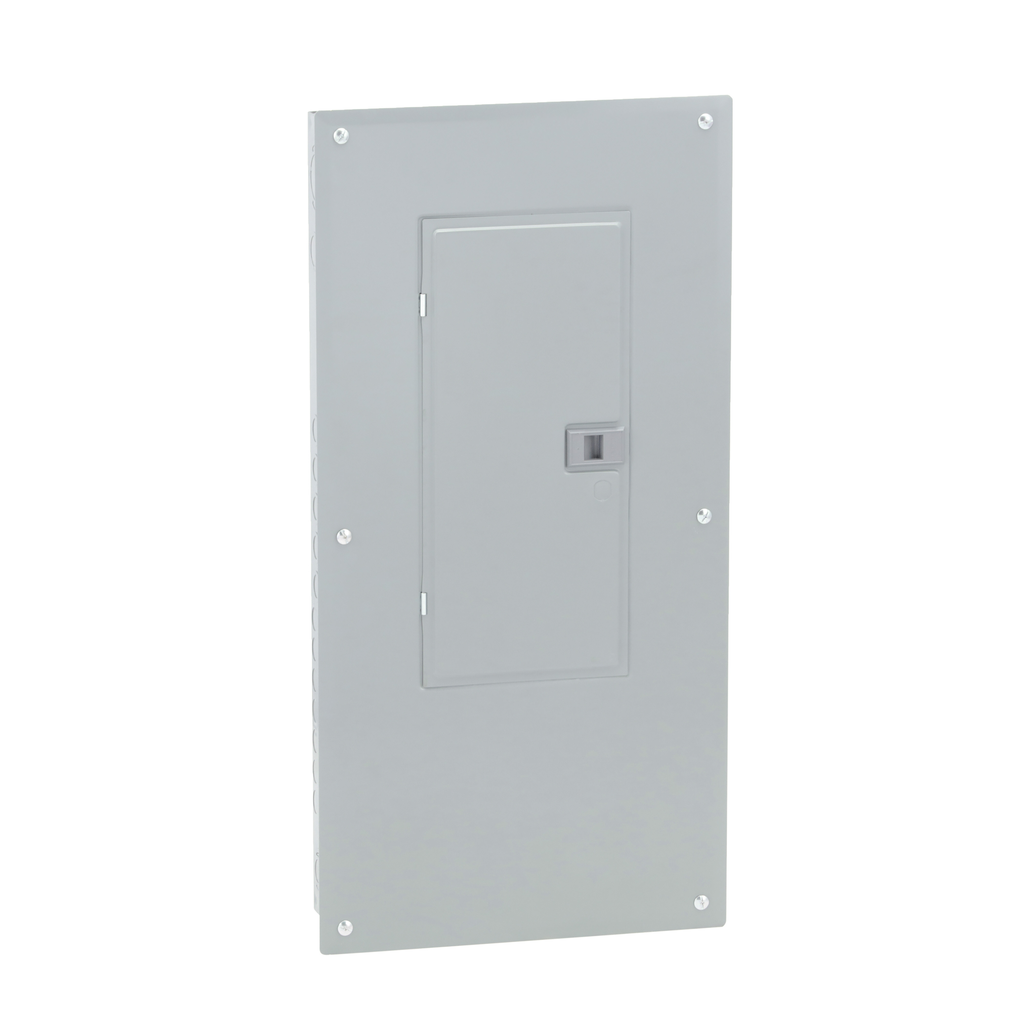

The Square D HOM2040M200PC is a load center designed for residential and industrial applications. This product features a two-pole plug on neutral main supply circuit breaker that handles 200 amperes at 120/240 VAC. It includes twenty spaces within a NEMA 1 indoor enclosure and is equipped with a combination flush/surface cover.

• Twenty circuit spaces available
• Rated for indoor use and rainproof
• Compatible with 4 AWG to 250 kcmil copper or aluminum wire

Product Highlights

The HOM2040M200PC ensures reliable protection for electrical systems, equipment, and personnel. It is UL Listed and provides a 22 kA interrupting capacity.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOM2040M200PC
• Current Rating: 200 Amperes
• Voltage Rating: 120/240 Volts
• Number of Circuits: 40
• Dimensions: Height 29.84 inches, Width 14.25 inches, Depth 3.74 inches
• Wire Size: AWG 4...250 kcmil
• Enclosure Material: Steel
• Operating Temperature: -5 degrees C to 40 degrees C
