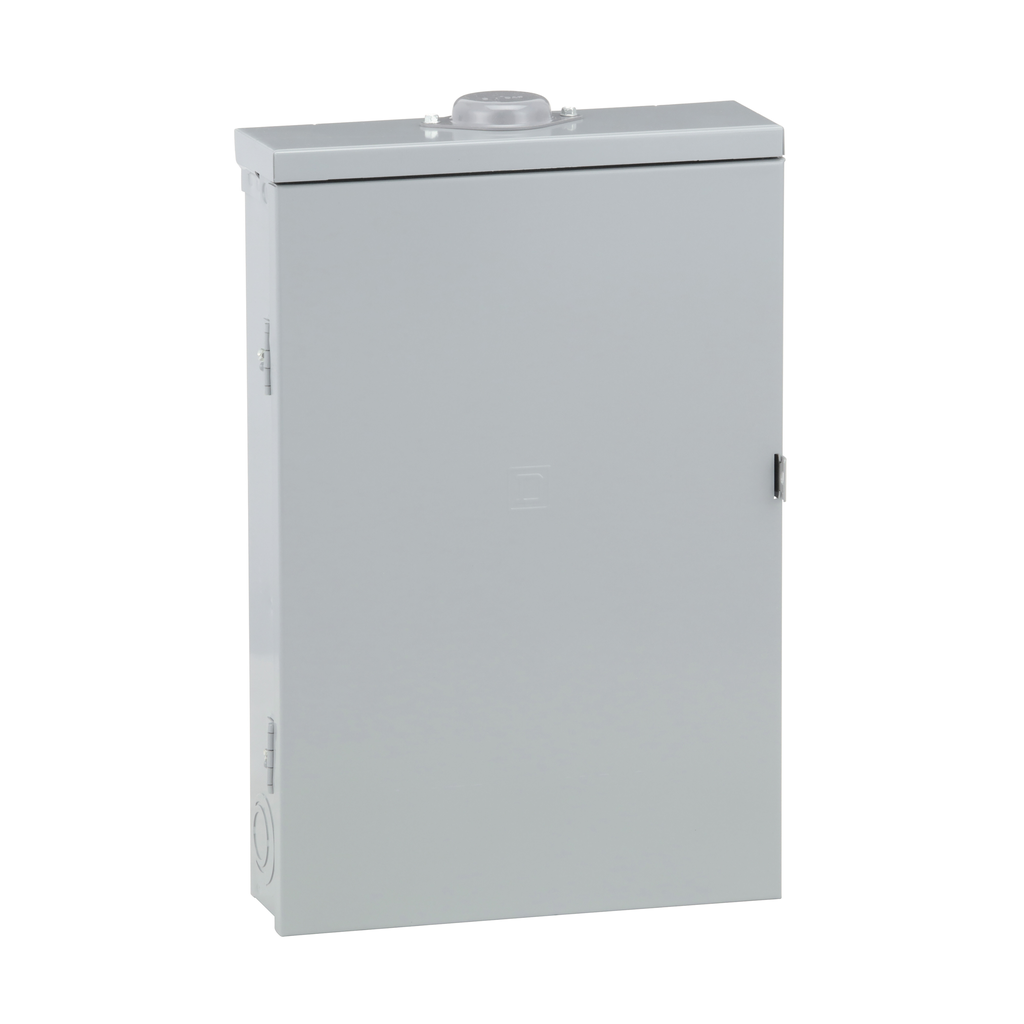

Square D HOM2040M100PRB Load Center 120/240 VAC 100 Amp NEMA 1 Load Center

Product Description

The Square D HOM2040M100PRB is a 120/240 VAC one-phase load center. It features 100 Amp capacity and comes with 20 spaces for circuit breakers. This load center is designed for residential and light industrial applications, providing essential protection for electrical systems. It is equipped with Homeline circuit breakers, ground fault circuit breakers, and arc fault interrupters. This load center supports a full range of accessories to fit various installation needs.

• Designed for residential and industrial applications.
• NEMA 3R rain proof enclosure.
• Provides a breaking capacity of 22 kA.

Product Highlights

The HOM2040M100PRB load center is suitable for indoor and outdoor use, protecting against rain. It includes convertible mains rated at 100A for 120/240 VAC. The product accommodates wire sizes from 6 AWG to 1 AWG copper and 6 AWG to 2/0 AWG aluminum.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOM2040M100PRB
• Voltage: 120/240 Volt
• Current: 100 Amp
• Number of Spaces: 20
• Depth: 4.52 inches
• Width: 14.76 inches
• Height: 22.04 inches
• Enclosure Material: Steel
