Square D HOM2040M100PQCVP Load Center 100 Amp 20-Space 40-Circuit

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: HOM2040M100PQCVP
Availability: Out Of Stock
$139.74
$139.74
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

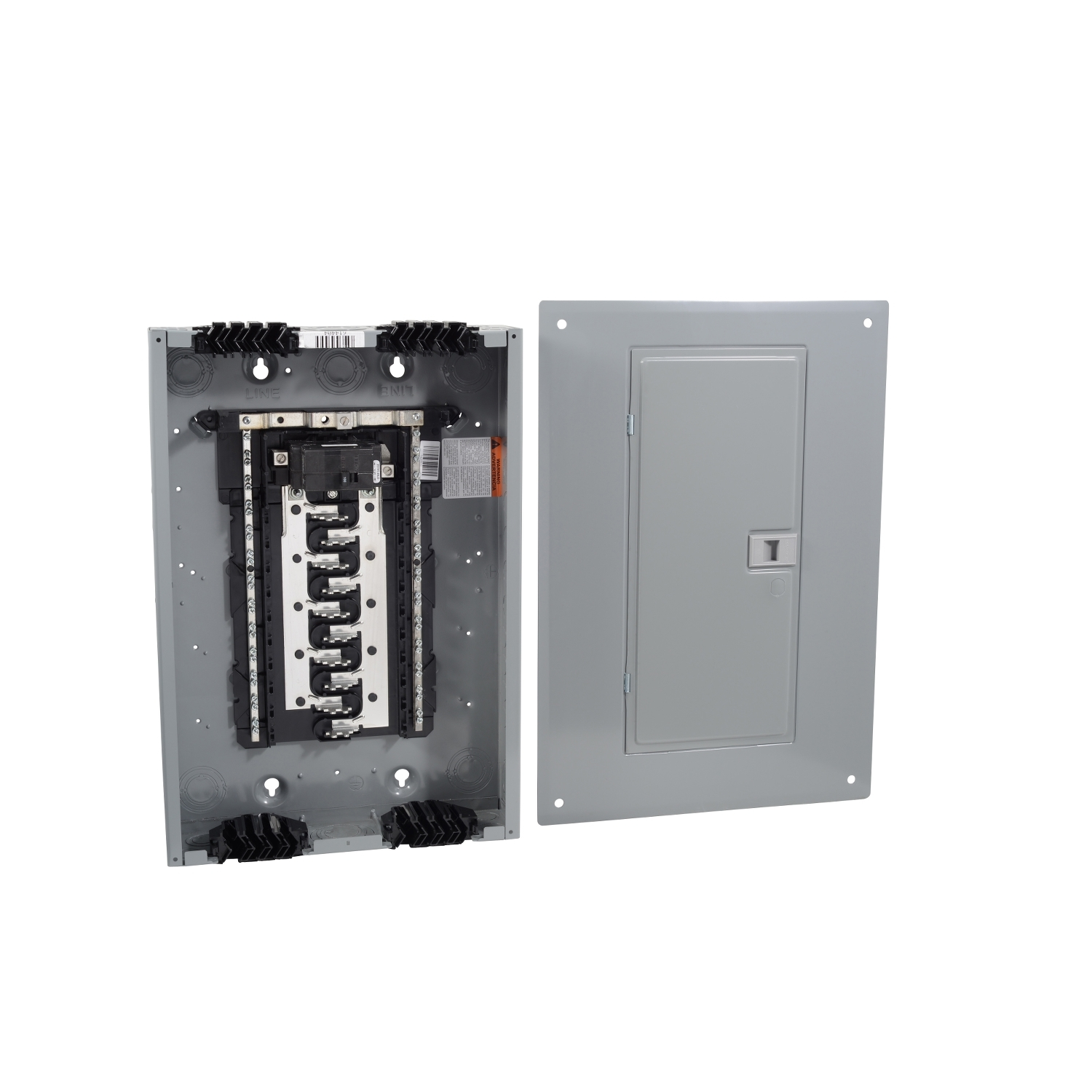

The Square D HOM2040M100PQCVP Homeline load center features Homeline circuit breakers, ground fault circuit breakers, and arc fault interrupters. Designed for residential and industrial use, this single phase system is rated for indoor use or rain proof. It has a two pole plug on neutral main supply circuit breaker rated at 100A 120/240 VAC.

  • Features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters
  • Designed for residential and industrial use

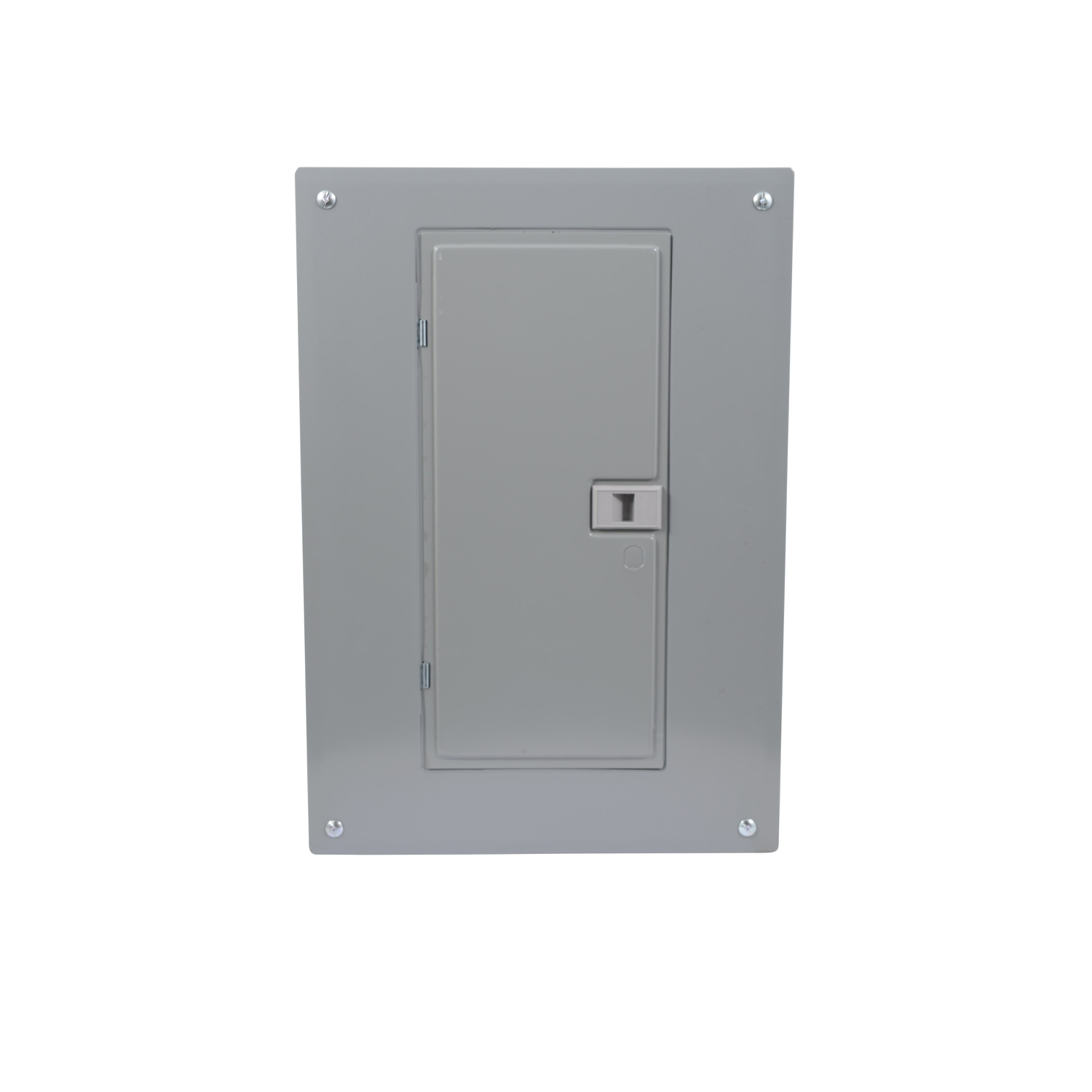

  • NEMA 1 indoor enclosure with combination flush/surface indoor cover

Product Highlights

This Homeline load center provides a 10 kA breaking capacity and has 20 spaces. It includes a Qwik grip assembly kit and box lug electrical connections.

Product Information

Standard Information

  • Brand: Square D
  • Manufacturer Part Number: HOM2040M100PQCVP
  • Country of Origin: United States
Technical Specifications
Catalog Number
HOM2040M100PQCVP
Type
Load Center
Brand
Square D
Depth
95 mm
Width
362 mm
Height
455 mm
Current
100 Amp
Voltage
120/240 Volt
Amperage
100 Amp
Enclosure
1
NEMA Size
1
Wire Size
AWG 6...AWG 2/0 aluminium;AWG 6...AWG 1 copper
Cable Size
AWG 6...AWG 2/0 ALUMINIUM-AWG 6...AWG 1 COPPER
Cover Type
Combination flush/surface cover
Product UPC
78590163934
12-Digit UPC
785901639343
Certifications
UL
Conductor Size
6-2/0 AWG (AL)/6-1 AWG (CU)
Surface Finish
Baked enamel Gray
Enclosure Rating
NEMA 1 indoor
Interrupt Rating
10 kAIC
Number of Phases
1 Phase
Number of Spaces
20
Country of Origin
USA
Enclosure Material
Steel
Line Rated Current
100 A
Number of Circuits
40
Operating Temperature
-5 degrees C || 40 degrees C
Short Circuit Current
10 kA
Manufacturer
Schneider Electric
Made in USA
Yes
UPC
785901639343
GTIN
00785901639343
Range Of Product
Homeline
Product Or Component Type
Load Center
Electrical Connection
lugs
Nema Degree Of Protection
NEMA 1 indoor enclosure
Load Center Type
PoN Convertible Mains (breaker)
Phase
1 phase 3 wires
[Ue] Rated Operational Voltage
120/240 V AC
Bus Rated Current
125.0 A
Short-Circuit Current
10 kA
Number Of Tandem Circuit Breakers
20
Awg Gauge
AWG 6...AWG 2/0 aluminium || AWG 6...AWG 1 copper
Device Composition
grounding bar (ordered separately)
Box Number
6
Ambient Air Temperature For Operation
-5 °C || 40 °C
Material
Aluminum
Phase Type
Single Phase
Mounting Style
Panel
Number of Gangs
20
