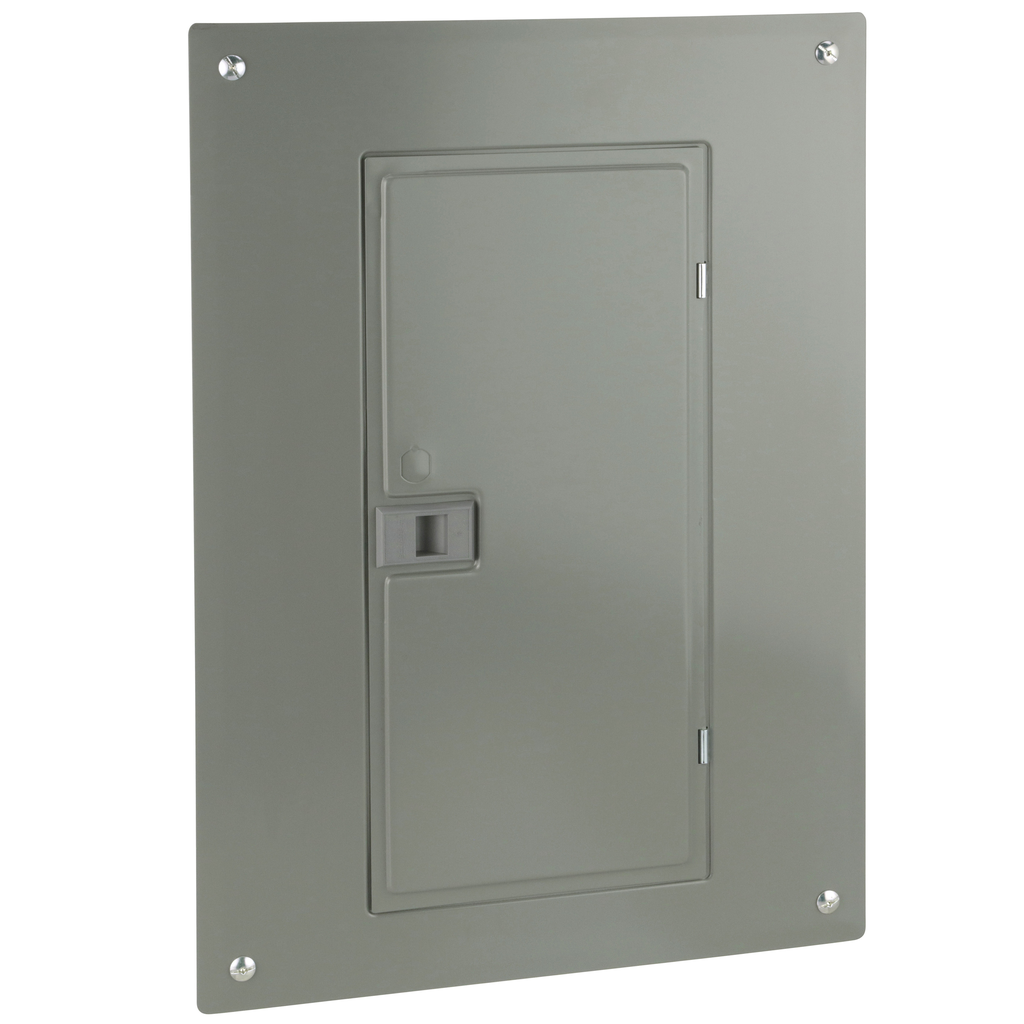

Square D HOM2040M100PC Load Center 100 Amp 20 Space 40 Circuit NEMA 1

Product Description

The Square D HOM2040M100PC is a load center designed for residential and light commercial applications. Rated at 100 Amps with a voltage of 120/240 VAC, this single-phase load center provides 20 spaces and can hold up to 40 circuits. It features a two-pole plug on neutral main supply circuit breaker rated for 100 Amps. The load center is UL Listed and offers a breaking capacity of twenty-two kA.

• Features a combination flush/surface cover for easy installation
• Enclosure is rated NEMA 1 for indoor applications
• Accepts wire sizes from 6 AWG to 1 AWG for copper and aluminum

Product Highlights

This load center provides reliable protection for electrical systems and equipment while accommodating a variety of circuit configurations.

Product Information

Standard Information

• Catalog Number: HOM2040M100PC
• Brand: Square D

Technical Specifications

• Rated Current: 100 Amps
• Voltage Rating: 120/240 VAC
• Number of Spaces: 20
• Number of Circuits: 40
• Enclosure Material: Welded sheet steel
• Surface Finish: Baked enamel gray
• Height: 20.9 inches
• Width: 14.25 inches
• Depth: 3.74 inches
