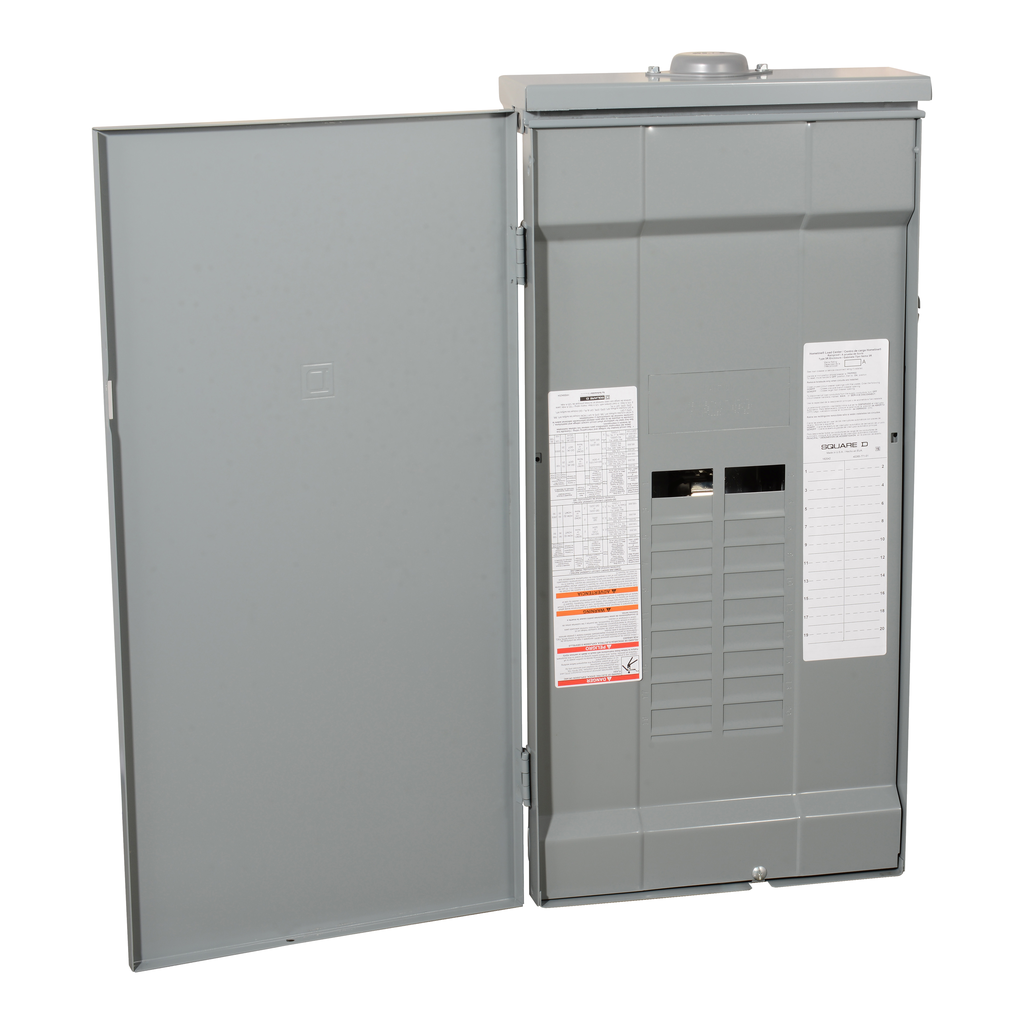

Square D HOM2040L225PRB Load Center 225 Amp 1 Phase 20 Space 40 Circuit NEMA 3R

Product Description

The Square D HOM2040L225PRB is a load center designed for residential and industrial applications. This unit operates on 120/240 VAC and has a maximum current rating of 225 Amps. It includes a NEMA 3R enclosure, providing weather-resistant protection, suitable for both indoor and outdoor installations.

• Provides 20 spaces for circuit breakers
• Accepts wire sizes from 4 AWG to 250 kcmil copper and 4 AWG to 300 kcmil aluminum
• Meets UL safety standards

Product Highlights

This load center is compatible with various accessories and includes features like ground fault circuit breakers and arc fault interrupters for enhanced safety.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Current: 225 Amp
• Voltage: 120/240 Volt
• Enclosure Type: NEMA 3R
• Number of Spaces: 20
• Depth: 4.52 inches
• Width: 14.76 inches
• Height: 29.84 inches
• Interrupt Rating: 10 kA
• Country of Origin: USA
