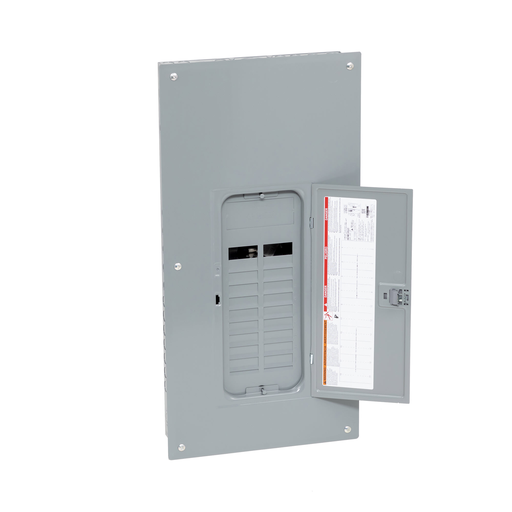

Square D HOM2040L225PGC Single-Phase Homeline Load Center 225A

Product Description

The Square D HOM2040L225PGC Homeline load center features Homeline circuit breakers, ground fault circuit breakers, and arc fault interrupters. Rated for single-phase systems, it's designed for residential and industrial use to protect electrical systems, equipment, and people. The load center is supplied with convertible mains rated at 225A 120/240 VAC and provides a 10 kA breaking capacity.

• Enables the use of a full complement of accessories.
• Provides 20 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover.
• Accepts wire range of 4 AWG to 250 kcmil copper or 4 AWG to 300 kcmil aluminum wire.

Product Highlights

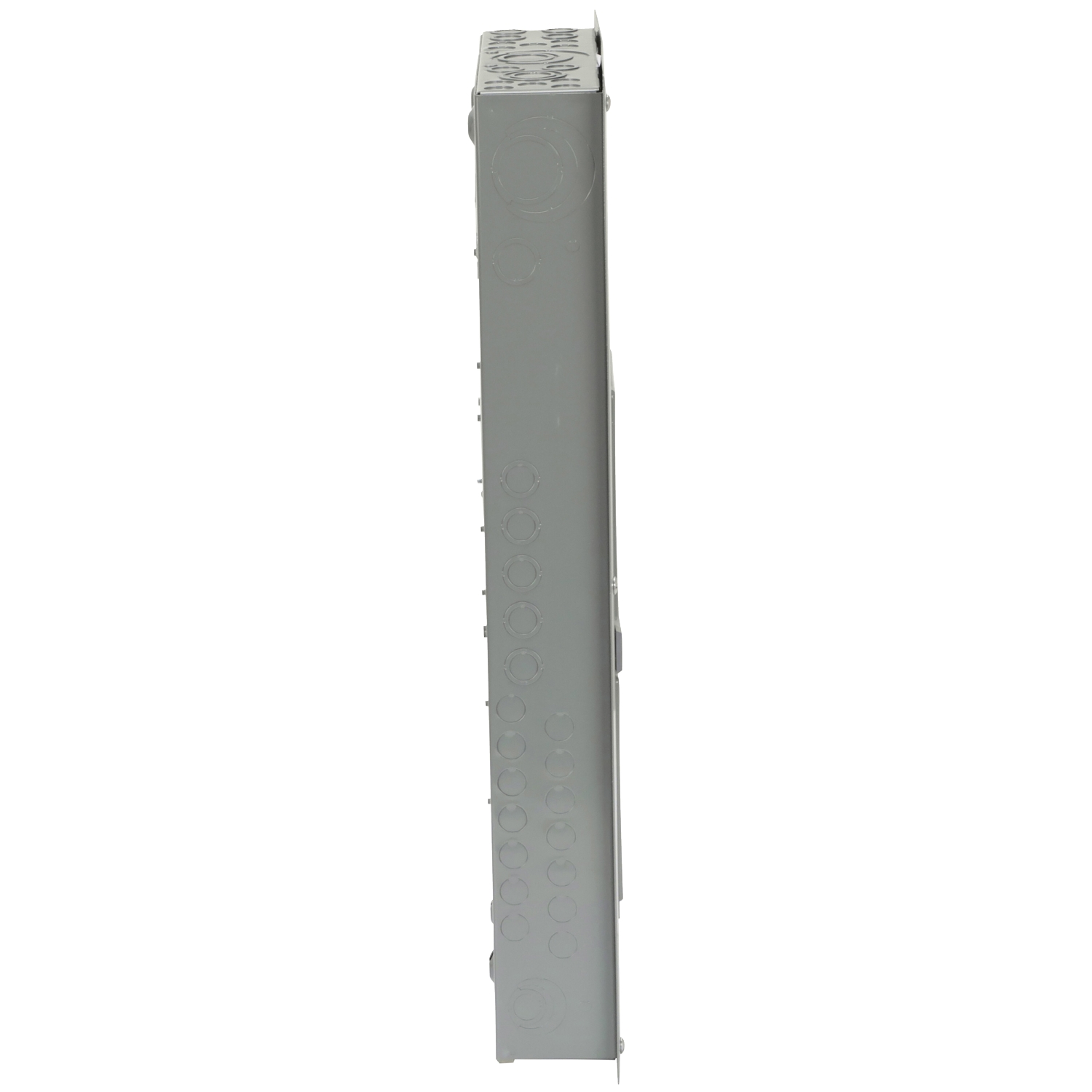

This Square D Homeline load center has a height of 29.84 inches, a width of 14.25 inches, and depth of 3.74 inches and is UL Listed.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: HOM2040L225PGC
• Country of Origin: United States

Technical Specifications

• Type: Convertible
• Depth: 3.74 Inches
• Phase: Single-Phase
• Width: 14.25 Inches
• Height: 29.84 Inches
• NEMA Rating: NEMA 1
• Voltage Rating: 120/240 VAC
• Amperage Rating: 225 Amperes
• Interrupt Rating: 10 Kiloamperes
• Number Of Spaces: 20
• Wiring Configuration: 3-Wire
• Number of Circuits: 40

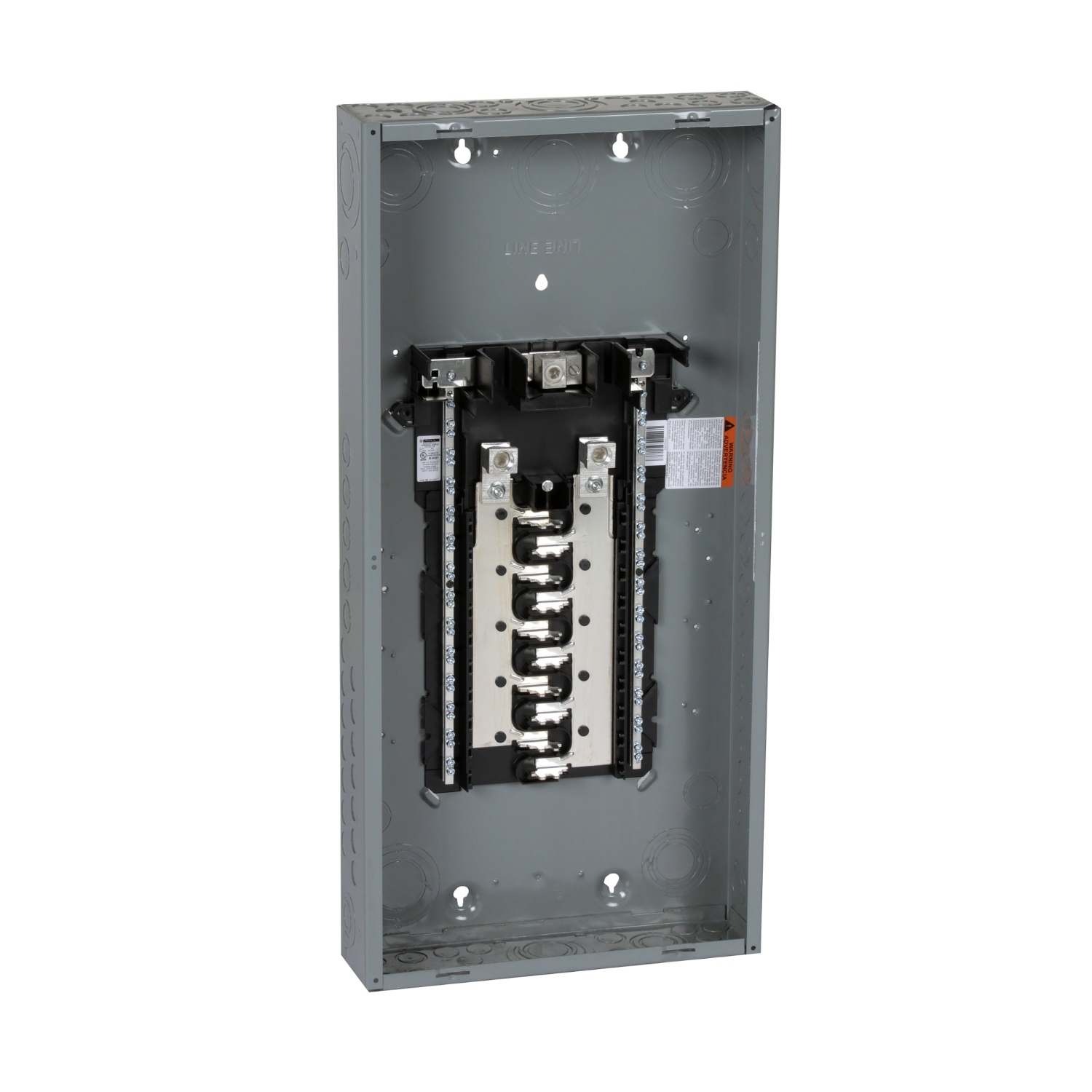

• Material: Tin Plated Aluminium: Busbar
• Enclosure Material: welded sheet steel
• Line Rated Current: 225 A
• Operating Temperature: 23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
• Short Circuit Current: 10 kA
• Enclosure: 1
• NEMA Size: 1
• Wire Size: AWG 4...250 kcmil copper;AWG 4...300 kcmil aluminium
• Cable Size: AWG 4...250 kcmil copper;AWG 4...300 kcmil aluminium

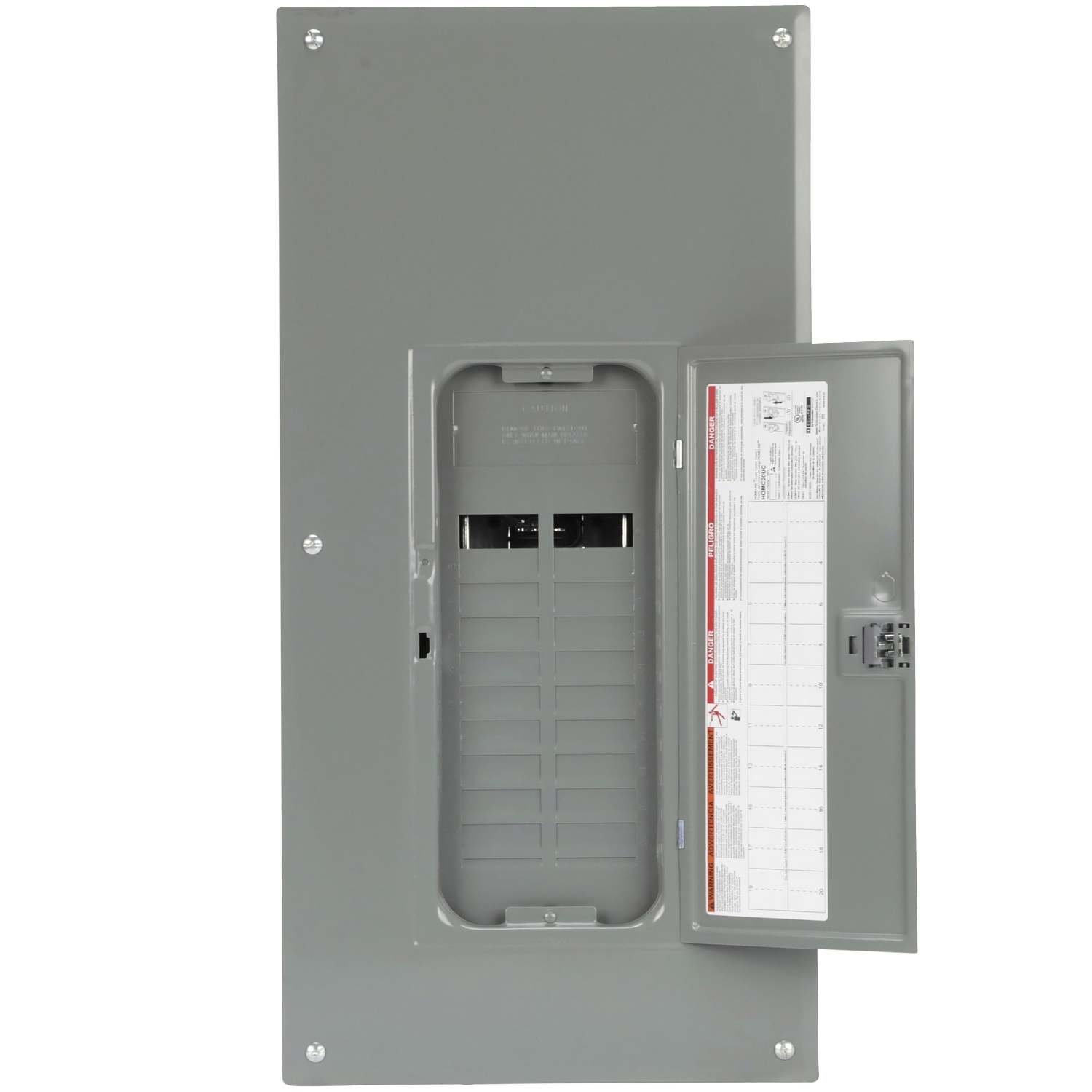

• Cover Type: Combination flush/surface cover
• Applications: DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
• Certifications: UL Listed File E-6294
• Conductor Size: 4 AWG-300 kcmil (AL)/4 AWG-250 kcmil (CU)
• Surface Finish: Baked enamel Gray
• Number of Phases: 1 Phase
• Bus Rating: TIN PLATED ALUMINIUM
• Current: 225 Amp
• Voltage: 120/240 Volt
• Electrical Connection: lugs
• Load Center Type: PoN Convertible Mains (lugs)
• [Ue] Rated Operational Voltage: 120/240 V AC
• Bus Rated Current: 225.0 A
• Short-Circuit Current: 10 kA
• Number Of Tandem Circuit Breakers: 20
• Awg Gauge: AWG 4...250 kcmil copper || AWG 4...300 kcmil aluminium
• Device Composition: grounding bar included (not installed)
• Box Number: 9
• Product Certifications: UL listed file E-6294
• Ambient Air Temperature For Operation: -5 °C || 40 °C
• Circuit Configuration: 1-Phase 3-Wire
• Maximum Number of Circuits: 40
• Maximum Number of Spaces: 20
• Breaker Mounting: Plug-On
• Neutral Type: Plug-On
• Bus Material: Tin Plated Aluminum
• Feed Location: Top/Bottom
• Main Wire Size: 6 AWG to 250 KCMIL (Copper), 6 AWG to 300 KCMIL (Aluminum)
• Enclosure Type: NEMA 1, Indoor
• Cover Finish: Gray Baked Enamel
• Max. Single Pole Circuits: 20
• Max. Tandem Circuits: 40
• Mains: Convertible
• Spaces: 20
• Enclosure NEMA Rating: NEMA 1 indoor
• Primary/Ambient Air Temp.: -5°C || 40°C
• Main Circuit Breaker or Main Lug: PoN Convertible Mains (lugs)
• Item: Homeline,LC,225 A,120/240 V,1 PH,ML
• Standards: UL listed file E-6294
• Ground Bar Kit: grounding bar included (not installed); grounding bar 1 )
• Amps: 225 A
• Brand: Square D
• Finish: Gray
• Sub Brand: HOMELINE
• Catalog Number: HOM2040L225PGC
• Enclosure Size Designation: 9
• Approval: UL
• Breaking Capacity: 10 kA
• Electrical Connections: Box lugs
• Wire Range (Copper): 4 AWG to 250 kcmil
• Wire Range (Aluminum): 4 AWG to 300 kcmil
• Grounding Bar: Yes
• Listing: UL Listed
• Product Or Component Type: Load Center
• Nema Degree Of Protection: NEMA 1 indoor enclosure
• Range Of Product: Homeline
• Special Features: Tin plated aluminium: busbar
• Item Type: Load Center
• Made in USA: Yes
