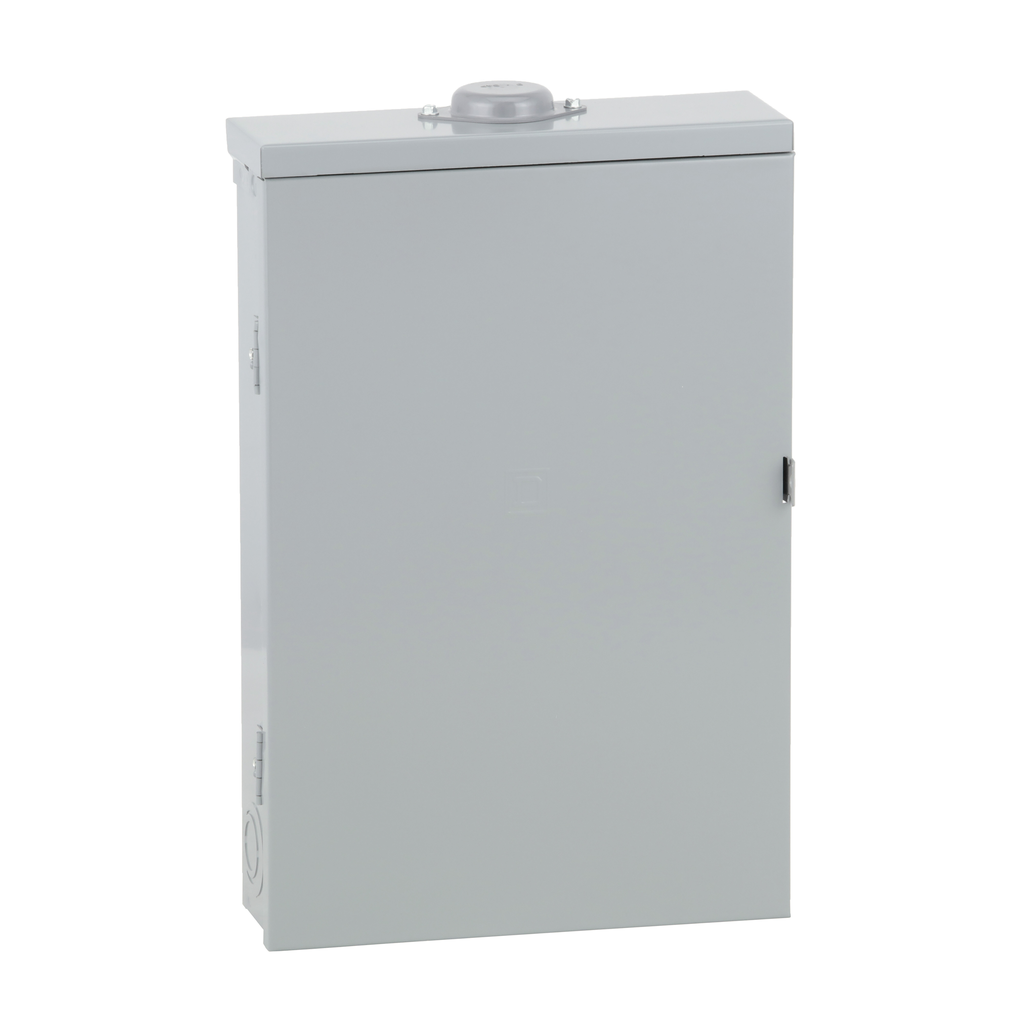

Square D HOM2040L125PRB Load Center 125 Amp 20-Space NEMA 3R

Product Description

Square D HOM2040L125PRB is a load center rated at 125 Amps and designed for 120/240 VAC, 1-phase systems. This load center includes a rainproof enclosure rated NEMA 3R and offers 20 spaces and 40 circuits. It is suitable for both residential and industrial applications, providing protection for electrical systems and equipment.

• UL Listed for safety and reliability
• Accepts wire sizes from AWG 6 to 2/0 for aluminum and AWG 6 to 1/0 for copper
• 10 kA interrupting capacity to ensure circuit protection

Product Highlights

This load center is designed with convertible mains rated at 125A, allowing for flexible installation options. It features box lugs for secure electrical connections and is built to protect inhabitants and equipment in various environments.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: HOM2040L125PRB
• Voltage: 120/240 Volt
• Current: 125 Amp
• Number of Circuits: 40
• Number of Spaces: 20
• Enclosure Type: NEMA 3R
• Height: 22.04 inches
• Width: 14.76 inches
• Depth: 4.52 inches
